CN211582496U - A health-care functional pillow for preventing and improving symptoms of cervical spondylosis - Google Patents

Abstract

The utility model discloses a health-care functional pillow for preventing and improving symptoms of cervical spondylosis, comprising: a pillow body, the pillow body comprises a buffer layer, a shell and a support layer, the buffer layer, the shell and the support layer are arranged in sequence from top to bottom and Fixed connection, the casing is provided with a through hole, a heat dissipation plate is fixed in the casing, and an interlayer is formed between the casing and the heat dissipation plate, a traditional Chinese medicine bag is detachably arranged in the interlayer, and an opening is formed on the two side walls of the casing. Connecting with the interlayer; refrigeration assembly, the refrigeration assembly is arranged on the heat dissipation plate and is fixedly connected to the heat dissipation plate; height adjustment mechanism, the height adjustment mechanism is disposed between the heat dissipation plate and the support layer, and is connected with the heat dissipation plate and the support layer; control assembly , the control assembly is arranged outside the pillow body, and is electrically connected with the refrigeration assembly. The health-care functional pillow has reasonable design, flexible structure, easy operation, rich functions, and adjustable height, which is beneficial for the user to maintain a comfortable posture of the head, neck and shoulders during use.

Description

A health-care functional pillow for preventing and improving symptoms of cervical spondylosis

technical field

The utility model relates to the technical field of health-care pillows, in particular to a health-care functional pillow for preventing and improving symptoms of cervical spondylosis.

Background technique

With the rapid development of society, people's life, study and work pressure are also increasing. In high-pressure and fast-paced work and life, various physical sub-health symptoms are becoming more and more prominent, especially long-term desk work Occupations such as office white-collar workers, drivers, teachers, etc., because of the need to maintain a posture for a long time during the work process, it is easy to cause the cervical spine and the surrounding lymphatic vessels, blood vessels, nerves, fascia, muscles and neck meridians to suffer to varying degrees. Injury, resulting in various cervical spine problems. After a day of work and study, people often do not have time to exercise and repair the neck due to fatigue. After lying down and sleeping, they still maintain a fixed posture to rest. If they use inappropriate needles, it will aggravate cervical vertebra disease.

At present, various health-care pillows have appeared on the market, aiming to help people to correct, adjust and repair cervical vertebra problems during sleep, but the pillows in the prior art have the same height regardless of whether they are lying on their backs or lying on their sides. This makes the pillow not only prop up the head, but also lift the neck, upper shoulders and upper chest together when a person is lying flat, which greatly reduces the comfort of people in sleep, and even increases Affects the health of the head, neck and spine. Moreover, the heights of the pillows that each person adapts to are different, and the heights of the existing health care pillows are mostly fixed, and a pillow suitable for each individual cannot be designed, which greatly limits the use range of the health care pillow.

Therefore, it is an urgent problem for those skilled in the art to provide a health-care functional pillow that can help people to maintain a comfortable posture of the head, neck and shoulders during the laying process, is convenient for height adjustment, and has a massage function to prevent and improve symptoms of cervical spondylosis.

SUMMARY OF THE INVENTION

In view of this, in order to solve the problems of single function and non-adjustable height of the health-care pillow in the prior art, the present invention provides a kind of pillow that can help people to maintain a comfortable posture of the head, neck and shoulders during the process of lying flat, is easy to adjust the height and has a massage function. A pillow for the prevention and improvement of cervical spondylosis symptoms.

In order to achieve the above purpose, the utility model adopts the following technical solutions:

A health functional pillow for preventing and improving symptoms of cervical spondylosis, including:

A pillow body, the pillow body includes a buffer layer, a shell and a support layer, the buffer layer, the shell and the support layer are arranged in sequence from top to bottom and are fixedly connected, and a through hole is opened on the shell , a heat dissipation plate is fixed in the casing, and an interlayer is formed between the casing and the heat dissipation plate, a traditional Chinese medicine bag is detachably arranged in the interlayer, and openings are formed on the two side walls of the casing, so the opening communicates with the interlayer;

a refrigeration assembly, which is arranged on the heat dissipation plate and is fixedly connected to the heat dissipation plate;

a height adjustment mechanism, the height adjustment mechanism is arranged between the heat dissipation plate and the support layer, and is connected with the heat dissipation plate and the support layer;

A control assembly is provided outside the pillow body, and the control assembly is electrically connected with the refrigeration assembly for controlling the refrigeration assembly.

As can be seen from the above technical solutions, compared with the prior art solutions, the present utility model discloses a health-care functional pillow for preventing and improving symptoms of cervical spondylosis. The temperature of the head is well dissipated. By arranging a detachable Chinese medicine bag between the shell and the heat dissipation plate, the health care drugs in the traditional Chinese medicine bag can pass through the through holes on the shell to the head and neck of the human body. Fumigation, and then realize the effect of promoting blood circulation and removing blood stasis, refreshing the brain, and activating the meridians and collaterals. By using the height adjustment mechanism, the height of the pillow can be adjusted freely, thereby meeting the needs of different groups of people for the height of the pillow. The utility model is a health-care functional pillow for preventing and improving symptoms of cervical spondylosis, which not only has reasonable design, flexible structure and convenient operation, but also has rich functions and adjustable height, which is beneficial for the user to maintain a comfortable posture of the head, neck and shoulders during use. , has a good market application prospect.

Further, the buffer layer has a slope-shaped protrusion, and the upper surface of the buffer layer is formed with a front neck and a back neck, the back neck is higher than the front neck, and the front neck is higher than the front neck. A physiotherapy area is formed on the upper part.

The beneficial effect of adopting the above technical solution is that when a person sleeps on the health-care functional pillow, the head and neck of the person will naturally turn outwards, which will play the role of slightly pulling the cervical vertebrae, so that the fatigued neck can be stretched and the qi and blood of the neck can be promoted. It runs, and its structure fits the curve of the human head and neck, which can meet people's regular sleeping position and maintain the physiological balance of the cervical spine, so as to achieve the cervical spine, muscles, fascia, nerves, blood vessels, lymphatics, and body fluids of the head and neck. The conditioning of the meridians of the head and neck will ultimately play a role in the health care of the head and neck and the prevention of cervical spondylosis.

Further, a positioning groove is formed in the physiotherapy area, a physiotherapy stone is embedded in the positioning groove, and a sealing net is also fixed on the surface of the physiotherapy area for sealing the physiotherapy stone in the sealing net to prevent its scattered.

The beneficial effects of the above technical solutions are that far infrared rays can be emitted to the neck of the human body, thereby regulating the function of the neck nerves, promoting blood circulation, and dredging the meridians of the head and neck. The curvature of the cervical spine has significant effects on promoting sleep, and at the same time, it can avoid arm numbness and stiff neck caused by the compression of the upper limbs when sleeping sideways, so that people's sleep quality is greatly improved.

Further, there are a plurality of the positioning grooves, and the plurality of the positioning grooves are evenly arranged in the physiotherapy area.

The beneficial effect produced by the above technical solution is that it can be combined with a physiotherapy stone to relieve neck muscle strain in an all-round way, soothe neck muscles, and promote blood circulation.

Further, the material used for the physiotherapy stone is one of tourmaline, medical stone or Guiyang stone.

The beneficial effects of the above-mentioned technical solutions are that the user's neck and shoulder muscle fatigue can be relieved, blood circulation can be promoted, and a certain massage effect can be provided.

Further, the material used for the buffer layer is one of latex pad or memory foam.

The beneficial effect of adopting the above technical scheme is that the comfort of the health-care functional pillow is improved, and at the same time, it has good air permeability.

Further, the center of the upper surface of the buffer layer is formed with a concave portion that is recessed downward, and the concave portion is arranged opposite to the refrigeration component, and a massage area is formed on both sides of the concave portion, and a massage area is formed on the massage area. Massage the bumps.

The beneficial effect of the above technical solution is that when the user is lying flat, a straight straight line can be formed between the head, the neck, shoulders and the chest, which is conducive to the full expansion of the human chest, is beneficial to health, and also It can make the sleeping posture of the user more comfortable, improve the sleeping quality, and at the same time, it has a good effect of correcting the hunchback for teenagers who are hunchback or quasi-hunchback due to poor sitting posture.

Further, there are multiple massage bumps, and the multiple massage bumps are evenly arranged on the massage area.

The beneficial effect of adopting the above technical solution is that it can not only play a certain massage role, but also improve the heat dissipation of the head, which is beneficial to human health.

Further, the material used for the massage bumps is one of silicone or rubber materials containing thermally conductive materials.

The beneficial effect of adopting the above technical scheme is that the health-care functional pillow has good heat dissipation function and massage function.

Further, the height adjustment mechanism includes an adjustment screw, an adjustment handle, an adjustment nut and an adjustment bracket, and the adjustment screw is arranged along the length direction of the pillow body and is arranged between the heat dissipation plate and the support layer. The adjusting handle is fixed on the protruding end of the adjusting screw, the adjusting nut is threadedly connected to the adjusting screw, one end of the adjusting bracket is hinged with the adjusting nut, and the other end is connected with the cooling plate or the adjusting screw. The supporting layers are connected, and the movement of the adjusting nut can be controlled by rotating the adjusting screw, thereby controlling the height of the adjusting bracket.

The beneficial effects of the above technical solutions are that the health-care functional pillow is flexible in structure, adjustable in height, and convenient in operation, which satisfies the height requirements of different groups of people and expands the use range of the pillow.

Further, the adjusting nuts and the adjusting brackets are each set in multiple groups, and connecting sleeves are also arranged between each group of the adjusting brackets, and both ends of the connecting sleeves are respectively connected with the adjacent two groups of the adjusting brackets.

The beneficial effect of adopting the above technical solution is that the overall height of the health-care functional pillow can be raised uniformly.

Description of drawings

In order to more clearly illustrate the embodiments of the present utility model or the technical solutions in the prior art, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description It is only an embodiment of the present invention, and for those of ordinary skill in the art, other drawings can also be obtained according to the provided drawings without creative efforts.

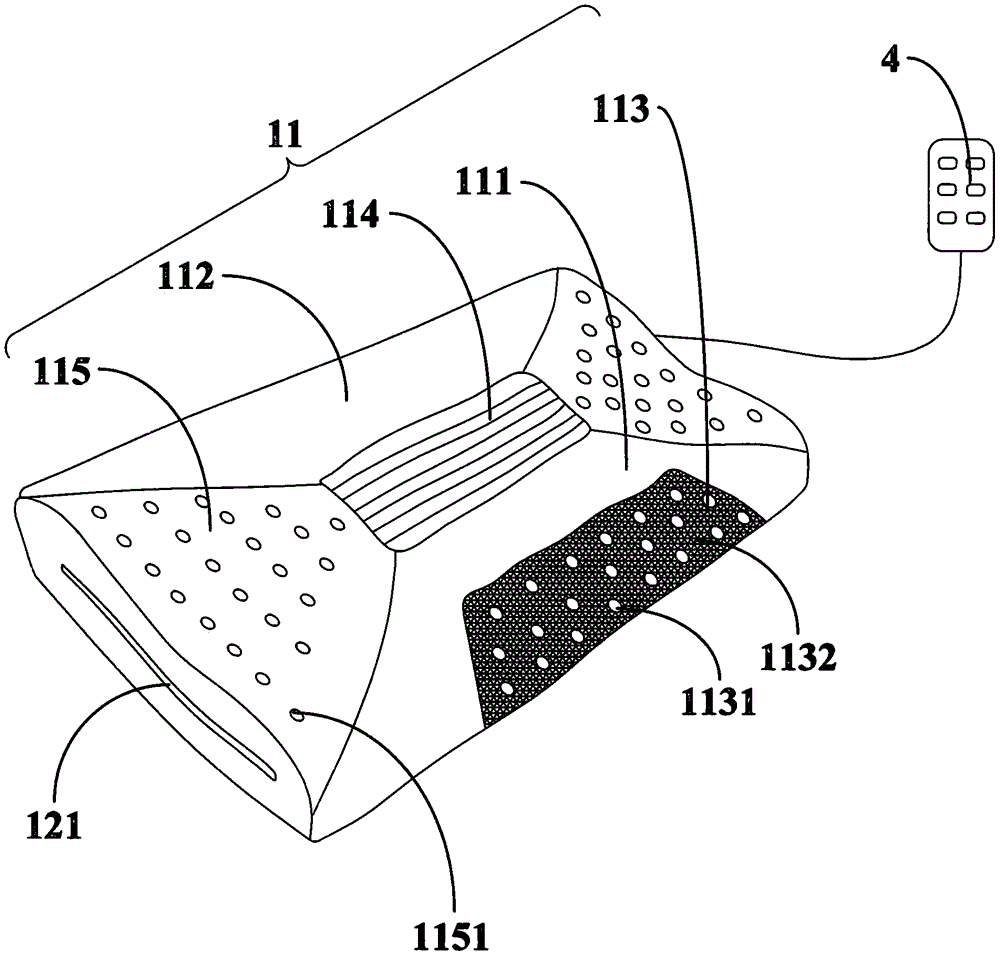

Fig. 1 accompanying drawing is the structural representation of a kind of health-care functional pillow for preventing and improving cervical spondylosis symptoms provided by the utility model;

Figure 2 accompanying drawing is a schematic structural diagram of a health-care function pillow for preventing and improving symptoms of cervical spondylosis provided by the utility model under another angle;

Figure 3 is a schematic structural diagram of a height adjustment mechanism in a health-care functional pillow for preventing and improving symptoms of cervical spondylosis provided by the utility model;

Figure 4 is a cross-sectional view of a pillow body in a health-care functional pillow for preventing and improving symptoms of cervical spondylosis provided by the utility model.

Among them: 1-pillow body, 11-buffer layer, 111-front neck, 112-back neck, 113-physiotherapy area, 1131-positioning groove, 1132-sealing net, 114-depression, 115-massage area, 1151 -Massage bump, 12-shell, 121-opening, 13-cooling plate, 14-support layer, 15-interlayer, 2-refrigeration assembly, 3-height adjustment mechanism, 31-adjustment screw, 32-adjustment handle, 33 - Adjusting Nut, 34- Adjusting Bracket, 35- Connecting Layer, 4- Control Assembly.

Detailed ways

The following describes in detail the embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein the same or similar reference numerals refer to the same or similar elements or elements having the same or similar functions throughout. The embodiments described below with reference to the accompanying drawings are exemplary, and are intended to be used to explain the present invention, but should not be construed as a limitation of the present invention.

In the description of the present invention, it should be understood that the terms "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top" , "bottom", "inside", "outside", etc. indicate the orientation or positional relationship based on the orientation or positional relationship shown in the accompanying drawings, only for the convenience of describing the present utility model and simplifying the description, rather than indicating or implying that A device or element must have a specific orientation, be constructed and operate in a specific orientation, and therefore should not be construed as a limitation of the present invention.

In addition, the terms "first" and "second" are only used for descriptive purposes, and should not be construed as indicating or implying relative importance or implying the number of indicated technical features. Thus, a feature defined as "first" or "second" may expressly or implicitly include one or more of that feature. In the description of the present invention, "plurality" means two or more, unless otherwise expressly and specifically defined.

In the present utility model, unless otherwise expressly specified and limited, the terms "installation", "connection", "connection", "fixed" and other terms should be understood in a broad sense, for example, it may be a fixed connection or a detachable connection Connection, or integration; it can be a mechanical connection or an electrical connection; it can be a direct connection or an indirect connection through an intermediate medium, and it can be the internal communication between the two elements or the interaction relationship between the two elements. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood according to specific situations.

In the present invention, unless otherwise expressly specified and limited, a first feature "on" or "under" a second feature may include the first and second features in direct contact, or may include the first and second features The features are not in direct contact but through additional features between them. Also, the first feature being "above", "over" and "above" the second feature includes the first feature being directly above and obliquely above the second feature, or simply means that the first feature is level higher than the second feature. The first feature is "below", "below" and "below" the second feature includes the first feature being directly below and diagonally below the second feature, or simply means that the first feature has a lower level than the second feature.

The utility model discloses a health-care functional pillow for preventing and improving symptoms of cervical spondylosis, comprising:

Pillow body 1. The pillow body 1 includes a buffer layer 11, a shell 12 and a support layer 14. The buffer layer 11, the shell 12 and the support layer 14 are arranged in order from top to bottom and are fixedly connected. The shell 12 is provided with a through hole. A heat dissipation plate 13 is fixed in the casing, and an interlayer 15 is formed between the casing 12 and the heat dissipation plate 13 . A traditional Chinese medicine bag is detachably arranged in the interlayer 15 , and openings 121 are formed on both side walls of the casing 12 . The openings 121 and the interlayer 15 through;

Refrigeration assembly 2, the refrigeration assembly 2 is arranged on the heat dissipation plate 13 and is fixedly connected to the heat dissipation plate 13;

height adjustment mechanism 3, the height adjustment mechanism 3 is arranged between the heat dissipation plate 13 and the support layer 14, and is connected with the heat dissipation plate 13 and the support layer 14;

The control assembly 4 is arranged outside the pillow body 1 , and the control assembly 4 is electrically connected with the refrigeration assembly 2 for controlling the refrigeration assembly 2 .

According to an optional embodiment of the present invention, the buffer layer 11 is convex in a slope shape, and a front neck 111 and a back neck 112 are formed on the upper surface of the buffer layer 11 , and the height of the back neck 112 is higher than that of the front neck 111 . , and a physiotherapy area 113 is formed on the front neck 111. When a person sleeps on the health-care functional pillow, his head and neck will naturally turn outwards, which will play a role of slightly pulling the cervical vertebrae, so that the fatigued neck can be stretched and the neck can be improved. The qi and blood of the head and neck run, and its structure fits the curve of the head and neck of the human body, which can meet people's regular sleeping position and maintain the physiological balance of the cervical spine, so as to achieve the cervical spine, muscles, fascia, nerves, blood vessels, and lymphatic vessels of the head and neck. , body fluids and the conditioning of the meridians of the head and neck, and ultimately play a role in the health of the head and neck, and the prevention of cervical spondylosis.

According to an optional embodiment of the present invention, a positioning groove 1131 is formed in the physiotherapy area 113, a physiotherapy stone is embedded in the positioning groove 1131, and a sealing net 1132 is also fixed on the surface of the physiotherapy area 113 for sealing the physiotherapy stone in the seal The net 1132 prevents it from escaping, so it can emit far infrared rays to the neck of the human body, regulate the nerve function of the neck, promote blood circulation, and dredge the meridians of the head and neck. It has a significant effect on improving sleep stability and promoting sleep, and at the same time, it can avoid arm numbness and stiff neck caused by upper limb compression when sleeping sideways, so that people's sleep quality is greatly improved.

According to an optional embodiment of the present invention, there are multiple positioning grooves 1131, and the multiple positioning grooves 1131 are evenly arranged in the physiotherapy area 113, so that the physiotherapy stone can be used to relieve neck muscle strain and relieve neck muscles in an all-round way. Promote blood circulation.

According to an optional embodiment of the present invention, the material used for the physiotherapy stone is medical stone particles, which can relieve the user's neck and shoulder muscle fatigue, promote blood circulation, and have a certain massage effect.

According to an optional embodiment of the present invention, the material used for the buffer layer 11 is a latex pad, so that the comfort of the health-care functional pillow can be improved, and at the same time, it has good air permeability.

According to an optional embodiment of the present invention, the center of the upper surface of the buffer layer 11 is formed with a concave portion 114 that is recessed downward, and the concave portion 114 is arranged opposite to the refrigeration component 2 , and massage areas 115 are formed on both sides of the concave portion 114. The massage bumps 1151 are formed on the area 115, so that the user can keep a straight line between the head, the neck, shoulders and the chest when the user is lying down, which is beneficial to the full expansion of the human chest and is beneficial to health. It can also make the sleeping posture of the user more comfortable, improve the sleep quality, and at the same time, it has a good effect of correcting the hunchback for teenagers who have a hunchback or a quasi-hunchback due to poor sitting posture.

According to an optional embodiment of the present invention, there are a plurality of massage bumps 1151, and the plurality of massage bumps 1151 are evenly arranged on the massage area 115, so as to not only have a certain massage effect, but also improve the heat dissipation of the head, Beneficial to human health.

According to an optional embodiment of the present invention, the material used for the massage bumps is a rubber material containing thermally conductive materials, so that the health-care functional pillow has a good heat dissipation function and massage function.

According to an optional embodiment of the present invention, the height adjustment mechanism 3 includes an adjustment screw 31 , an adjustment handle 32 , an adjustment nut 33 and an adjustment bracket 34 . The adjustment screw 31 is arranged along the length of the pillow body 1 and is provided on the heat sink 13 and Between the support layers 14, the adjustment handle 32 is fixed on the extending end of the adjustment screw 31, the adjustment nut 33 is threadedly connected to the adjustment screw 31, one end of the adjustment bracket 34 is hinged with the adjustment nut 33, and the other end is connected with the heat sink 13 or the support layer 14 is connected, and the movement of the adjusting nut 33 can be controlled by rotating the adjusting screw 31, and then the height of the adjusting bracket 34 can be controlled, so that the health-care functional pillow has a flexible structure, adjustable height, convenient operation, and meets the needs of different groups of people for the height of the pillow, Expanded the use of pillows.

According to an optional embodiment of the present invention, the adjusting nuts 33 and the adjusting brackets 34 are each set in multiple groups, and connecting sleeves 35 are further provided between each group of adjusting brackets 34, and the two ends of the connecting sleeves 35 are respectively adjusted to the adjacent two groups. The brackets 34 are connected, so that the overall height of the health-care functional pillow can be raised uniformly.

The utility model is a health-care functional pillow for preventing and improving symptoms of cervical spondylosis. By using the heat-dissipating plate and the refrigeration component in the pillow body, good heat dissipation can be achieved for the temperature of the human head. A detachable Chinese medicine bag is arranged, so that the health care medicine in the Chinese medicine bag can fumigate the head and neck of the human body well through the through holes on the shell, thereby realizing the effects of promoting blood circulation and removing blood stasis, refreshing the brain and resting the mind, and activating the meridians and collaterals. , By using the height adjustment mechanism, the height of the pillow can be adjusted freely, thereby meeting the needs of different groups of people for the height of the pillow. The health-care functional pillow not only has reasonable design, flexible structure and easy operation, but also has rich functions and adjustable height, which is beneficial for the user to maintain a comfortable posture of the head, neck and shoulders during use, and has a good market application prospect.

In the description of this specification, description with reference to the terms "one embodiment," "some embodiments," "example," "specific example," or "some examples", etc., mean specific features described in connection with the embodiment or example , structure, material or feature is included in at least one embodiment or example of the present invention. In this specification, schematic representations of the above terms are not necessarily directed to the same embodiment or example. Furthermore, the particular features, structures, materials or characteristics described may be combined in any suitable manner in any one or more embodiments or examples. Furthermore, those skilled in the art may combine and combine the different embodiments or examples described in this specification.

Although the embodiments of the present invention have been shown and described above, it should be understood that the above embodiments are exemplary and should not be construed as limitations of the present invention, and those of ordinary skill in the art are within the scope of the present invention Variations, modifications, substitutions and variations can be made to the above-described embodiments.

Claims (10)

1. A health-care functional pillow for preventing and improving cervical spondylosis symptoms is characterized by comprising:

the pillow comprises a pillow body (1), wherein the pillow body (1) comprises a buffer layer (11), a shell (12) and a supporting layer (14), the buffer layer (11), the shell (12) and the supporting layer (14) are sequentially arranged from top to bottom and are fixedly connected, a through hole is formed in the shell (12), a heat dissipation plate (13) is fixed in the shell, an interlayer (15) is formed between the shell (12) and the heat dissipation plate (13), a traditional Chinese medicine bag is detachably arranged in the interlayer (15), openings (121) are formed in two side walls of the shell (12), and the openings (121) are communicated with the interlayer (15);

the refrigeration assembly (2) is arranged on the heat dissipation plate (13) and is fixedly connected with the heat dissipation plate (13);

the height adjusting mechanism (3) is arranged between the heat dissipation plate (13) and the supporting layer (14), and is connected with the heat dissipation plate (13) and the supporting layer (14);

the control assembly (4) is arranged outside the pillow body (1), and the control assembly (4) is electrically connected with the refrigeration assembly (2) and used for controlling the refrigeration assembly (2).

2. The health-care functional pillow for preventing and improving symptoms of cervical spondylosis as claimed in claim 1, wherein the cushioning layer (11) is protruded in a slope shape, and a front neck (111) and a rear neck (112) are formed on the upper surface of the cushioning layer (11), the rear neck (112) is higher than the front neck (111), and a physical therapy region (113) is formed on the front neck (111).

3. The pillow of claim 2, wherein a positioning groove (1131) is formed in the physiotherapy region (113), a physiotherapy stone is embedded in the positioning groove (1131), and a sealing net (1132) is further fixed on the surface of the physiotherapy region (113) for sealing the physiotherapy stone in the sealing net (1132) to prevent the physiotherapy stone from scattering out.

4. The functional pillow for preventing and improving symptoms of cervical spondylosis as claimed in claim 3, wherein the number of the positioning grooves (1131) is plural, and the plural positioning grooves (1131) are uniformly arranged in the therapy region (113).

5. The functional pillow of claim 3, wherein the physiotherapeutic stone is tourmaline, maifanite or Guiyang stone.

6. The health-care functional pillow for preventing and improving symptoms of cervical spondylosis as claimed in any one of claims 1 to 5, wherein the cushioning layer (11) is made of one of a latex pad or memory foam.

7. The pillow having health function of preventing and improving symptoms of cervical spondylosis as claimed in claim 1, wherein a recess 114 is formed at the center of the upper surface of the cushioning layer 11 to be downwardly recessed, and the recess 114 is disposed opposite to the cooling module 2, and massage areas 115 are formed at both sides of the recess 114, and massage protrusions 1151 are formed on the massage areas 115.

8. The pillow of claim 7, wherein the plurality of the massage protrusions (1151) are formed, and the plurality of the massage protrusions (1151) are uniformly formed on the massage region (115).

9. The health-care functional pillow for preventing and improving symptoms of cervical spondylosis as claimed in claim 1, wherein the height adjustment mechanism (3) comprises an adjustment screw (31), an adjustment handle (32), an adjustment nut (33) and an adjustment bracket (34), the adjustment screw (31) is disposed along the length direction of the pillow body (1) and is disposed between the heat dissipation plate (13) and the support layer (14), the adjustment handle (32) is fixed to the extending end of the adjustment screw (31), the adjustment nut (33) is threadedly coupled to the adjustment screw (31), one end of the adjustment bracket (34) is hinged to the adjustment nut (33), the other end is coupled to the heat dissipation plate (13) or the support layer (14), and the movement of the adjustment nut (33) can be controlled by rotating the adjustment screw (31), thereby controlling the height of the adjusting bracket (34).

10. The health-care functional pillow for preventing and improving symptoms of cervical spondylosis as claimed in claim 9, wherein the adjusting nuts (33) and the adjusting brackets (34) are all in multiple groups, a connecting sleeve (35) is further arranged between each group of adjusting brackets (34), and two ends of the connecting sleeve (35) are respectively connected with two adjacent groups of adjusting brackets (34).
