Abstract

The utility model discloses a structure for integrated installation of wireless communication equipment, which comprises an outer box body, a support rod, a support plate and a support frame. Two sides of the body are fixedly connected with support rods, both sides and inside of the outer box body are provided with mounting and fixing structures, and a support plate is fixedly connected at a middle position inside the outer box body. A structure for the integrated installation of wireless communication equipment. By arranging a bottom plate, a fixing groove, a through hole, a water-absorbing cotton, a water-absorbing hole and water-absorbing particles in sequence inside the moisture-proof structure, when in use, the moisture in the air inside the outer box will be removed. Absorbed by the water-absorbing cotton, the water absorbed by the water-absorbing cotton will enter the water-absorbing hole through the through hole due to the action of gravity, and then be absorbed by the water-absorbing particles inside the water-absorbing hole. It is convenient to use the device.

Description

A structure for integrated installation of wireless communication equipment

technical field

The utility model relates to the technical field of wireless communication, in particular to a structure for integrated installation of wireless communication equipment.

Background technique

With the advancement of science and technology, wireless communication technology has gradually replaced wired communication technology. Wireless communication has the advantages of not being limited by the length of the wire, and easy to install. Among them, wireless communication network equipment greatly facilitates the popularization of the network, usually for the convenience of installation and installation. For storage, the components of the wireless communication network equipment need to be integrated inside an installation box.

The traditional integrated installation structure of wireless communication equipment has no moisture-proof structure. After long-term use, the interior is easily affected by moisture, which is inconvenient to install and fix the communication equipment. It cannot meet the needs of use. There is no heat dissipation mechanism. It is easy to heat up, which can cause damage to internal components and reduce the service life of the device.

Utility model content

The purpose of the present invention is to provide a structure for integrated installation of wireless communication equipment, so as to solve the problems raised in the above-mentioned background art.

To achieve the above object, the utility model provides the following technical solutions:

A structure for integrated installation of wireless communication equipment, comprising an outer box body, a support rod, a support plate and a support frame, a moisture-proof structure is arranged at the middle position of the bottom end inside the outer box body, and both sides of the outer box body are fixed A support rod is connected, a support frame is arranged inside the support rod, a mounting and fixing structure is provided on both sides and inside of the outer box body, and a support plate is fixedly connected at the middle position inside the outer box body, so The top end of the outer box is provided with a heat dissipation mechanism.

Preferably, the interior of the moisture-proof structure is provided with a bottom plate, a fixing groove, a through hole, a water-absorbing cotton, a water-absorbing hole and water-absorbing particles in sequence, the bottom plate is fixedly connected to the bottom end inside the outer box, and the top of the bottom plate is uniformly arranged inside There are water-absorbing holes, and water-absorbing particles are arranged inside the water-absorbing holes, a fixing groove is arranged at the top of the bottom plate, and a water-absorbing cotton is arranged inside the fixing groove.

Preferably, the bottom end of the fixing groove is evenly provided with through holes, and there is a one-to-one correspondence between the through holes and the water absorption holes.

Preferably, a mounting plate, mounting holes, mounting bolts, a hoop, a fixing bolt and a fixing hole are arranged in the inside of the mounting and fixing structure in sequence, and the mounting plates are respectively fixed and connected on both sides of the outer box, and the mounting plates are The inside is provided with mounting holes, the inside of the mounting holes are provided with mounting bolts, the hoop is arranged on the top end of the support plate, the two sides of the hoop are provided with fixing bolts, and the fixing holes are respectively arranged on the support plate. inside of the board.

Preferably, the inside of the mounting hole is provided with an internal thread matched with the mounting bolt, and the inside of the fixing hole is provided with an internal thread matched with the fixed bolt.

Preferably, the interior of the heat dissipation mechanism is sequentially provided with a heat dissipation box, a heat conduction hole, a support rod, a heat dissipation fan, an air filter screen, a card block and a card slot, and the heat dissipation box is arranged at the top of the outer box body. A support rod is fixedly connected inside, and one end of the support rod is evenly provided with a cooling fan, one end of the heat dissipation box is provided with an air filter, and both ends of the heat dissipation box are fixedly connected with a clamping block, and the clamping slots are respectively It is fixedly connected to both sides of the top of the outer box.

Preferably, the heat conduction holes are evenly arranged inside the top end of the outer box body, and the heat conduction holes are arranged at equal intervals at the top end of the outer box body.

Preferably, the length and width of the clamping block are both smaller than the length and width of the clamping slot, the clamping block is embedded in the interior of the clamping slot, and a clamping structure is formed between the clamping block and the clamping slot.

Compared with the prior art, the beneficial effects of the present utility model are:

1. A structure for integrated installation of wireless communication equipment. By arranging a bottom plate, a fixing groove, a through hole, a water-absorbing cotton, a water-absorbing hole and a water-absorbing particle in sequence inside the moisture-proof structure, when in use, the moisture in the air inside the outer box is reduced. It will be absorbed by the water-absorbing cotton, and the water absorbed by the water-absorbing cotton will enter the water-absorbing hole through the through hole due to the action of gravity, and then be absorbed by the water-absorbing particles inside the water-absorbing hole. The large one facilitates the use of the equipment;

2. A structure for integrated installation of wireless communication equipment. By setting the installation plate, installation holes, installation bolts, hoops, fixing bolts and fixing holes in sequence inside the installation and fixing structure, when in use, the internal components of the communication equipment are placed. On the support plate, then fix the hoop through the fixing bolts and the fixing holes respectively, so that the hoop can fix the internal components, which can make good use of the space inside the outer box, and then pass the mounting plate through the mounting holes. It is fixed and installed at the required position with the mounting bolts, so that it is convenient to fix the whole device, so as to facilitate the installation of the device;

3. A structure for the integrated installation of wireless communication equipment. By arranging a heat dissipation box, a heat conduction hole, a support rod, a heat dissipation fan, an air filter, a card block and a card slot in sequence inside the heat dissipation mechanism, when in use, the outer box is The heat generated by the internal work will be conducted to the inside of the heat dissipation box through the heat conduction holes, and the heat entering the heat dissipation box will be discharged through the heat dissipation fan, so that the heat dissipation effect can be achieved, and the air filter can prevent the impurities in the air from entering the outer box. Inside, the engaging structure formed by the card block and the card slot can facilitate the disassembly and repair of the cooling box, which can prevent the internal components from being damaged due to the high internal temperature of the outer box, which greatly facilitates the use of the device.

Description of drawings

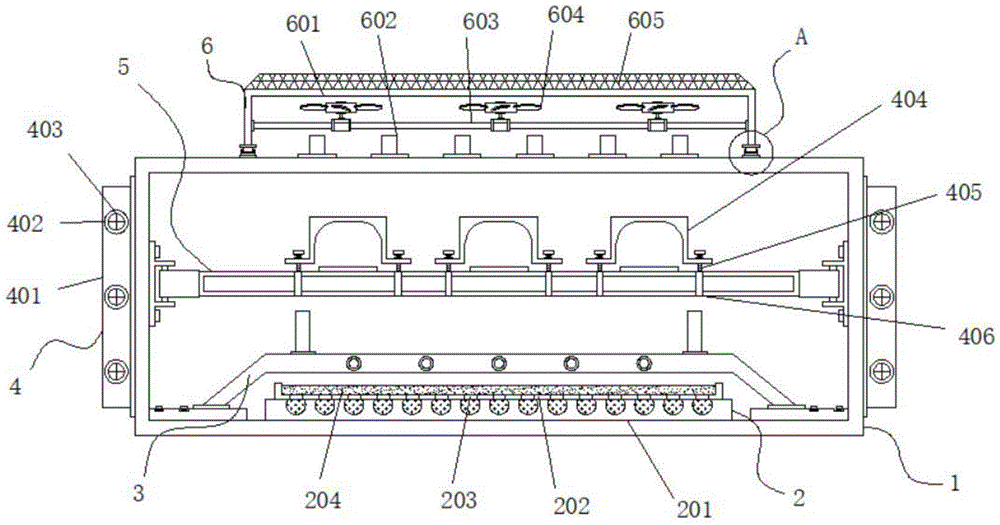

FIG. 1 is a schematic view of the front cross-sectional structure of a structure for integrated installation of wireless communication equipment;

FIG. 2 is a schematic view of a partial cross-sectional enlarged structural schematic diagram of a waterproof structure in a top view of a structure for integrated installation of wireless communication equipment;

3 is a schematic top view of a support frame of a structure in which wireless communication equipment is integrated and installed;

4 is a schematic side view of a partial cross-sectional structure diagram of an installation and fixing structure of an integrated installation structure of a wireless communication device;

FIG. 5 is a schematic diagram of a partial cross-sectional structure at A in FIG. 1 of a structure for integrated installation of a wireless communication device.

In the figure: 1. Outer box; 2. Moisture-proof structure; 201, Bottom plate; 202, Fixing groove; 203, Through hole; 204, Water-absorbing cotton; 205, Water-absorbing hole; Installation and fixing structure; 401, mounting plate; 402, mounting hole; 403, mounting bolt; 404, hoop; 405, fixing bolt; 406, fixing hole; 5, supporting plate; 6, cooling mechanism; 601, cooling box; 602 , heat conduction hole; 603, support rod; 604, cooling fan; 605, air filter; 606, card block; 607, card slot; 7, support frame.

Detailed ways

The technical solution of the present patent will be described in further detail below in conjunction with specific embodiments.

Please refer to Figures 1-5, a structure for integrated installation of wireless communication equipment, including an outer box body 1, a support rod 3, a support plate 5 and a support frame 7, and a moisture-proof structure is provided at the middle position of the bottom end inside the outer box body 1 2. Support rods 3 are fixedly connected to both sides of the outer box body 1, a support frame 7 is arranged inside the support rod 3, and mounting and fixing structures 4 are arranged on both sides and inside of the outer box body 1. A support plate 5 is fixedly connected at the middle position, and a heat dissipation mechanism 6 is provided at the top of the outer box body 1 .

Further, the interior of the moisture-proof structure 2 is sequentially provided with a bottom plate 201, a fixing groove 202, a through hole 203, a water-absorbing cotton 204, a water-absorbing hole 205 and water-absorbing particles 206. There are water-absorbing holes 205 evenly arranged inside the water-absorbing holes 205, water-absorbing particles 206 are arranged inside the water-absorbing holes 205, a fixing groove 202 is arranged at the top of the bottom plate 201, and a water-absorbing cotton 204 is arranged inside the fixing groove 202, which can effectively prevent the inside of the equipment from getting damp, As a result, the internal humidity is relatively large, which affects the use of the device.

Further, the bottom end of the fixing groove 202 is evenly provided with through holes 203, and the through holes 203 and the water absorption holes 205 correspond one-to-one, so that the moisture in the air inside the device can be collected to ensure the normal use of the device.

Further, a mounting plate 401, mounting holes 402, mounting bolts 403, hoop 404, mounting bolts 405 and mounting holes 406 are arranged in the interior of the mounting and fixing structure 4 in sequence, and the mounting plates 401 are respectively fixed and connected on both sides of the outer box 1, The inside of the mounting plate 401 is provided with mounting holes 402, the inside of the mounting holes 402 is provided with mounting bolts 403, the hoop 404 is arranged on the top of the support plate 5, the two sides of the hoop 404 are provided with fixing bolts 405, and the fixing holes 406 are respectively Correspondingly arranged inside the support plate 5, it is convenient to fix the internal components of the equipment, rationally use the space, reduce the volume of the equipment, and facilitate the overall installation of the equipment, which is very convenient to use.

Further, the inside of the mounting hole 402 is provided with an internal thread matched with the mounting bolt 403, and the inside of the fixed hole 406 is provided with an internal thread matched with the fixed bolt 405, which can facilitate the fixing and installation of the device, and the operation is simple and convenient. use.

Further, the interior of the heat dissipation mechanism 6 is sequentially provided with a heat dissipation box 601 , a heat conduction hole 602 , a support rod 603 , a heat dissipation fan 604 , an air filter 605 , a clamping block 606 and a clamping slot 607 , and the heat dissipation box 601 is arranged on the top of the outer box 1 . The inside of the heat dissipation box 601 is fixedly connected with a support rod 603, one end of the support rod 603 is evenly provided with a cooling fan 604, the model of the cooling fan 604 can be XD12025, one end of the heat dissipation box 601 is provided with an air filter 605, and the heat dissipation box 601 The two ends of the device are fixedly connected with the card blocks 606, and the card slots 607 are fixedly connected to the two sides of the top of the outer box 1, so that the heat generated during the operation of the device can be discharged in time, to prevent the internal components of the device from being damaged by heat, and to prolong the service life of the device .

Further, the heat conduction holes 602 are evenly arranged inside the top of the outer box 1 , and the heat conduction holes 602 are arranged at equal intervals at the top of the outer box 1 , which can facilitate heat dissipation and meet requirements.

Further, the length and width of the card block 606 are both smaller than the length and width of the card slot 607, the card block 606 is embedded in the card slot 607, and the card block 606 and the card slot 607 form an engaging structure, which can facilitate the operation of the device. The heat dissipation part is disassembled and repaired, which greatly facilitates the use of the device.

The working principle of the present invention is as follows: first, when in use, the moisture in the air inside the outer box body 1 will be absorbed by the water-absorbing cotton 204, and the moisture absorbed by the water-absorbing cotton 204 will enter the water-absorbing hole 205 through the through hole 203 due to the action of gravity, and then It is absorbed by the water-absorbing particles 206 inside the water-absorbing hole 205, so that the inside of the outer box 1 can be prevented from being damp and affecting the use of the communication equipment, which greatly facilitates the use of the equipment. plate 5, and then fix the hoop 404 through the fixing bolts 405 and the fixing holes 406 respectively, so that the hoop 404 can fix the internal components, which can make good use of the space inside the outer box 1, and then install the The plate 401 is fixed and installed at the required position through the installation holes 402 and the installation bolts 403, so that the whole device can be easily fixed, so as to facilitate the installation of the device. Finally, when in use, the heat generated by the internal work of the outer box 1 will pass through. The heat conduction hole 602 is conducted to the inside of the heat dissipation box 601, and the heat entering the heat dissipation box 601 will be discharged through the heat dissipation fan 604, so that the effect of heat dissipation can be achieved, and the air filter 605 can prevent the impurities in the air from entering the interior of the outer box 1 , the clamping structure formed by the clamping block 606 and the clamping slot 607 can facilitate the disassembly and repair of the cooling box 601, which can prevent the internal components from being damaged due to the high internal temperature of the outer box 1, which greatly facilitates the use of the device. The use process of such a structure for integrated installation of wireless communication equipment is completed.

In the description of the present invention, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "connected" and "connected" should be understood in a broad sense, for example, it may be a fixed connection or a connectable connection. Detachable connection, or integral connection; may be mechanical connection or electrical connection; may be direct connection, or indirect connection through an intermediate medium, or internal communication between two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood through specific situations.

The preferred embodiments of the present patent have been described in detail above, but the present patent is not limited to the above-mentioned embodiments. Within the scope of knowledge possessed by those of ordinary skill in the art, various modifications can be made without departing from the purpose of the present patent. kind of change.

Claims (8)

1. A structure for integrated installation of wireless communication equipment, comprising an outer box (1), a support rod (3), a support plate (5) and a support frame (7), characterized in that: the outer box (1) A moisture-proof structure (2) is arranged at the middle position of the inner bottom end, and support rods (3) are fixedly connected to both sides of the outer box body (1), and a support frame (7) is arranged inside the support rod (3). ), both sides and the inside of the outer box (1) are provided with mounting and fixing structures (4), and a support plate (5) is fixedly connected at the middle position inside the outer box (1). The top end of the box body (1) is provided with a heat dissipation mechanism (6). 2 . The structure for integrated installation of wireless communication equipment according to claim 1 , wherein a bottom plate ( 201 ), a fixing groove ( 202 ), a through hole ( 203 ) are arranged in the interior of the moisture-proof structure ( 2 ) in sequence. 3 . ), water-absorbing cotton (204), water-absorbing holes (205) and water-absorbing particles (206), the bottom plate (201) is fixedly connected to the bottom end of the outer box (1), and the top of the bottom plate (201) is evenly arranged inside There are water absorption holes (205), and water absorption particles (206) are arranged inside the water absorption holes (205), and a fixing groove (202) is arranged at the top of the bottom plate (201), and the inside of the fixing groove (202) is arranged With absorbent cotton (204). 3 . The structure for integrated installation of wireless communication equipment according to claim 2 , wherein the bottom end of the fixing groove ( 202 ) is evenly provided with through holes ( 203 ), and the through holes ( 203 ) and There is a one-to-one correspondence between the water absorption holes (205). 4. The structure for integrated installation of wireless communication equipment according to claim 1, characterized in that, a mounting plate (401), mounting holes (402), and mounting bolts are arranged in the interior of the mounting and fixing structure (4) in sequence. (403), a hoop (404), a fixing bolt (405) and a fixing hole (406), the mounting plate (401) is fixedly connected to both sides of the outer box (1) respectively, and the mounting plate (401) is A mounting hole (402) is provided inside, and a mounting bolt (403) runs through the inside of the mounting hole (402). The hoop (404) is arranged on the top of the support plate (5). Both sides of the frame are provided with fixing bolts (405), and the fixing holes (406) are respectively arranged inside the support plate (5). 5. The structure for integrated installation of wireless communication equipment according to claim 4, characterized in that, an internal thread matched with an installation bolt (403) is provided inside the installation hole (402), and the fixing hole The interior of (406) is provided with an internal thread matched with the fixing bolt (405). 6 . The structure for integrated installation of wireless communication equipment according to claim 1 , wherein the heat dissipation mechanism (6) is provided with a heat dissipation box (601), a heat conduction hole (602), a support rod ( 603), a cooling fan (604), an air filter (605), a clamping block (606) and a clamping slot (607), the cooling box (601) is arranged at the top of the outer box (1), 601) is fixedly connected with a support rod (603), one end of the support rod (603) is evenly provided with a cooling fan (604), and one end of the heat dissipation box (601) is provided with an air filter (605), so Both ends of the heat dissipation box (601) are fixedly connected with clamping blocks (606), and the clamping grooves (607) are respectively fixedly connected to both sides of the top of the outer box body (1). 7 . The structure for integrated installation of wireless communication equipment according to claim 6 , wherein the heat conduction holes ( 602 ) are evenly arranged inside the top of the outer box ( 1 ), and the heat conduction holes ( 602 ) are outside. 8 . The tops of the boxes (1) are arranged at equal intervals. 8 . The structure for integrated installation of wireless communication equipment according to claim 6 , wherein the length and width of the clamping block ( 606 ) are both smaller than the length and width of the clamping slot ( 607 ). (606) is embedded in the interior of the card slot (607), and an engaging structure is formed between the card block (606) and the card slot (607).
