Abstract

A centering mechanism suitable for the detection of display screens of different sizes is provided with two first sliding blocks and two second sliding blocks protruding on the table top, and the two first sliding blocks are respectively arranged on both sides of the table top in the transverse direction, The two second sliders are respectively arranged on both sides of the table in the longitudinal direction, the sliding tracks of the two intersect vertically, and the intersection point coincides with the detection reference point on the table corresponding to the detection head; when in use, the display screen is Place it on the surface of the table, slide the first slider and the two second sliders synchronously to make it abut against the edge of the display screen, move the sliders so that the scales corresponding to the two first sliders are the same, and the two second sliders The corresponding scale is also the same, which can realize the centering of the display screen; for the display screen of different sizes, the same method can be used to achieve the centering, which greatly improves its versatility; at the same time, there is no need to design and manufacture a large number of products suitable for different sizes. The special fixture for the display screen saves the cost of production and use.

Description

A centering mechanism suitable for the detection of display screens of different sizes

technical field

The utility model belongs to the field of display screen fixtures, in particular to a centering mechanism suitable for the detection of display screens of different sizes.

Background technique

The display screen needs to be tested for quality and appearance defects in the production process. The detection reference position of the detection device is relatively fixed, and the center of the display screen needs to be aligned with the detection reference point of the fixture table for detection. For the same size The display screen can be placed with a special jig of the same size as the display screen, and the display screen can be manually placed on the special jig for centering, but it is not suitable for display screens of other sizes.

There are various sizes of display screens. If a special size fixture is designed for each size type of display screen, the production and use costs will undoubtedly be huge. centering device to solve the above problems.

SUMMARY OF THE INVENTION

The purpose of the utility model is to provide a centering mechanism suitable for the detection of display screens of different sizes, so as to solve the problems that the prior art is difficult to apply to the centering of display screens of different sizes, has low versatility and high production and use costs.

In order to achieve the above purpose, the technical scheme adopted by the present invention is: a centering mechanism suitable for the detection of display screens of different sizes, including a table top and a detection head arranged above the table top, and two first protruding A slider and two second sliders, and the two first sliders are respectively arranged on both sides of the table in the transverse direction, and the two second sliders are respectively arranged on both sides in the longitudinal direction of the table; the two first sliders The two second sliders are slidably arranged relative to the table in the longitudinal direction, and the two second sliders are slidably arranged relative to the table in the transverse direction. The detection reference points corresponding to the detection head coincide; in the working state, the two first sliding blocks and the two second sliding blocks can move toward or away from each other along their sliding tracks, and the Scales are respectively provided on the table surface corresponding to the sliding tracks of the first sliding block and the second sliding block.

In the above solution, a bidirectional screw thread matched with the two first sliders and between the two second sliders is pierced, and the table surface is provided with an avoidance for accommodating the bidirectional screw rod. The grooves, the two first sliders and the two second sliders are symmetrically arranged with respect to the axial midpoint of the two-way screw, and the axial midpoint of the two-way screw corresponds to the table surface. The detection reference points of the detection heads are coincident, the thread directions of the thread segments on the bidirectional screw rods where the two first sliders are located are opposite, and the threads of the thread segments on the bidirectional screw rods where the two second sliders are located are opposite. In the opposite direction.

In the above solution, a bearing is sleeved at the axial midpoint of the bidirectional screw, and the bearing is embedded and installed on the table surface.

In the above solution, a rotating handle is also connected to the end of the bidirectional screw.

In the above solution, a support frame is also fixedly connected to the bottom of the table top.

In the above solution, a rubber block is fixed on the opposite inner side walls of the two first sliding blocks and the two second sliding blocks.

The utility model has the following effects: the utility model has two first sliding blocks and two second sliding blocks protruding on the table surface, the sliding tracks of the two intersect vertically, and the intersection points and the table surface correspond to the The detection reference points of the detection head are coincident; when in use, place the display screen on the surface of the table, slide the first slider and the two second sliders synchronously to make them abut against the edge of the display screen, and move the sliders to make the two The scales corresponding to one slider are the same, and the scales corresponding to the two second sliders are also the same, so that the centering of the display screen can be achieved; for the display screens of different sizes, the above-mentioned same method can be used to achieve the centering, which greatly improves the performance of the display. Versatility; at the same time, there is no need to design and manufacture a large number of special fixtures suitable for display screens of different sizes, which saves production and use costs.

Description of drawings

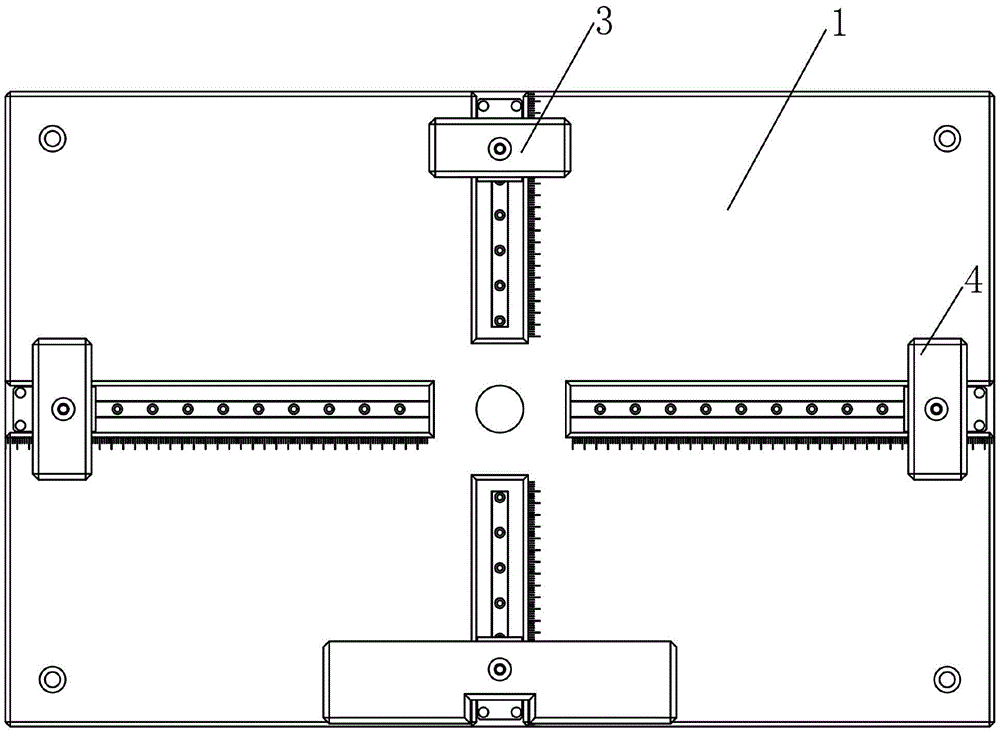

Fig. 1 is the structural representation of the utility model embodiment;

Fig. 2 is the sectional view of the table top of the utility model embodiment;

FIG. 3 is a schematic three-dimensional structure diagram of an embodiment of the present invention.

In the above drawings: 1-table, 2-detection head, 3-first slider, 4-second slider, 5-two-way screw, 6-relief groove, 7-rotating handle, 8-support frame, 9- Display screen, 10-PG signal generator.

Detailed ways

Below in conjunction with accompanying drawing and embodiment, the utility model is further described:

Embodiment: Referring to Figures 1-3: a centering mechanism suitable for the detection of display screens of different sizes, including a table top 1 and a detection head 2 arranged above the table top 1; the detection head 2 can be the detection of a visual detection device Camera;

Referring to FIG. 1 , two first sliding blocks 3 and two second sliding blocks 4 are protruded on the table top 1 , and the two first sliding blocks 3 are respectively arranged on both sides of the table top 1 in the lateral direction, and the two second sliding blocks 3 The sliders 4 are respectively arranged on both sides of the table top 1 in the longitudinal direction; the two first sliders 3 are slidably arranged relative to the table top 1 in the longitudinal direction, and the two second sliders 4 are slidably arranged relative to the table top 1 in the transverse direction; 1, install the guide rail on the guide rail, and open a straight groove along the movement track of the slider on the guide rail, and install the first slider 3 and the second slider 4 on the guide rail; and the matching chute of the second sliding block 4, the first sliding block 3 and the second sliding block 4 are embedded in the sliding groove;

The sliding track of the first slider 3 intersects vertically with the sliding track of the second slider 4, and the intersection point coincides with the detection reference point on the table 1 corresponding to the detection head 2; in the working state, the two first sliders 3 and the two second sliders 4 can move toward or away from each other along their sliding tracks;

The sliding tracks corresponding to the first slider 3 and the second slider 4 on the table top 1 are respectively provided with scales, and the scales have corresponding scale values, which are used to indicate the positions of the first slider 7 and the second slider 8;

Referring to FIG. 3, 10 is a PG signal generator, and 9 is a display screen; in specific use, first place the display screen 9 on the surface of the table 1, and move the two first sliders 3 and two second sliders. Move the block 4 against the edge of the display screen 9, check the scale on the table 1, slide the first slider 3 and the second slider 4, so that the two first sliders 3 in the front and rear directions are on the table 1 The corresponding scales are equal, and the two second sliders 4 in the left and right directions also have the same scales on the table 1. Ensure that the scales are equal so that the midpoints of the display screen 9 in the length and width directions are the same (that is, the center of the display screen 9). point) is located at the detection reference point of the detection head 2 on the table 1, so that the centering of the display screen 9 can be realized; then the display screen 13 is illuminated by the PG signal generator 10 (the two are connected by a data line), Carry out further testing.

Referring to FIG. 2 , a two-way screw 5 is threaded between the two first sliders 3 and between the two second sliders 4 , and an escape groove for accommodating the two-way screw 5 is opened on the table 1 6. The two first sliders 3 and the two second sliders 4 are arranged symmetrically and equidistantly with respect to the axial midpoint of the two-way screw 5. The axial midpoint of the two-way screw 5 corresponds to the detection of the detection head 2 on the table 1. The reference points coincide, the thread directions of the thread segments on the two-way screw 5 where the two first sliders 3 are located are opposite, and the thread directions of the thread segments on the two-way screw 5 where the two second sliders 4 are located are opposite;

A bearing is sleeved at the axial midpoint of the two-way screw 5, and the bearing is embedded and installed on the table top 1;

The end of the two-way screw 5 is also connected with a rotating handle 7;

The rotating handle 10 is disc-shaped and can drive the two-way screw 5 to rotate; rotating the two-way screw 5 between the two first sliding blocks 3 can realize the synchronous movement of the two first sliding blocks 3; rotating the two second sliding blocks 4 The bidirectional screw 5 between the two can realize the synchronous movement of the two second sliders 4; thus, the sliding distance of the first slider 7 and the second slider 8 can always be guaranteed to be equal, avoiding the need to manually adjust the first slider 3 back and forth. And the second slider 4 to make the same scale on the table 1 has the trouble.

Referring to FIGS. 2-3 , a support frame 8 is also fixedly connected to the bottom of the table top 1 , and the support frame 8 is used to support the table top 1 .

Referring to FIG. 1 , a rubber block (not shown in the figure) is fixed on the opposite inner walls of the two first sliders 7 and the two second sliders 8 . The rubber block is relatively soft and can serve as a buffer. The function is to avoid the hard first sliding block 3 and the second sliding block 4 from being squeezed and damaging the display screen 9 .

The above-mentioned embodiments are only to illustrate the technical concept and characteristics of the present invention, and the purpose thereof is to enable those who are familiar with the technology to understand the content of the present invention and implement accordingly, and cannot limit the protection scope of the present invention with this. All equivalent changes or modifications made according to the spirit of the present invention shall be included within the protection scope of the present invention.

Claims (6)

1. A centering mechanism suitable for the detection of display screens of different sizes, comprising a table top (1) and a detection head (2) arranged above the table top (1), characterized in that: the table top (1) is protruded with a Two first sliders (3) and two second sliders (4), and the two first sliders (3) are respectively arranged on both sides of the table top (1) in the lateral direction, and the two second sliders (4) ) are respectively arranged on both sides of the table top (1) in the longitudinal direction; the two first sliders (3) are slidably arranged relative to the table top (1) in the longitudinal direction, and the two second sliders (4) are relative to the table top in the transverse direction. (1) Sliding setting, the sliding track of the first slider (3) intersects vertically with the sliding track of the second slider (4), and the intersection point corresponds to the detection head ( 2) coincide with the detection reference points; in the working state, the two first sliders (3) and the two second sliders (4) can move toward or away from each other along their sliding trajectories. Scales are respectively provided on the table top (1) corresponding to the sliding tracks of the first sliding block (3) and the second sliding block (4). 2. A centering mechanism suitable for detection of display screens of different sizes according to claim 1, characterized in that: between the two first sliders (3) and between the two second sliders ( 4) A two-way screw (5) which is threadedly matched with it is threaded between them, and an escape groove (6) for accommodating the two-way screw (5) is opened on the table (1). The block (3) and the two second sliding blocks (4) are arranged symmetrically and equidistantly with respect to the axial midpoint of the bidirectional screw (5), and the axial midpoint of the bidirectional screw (5) is connected to the table top The detection reference points corresponding to the detection head (2) on (1) coincide, and the thread directions of the thread segments on the bidirectional screw (5) where the two first sliders (3) are located are opposite, and the two The thread directions of the thread segments on the bidirectional screw (5) where the second slider (4) is located are opposite. 3. A centering mechanism suitable for the detection of display screens of different sizes according to claim 2, characterized in that: a bearing is sleeved at the axial midpoint of the bidirectional screw (5), and the bearing is embedded and installed on the table top (1). 4 . The centering mechanism suitable for the detection of display screens of different sizes according to claim 2 , wherein the end of the bidirectional screw ( 5 ) is further connected with a rotating handle ( 7 ). 5 . 5 . The centering mechanism suitable for the detection of display screens of different sizes according to claim 1 , wherein a support frame ( 8 ) is fixedly connected to the bottom of the table top ( 1 ). 6 . 6. A centering mechanism suitable for detection of display screens of different sizes according to claim 1, characterized in that: two first sliders (3) and two second sliders (4) A rubber block is fixed on the opposite inner side walls.
