Abstract

The utility model provides a multifunctional wine bottle, which relates to the technical field of bottles and solves the technical problem that the existing wine bottle is used in a relatively simple manner in the prior art. The multifunctional wine bottle comprises a bottle cap and a bottle body, The top of the bottle body is provided with an opening, the bottle cap is closed on the opening, the outer wall of the top of the bottle body is provided with a water outlet in communication with the opening; the lower side of the bottle cap is provided with tea The tea leak is inserted inside the bottle body along the opening; a rubber sleeve is set on the tea leak to block the water outlet and the tea leak; the utility model not only seals the wine for the first time The sealing effect is remarkable, and after the rubber sleeve is removed, it has the function of a teapot, so that the multifunctional wine bottle can be fully utilized and can be used in various ways.

Description

A multifunctional wine bottle

technical field

The utility model relates to the technical field of bottles, in particular to a multifunctional wine bottle.

Background technique

Wine is one of the main beverages in human life. The history of wine making in China has a long history and a wide variety of categories, and wine bottles are widely used as common containers for wine. Traditional wine bottles are often used by people because of their relatively single use. Function, people choose to discard it, unable to make full use of the residual value of the wine bottle, resulting in a waste of resources.

Utility model content

The purpose of this utility model is to provide a kind of multifunctional wine bottle, so as to solve the technical problem that the existing wine bottle usage mode existing in the prior art is relatively simple; There are many technical effects (the water outlet is set as a duckbill water outlet, which is convenient for the pouring of water inside the bottle body; the tea leak body and the bottle cap are detachably connected to facilitate the replacement of the tea leaves inside the tea leak body, and the tea leak body is provided with a leak hole, It is convenient for tea brewing; the rubber sleeve is set to a silicone sleeve, and the silicone sleeve is wrapped on the tea leak and seals the leak hole, which is not only resistant to high temperature, easy to clean, green and environmentally friendly, but also can effectively improve the airtightness; the silicone sleeve is provided with a non-slip strip , When the bottle cap is closed on the bottle body, the tea leak body and the rubber sleeve are simultaneously inserted into the bottle body along the opening. Because the rubber sleeve has a certain buffering property, the bottle cap is installed more tightly, and the sealing of the wine bottle is further improved. The number of anti-skid strips is set to multiple, and the multiple anti-skid strips are evenly arranged to make the rubber sleeve form a corrugated sleeve, which further makes the installation of the bottle cap more secure; the wine bottle also includes an anti-theft ring, which has the function of preventing leakage and theft; The bottom of the outer wall of the bottle cap is provided with a first groove, the top of the outer wall of the bottle body is provided with a second groove, the anti-theft ring is sleeved on the first groove and the second groove, and the first groove and the second groove are used for the anti-theft ring installation, etc.); see details below.

To achieve the above object, the utility model provides the following technical solutions:

The utility model provides a multifunctional wine bottle, comprising a bottle cap and a bottle body, the top of the bottle body is provided with an opening, and the bottle cap is closed on the opening, wherein: the outer wall of the top of the bottle body is provided with an opening. A water outlet is arranged on the upper part in communication with the opening; a tea leak is arranged on the lower side of the bottle cap, and the tea leak is inserted into the inside of the bottle body along the opening; a rubber sleeve is provided on the upper sleeve of the tea leak To block the water outlet and the tea leak.

Preferably, the water outlet is set as a duckbill water outlet.

Preferably, the tea leak includes a tea leak body, and the top of the tea leak body is detachably connected to the bottle cap; the tea leak body is provided with a leak hole.

Preferably, the rubber sleeve is configured as a silicone sleeve, and the silicone sleeve is wrapped on the tea leak to block the leak hole.

Preferably, an anti-skid strip is provided on the outer wall of the rubber sleeve.

Preferably, the number of the anti-skid strips is at least two, and all the anti-skid strips are uniformly arranged on the outer wall of the rubber sleeve so that the rubber sleeve forms a corrugated sleeve.

Preferably, the multifunctional wine bottle further includes an anti-theft ring, and the anti-theft ring is sleeved and disposed at the position where the bottle cap is connected to the bottle body.

Preferably, the bottom position of the outer wall of the bottle cap is provided with a first groove, the top position of the outer wall of the bottle body is provided with a second groove, and the anti-theft ring is sleeved on the first groove and the first groove. on the second groove.

Preferably, the bottom of the bottle cap extends outward and forms a flange, and the first groove ring is provided on the flange.

Preferably, the portion of the bottle body at the position of the opening extends upward and forms a raised portion, and the second groove ring is provided on the raised portion.

The multifunctional wine bottle provided by the utility model has at least the following beneficial effects:

The multifunctional wine bottle includes a bottle cap and a bottle body, the top of the bottle body is provided with an opening, the bottle cap is closed on the opening, and the bottle body is used for holding wine, tea, etc. The bottle cap is used to seal the bottle body; the outer wall of the top of the bottle body is provided with a water outlet in communication with the opening, which is convenient for the pouring of wine and tea; the lower side of the bottle cap is provided with a tea leak, the The tea leak is inserted into the inside of the bottle body along the opening, and the wine bottle can be used as a teapot to make tea after the first use. The sleeve is used to block the water outlet and the tea leak. The rubber sleeve is fitted on the tea leak. On the one hand, it can block the water outlet and the tea leak. The sealing effect when the wine is filled for the first time; the utility model not only has a remarkable sealing effect when the wine is sealed for the first time, but also has the function of a teapot after removing the rubber cover, and has various functions.

Description of drawings

In order to more clearly illustrate the embodiments of the present utility model or the technical solutions in the prior art, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are just some embodiments of the present invention, and for those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative effort.

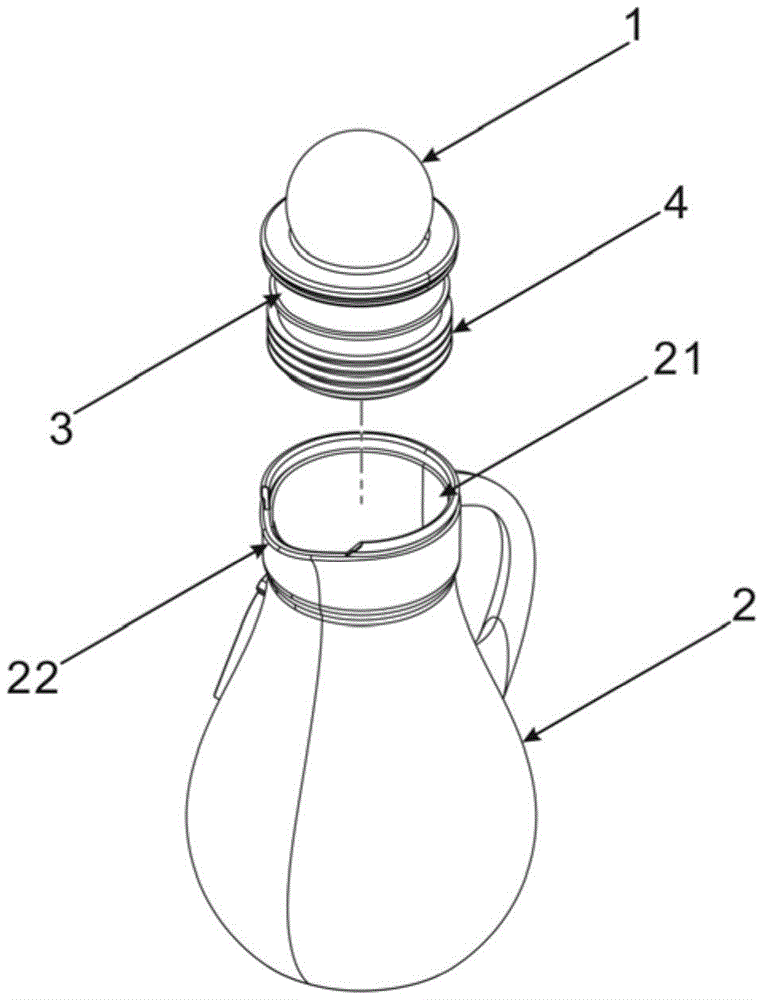

Fig. 1 is the structural decomposition schematic diagram of the present utility model;

Fig. 2 is the structural representation of the present utility model;

Fig. 3 is the structural representation of the bottle body of the present utility model;

Fig. 4 is the structural schematic diagram of the bottle cap and the tea leak of the present invention;

5 is a schematic structural diagram of another embodiment of the bottle cap and the tea drain of the present invention;

6 is a schematic structural diagram of an embodiment of the rubber sleeve of the present invention;

7 is a schematic diagram of the installation structure of the anti-theft ring of the present invention.

reference number

1, bottle cap; 11, flange; 111, first groove; 2, bottle body; 21, opening; 22, water outlet; 23, raised part; 231, second groove; 3, tea leak; 31 , leak hole; 4, rubber sleeve; 41, anti-skid strip; 5, anti-theft ring.

Detailed ways

In order to make the objectives, technical solutions and advantages of the present invention more clear, the technical solutions of the present invention will be described in detail below. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other implementations obtained by those of ordinary skill in the art without creative work fall within the scope of protection of the present invention.

The utility model provides a multifunctional wine bottle, as shown in the exploded structural view of the present utility model in FIG. 1 and the schematic structural diagram of the present utility model in FIG. The top of the bottle is provided with an opening 21, and the bottle cap 1 is closed on the opening 21, wherein: the outer wall of the top of the bottle body 2 communicates with the opening 21 and is provided with a water outlet 22, and the water outlet 22 is used for the pouring of wine or tea in the bottle body 2 The lower side of the bottle cap 1 is provided with a tea leak 3, and the tea leak 3 is inserted into the inside of the bottle body 2 along the opening 21;

When not in use, the bottle cap 1 is closed on the opening 21, and the rubber sleeve 4 blocks the water outlet 22 and seals the bottle body 2; when using it for the first time, pull up the bottle cap 1 to make the tea leak with the rubber sleeve 4 set. 3 Move upward, at this time the water outlet 22 is connected to the inner cavity of the bottle body 2, and the wine can be poured out by tilting the bottle body 2; when the wine in the multifunctional wine bottle is completely poured, remove the rubber sleeve 4, And put tea leaves in the tea leak 3, pour boiling water into the bottle body 2, and then the tea can be brewed; the utility model is used as a wine bottle to hold the wine when it is used for the first time, and only needs to be removed when it is used multiple times. The rubber sleeve, which can be used as a teapot, is versatile and can be fully used for wine bottles.

As an optional embodiment, as shown in FIG. 1 and FIG. 2 , the water outlet 22 is set as a duckbill water outlet.

As an optional embodiment, the tea leak 3 includes a tea leak body, the top of the tea leak body is detachably connected to the bottle cap 1 , the tea leak body is configured in a cylindrical shape, and the top of the tea leak body is provided with an opening to facilitate the replacement of tea leaves , preferably, the bottom of the bottle cap 1 is provided with a threaded hole, the outer wall of the top of the tea leak body is provided with an external thread, the tea leak body is threadedly connected with the bottle cap 1; the tea leak body is provided with a leak hole 31, as shown in the schematic diagram of the structure of the bottle cap and the tea leak in Figure 4, the outer wall and the bottom wall of the tea leak body are provided with circular leak holes.

As shown in FIG. 5 , a schematic structural diagram of another embodiment of the bottle cap and the tea leak of the present invention, the outer wall of the tea leak body is uniformly provided with rectangular holes in the circumferential direction, and the rectangular holes form leak holes 31 .

As an optional embodiment, as shown in FIG. 4 and FIG. 5 , the rubber sleeve 4 is set as a silicone sleeve, which is not only environmentally friendly, soft and comfortable, but also resistant to high temperature, weather resistance, and can be used for a long time. At the same time, it is easy to clean and more convenient to use. ; The silicone sleeve is wrapped on the tea leak 3, and the rubber sleeve 4 can block all leak holes 31 on the one hand, and on the other hand, make the cap of the bottle cap 1 more tightly closed.

As an optional embodiment, the outer wall of the rubber sleeve 4 is provided with an anti-skid strip 41 , and the provision of the anti-skid strip 41 further makes the installation of the bottle cap 1 more secure, thereby further improving the sealing effect.

As an optional embodiment, as shown in the schematic structural diagram of an embodiment of the rubber sleeve of the present invention in FIG. 6 , the number of anti-skid strips 41 is at least two, and all anti-skid strips 41 are evenly arranged on the rubber sleeve 4 along the axial direction of the rubber sleeve 4 . The outer wall of the sleeve 4 is connected in sequence, so that the rubber sleeve 4 forms a corrugated sleeve.

As an optional embodiment, as shown in FIG. 7 , the structural schematic diagram of the anti-theft ring of the present invention, the multifunctional wine bottle further includes an anti-theft ring 5, and the anti-theft ring 5 is set at the position where the bottle cap 1 is connected with the bottle body 2; when it is used for the first time First, turn the anti-theft ring 5 to break and open the anti-theft ring 5, then pull the bottle cap 1 upward and make the water outlet 22 communicate with the inner cavity of the bottle body 2, so that the wine can be poured.

As an optional embodiment, as shown in FIG. 3 and FIG. 4 , the bottom position of the outer wall of the bottle cap 1 is provided with a first groove 111 , and the top position of the outer wall of the bottle body 2 is provided with a second groove 111 . The groove 231, the anti-theft ring 5 is sleeved on the first groove 111 and the second groove 231.

As an optional embodiment, as shown in FIG. 4 or FIG. 5 , the bottom of the bottle cap 1 extends outward to form a flange 11 , and the first groove 111 is ring-shaped on the flange 11 ; the bottle cap 1 includes a bottle cap body , the bottle cap body is spherical, the flange 11 is arranged on the lower side of the bottle cap body, preferably, the threaded hole is opened on the bottom surface of the flange 11, the top of the tea leak body and the Hole threaded connection.

As an optional embodiment, a portion of the bottle body 2 at the position of the opening 21 extends upward and forms a raised portion 23 , and the second groove 231 is ring-shaped on the raised portion 23 .

As an optional embodiment, a hand-held portion is provided on the side wall of the bottle body 2 to facilitate pouring of the wine or tea contained in the bottle body 2 .

The above are only specific embodiments of the present invention, but the protection scope of the present invention is not limited to this. Replacement should be covered within the protection scope of the present invention. Therefore, the protection scope of the present invention should be based on the protection scope of the claims.

Claims (9)

1. The utility model provides a multi-functional beverage bottle, its characterized in that includes bottle lid (1) and body (2), the top of body (2) is provided with opening (21), bottle lid (1) lid closes on opening (21), wherein:

a water outlet (22) is arranged on the outer wall of the top of the bottle body (2) and communicated with the opening (21);

the tea strainer (3) is arranged on the lower side of the bottle cap (1), and the tea strainer (3) is inserted into the bottle body (2) along the opening (21);

the tea strainer (3) is sleeved with a rubber sleeve (4) to plug the water outlet (22) and the tea strainer (3).

2. The multifunctional wine bottle according to claim 1, wherein the tea strainer (3) comprises a tea strainer body, and the top of the tea strainer body is detachably connected with the bottle cap (1);

the tea strainer body is provided with a weeping hole (31).

3. The multifunctional wine bottle according to claim 2, wherein the rubber sleeve (4) is a silica gel sleeve wrapped on the tea strainer (3) to seal the weep hole (31).

4. Multifunctional wine bottle according to claim 1, characterised in that the outer wall of the gum cover (4) is provided with a non-slip strip (41).

5. Multifunctional wine bottle according to claim 4, characterised in that the number of said anti-slip strips (41) is at least two, all said anti-slip strips (41) being uniformly arranged on the outer wall of the gum cover (4) so that the gum cover (4) forms a corrugated cover.

6. The multifunctional wine bottle of claim 1, further comprising a theft-proof ring (5), wherein the theft-proof ring (5) is sleeved on the bottle cap (1) and the bottle body (2).

7. The multifunctional wine bottle of claim 6, wherein a first groove (111) is formed at the bottom of the outer wall of the bottle cap (1), a second groove (231) is formed at the top of the outer wall of the bottle body (2), and the anti-theft ring (5) is sleeved on the first groove (111) and the second groove (231).

8. Multifunctional wine bottle according to claim 7, characterised in that the bottom of the cap (1) extends outwards and forms a flange (11), the first groove (111) being provided annularly on the flange (11).

9. The multi-purpose wine bottle of claim 7, wherein a portion of the body (2) at the position of the opening (21) extends upward and forms a protrusion (23), and the second groove (231) is annularly provided on the protrusion (23).
