Abstract

The utility model discloses a novel mechanical cleaning device for building materials, which comprises a bottom plate and a water tank. The water tank is fixed on the right side surface of the bottom plate, and an industrial vacuum cleaner is fixed on the bottom plate surface on the left side of the water tank. The pipe clamp is fixed on the front surface of the left side of the water tank, the front side of the water tank on the right side of the suction head is fixed with a brush through the pipe clamp, the bottom plate at the lower end of the right side of the water tank is fixed with a booster pump, and the water inlet pipe of the booster pump is connected to the water tank. The bottom of the booster pump is connected to the bottom of the booster pump, and the water outlet pipe of the booster pump is connected to the water pipe fixed at the front end of the right side of the water tank through the conduit, and the bottom of the water pipe is installed with a nozzle. By fixing a water tank and an industrial vacuum cleaner on the movable bottom plate, the utility model can be easily moved behind various mechanical equipment. According to different cleaning requirements, the industrial vacuum cleaner can be used to absorb the dust after brushing with a brush, or a pressurization can be used. The pump draws water to flush the equipment, which can easily clean various equipment.

Description

A new type of mechanical cleaning device for building materials

technical field

The utility model relates to the technical field of building materials machinery, in particular to a novel building material machinery cleaning device.

Background technique

At present, building materials machinery refers to various production, mixing and forming machinery used in the production of cement, cement products, glass, glass fiber, building ceramics, bricks and other building materials. The building materials machinery industry mainly includes the raw material industry such as aluminum ingots, metal materials, special soil, etc., the building materials production technology research and development industry, and the machinery manufacturing industry for the production of building materials products.

The surface of building materials machinery will be stained with a lot of dust, sediment and other stains during the working process. The surface of some equipment can be directly washed with water. However, some machines cannot be washed with water, which makes the surface cleaning of mechanical equipment more complicated. Therefore, we propose a new type of mechanical cleaning device for building materials.

Utility model content

The purpose of this utility model is to provide a new type of mechanical cleaning device for building materials. By fixing a water tank and an industrial vacuum cleaner on the movable bottom plate, it can be easily moved behind various mechanical equipment, and can be selected after brushing dust according to different cleaning requirements. The industrial vacuum cleaner can be used to absorb the dust, and the booster pump can also be used to pump water to wash the equipment, which can easily clean various equipment and solve the problems raised in the background art.

In order to achieve the above purpose, the utility model provides the following technical solutions: a novel mechanical cleaning device for building materials, comprising a bottom plate and a water tank, the water tank is fixed on the right side surface of the bottom plate, and an industrial vacuum cleaner is fixed on the bottom surface of the left side of the water tank;

The dust suction head of the industrial vacuum cleaner is fixed on the left front surface of the water tank through a pipe clip, the front side of the water tank on the right side of the dust suction head is fixed with a brush through the pipe clip, and a booster pump is fixed on the bottom plate at the lower end of the right side of the water tank. And the water inlet pipe of the booster pump is connected with the bottom of the water tank, and the water outlet pipe of the booster pump is connected with the water pipe fixed at the front end of the right side of the water tank through the conduit, and the bottom of the water pipe is installed with a nozzle, and the water pipe is fixed on the front side of the water tank by a pipe clamp. The upper left end of the bottom plate is vertically welded and fixed with a push handle, the bottom of the bottom plate is fixed with a battery, and the four corners of the bottom of the bottom plate are fixed with brake casters, and there are four brake casters.

As a preferred embodiment of the present invention, an observation window is vertically arranged on the front side surface of the water tank, and the observation window is vertically arranged on the middle surface of the front side of the water tank.

As a preferred embodiment of the present invention, the battery is fixed on the bottom of the bottom plate through a fixing frame, and the fixing frame is welded and fixed on the bottom of the bottom plate.

As a preferred embodiment of the present invention, a water inlet is connected to the middle of the upper end of the water tank, and the water inlet is communicated with the inside of the water tank.

As a preferred embodiment of the present invention, a switch is fixed on the front side of the upper end of the push handle, and the booster pump is electrically connected to the battery through the switch.

Compared with the prior art, the beneficial effects of the present utility model are as follows:

1. The novel building material mechanical cleaning device of the present utility model, by fixing a water tank and an industrial vacuum cleaner on the movable bottom plate, can be easily moved after each mechanical equipment, and can choose to use an industrial vacuum cleaner after brushing dust according to different cleaning requirements. To suck off the dust, you can also use the booster pump to pump water to wash the equipment, which can easily clean various equipment.

2. The new building material mechanical cleaning device of the present utility model, by making the front side surface of the water tank vertically arranged with an observation window, and the observation window is vertically arranged on the middle surface of the front side of the water tank, when in use, the observation window can be used to know at any time. The remaining amount of cleaning water inside the water tank is convenient to add water to the inside of the water tank in time.

Description of drawings

Other features, objects and advantages of the present invention will become more apparent by reading the detailed description of non-limiting embodiments with reference to the following drawings:

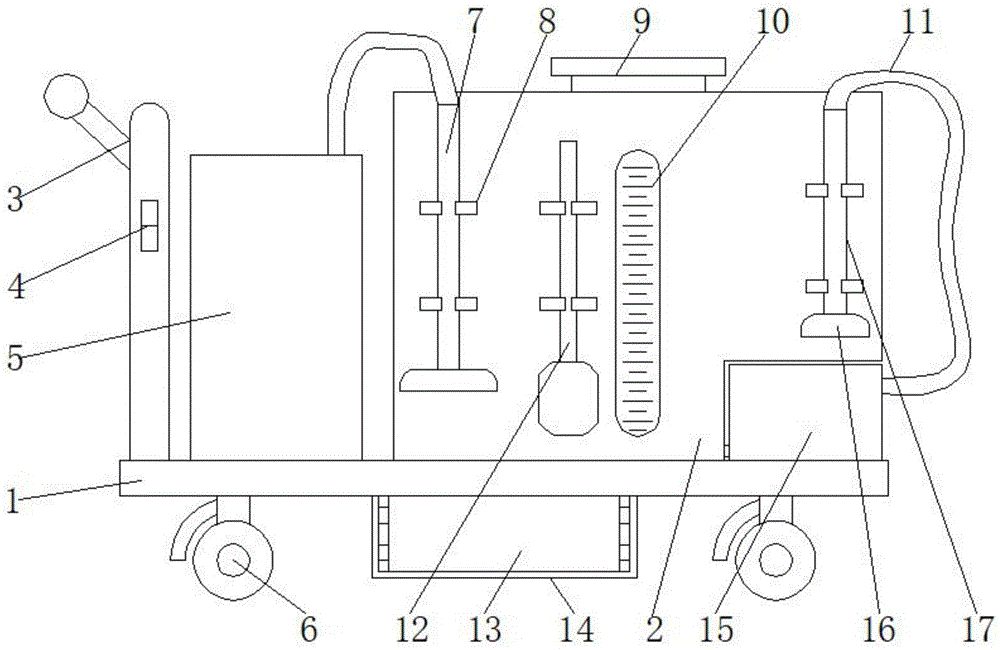

Fig. 1 is the overall structure schematic diagram of the utility model building material mechanical cleaning device;

FIG. 2 is a schematic diagram of the circuit connection structure of the mechanical cleaning device for building materials of the utility model.

In the picture: 1. Bottom plate; 2. Water tank; 3. Push handle; 4. Switch; 5. Industrial vacuum cleaner; 6. Brake caster; 7. Vacuuming head; 8. Pipe clamp; 9. Water inlet; 10. Observation window ; 11, conduit; 12, brush; 13, battery; 14, fixing frame; 15, booster pump; 16, nozzle; 17, water pipe.

Detailed ways

In order to make the technical means, creation features, achievement goals and effects of the present invention easy to understand and understand, the present invention will be further described below with reference to the specific embodiments.

In the description of the present invention, it should be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inside", The orientation or positional relationship indicated by "outside" is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation , are constructed and operated in a specific orientation, and therefore should not be construed as a limitation of the present invention.

In the description of the present utility model, it should be noted that, unless otherwise expressly specified and limited, the terms "installation", "connection" and "arrangement" should be understood in a broad sense, for example, it may be fixedly connected, arranged, or It is a detachable connection and setting, or an integral connection and setting; the model of the electrical appliance provided in this utility model is for reference only. For those of ordinary skill in the art, different types of electrical appliances with the same function can be replaced according to actual use conditions, and for those of ordinary skill in the art, they can understand the specific meanings of the above terms in the present invention.

1-2, the present utility model provides a technical solution: a novel mechanical cleaning device for building materials, comprising a bottom plate 1 and a water tank 2, the water tank 2 is fixed on the right side surface of the bottom plate 1, and the left side of the water tank 2 is An industrial vacuum cleaner 5 is fixed on the surface of the bottom plate 1;

The dust suction head 7 of the industrial vacuum cleaner 5 is fixed on the left front surface of the water tank 2 through a pipe clip 8, the front side of the water tank 2 on the right side of the dust suction head 7 is fixed with a brush 12 through the pipe clip 8, and the lower end of the right side of the water tank 2 is fixed with a brush 12. A booster pump 15 is fixed on the bottom plate 1 of the pump, and the water inlet pipe of the booster pump 15 is communicated with the bottom of the water tank 2, and the water outlet pipe of the booster pump 15 is communicated with the fixed water pipe 17 at the right front end of the water tank 2 through the conduit 11, and the water pipe A spray head 16 is installed at the bottom of 17, a water pipe 17 is fixed on the front side of the water tank 2 through a pipe clamp 8, a push handle 3 is vertically welded and fixed on the upper left end of the bottom plate 1, a battery 13 is fixed on the bottom of the bottom plate 1, and the bottom plate 1 There are four brake casters 6 installed and fixed at the bottom four corners, and there are four brake casters 6 .

In this embodiment (refer to FIG. 1 and FIG. 2 ), the water tank 2 and the industrial vacuum cleaner 5 are fixed on the movable bottom plate 1 , which can be easily moved behind various mechanical equipment, and the brushes 12 can be selected according to different cleaning needs. After the dust is collected, the industrial vacuum cleaner 5 is used to absorb the dust, and the booster pump 15 can also be used to pump water to flush the equipment, which can easily clean various equipment.

Wherein, an observation window 10 is vertically arranged on the front side surface of the water tank 2 , and the observation window 10 is vertically arranged on the middle surface of the front side of the water tank 2 .

In this embodiment (please refer to FIG. 1 ), an observation window 10 is arranged vertically on the front side surface of the water tank 2 , and the observation window 10 is vertically arranged on the middle surface of the front side of the water tank 2 . During use, through the observation window 10 The remaining amount of cleaning water in the water tank 2 can be known at any time, and it is convenient to add water to the water tank 2 in time.

Wherein, the battery 13 is fixed on the bottom of the base plate 1 by the fixing frame 14 , and the fixing frame 14 is welded and fixed on the bottom of the base plate 1 .

In this embodiment (refer to FIG. 1 ), the battery 13 can be fixed by the welded fixing frame 14 .

Wherein, a water inlet 9 is connected to the middle of the upper end of the water tank 2 , and the water inlet 9 is communicated with the interior of the water tank 2 .

In this embodiment (refer to FIG. 1 ), water can be added to the water tank 2 through the water inlet 9 .

A switch 4 is fixed on the front side of the upper end of the push handle 3 , and the booster pump 15 is electrically connected to the battery 13 through the switch 4 .

In this embodiment (refer to FIG. 1 ), the opening and closing of the booster pump 15 can be controlled by the switch 4 .

It should be noted that the present utility model is a novel mechanical cleaning device for building materials, including a bottom plate 1, a water tank 2, a push handle 3, a switch 4, an industrial vacuum cleaner 5, a brake caster 6, a dust suction head 7, a pipe clamp 8, and a water inlet. 9. The observation window 10, the conduit 11, the brush 12, the battery 13, the fixing frame 14, the booster pump 15, the spray head 16, the water pipe 17, the components are all common standard parts or components known to those skilled in the art, and their structures and principles Those skilled in the art can learn from technical manuals or through conventional experimental methods. During operation, the battery 13 and the rechargeable industrial vacuum cleaner 5 are fully charged, and then water is added to the water tank 2 through the water inlet 9, and then passed through. Push the handle 3 to move the device to the front of the equipment to be cleaned. According to the cleaning requirements of the equipment, the brush 12 can be removed to brush the dust on the surface of the equipment. At the same time, the industrial vacuum cleaner 5 is started, and the dust suction head 7 is used to absorb the dust. When the equipment can be flushed with water, remove the water pipe 17 and align the spray head 16 with the flushing part, then start the booster pump 15 through the switch 4 to pump out the water in the water tank 2 and flush it on the surface of the equipment through the spray head 16. The stains on the surface of the equipment are washed away, which has various washing effects and is convenient to use. The remaining amount of water in the water tank 2 can be known through the observation window 10, which is convenient for adding water in time.

The basic principles and main features of the present invention and the advantages of the present invention have been shown and described above. For those skilled in the art, it is obvious that the present invention is not limited to the details of the above-mentioned exemplary embodiments, and does not deviate from the present invention. The present invention can be implemented in other specific forms under the condition of the spirit or basic features. Therefore, the embodiments are to be considered in all respects as exemplary and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, and it is therefore intended that the All changes within the meaning and range of the required equivalents are embraced within the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

In addition, it should be understood that although this specification is described in terms of embodiments, not each embodiment only includes an independent technical solution, and this description in the specification is only for the sake of clarity, and those skilled in the art should take the specification as a whole , the technical solutions in each embodiment can also be appropriately combined to form other implementations that can be understood by those skilled in the art.

Claims (5)

1. A novel mechanical cleaning device for building materials, comprising a bottom plate (1) and a water tank (2), characterized in that: the water tank (2) is fixed on the right side surface of the bottom plate (1), and the left side of the water tank (2) is An industrial vacuum cleaner (5) is fixed on the surface of the bottom plate (1); The dust suction head (7) of the industrial vacuum cleaner (5) is fixed on the left front end surface of the water tank (2) by a pipe clamp (8), and the front side of the water tank (2) on the right side of the dust suction head (7) is fixed by the pipe clamp (8) A brush (12) is fixed, a booster pump (15) is fixed on the bottom plate (1) at the lower end of the right side of the water tank (2), and the water inlet pipe of the booster pump (15) is connected to the bottom of the water tank (2). The water outlet pipe of the booster pump (15) is communicated with the water pipe (17) fixed at the front end of the right side of the water tank (2) through the conduit (11), and the bottom of the water pipe (17) is installed with a nozzle (16), and the water pipe (17) The pipe clamp (8) is fixed on the front side of the water tank (2), the upper left end of the bottom plate (1) is vertically welded and fixed with a push handle (3), and the bottom of the bottom plate (1) is fixed with a battery (13), Brake casters (6) are installed and fixed at the bottom four corners of the bottom plate (1), and there are four brake casters (6). 2. A new type of building material mechanical cleaning device according to claim 1, characterized in that: an observation window (10) is vertically arranged on the front side surface of the water tank (2), and the observation window (10) is arranged vertically On the middle surface of the front side of the water tank (2). 3. A new type of mechanical cleaning device for building materials according to claim 1, characterized in that: the battery (13) is fixed on the bottom of the bottom plate (1) by a fixing frame (14), and the fixing frame (14) is welded and fixed at the bottom of the base plate (1). 4. A new type of building material mechanical cleaning device according to claim 1, characterized in that: a water inlet (9) is connected to the middle of the upper end of the water tank (2), and the water inlet (9) is connected to the interior of the water tank (2). Connected. 5. A new type of building material mechanical cleaning device according to claim 1, characterized in that: a switch (4) is fixed on the front side of the upper end of the push handle (3), and the booster pump (15) passes through the switch (4). ) is electrically connected to the battery (13).
