An electric pulverizer for eggshell powder production

technical field

The utility model relates to the technical field of eggshell powder processing equipment, in particular to an electric pulverizer for eggshell powder production.

Background technique

Eggshell powder is a powdery substance obtained by air-drying eggshells and then grinding them with modern technology. It can be taken orally or externally. It can supplement nutrition for the human body and prevent and alleviate various diseases. In addition, eggshell powder is also widely used in industry. The processing flow of eggshell powder is: eggshell drying → crushing → milling → sieving → packaging → finished product.

There are two kinds of milling methods: crushing method and grinding method. The crushing method is to use an eggshell crusher to mash the dried eggshells into powder, which can be crushed on the flat ground or in a mortar. It can be crushed by hand or by a motor. The grinding method generally uses an electric pulverizer to grind eggshells into powder. The existing electric pulverizers only have the function of grinding powder and cannot meet the production requirements. The two grinding discs of the existing pulverizers cannot be separated, which is not easy cleaning.

Utility model content

Aiming at the deficiencies of the existing electric pulverizers for eggshell powder production, the utility model provides an electric pulverizer for eggshell powder production, which has the functions of crushing eggshells and screening eggshell powders, and can be used for multiple purposes in one machine. , the user's input cost is saved, and the advantages of easy cleaning are solved, and the problems raised in the above-mentioned background technology are solved.

The utility model provides the following technical solutions: an electric pulverizer for eggshell powder production, comprising a support frame, the top of the support frame is fixedly connected with a pulverizer, and the top of the pulverizer is provided with a feed The bottom of the pulverizer is provided with a discharge port, the top of the inner cavity of the pulverizer is fixedly connected with a filter screen, and one side of the inner cavity of the pulverizer is fixedly connected with a support rod, and the support The rod is located below the filter screen, the bottom of the support rod is movably connected with a telescopic rod two, the bottom end of the inner cavity of the mill is fixedly connected with a lower grinding disc, and the bottom of the lower grinding disc is fixedly connected with a telescopic rod one, so A hammer head is fixedly connected to the bottom of the first telescopic rod, a groove is formed in the side wall of the bottom end of the pulverizer, and a driven wheel is movably connected in the groove, and the outer ring of the driven wheel is wound with a transmission filter. belt, the hammer head is located above the conveying filter belt and the conveying filter belt has elasticity.

Preferably, a support plate is fixedly connected to one side of the top of the pulverizer, a motor 1 is fixedly connected to the top of the support plate, a shaft sleeve is fixedly connected to the end of the output shaft of the motor 1, and the other end of the shaft sleeve is fixed. A pulverizing rod is sleeved, the other end of the pulverizing rod penetrates the side wall of the pulverizer and extends to the inner cavity of the pulverizer, and the pulverizing rod is movably connected with the side wall of the pulverizer, and the pulverizing rod is located at the inner cavity of the pulverizer. above the filter.

Preferably, the bottom of the telescopic rod 2 is fixedly connected with an upper grinding disc, the upper grinding disc is movably connected with the inner wall of the pulverizer, and the upper grinding disc is above the lower grinding disc and is matched with the lower grinding disc.

Preferably, the top end of the outer ring of the second telescopic rod is wound with a belt, the second motor is fixedly connected to one side of the pulverizer, and the end of the output shaft of the second motor is fixedly connected with a rotating wheel, and the rotating wheel is connected to the telescopic rod. The rod two is connected by a belt drive.

Preferably, a driving wheel is movably connected to one side of the bottom end of the pulverizer, the driving wheel and the driven wheel are connected through a transmission filter belt, and the transmission filter belt is movably connected to the side wall of the pulverizer, and the One side of the bottom end of the pulverizer is fixedly connected with the third motor, the end of the output shaft of the third motor is fixedly connected with a disk, the outer ring of the disk is wound with a transmission belt, and the middle part of one side of the driving wheel is fixedly connected with another discs, the two discs are connected by a transmission belt.

Preferably, one side of the bottom end of the pulverizer is provided with a slag discharge port, and the outer side of the slag discharge port is movably connected with a baffle plate, the outer side of the baffle plate is fixedly connected with a pull ring, and the bottom of the baffle plate is connected to the transmission filter The tops of the straps snap together.

Compared with the existing electric pulverizer for eggshell powder production, the utility model has the following beneficial effects:

1. The electric pulverizer for eggshell powder production can filter out eggshells with larger particles in the eggshell powder by conveying the filter belt, which is beneficial to improve the quality of eggshell powder. Filter belt, the equipment has the functions of grinding and screening at the same time, one machine is multi-purpose, saves the floor space of the equipment, the equipment can directly screen eggshell powder after grinding, reducing the probability of eggshell powder being polluted by external bacteria, It is beneficial to improve the quality of eggshell powder. Through the elastic setting of the conveying filter belt, when the hammer is beating the conveying filter belt, the conveying filter belt can generate a large up and down fluctuation distance, which is convenient for the falling of eggshell powder.

2. The electric grinder used for eggshell powder production drives the rotation of the crushing rod through the rotation of the first motor, and the crushing rod crushes the whole eggshell into smaller particles, which is convenient for grinding the eggshell and crushing at the same time. The rotation of the rod, stirring the egg shell, accelerates the speed of the qualified egg shell particles passing through the filter screen, and the telescopic characteristics of the telescopic rod 2 can change the position of the upper grinding plate, which is convenient for the separation of the upper grinding plate and the lower grinding plate, and is convenient for the user to clean.

Description of drawings

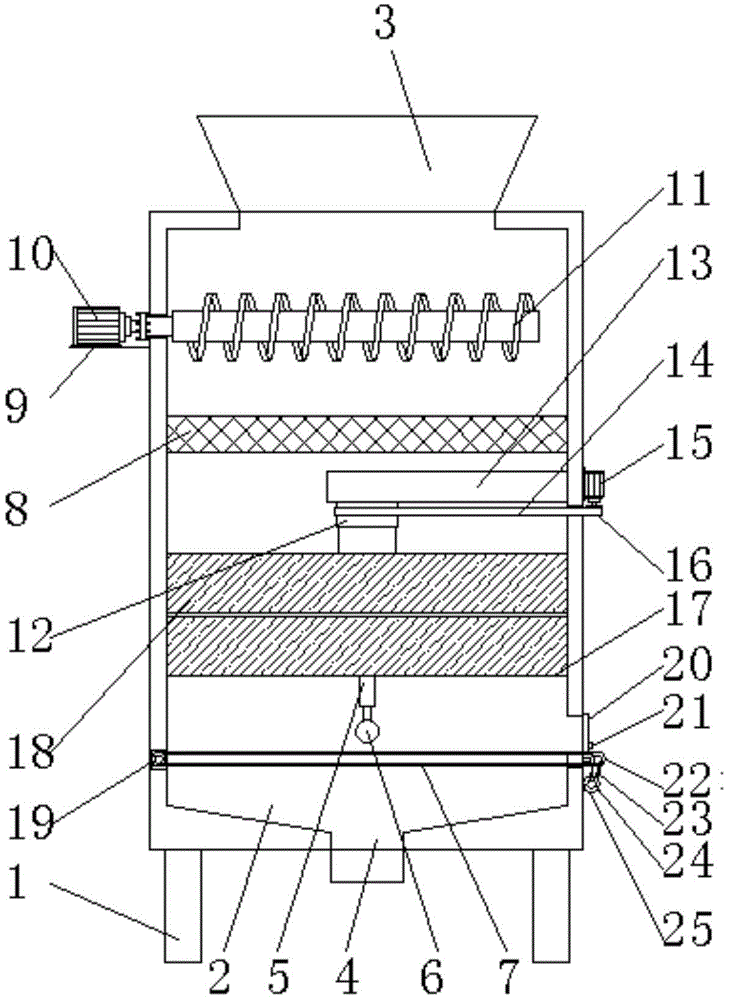

Fig. 1 is the front schematic view of the structure of the utility model;

Fig. 2 is a partial enlarged schematic view of the structure of the present invention.

In the figure: 1. Support frame; 2. Pulverizer; 3. Feed hopper; 4. Outlet; 5. Telescopic rod 1; 6. Hammer head; 7. Conveyor filter belt; 8. Filter screen; 9. Support plate; 10, motor one; 11, crushing rod; 12, telescopic rod two; 13, support rod; 14, belt; 15, motor two; 16, rotating wheel; 17, lower grinding disc; 18, upper grinding disc; 19, driven wheel; 20, baffle; 21, pull ring; 22, driving wheel; 23, transmission belt; 24, disc; 25, motor three.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Figure 1-2, an electric pulverizer for eggshell powder production, including a support frame 1, a pulverizer 2 is fixedly connected to the top of the support frame 1, and a feeding hopper is arranged on the top of the pulverizer 2 3. Through the feeding hopper 3, the eggshell can be put into the inner cavity of the pulverizer 2. The bottom of the pulverizer 2 is provided with a discharge port 4. Through the discharge port 4, the qualified eggshell powder can be ground. The particles are discharged. The top of the inner cavity of the mill 2 is fixedly connected with a filter screen 8. Through the filter screen 8, the crushed eggshell particles can be filtered. The qualified eggshell particles pass through the filter screen 8 and enter the grinding disc for grinding. The eggshell particles stay on the top of the filter screen 8 and continue to be pulverized by the pulverizing rod 11. One side of the inner cavity of the pulverizer 2 is fixedly connected with a support rod 13, and the support rod 13 is located under the filter screen 8, and the bottom of the support rod 13 is fixed. A telescopic rod 2 12 is movably connected, a lower grinding disc 17 is fixedly connected to the bottom end of the inner cavity of the pulverizer 2, a telescopic rod 1 5 is fixedly connected to the bottom of the lower grinding disc 17, and a hammer head 6 is fixedly connected to the bottom of the telescopic rod 1 5. The position of the hammer head 6 can be changed through the telescopic rod 1 5, and the telescopic rod 1 5 can control the hammer head 6 to beat the transmission filter belt 7, so as to accelerate the eggshell powder to pass through the transmission filter belt 7, and the side of the bottom side of the grinder 2 There is a groove in the wall and a driven wheel 19 is movably connected in the groove. The outer ring of the driven wheel 19 is wound with a transmission filter belt 7. Through the transmission filter belt 7, the eggshells with larger particles in the eggshell powder can be filtered out. It is beneficial to improve the quality of eggshell powder. A conveyor filter belt 7 is set in the pulverizer 2. The equipment has the functions of grinding and screening at the same time. One machine has multiple functions, which saves the floor space of the equipment. The equipment can be used after grinding. The eggshell powder is directly screened, which reduces the probability of eggshell powder being polluted by external bacteria, which is beneficial to improve the quality of eggshell powder. The hammer head 6 is located above the conveying filter belt 7 and the conveying filter belt 7 has elasticity. With the elastic arrangement, when the hammer head 6 is beating the conveying filter belt 7, the conveying filter belt 7 can generate a larger up and down fluctuation distance, which is convenient for the falling of the eggshell powder.

A support plate 9 is fixedly connected to one side of the top of the pulverizer 2, a motor one 10 is fixedly connected to the top of the support plate 9, a shaft sleeve is fixedly connected to the end of the output shaft of the motor one 10, and the other end of the shaft sleeve is fixedly sleeved There is a pulverizing rod 11, the other end of the pulverizing rod 11 penetrates the side wall of the pulverizer 2 and extends to the inner cavity of the pulverizer 2, and the pulverizing rod 11 is movably connected with the side wall of the pulverizer 2, and the pulverizing rod 11 is located in the filter Above the net 8, the rotation of the motor 1 10 drives the rotation of the crushing rod 11. The crushing rod 11 crushes the whole egg shell into smaller particles, which is convenient for grinding the egg shell. At the same time, the rotation of the crushing rod 11 stirs the eggs. shell, to speed up the passing speed of qualified egg shell particles through the filter screen 8.

Wherein, the bottom of the telescopic rod 2 12 is fixedly connected with an upper grinding disc 18, the upper grinding disc 18 is movably connected with the inner wall of the pulverizer 2, and the upper grinding disc 18 is above the lower grinding disc 17 and is matched with the lower grinding disc 17, through the upper grinding disc 18 and the lower grinding disc 17, which can grind eggshells into eggshell powder, and the telescopic characteristics of the telescopic rod 2 12 can change the position of the upper grinding disc 18, which is convenient for the separation of the upper grinding disc 18 and the lower grinding disc 17, and is convenient for cleaning by the user.

Among them, the top end of the outer ring of the telescopic rod 2 12 is wound with a belt 14, one side of the pulverizer 2 is fixedly connected with the second motor 15, and the end of the output shaft of the second motor 15 is fixedly connected with a rotating wheel 16, and the rotating wheel 16 is connected with the telescopic rod two 12 is connected by the transmission of the belt 14, through the motor two 15, the rotation of the motor two 15 drives the rotation of the rotating wheel 16, the rotation of the rotating wheel 16 drives the rotation of the telescopic rod two 12 which is easy to drive the connection of the belt 14, and the telescopic rod two 12 drives the upper grinding disc 18 and the lower grinding disc 17 rub against each other to grind the eggshells into eggshell powder, and the ground eggshell powder falls on the conveying filter belt 7.

Among them, the side of the bottom end of the pulverizer 2 is movably connected with a driving wheel 22, the driving wheel 22 and the driven wheel 19 are connected by transmission through the transmission filter belt 7, and the transmission filter belt 7 is movably connected with the side wall of the pulverizer 2, grinding powder One side of the bottom end of the device 2 is fixedly connected with the motor three 25, the output shaft end of the motor three 25 is fixedly connected with a disc 24, the outer ring of the disc 24 is wound with a transmission belt 23, and the middle part of one side of the driving wheel 22 is fixedly connected with another circle. The disc 24, the two discs 24 are connected by the transmission belt 23, and through the motor three 25, the rotation of the motor three 25 drives the driving wheel 22 to rotate, and the driving wheel 22 drives the transmission filter belt 7 to rotate, which is convenient for the user to clean the transmission filter belt 7. out of the eggshell.

Among them, one side of the bottom end of the pulverizer 2 is provided with a slag discharge port, and a baffle 20 is movably connected to the outer side of the slag discharge port. The tops are snapped together, and the baffle 20 can be opened and closed easily through the pull ring 21. When the baffle 20 is opened, it is convenient for the user to clean the eggshells filtered by the conveying filter belt 7.

Working principle: When in use, adjust the length of the telescopic rod 2 12 to make the upper grinding disc 18 contact the lower grinding disc 17, put the egg shell into the feeding hopper 3, the egg shell falls on the filter screen 8 under the action of gravity, and starts Motor one 10 and motor two 15, the rotation of motor one 10 drives the rotation of the crushing rod 11, the crushing rod 11 crushes the whole eggshell into smaller particles, which is convenient for grinding the eggshell, and the rotation of the crushing rod 11, Stir the eggshells to speed up the speed of the qualified eggshell particles passing through the filter screen 8, the unqualified eggshell particles remain on the top of the filter screen 8 and continue to be crushed, the qualified eggshells fall into the grinding chamber, and the rotation of the motor 2 15 drives the In order to rotate the rotating wheel 16, the rotation of the rotating wheel 16 drives the rotation of the telescopic rod 2 12 which is easy to drive and connect with the belt 14. The telescopic rod two 12 drives the upper grinding disc 18 and the lower grinding disc 17 to rub against each other, grinding the egg shells in the grinding chamber into egg shells. Powder, the ground eggshell powder falls on the conveyor filter belt 7, the conveyor filter belt 7 intercepts the unqualified eggshell powder particles, and the qualified eggshell powder particles pass through the conveyor filter belt 7 and are discharged from the discharge port 4 , the telescopic rod 1 5 drives the hammer head 6 to stretch up and down, and the hammer head 6 regularly beats on the conveying filter belt 7, so that the conveying filter belt 7 can generate a larger up and down fluctuation distance, which is convenient for the falling of eggshell powder. When the eggshell powder is intercepted on the filter belt 7, the machine stops working, opens the baffle 20, starts the motor three 25, the rotation of the motor three 25 drives the driving wheel 22 to rotate, and the driving wheel 22 drives the transmission filter belt 7 to rotate, and the transmission filter The intercepted eggshell powder particles are discharged out of the equipment with 7 belts. The equipment can crush, grind and screen eggshells at the same time. One machine has multiple functions, which saves the user's cost and improves the work efficiency.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.
