Abstract

The utility model belongs to the technical field of medical devices, in particular to a nursing pillow for preventing pressure ulcers on the head. The nursing pillow for preventing pressure ulcers on the head includes a nursing pillow main body, a water inlet pipe and a drainage pipe. The nursing pillow main body is a rectangle as a whole, with a water cavity inside, the water inlet pipe is communicated with the water cavity, and the water inlet pipe is on the A water inlet valve is installed, a drainage pipe is also connected to the water cavity, and a drainage valve is installed on the drainage pipe. The corresponding round hole, the neck pillow has an inverted trapezoidal groove in the middle that is suitable for the neck of the human body, a flat airbag cushion is arranged under the main body, and a bottom plate is arranged under the airbag cushion; the airbag cushion is connected There is an inflation nozzle and a deflation valve, and the inflation nozzle is communicated with an inflation pump. The utility model has the advantages of simple structure and convenient operation, can prevent pressure ulcers on the head, satisfies the nursing principle after cervical vertebra surgery, and can be popularized and applied clinically.

Description

A kind of nursing pillow for preventing head pressure ulcer

【Technical field】

The utility model belongs to the technical field of medical devices, in particular to a nursing pillow for preventing pressure ulcers on the head.

【Background technique】

At present, most of the pillows used clinically after cervical spine surgery are split, such as a thin pillow or ordinary pillow plus two sandbags to fix the cervical spine. First of all, the height of the pillow is constant, and the patient feels comfortable when lying down. However, when the patient can turn left and right after the operation, the cervical spine is easily flexed because the pillow is too low. However, using a thin pillow every time you turn over can easily cause cervical vertebra injury and is cumbersome due to frequent movements. The sandbags on both sides often need to be placed in place by medical staff or family members after turning over. It will be inconvenient for the patient to place the sandbags alone. In addition, after the patient can raise the head of the bed, the sandbags often slip off due to unreasonable placement. Occasionally, there are sandbags. Lost in transit.

CN201720389199.0 discloses a cervical spine surgery pillow, which consists of a hard bottom plate, a left air cushion, a middle air cushion, a right air cushion, a left air cushion ventilation pipe, a middle air cushion ventilation pipe, a right air cushion ventilation pipe, and a left air cushion valve , middle air cushion valve, right air cushion valve and sponge pad. By controlling the height of the air cushion, the operator can adjust the pillow to a suitable height after cervical spine surgery, which is suitable for different body positions of patients.

Although this patent solves the problem of changing body position, it still has the following problems: (1) It is not good to limit and fix the patient's head and neck, which is not conducive to the healing of the patient's cervical spine surgery. (2) There is no structure for cooling and decompression, and the patient's head is prone to pressure ulcers.

【Content of utility model】

In view of the above, it is necessary to provide a nursing pillow for preventing pressure ulcers on the head to overcome the above technical problems.

In order to achieve the above object, the technical scheme adopted by the present utility model is:

A nursing pillow for preventing pressure ulcers on the head, comprising a nursing pillow main body, a water inlet pipe and a drainage pipe. A water inlet valve is installed, a drainage pipe is also connected to the water cavity, and a drainage valve is installed on the drainage pipe. The corresponding round hole, the middle of the neck pillow has an inverted trapezoidal groove that is suitable for the neck of the human body, a flat airbag cushion is arranged under the main body, and a bottom plate is arranged under the airbag cushion; the airbag cushion is connected There is an inflation nozzle and a deflation valve, and the inflation nozzle is communicated with an inflation pump.

Further, the size of the main body of the nursing pillow is: length 60cm, width 25cm, and height 10cm.

Further, the headrest and the neck pillow are provided with cylindrical massage bumps.

Further, the length of the opening of the inverted trapezoidal groove is 20 cm, and the depth is 6 cm.

Further, the diameter of the circular hole is 4 cm.

The utility model has the following beneficial effects:

1. The main body of the present utility model is designed as a water pillow structure, which uses the fluidity of water, which can relieve the long-term pressure on the skin of the head and neck, reduce the occurrence of pressure damage, and also promote the passive movement of the head and neck, thereby preventing the head and neck. The main body is designed with a water inlet pipe and a drain pipe. In hot season, the water in the water cavity can be replaced with cold water, which can further prevent the formation of pressure ulcers by cooling down. The head is properly heated to keep warm to improve the comfort of the patient.

2. There is a round hole in the middle of the headrest that is compatible with the occipital protuberance, which can prevent the patient's back occiput from being pressed. Using such a structure, on the one hand, the patient's head can be restrained and fixed to prevent the patient's head from pathologically deviating to one side, which is beneficial to keep the patient's head in a functional position, and plays a certain role in rehabilitation and health care. It can protect the neck and prevent the neck pillow from compressing the blood vessels and nerves on the side of the neck when the human body is lying on the side, thereby preventing unnecessary diseases such as poor blood vessel passage and nerve paralysis that may occur due to long-term side lying.

3. The utility model is designed with an airbag cushion, and the height of the pillow can be adjusted by inflating and deflating, which solves the requirements of different patients for the height of the pillow. In addition, the airbag cushion is relatively soft, which improves the comfort of the patient; Massage bumps are set on the pillow and neck pillow to further increase patient comfort.

4. The utility model has the advantages of simple structure and low cost, and is suitable for industrial production.

【Description of drawings】

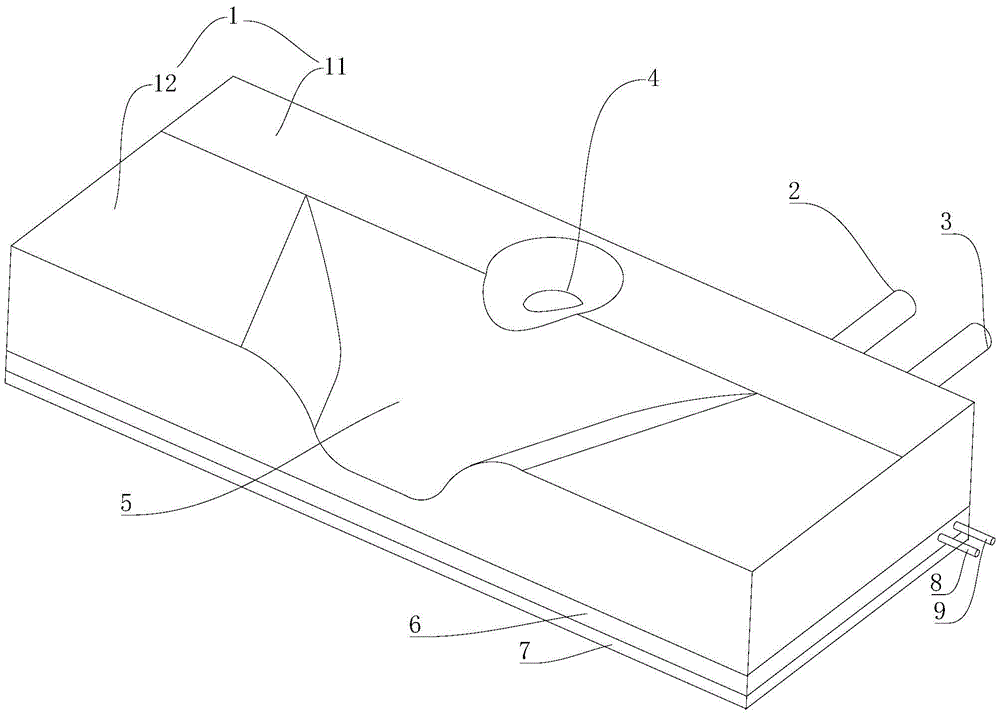

Figure 1 is a schematic structural diagram of the utility model.

Description of the reference numerals for the specific embodiments:

1. Main body; 2. Water inlet pipe; 3. Drain pipe; 11. Headrest; 12. Neck pillow; 4. Round hole; 5. Inverted trapezoidal groove; 6. Airbag cushion; 7. Bottom plate; 8. Inflatable nozzle; 9. Air release valve.

The following specific embodiments will further illustrate the present invention with reference to the above drawings.

【Detailed ways】

The technical solutions of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Unless otherwise defined, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the technical field to which the present invention belongs. The terms used in the description of the present invention herein are only for the purpose of describing specific embodiments, and are not intended to limit the present invention. As used herein, the term "and/or" includes any and all combinations of one or more of the associated listed items.

As shown in Figure 1, a nursing pillow for preventing head pressure ulcers includes a nursing pillow main body 1, a water inlet pipe 2 and a drainage pipe 3. The nursing pillow main body 1 is a rectangle as a whole, with a water cavity inside, a water inlet pipe 2 and a water cavity. Connected, the water inlet pipe 2 is installed with a water inlet valve, the water cavity is also connected with a drain pipe 3, and a drain valve is installed on the drain pipe 3. Due to the above structure, the fluidity of the water can be used to relieve the skin of the head and neck. Long-term pressure can reduce the occurrence of pressure injury, and can also promote passive movement of the head and neck, thereby preventing pressure ulcers in the head and neck; the main body 1 is connected to the water inlet pipe 2 and the drain pipe 3. In hot seasons, the water in the water cavity can be removed. The water can be replaced with cold water to further prevent the formation of pressure ulcers by lowering the temperature. When used in cold seasons, it can be replaced with warm water to properly warm the patient's head and improve the comfort of the patient.

The main body 1 includes an integrated headrest 11 and a neck pillow 12. In order to further prevent pressure ulcers, the headrest 11 has a circular hole 4 in the middle that is adapted to the occipital protuberance. There is a corresponding inverted trapezoidal groove 5. In order to facilitate the adjustment of the height of the nursing pillow, a flat airbag cushion 6 is provided below the main body 1, and a bottom plate 7 is provided below the airbag cushion 6; The valve 9 and the inflation nozzle 8 are connected with the inflation pump.

In order to further increase the comfort of the patient, the headrest 11 and the neck pillow 12 are provided with cylindrical massage bumps.

In this embodiment, the size of the nursing pillow body 1 is: length 60cm, width 25cm, and height 10cm.

In this embodiment, the length of the opening of the inverted trapezoidal groove 5 is 20 cm, and the depth is 6 cm.

In this embodiment, the diameter of the circular hole 4 is 4 cm.

The use process of the utility model is as follows: according to the condition of the patient, select the appropriate water temperature, inject water into the water cavity of the main body 1 of the nursing pillow through the water inlet pipe 2, then, the patient lies on the pillow, the occipital protuberance is correspondingly pressed against the circular hole 4, and the neck Then, adjust the height of the pillow through the airbag cushion 6 to keep the patient in a comfortable state.

The above description is a detailed description of the preferred feasible embodiments of the present utility model, but the embodiments are not intended to limit the scope of the patent application of the present utility model. All should belong to the scope of the patent covered by this utility model.

Claims (5)

1. The utility model provides a prevent nursing pillow of head pressure sore, includes nursing pillow main part (1), inlet tube (2) and drain pipe (3), nursing pillow main part (1) wholly is rectangle, and interior is the water cavity, inlet tube (2) and water cavity intercommunication, install the water intaking valve on inlet tube (2), the water cavity still communicates drain pipe (3), install the drain valve on drain pipe (3), its characterized in that, main part (1) is including headrest (11) and neck pillow (12) that fuse, round hole (4) that suit with occipital bone bulge are had in the middle of headrest (11), have in the middle of neck pillow (12) and fall trapezoidal recess (5) that suit with human neck, main part (1) below is provided with flat gasbag pad (6), gasbag pad (6) below is provided with bottom plate (7); the air bag cushion (6) is communicated with an inflation nozzle (8) and an air release valve (9), and the inflation nozzle (8) is communicated with an inflation pump.

2. A care pillow for preventing head pressure sores as recited in claim 1, wherein: the nursing pillow main body (1) is characterized in that: 60cm long, 25cm wide and 10cm high.

3. A care pillow for preventing head pressure sores as recited in claim 1, wherein: the head pillow (11) and the neck pillow (12) are provided with cylindrical massage salient points.

4. A care pillow for preventing head pressure sores as recited in claim 1, wherein: the length of the opening of the inverted trapezoidal groove (5) is 20cm, and the depth of the opening is 6 cm.

5. A care pillow for preventing head pressure sores as recited in claim 1, wherein: the diameter of the round hole (4) is 4 cm.
