CN211558403U - A automatically cleaning feeding trough device for huai nan black pig is bred - Google Patents

Abstract

The utility model relates to the technical field of agricultural black pig breeding, and discloses a self-cleaning feeding trough device for the breeding of Huainan black pigs, which comprises a feeding trough. A brush body is fixedly installed on the bottom outer wall of the food push plate, and the bottom of the brush body is in contact with the bottom wall of the inner cavity of the feeding trough. The quick cleaning and flushing of the residual waste in the feeding tank ensures the cleanliness of the feeding trough, avoids the spoilage of feed residues, and is beneficial to the feeding of live pigs; at the same time, through the setting of the water storage tank, it is possible to realize the removal of excess material in the feeding trough. The collected water is conducive to the cleaning operation of the food in the feeding trough, avoiding the loss of waste liquid and pollution, and the structure of the discharging trough is reasonable, which is conducive to the centralized collection and processing of the cleaned waste materials.

Description

A self-cleaning feeding trough device for breeding of Huainan black pigs

technical field

The utility model relates to the technical field of agricultural black pig breeding, in particular to a self-cleaning feeding trough device used for the breeding of Huainan black pigs.

Background technique

At present, the pig breeding industry has become the pillar industry of my country's agricultural economy. With the rapid development of pig breeding industry, supporting breeding facilities and technologies also need to develop steadily to continuously meet the needs of large-scale breeding. In traditional farms, artificial feeding is generally used to feed live pigs. With the continuous expansion of the breeding scale, the disadvantages of artificial feeding are increasingly apparent. In a breeding workshop, an independent feeding trough is usually configured for each pen. The feeding trough is used as a feeding trough for multiple pigs in the pen, and the feed is placed in the feeding trough for the pigs to eat.

The existing feeding trough generally only has a simple auxiliary feeding function, and the existing feeding trough device cannot be cleaned, which leads to the spoilage and deterioration of the feed residue, which in turn leads to health problems of live pigs, which is not conducive to large-scale production of live pigs. To this end, we propose a self-cleaning feeding trough device for Huainan black pig breeding.

SUMMARY OF THE INVENTION

The utility model provides a self-cleaning feeding trough device for the breeding of Huainan black pigs, which aims to facilitate cleaning and flushing operations, ensure the cleanliness of the feeding trough, and facilitate the feeding of live pigs.

In order to realize the above-mentioned technical purpose and achieve the above-mentioned technical effect, the present invention is realized through the following technical solutions:

A self-cleaning feeding trough device for breeding of Huainan black pigs, comprising a feeding trough, a food pushing plate is arranged in the inner cavity of the feeding trough, and a brush body is fixedly installed on the bottom outer wall of the feeding trough , the bottom of the brush body is in contact with the bottom wall of the inner cavity of the feeding trough, the top outer wall of the food push plate is fixedly installed with a vertical rod, the top of the vertical rod is fixedly installed with a push rod, and the push rod The left side of the nozzle is provided with a nozzle holder, the nozzle holder is fixedly installed on the top outer wall of the feeding trough, the nozzle holder is provided with a water pipe, and the end of the water pipe is connected with a nozzle that matches the nozzle holder. The main body, the right side of the feeding trough is provided with a discharging trough, the bottom outer wall of the discharging trough is movably connected with a support leg, and the left bottom of the discharging trough is movably connected to the side of the feeding trough through a pin shaft The connection between the discharge chute and the feeding chute is provided with a through hole, the feeding chute is provided with a baffle plate, the baffle plate is arranged in the through hole of the feeding chute, and the baffle plate is connected to the through hole of the feeding chute. The inner wall of the hole is flexibly connected.

Preferably, in the above-mentioned self-cleaning feeding trough device for breeding of Huainan black pigs, a guide block is fixedly installed on the outer wall of the vertical rod, and a guide block is provided on the inner cavity wall of the feeding trough to match the guide block. The guide groove, the guide block is movably connected to the inner wall of the guide groove.

Based on the above technical features, through the arrangement of the guide block and the guide groove, the food push plate can be better moved, and the limit effect is good.

Preferably, in the above-mentioned self-cleaning feeding trough device for breeding of Huainan black pigs, a spring clip is installed on the right outer wall of the nozzle holder, and the spring clip is sleeved on the outer wall of the vertical rod.

Based on the above technical features, through the arrangement of the spring clip, the positioning and fixing operations of the vertical rod can be realized, so as to facilitate the storage.

Preferably, in the above-mentioned self-cleaning feeding trough device for breeding of Huainan black pigs, the bottom of the inner cavity of the feeding trough is slotted and installed with a filter screen, and the bottom of the filter screen is linearly installed with water leakage A water storage tank is fixedly installed on the bottom outer wall of the feeding trough, the bottom end of the leaking pipe is connected to the inner cavity of the water storage tank, and a drainage hole is opened on the outer wall of the water storage tank.

Based on the above technical features, through the arrangement of the water storage tank, the excess water in the feeding trough can be collected, which is beneficial to the cleaning operation of the food in the feeding trough, and avoids the loss of waste liquid pollution.

Preferably, in the above-mentioned self-cleaning feeding trough device for breeding of Huainan black pigs, the right side wall of the inner cavity of the discharging trough is inclined to the right.

Based on the above technical features, the structure of the discharge chute is reasonable, which is conducive to the centralized collection and processing of the cleaned waste materials.

The beneficial effects of the utility model are as follows: the overall structure of the utility model is reasonable, and the operation is convenient, which can realize the rapid cleaning and flushing of the residual waste in the feeding trough, ensure the cleanliness of the feeding trough, and avoid the spoilage of the feed residue. Deterioration is beneficial to the feeding of live pigs; at the same time, through the setting of the water storage tank, the excess water in the feeding trough can be collected, which is conducive to the cleaning operation of the food in the feeding trough, and avoids the loss of waste liquid and pollution. And the structure of the discharge chute is reasonable, which is conducive to the centralized collection and processing of the cleaned waste materials.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the accompanying drawings required for the description of the embodiments will be briefly introduced below. Obviously, the drawings in the following description are only some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative effort.

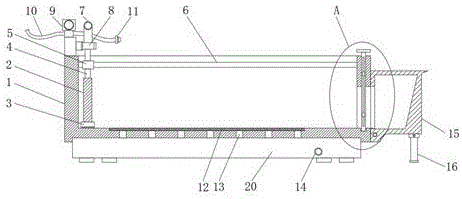

Fig. 1 is the overall structure schematic diagram of the present utility model;

Fig. 2 is the enlarged view of the utility model Fig. 1 place A;

FIG. 3 is a sectional view of the side structure of the feeding trough and the food pushing plate of the present invention.

In the accompanying drawings, the list of components represented by each number is as follows:

1. Feeding trough; 2. Food push plate; 3. Brush body; 4. Vertical rod; 5. Guide block; 6. Guide groove; 7. Push rod; 8. Spring clip; 9. Nozzle holder; 10. Water pipe; 11. Main body of sprinkler; 12. Filter screen; 13. Water leakage pipe; 14. Drainage hole; 15. Discharge chute; 16. Support leg; 17. Pin shaft; 18. Through hole; 19. Baffle plate; 20. Water storage tank.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIGS. 1-3. This embodiment is a self-cleaning feeding trough device for breeding of Huainan black pigs, including a feeding trough 1, and a food pushing plate 2 is arranged in the inner cavity of the feeding trough 1. A brush body 3 is fixedly installed on the bottom outer wall of the food push plate 2, the bottom of the brush body 3 is in contact with the bottom wall of the inner cavity of the feeding trough 1, and a vertical rod 4 is fixed on the top outer wall of the food push plate 2. The vertical rod A push rod 7 is fixedly installed at the top of the 4, a guide block 5 is fixedly installed on the outer wall of the vertical rod 4, and a guide groove 6 matching the guide block 5 is opened on the inner cavity wall of the feeding chute 1. The guide block 5 is movably connected to the guide block. The inner wall of the groove 6, through the setting of the guide block 5 and the guide groove 6, can realize the better moving work of the food push plate 2, and the limit effect is good. The left side of the push rod 7 is provided with a nozzle holder 9. A spring clip 8 is installed on the right outer wall of the vertical rod 4, and the spring clip 8 is sleeved on the outer wall of the vertical rod 4. Through the setting of the spring clip 8, the position limit and fixing operation of the vertical rod 4 can be realized, so as to facilitate the storage and the nozzle card The seat 9 is fixedly installed on the top outer wall of the feeding trough 1. A water pipe 10 is arranged in the nozzle holder 9. The end of the water pipe 10 is connected with a nozzle main body 11 that matches the nozzle holder 9. The right side of the feeding trough 1 is provided There is a discharge chute 15, the bottom outer wall of the discharge chute 15 is movably connected with a support leg 16, the left bottom of the discharge chute 15 is movably connected to the side wall of the feeding chute 1 through the pin 17, the discharge chute 15 and the feeding There are through holes 18 at the joints of the trough 1, and a baffle 19 is provided on the feeding trough 1. The baffle 19 is arranged in the through hole 18 of the feeding trough 1, and the baffle 19 is movably connected to the inner wall of the through hole 18. , the right side wall of the inner cavity of the discharge chute 15 is inclined to the right, and the structure of the discharge chute 15 is reasonable, which is conducive to the centralized collection and processing of the cleaned waste materials. The bottom of the inner cavity of the feeding chute 1 is open A filter screen 12 is installed in the tank, and a water leakage pipe 13 is installed linearly and equally below the filter screen 12. A water storage tank 20 is fixedly installed on the bottom outer wall of the feeding tank 1, and the bottom end of the leakage water pipe 13 is connected to the water storage tank. The inner cavity of the water storage tank 20 and the outer wall of the water storage tank 20 are provided with drainage holes 14. Through the arrangement of the water storage tank 20, the excess water in the feeding tank 1 can be collected, which is beneficial to the feeding tank 1. The cleaning operation of the food avoids the loss and pollution of waste liquid.

A specific implementation of the present utility model, the overall structure of the present utility model is reasonable and convenient to operate, which can realize the rapid cleaning and flushing of the residual waste in the feeding trough 1, and ensure the cleanliness of the feeding trough 1. When the push rod 7 is pushed, the vertical rod 4 can move through the guide block 5 and the guide groove 6, and the food push plate 2 can move stably and evenly in the feeding trough 1, and push the residual waste in the feeding trough 1 to move. The water source of the water pipe 10 is connected, the external faucet is turned on, and the main body 11 of the nozzle on the nozzle holder 9 is removed, so that the cleaning operation of the bottom of the feeding tank 1 can be realized. Through the conduction of the leakage pipe 13, the excess water in the feeding tank 1 can be collected, which is beneficial to the cleaning operation of the food in the feeding tank 1, avoids the loss of waste liquid and pollution, and thus avoids the spoilage and deterioration of the feed residue. Conducive to the feeding of live pigs, the wastes finally discharged enter the cavity of the discharge chute 15 through the through holes 18, and the residual waste in the discharge chute 15 can be collectively collected and processed by rotating the discharge chute 15.

In the description of this specification, description with reference to the terms "one embodiment", "example", "specific example", etc. means that a specific feature, structure, material or characteristic described in connection with the embodiment or example is included in the present invention. in at least one embodiment or example. In this specification, schematic representations of the above terms do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The preferred embodiments of the present invention disclosed above are only used to help illustrate the present invention. The preferred embodiments do not exhaustively describe all the details, nor do they limit the invention to specific embodiments only. Obviously, many modifications and variations are possible in light of the contents of this specification. This specification selects and describes these embodiments in order to better explain the principle and practical application of the present invention, so that those skilled in the art can well understand and utilize the present invention. The present invention is limited only by the claims and their full scope and equivalents.

Claims (5)

1. The utility model provides a automatically cleaning feeding trough device for huai nan black pig is bred, includes feeding trough (1), its characterized in that: be provided with foodstuff push pedal (2) in the inner chamber of feeding groove (1), fixed mounting has brush body (3) on the bottom outer wall of foodstuff push pedal (2), the bottom of brush body (3) and the inner chamber diapire of feeding groove (1) contact each other, fixed mounting has montant (4) on the top outer wall of foodstuff push pedal (2), the top fixed mounting of montant (4) has push rod (7), the left of push rod (7) is provided with shower nozzle cassette (9), shower nozzle cassette (9) fixed mounting is on the top outer wall of feeding groove (1), be provided with water pipe (10) in shower nozzle cassette (9), the end switch-on of water pipe (10) has shower nozzle main part (11) that matches with shower nozzle cassette (9), right-hand row's of being provided with of feeding groove (1) material groove (15), swing joint has supporting leg (16) on the bottom outer wall of row's material groove (15), the lateral wall of left side bottom through round pin axle (17) swing joint feeding trough (1) of relief groove (15), through-hole (18) have all been seted up to the junction of relief groove (15) and feeding trough (1), be provided with baffle (19) on feeding trough (1), baffle (19) set up in through-hole (18) of feeding trough (1), and the inner wall swing joint of baffle (19) and through-hole (18).

2. The self-cleaning feeding trough device for Huainan black pig breeding as claimed in claim 1, wherein: the outer wall of the vertical rod (4) is fixedly provided with a guide block (5), the inner cavity wall of the feeding trough (1) is provided with a guide groove (6) matched with the guide block (5), and the guide block (5) is movably connected with the inner wall of the guide groove (6).

3. The self-cleaning feeding trough device for Huainan black pig breeding as claimed in claim 1, wherein: and a spring clamp (8) is arranged on the outer wall of the right side of the spray head clamping seat (9), and the spring clamp (8) is sleeved on the outer wall of the vertical rod (4).

4. The self-cleaning feeding trough device for Huainan black pig breeding as claimed in claim 1, wherein: a filter screen (12) is arranged at the bottom of an inner cavity of the feeding trough (1) in a slotted mode, water leakage pipes (13) are linearly and equally arranged below the filter screen (12), a water storage box body (20) is fixedly arranged on the outer wall of the bottom of the feeding trough (1), the bottom end of each water leakage pipe (13) is communicated with the inner cavity of the water storage box body (20), and a water drainage hole (14) is formed in the outer wall of the water storage box body (20).

5. The self-cleaning feeding trough device for Huainan black pig breeding as claimed in claim 1, wherein: the right side wall of the inner cavity of the discharge groove (15) is arranged in a manner of inclining rightwards.
