Abstract

The utility model relates to the technical field of power transmission tower climbing appliances, and discloses an improved anti-falling foot nail, which comprises a foot nail body and a reinforcing piece, wherein the reinforcing piece comprises a supporting part and a fixing part, and the supporting part and the fixing part are between the supporting part and the fixing part. They are connected together by connecting ribs, the support part and the fixed part are provided with support holes, the foot nail body is installed in the support hole, one end of the foot nail body is provided with an external thread section, and the other end is provided with a An arc-shaped segment bent upward, a first nut and a second nut are sleeved on the external thread segment, the first nut is installed on the external thread segment between the support part and the fixed part, and the second nut connects the The foot nail body is locked on the transmission tower or the pole tower, and the end of the arc segment is provided with a non-slip cap. The utility model is provided with a non-slip cap on the arc-shaped section, which can effectively prevent slipping and has high safety. Moreover, a support piece is arranged on the foot nail body, and the foot nail body only needs to be inserted into the supporting hole, which is convenient for installation and has high supporting strength. higher.

Description

Improved anti-shedding feet

technical field

The utility model belongs to the technical field of high appliances such as power transmission towers, in particular to an improved anti-falling foot nail.

Background technique

In the power system, in order to mount the transmission tower or pole tower, usually when constructing the iron tower or pole tower, foot nails are installed to facilitate the operator to get up and down. In the prior art, the foot nails are mostly designed from the perspectives of anti-skid, anti-freeze, and safety handles.

The Chinese patent "anti-deformation high-strength foot nail" with the authorization announcement number CN203948020U includes a foot nail body, an anti-fall cap, a pair of fixing nuts and a number of anti-skid ribs. The cross section of the foot nail body is circular, and one end is provided with an external thread. The other end is bent obliquely upward, the anti-fall cap is arranged on the obliquely upwardly bent end of the foot nail body, the anti-slip rib is arranged on the upper surface of the foot nail body, and the foot is fixed by the pair of fixing nuts. The nail body is arranged on the iron tower, a rectangular positioning groove is arranged under the foot nail body, and a reinforcing plate is also included. The reinforcing plate is composed of a fixing plate and a supporting plate, and the fixing plate is arranged on the fixing nut and the iron tower between, the support plate is arranged on the fixing plate, the fixing plate is further provided with perforations, the support plate is triangular in shape, and has a space for the slot, and the upper surface of the support plate is in the shape of a wedge and One end away from the fixing plate is a high place. Although this patent adds a reinforcing plate, it also has the following defects: as we all know, the cross-sectional diameter of the foot nail body is relatively small, and a positioning groove is arranged under the foot nail body, and the support strength of the foot nail body at the positioning groove is undoubtedly significantly reduced. Moreover, the connection between the positioning groove and the support plate should also make the position of the positioning groove and the support plate relatively fixed, otherwise, the installation cannot be performed smoothly.

Therefore, how to solve the above problems has become the focus of research by those in the field.

Utility model content

The first objective of the present utility model is to provide an improved anti-dropping foot nail, which has solved the deficiencies of the prior art.

The embodiment of the present utility model is realized in this way:

An improved anti-falling foot nail, comprising a foot nail body and a reinforcing piece, the reinforcing piece comprises a support part and a fixed part, the support part and the fixed part are connected as a whole by connecting ribs, and the support part and the fixed part are integrally connected. The fixed part is provided with a coaxial support hole, the foot nail body is installed in the support hole from one end of the support part to one end of the fixed part, one end of the foot nail body is provided with an external thread segment, and the other end is provided with There is an upwardly curved arc segment, the outer thread segment is sleeved with a first nut and a second nut, the first nut is installed on the outer thread segment between the support part and the fixing part, and the second nut connects the The foot nail body is locked on the transmission tower or the pole tower, and the end of the arc segment is provided with a non-slip cap.

Further, the anti-skid cap is provided with anti-skid barbs.

Further, half of the inner hole of the first nut is provided with internal threads, and the other half is unthreaded. When the foot nail body is fixed to the power transmission tower or pole tower, the unthreaded end of the first nut does not pass the external thread section. and arc segments.

Further, the surface of the arc-shaped segment is provided with anti-skid ribs.

Further, a washer is provided between the first nut and the second nut.

The beneficial effects of the present utility model are:

The utility model is provided with a non-slip cap on the arc-shaped section, which can effectively prevent slipping and has high safety. Moreover, a support piece is arranged on the foot nail body, and the foot nail body only needs to be inserted into the support hole, which is convenient for installation and supports higher strength.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the accompanying drawings that need to be used in the embodiments will be briefly introduced below. It should be understood that the following drawings only show some embodiments of the present invention. Therefore, it should not be regarded as a limitation of the scope. For those of ordinary skill in the art, other related drawings can also be obtained from these drawings without any creative effort.

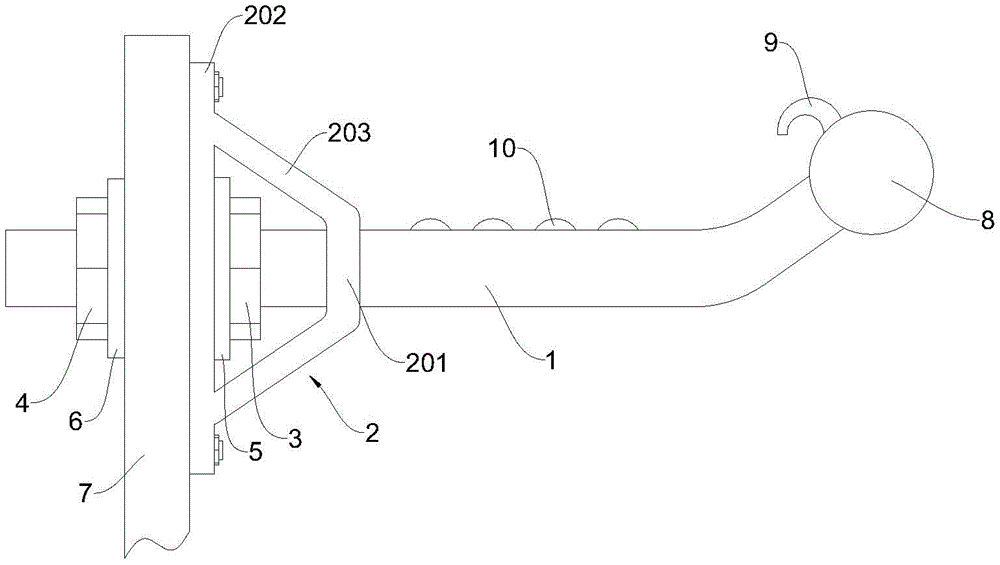

Fig. 1 is the structural representation of the present utility model;

Figure 2 is a schematic diagram of the cooperation between the second nut and the foot nail body;

Fig. 3 is the structural representation of the second nut;

Figure 4 is a side view of the support.

Icon: 1-foot nail body, 2-reinforcing piece, 3-first nut, 4-second nut, 5-first washer, 6-second washer, 7-transmission tower or pole tower, 8-skid cap , 9-barb, 10-anti-skid rib, 101-external thread segment, 102-arc segment, 201-support part, 202-fixed part, 203-connecting rib, 204-support hole.

Detailed ways

In order to make the purposes, technical solutions and advantages of the embodiments of the present utility model clearer, the technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. The embodiments described above are a part of the embodiments of the present invention, but not all of the embodiments. The components of the embodiments of the invention generally described and illustrated in the drawings herein may be arranged and designed in a variety of different configurations.

Accordingly, the following detailed description of the embodiments of the invention provided in the accompanying drawings is not intended to limit the scope of the invention as claimed, but is merely representative of selected embodiments of the invention. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

It should be noted that like numerals and letters refer to like items in the following figures, so once an item is defined in one figure, it does not require further definition and explanation in subsequent figures.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner" and "outer" The orientation or positional relationship indicated by etc. is based on the orientation or positional relationship shown in the accompanying drawings, or the orientation or positional relationship that is usually placed when the utility model product is used, only for the convenience of describing the present utility model and simplifying the description, not Indicates or implies that the referred device or element must have a particular orientation, be constructed and operate in a particular orientation, and therefore should not be construed as a limitation of the present invention.

Please refer to FIG. 1 to FIG. 4 . As shown, this embodiment provides an improved support structure for an anti-falling foot nail, which includes a foot nail body 1 , a reinforcing member 2 , a first nut 3 , and a second nut 4 , a first gasket 5 and a second gasket 6, the reinforcement 2 includes a support part 201 and a fixed part 202, the support part 201 and the fixed part 202 are connected by connecting ribs 203 and integrally formed into a regular quadrangular pyramid structure , the support part 201 and the fixed part 202 are square table bodies, the center of the support part 201 and the fixed part 202 is processed with a coaxial support hole 204, one end of the foot nail body 1 is provided with an external thread section 101, and the other One end is provided with an upwardly curved arc-shaped section 102, and the external thread section 101 sequentially passes through the support hole 204 on the support part 201, the first nut 3, the first gasket 5, the support hole 204 of the fixed part 202, and the transmission tower. Or the pole tower 7, the second washer 6 and the second nut 5, by adjusting the first nut 3 and the second nut 4, the foot nail body 1 and the support member 2 are fixed on the transmission tower or the pole tower 7, in order to increase the support member 2. For the support strength, the fixing part 2 can be further fixed to the transmission tower or the pole tower 7 by using screws, and the end of the arc-shaped section 102 is welded with the anti-skid cap 8 .

It can be seen from the above structure that the foot nail body 1 can greatly enhance the supporting strength of the foot nail body 1 under the action of the support member 2, and when the foot nail body 1 and the support member 2 are installed together, only the foot nail body 1 needs to be penetrated. After the supporting hole 204 on the supporting member 2 is formed, it can be fixed on the transmission tower or the pole tower 7 by nuts, and the installation is convenient and simple.

In order to strengthen the double tack, commonly known as the pig's trotter buckle, when it is fixed on the foot nail body, it is more difficult to slip, the anti-skid cap 8 is welded with barbs 9, and a number of anti-skid ribs 10 are integrally formed on the surface of the arc section.

It has been found in multiple impact tests that if the inner hole of the first nut 3 is a fully threaded structure, when the first nut 3 is threaded to the joint of the external thread section 101 and the arc section 102, it is easy to cause the joint to bend. deformation. Therefore, in the present invention, half of the inner hole of the first nut 3 is provided with internal threads, and the other half is unthreaded. The threaded end does not pass the junction of the external thread segment 101 and the arcuate segment 102, and experiments have proved that the junction can be effectively prevented from bending deformation.

The above descriptions are only preferred embodiments of the present utility model, and are not intended to limit the present utility model. For those skilled in the art, the present utility model may have various modifications and changes. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims (5)

1. An improved anti-falling foot nail, characterized in that it comprises a foot nail body (1) and a reinforcing member (2), the reinforcing member (2) comprising a support portion (201) and a fixing portion (202), The supporting portion (201) and the fixing portion (202) are connected as a whole by connecting ribs (203), and the supporting portion (201) and the fixing portion (202) are provided with coaxial supporting holes (204) The foot nail body (1) is installed in the support hole (204) from one end of the support part (201) to one end of the fixing part (202), and one end of the foot nail body (1) is provided with an external thread segment (101), the other end is provided with an upwardly curved arc segment (102), the outer thread segment (101) is sleeved with a first nut (3) and a second nut (4), the first nut (3) ) is installed on the external thread section (101) between the support part (201) and the fixing part (202), the second nut (4) locks the foot nail body (1) to the transmission tower or pole tower (7) ), the end of the arc segment (102) is provided with a non-slip cap (8). 2 . The improved anti-falling foot nail according to claim 1 , wherein the anti-skid cap ( 8 ) is provided with anti-skid barbs ( 9 ). 3 . 3. The improved anti-dropping foot nail according to claim 1, wherein half of the inner hole of the first nut (3) is provided with internal threads, and the other half is unthreaded, when the foot nail body (1) When being fixed on the power transmission tower or the pole tower (7), the unthreaded end of the first nut (3) does not pass over the connection between the external thread segment (101) and the arc segment (102). 4. The improved anti-falling foot nail according to claim 1, characterized in that: the surface of the arc-shaped segment (102) is provided with anti-skid ribs (10). 5. The improved anti-dropping foot nail according to claim 1, wherein a washer is arranged between the first nut (3) and the second nut (4).
