Abstract

The utility model relates to the technical field of engineering hoisting equipment, in particular to a steel plate hoisting point device, comprising a hoisting beam and a hoisting cage body, the hoisting cage body is provided with a hoisting plate, the hoisting plate is provided with a hoisting hole, and the hoisting cage body is provided with a hoisting hole. The beam and the hoisting hole on the hanging plate are connected by steel cables. The hanging cage body is provided with a hanging plate. The hanging beam is installed in the hoisting hole of the hanging plate through the steel cable, so that the hanging cage body can be hoisted through the hanging beam, and the hanging plate can be installed on the hanging plate. The mechanical and material properties of the hanging plate are not affected by processing, so that the hanging plate can withstand a large hoisting load without breaking. It also avoids the surface damage to reduce mechanical properties during cold bending of steel bars, and it is easy to break during hoisting, resulting in safety accidents.

Description

A steel plate hanging point device

technical field

The utility model relates to the technical field of engineering hoisting equipment, in particular to a steel plate hoisting point device.

Background technique

In the process of engineering construction, cold bending of steel bars is often used as the lifting point. The cold-drawn steel bars can effectively improve the tensile strength but reduce the ductility of the steel bars. Different degrees of damage to the steel bars during cold bending will significantly reduce the mechanical properties of the steel bars. ; Supplemented by the local embrittlement of the steel bar after cold bending, the steel bar lifting point is prone to breakage at the cold bending place, resulting in hoisting safety accidents.

To sum up, there is an urgent need for a steel plate hanging point device.

SUMMARY OF THE INVENTION

In view of the above problems, the purpose of the present invention is to provide a steel plate hanging point device.

To achieve the above object, the technical scheme adopted by the present utility model is:

A steel plate hoisting point device comprises a hoisting beam and a hoisting cage body, the hoisting cage body is provided with a hoisting plate, the hoisting plate is provided with hoisting holes, and the hoisting holes on the hoisting beam and the hoisting plate adopt steel cables connect.

There is a hanging plate on the hanging cage body, and the hanging beam is installed in the hoisting hole of the hanging board through the steel cable, so that the hanging cage body can be hoisted through the hanging beam, and the hoisting hole is processed on the hanging board, and the mechanical and material properties of the hanging board are not affected. Therefore, the hanging plate can withstand a large hoisting load without breaking. The device has a simple structure, compared with the use of cold bending of steel bars as the lifting point, the use of hanging plates for hoisting has high strength, and avoids the reduction of surface damage during cold bending of steel bars. Mechanical properties, easy to break during hoisting, resulting in safety accidents.

Preferably, the hanging cage body includes a truss and a steel cage, the truss is staggered along the steel cage, the hanging plate is fixed on the truss, the truss is the skeleton of the hanging cage body and the steel cage is staggered, and the truss is used as the main hoisting device. At the focus point, the hanging plate is fixed on the truss, which can improve the safety of hoisting.

Preferably, the hoisting beam includes a main hoisting hoisting beam and an auxiliary hoisting hoisting beam, the steel cable of the main hoisting hoisting beam is connected to the suspending plate through the pulley, and the steel cable of the main hoisting suspending beam is connected to the suspending plate through the pulley, The pulley has a simple structure and is easy to use, and can change the direction of the traction wire rope and lift or move the running objects, which can not only reduce the traction force, but also change the direction of the pulling force.

Preferably, the truss includes a transverse truss and a longitudinal truss, the main hanging beam is located at the upper end of the cage body, the hanging plates are arranged on the transverse trusses on both sides of the main hanging beam, and the main hanging beam is connected to the two The distance between the lateral trusses on the sides is the same, the main hanging beam is located at the upper end of the cage body, the hanging plates are arranged on the lateral trusses on both sides of the main hanging beam, and the distance between the main hanging beam and the lateral trusses on both sides is the same, The main hoisting beam is connected with the hanging plates on the lateral trusses on both sides through steel cables, which is beneficial to improve the stability of the hoisting process.

Preferably, the auxiliary hanging beam is located at the upper end of the cage body, the hanging plate is arranged on the lateral trusses on both sides of the auxiliary hanging beam, and the distance between the auxiliary hanging beam and the lateral trusses on both sides is the same, The auxiliary hoisting beam is located at the upper end of the cage body, the hanging plates are arranged on the lateral trusses on both sides of the auxiliary hoisting girder, and the distance between the auxiliary hoisting girders and the lateral trusses on both sides is the same, and the auxiliary hoisting beams are connected to both sides through steel cables. The hanging plate connection on the transverse truss is beneficial to improve the stability of the hoisting process.

Preferably, the contact parts of the hanger plate and the lateral truss are fixedly connected by welding, and the contact parts of the hanger plate and the lateral truss are all fixedly connected by welding, which can improve the stability of the connection between the hanger plate and the lateral truss.

Preferably, the hanger plate is a rectangular steel plate, and at least two hoisting holes are opened on the hanger plate, and at least two hoisting holes are opened along the vertical extension direction of the hanger plate. The elevations of different hoisting holes are different. During the process, the hoisting height can be adjusted by selecting different hoisting holes.

Compared with the prior art, the advantages of the present utility model are: the utility model is a steel plate hoisting point device, the hoisting cage body is provided with a hoisting plate, and the hoisting beam is installed in the hoisting hole of the suspending plate through the steel cable, so as to realize the passing of the hanging plate. The hanging beam hoists the cage body, and the hoisting holes are processed on the hanging plate. The mechanical and material properties of the hanging plate are not affected by processing, so that the hanging plate can withstand a large hoisting load without breaking. The device has a simple structure and is colder than steel bars. The bending is used as the lifting point, and the hanging plate is used for hoisting, which has high strength, and avoids the surface damage during the cold bending process of the steel bar, which reduces the mechanical properties, and is prone to breakage during hoisting, resulting in safety accidents.

Other beneficial effects of this application are:

1. The truss is the skeleton of the hanging cage body, which is staggered along the steel cage. The truss is the main hoisting force part, and the hanging plate is fixed on the truss, which can improve the safety of hoisting.

2. The steel cable of the main hoisting girder is connected with the hanging plate through the pulley. The pulley has a simple structure and is easy to use. It can change the direction of the pulling steel cable and lift or move the moving object, which can not only reduce the pulling force, but also change the direction of the pulling force.

3. The main hanging beam is located at the upper end of the cage body, the hanging plates are set on the lateral trusses on both sides of the main hanging beam, and the distance between the main hanging beam and the lateral trusses on both sides is the same. The connection of the hanging plates on the lateral trusses on both sides is beneficial to improve the stability of the hoisting process.

4. The auxiliary hoisting beam is located at the upper end of the cage body, the hanging plates are set on the lateral trusses on both sides of the auxiliary hoisting girder, and the distance between the auxiliary hoisting girders and the lateral trusses on both sides is the same, and the auxiliary hoisting girders are connected to each other through steel cables. The connection of the hanging plates on the lateral trusses on both sides is beneficial to improve the stability of the hoisting process.

5. The contact parts of the hanging plate and the transverse truss are fixedly connected by welding, which can improve the stability of the connection between the hanging plate and the transverse truss.

6. There are at least two hoisting holes along the vertical extension direction of the hanging plate. Different hoisting holes have different elevations. During the hoisting process, the hoisting height can be adjusted by selecting different hoisting holes.

Description of drawings

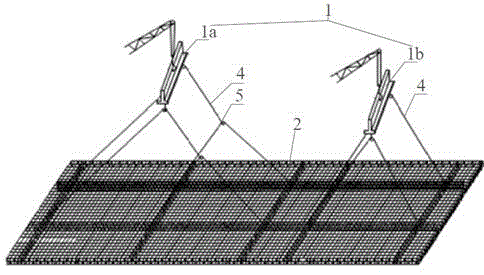

Fig. 1 is the structural representation of a kind of steel plate hanging point device of the present invention;

2 is a schematic structural diagram of the installation of the hanging plate and the hanging cage body of the utility model;

FIG. 3 is a schematic diagram of the connection structure of the hanger plate and the transverse truss of the present invention.

reference number

1-hanging beam, 1a-main hanging beam, 1b-auxiliary hanging beam, 2- hanging cage body, 2a-truss, 2a1-transverse truss, 2a2-longitudinal truss, 2b-rebar cage, 3-hanging plate, 31 - Hoisting hole, 4-wire rope, 5-block.

Detailed ways

In order to make the purpose, technical solutions and advantages of the present utility model more clearly understood, the present utility model will be further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are only used to explain the present invention, and are not used to limit the present invention.

Example 1

As shown in Fig. 1, Fig. 2 and Fig. 3 of the present embodiment, a steel plate hanging point device is provided. The hanging cage body 2 is provided with a hanging plate 3, and the hanging beam 1 is mounted on the hanging plate 3 through a steel cable 4. In the hole 31, the hoisting cage body 2 is hoisted through the hoisting beam 1, and the hoisting hole 31 is processed on the suspending plate 3. The mechanical and material properties of the suspending plate 3 are not affected by the processing, so that the suspending plate 3 can bear a large hoisting load. It does not break, the structure of the device is simple, compared with the use of cold bending of steel bars as the lifting point, and the use of hanging plates 3 for hoisting, the strength is high, and the surface damage during cold bending of steel bars is avoided to reduce mechanical properties, and it is easy to break during hoisting, causing safety accidents. question.

The truss 2a is the skeleton of the hanging cage body 2 staggered along the reinforcement cage 2b. The truss 2a is the main hoisting force part, and the hanging plate 3 is fixed on the truss 2a, which can improve the safety of hoisting.

The wire rope 4 of the main hoisting beam 1a is connected to the hanging plate 3 through the pulley 5. The pulley 5 is simple in structure and easy to use, and can change the direction of the pulling wire rope and hoist or move the moving object, which can not only reduce the pulling force, but also change the pulling force. direction.

The main hanging beam 1a is located at the upper end of the hanging cage body 2, the hanging plates 3 are arranged on the lateral trusses 2a1 on both sides of the main hanging hanging beam 1a, and the distance between the main hanging beam 1a and the lateral trusses 2a1 on both sides is the same. The beam 1a is connected to the hanging plates 3 on the lateral trusses 2a1 on both sides through steel cables 4, which is beneficial to improve the stability of the hoisting process.

The auxiliary hanging beam 1b is located at the upper end of the hanging cage body 2, the hanging plates 3 are arranged on the lateral trusses 2a1 on both sides of the auxiliary hanging hanging beam 1b, and the distance between the auxiliary hanging hanging beam 1b and the lateral truss 2a1 on both sides is the same. The beam 1b is connected with the hanging plates 3 on the lateral trusses 2a1 on both sides through the steel cable 4, which is beneficial to improve the stability of the hoisting process.

The contact parts of the hanging plate 3 and the transverse truss 2a1 are all fixedly connected by welding, which can improve the stability of the connection 2a1 between the hanging plate 3 and the transverse truss.

At least two hoisting holes 31 are opened along the vertical extension direction of the suspending plate 3. Different hoisting holes 31 have different elevations. During the hoisting process, by selecting different hoisting holes 31, the hoisting height can be adjusted.

The above embodiments are only used to illustrate the present utility model rather than limit the technical solutions described in the present utility model. Although this specification has described the present utility model in detail with reference to the above-mentioned embodiments, the present utility model is not limited to the above-mentioned specific embodiments. Therefore, any modification or equivalent replacement of the present invention; and all technical solutions and improvements that do not depart from the spirit and scope of the invention should be included in the scope of the claims of the present invention.

Claims (7)

1. The utility model provides a steel sheet hoisting point device, includes hanging beam (1) and cage body (2), its characterized in that: the suspension cage is characterized in that a suspension plate (3) is arranged on the suspension cage body (2), a hoisting hole (31) is formed in the suspension plate (3), and the suspension beam (1) is connected with the hoisting hole (31) in the suspension plate (3) through a steel cable (4).

2. A steel plate lifting point device according to claim 1, wherein: cage body (2) include truss (2 a) and steel reinforcement cage (2 b), crisscross the setting along steel reinforcement cage (2 b) truss (2 a), hanger plate (3) are fixed to be set up on truss (2 a).

3. A steel plate lifting point device according to claim 2, wherein: the hanging beam (1) comprises a main hanging beam (1 a) and an auxiliary hanging beam (1 b), and two ends of the main hanging beam (1 a) penetrate through a pulley (5) through a steel cable (4) to be connected with the hanging plate (3).

4. A steel plate lifting point device according to claim 3, wherein: the truss (2 a) comprises a transverse truss (2 a 1) and a longitudinal truss (2 a 2), the main hoisting beam (1 a) is positioned at the upper end of the cage body (2), the hoisting plates (3) are arranged on the transverse truss (2 a 1) on two sides of the main hoisting beam (1 a), and the distances between the main hoisting beam (1 a) and the transverse truss (2 a 1) on two sides are the same.

5. A steel plate lifting point device according to claim 4, characterized in that: the auxiliary hoisting beam (1 b) is positioned at the upper end of the cage body (2), the hoisting plates (3) are arranged on the transverse trusses (2 a 1) on two sides of the auxiliary hoisting beam (1 b), and the distances between the auxiliary hoisting beam (1 b) and the transverse trusses (2 a 1) on two sides are the same.

6. A steel plate lifting point device according to claim 5, wherein: the contact parts of the hanging plate (3) and the transverse truss (2 a 1) are fixedly connected in a welding mode.

7. The steel plate hoisting point device according to any one of claims 1 to 6, wherein: the hanger plate (3) is a rectangular steel plate, and at least two lifting holes (31) are formed in the hanger plate (3).
