Abstract

The utility model discloses a wear-resistant and detachable ball press roller, which comprises a roller shaft and a roller sleeve with ball sockets sleeved on the roller shaft. Between the roller sleeve and the roller shaft, a roller sleeve sliding member passes Sliding connection; the roller sleeve sliding part includes an inner ring seat and an outer ring seat which are slidably connected, the inner ring surface of the inner ring seat is fixedly connected with the roller shaft, and the outer ring surface of the outer ring seat is fixedly connected with the inner surface of the roller sleeve, surrounding the roller The shaft is fixedly installed with a plurality of radial fixing pieces, and the extending ends of the radial fixing pieces are detachably connected with the outer ring seat. Compared with the prior art, this solution completely avoids casting defects and heat treatment cracks from the structure, and the assembly and disassembly of the ball pressing roller are more convenient, and the axial movement and relative rotation between the roller sleeve and the roller shaft can be effectively avoided. , It can also rely on the pressure of the ball press itself to realize the demoulding, realize the efficient demoulding of the pellets, reduce the influence coefficient of the size and depth of the ball socket on the demoulding, and greatly improve the versatility of the ball press.

Description

A wear-resistant and detachable ball press roller

technical field

The utility model relates to the technical field of cold-pressed pellet processing, in particular to a wear-resistant and detachable pressing roller of a ball press.

Background technique

In the production of cold-pressed pellets, the briquette machine is mainly used for pressing powdery materials that are difficult to form, such as coal powder, iron powder, aluminum powder, slag and other powders and wastes. It is sent to the rollers of the double-roller high pressure briquetting machine for rolling. Since many ball sockets are made on the surface of the rollers, the mixture can be pressed into pellets after passing through the rollers. The finished balls formed by the briquetting machine have high strength, convenient transportation, energy saving and environmental protection, improve the utilization rate of waste materials, and have good economic and social benefits. The main structure of the briquetting machine includes the feeding part, the transmission part and the forming part. Among them, the feeding part mainly realizes quantitative feeding to ensure that the material enters the pair of rollers evenly; the transmission part is generally composed of a motor, a triangular belt, a reducer, an open gear, and a pressure roller; the forming part mainly refers to the host part, and the core part is Pressure roller. The briquetting roller is the most important part of the roller briquetting machine, and it is also the part with severe working conditions and serious wear, which requires frequent maintenance and replacement. The structure of the briquetting roller includes: integral type; hub type; composite type.

The integral type is for the larger briquetting roller, which is made of the same material as a whole, which wastes the material and makes casting and heat treatment difficult. Generally, it is rarely used. The wheel hub type is currently the most widely used one, but there are also defects such as looseness that are prone to occur when the hub part is cast, and cracks are prone to occur due to uneven shrinkage during heat treatment. The composite type is to add a wear-resistant outer ring on the basis of the hub type, but how to form a good fit between the inner and outer rings is the key. Generally, a micro-pass win or a low melting point metal is poured into the gap between the inner and outer rings, but it will make assembly and disassembly. It is difficult, and it is generally difficult to implement in the production site; and the spherical size of the ball socket of the ball pressing roller and the unreasonable selection of the depth are easy to cause difficulty in demoulding, and there is a cavity failure, which will affect normal production.

Utility model content

In order to solve the above technical problems, the utility model provides a wear-resistant and detachable ball press roller, which solves the problems of avoiding casting defects and cracks caused by heat treatment, difficulty in installation and disassembly, and difficulty in releasing the pellets.

The technical scheme adopted by the utility model is as follows:

The key point of the wear-resistant and detachable ball press roller is: it includes a roller shaft and a roller sleeve with a ball socket sleeved on the roller shaft, and the roller sleeve and the roller shaft slide through the roller sleeve sliding parts. connect;

The roller sleeve sliding member includes an inner ring seat and an outer ring seat that are slidably connected, the inner ring surface of the inner ring seat is fixedly connected with the roller shaft, and the outer ring surface of the outer ring seat is connected with the roller sleeve. The inner surface is fixedly connected, a plurality of radial fixing pieces are fixedly installed around the roller shaft, and the protruding ends of the radial fixing pieces are detachably connected with the outer ring seat.

The beneficial effect of the above scheme is that the outer ring seat drives the roller sleeve to slide on the inner ring seat, so that the roller sleeve is sleeved with the roller shaft. When the outer ring seat and the inner ring seat are overlapped, the radial fixing member is clamped with the outer ring seat , to prevent the axial movement between the roller sleeve and the roller shaft; when the roller sleeve needs to be replaced, separate the radial fixing piece from the outer ring seat, and pull the roller sleeve to slide axially along the roller shaft until it is separated from the roller shaft.

Preferably, the number of the radial fixing members is eight, and the eight radial fixing members are arranged on both sides of the inner ring seat facing each other, and the four radial fixing members located on one side of the inner ring seat are opposite to each other. The direction fixing pieces are evenly arranged around the roller axis.

The effect of this solution is to further improve the stability of the radial fixing piece being clamped with the outer ring seat.

Preferably, the lengths of the inner ring seat and the outer ring seat are the same as the length of the roller sleeve, and the radial fixing member includes a fixing seat fixedly installed on the roller shaft and a fixing seat fixedly installed on the outer ring The clamping seat on the end face of the seat, the extending end face of the fixed seat is radially provided with a slot, the clamping seat is provided with an insertion hole, and the insertion hole and the slot are threadedly connected with the same bolt.

The effect of the solution is that the clamping seat and the fixing seat can be easily clamped or separated by bolts, so as to realize the convenience of assembly.

Preferably, a plurality of sliding grooves are axially opened on the outer ring surface of the inner ring seat, sliding blocks are slidably installed in the sliding grooves, and the sliding blocks are fixedly connected to the inner ring surface of the outer ring seat , the fixed seat is fixedly connected with the end face of the inner ring seat.

The effect of this solution is to improve the stability of the outer ring seat when sliding along the length direction of the inner ring seat, and to prevent relative rotation between the outer ring seat and the inner ring seat during the rotation process.

Preferably, there are eight said sliding grooves, and the eight said sliding grooves are evenly arranged on the outer ring surface of the inner ring seat, and the length of the sliding block is the same as that of the sliding grooves.

The effect of this solution is to further improve the stability of axial sliding and the stability during rotation.

Preferably, the cross-sectional shape of the ball socket along the axial direction of the roller sleeve is an inverted water drop shape formed by opposite involutes, and the shape of the mouth of the ball socket is an oval.

The effect of this solution is that the demolding pressure can be used to achieve efficient demolding of the pellets.

Preferably, the size of the ball socket is 35-45mm in length, 28-35mm in width, and 6-15mm in depth.

The effect of this scheme is to expand the adaptability to raw materials and improve the versatility of the briquetting machine.

Beneficial effects: Compared with the prior art, the wear-resistant and detachable ball press roller provided by the utility model completely avoids casting defects and heat treatment cracks from the structure, and the ball press roller is more convenient to assemble and disassemble , which can effectively avoid the axial movement and relative rotation between the roller sleeve and the roller shaft, and can also rely on the pressure of the briquetting machine itself to achieve demoulding, achieve efficient demoulding of the pellets, and reduce the size and depth of the ball socket. The influence coefficient of demoulding greatly improves the versatility of the briquetting machine.

Description of drawings

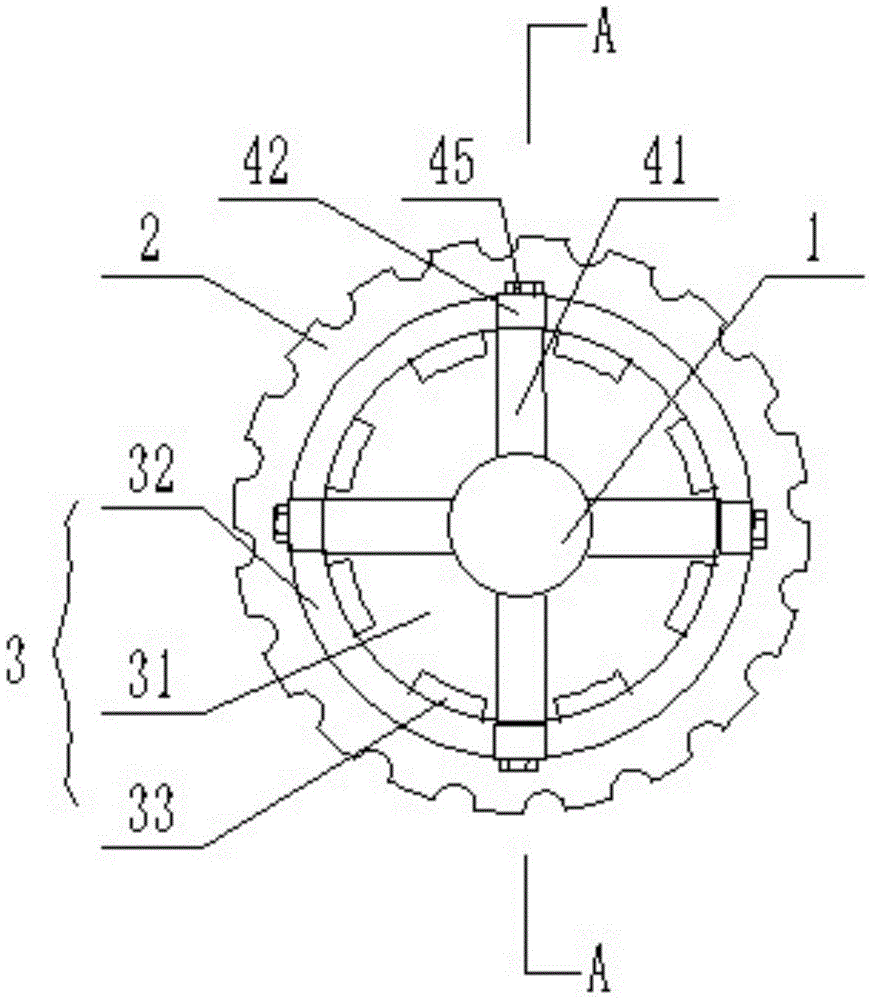

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the A-A sectional view of Fig. 1;

FIG. 3 is another use state diagram of FIG. 2 .

Detailed ways

In order to enable those skilled in the art to better understand the technical solutions of the present invention, the present invention is described in detail below in conjunction with the accompanying tables and specific embodiments.

Example

As shown in Figures 1-3, the wear-resistant and detachable ball press roller includes a roller shaft 1 and a roller sleeve 2 with a ball socket sleeved on the roller shaft 1. The ball socket is along the roller sleeve. 2 The cross-sectional shape of the axial direction is the inverted water drop shape formed by the opposite involutes, the shape of the mouth of the ball socket is oval, and the size of the ball socket is 35-45mm in length, 28-35mm in width, and 6- in depth. 15mm; the roller sleeve 2 and the roller shaft 1 are slidably connected by the roller sleeve sliding member 3; the roller sleeve sliding member 3 includes an inner ring seat 31 and an outer ring seat 32 that are slidably connected, and the inner ring seat 31 and the outer ring seat 32 are slidably connected. The length of the outer ring seat 32 is the same as the length of the roller sleeve 2 , the inner ring surface of the inner ring seat 31 is fixedly connected with the roller shaft 1 , and the outer ring surface of the outer ring seat 32 is connected with the roller The inner surface of the sleeve 2 is fixedly connected, the outer ring surface of the inner ring seat 31 is axially provided with eight sliding grooves, and the eight sliding grooves are evenly arranged on the outer ring surface of the inner ring seat 31, so the The length of the slider 33 is the same as the length of the chute, the slider 33 is slidably installed in the chute, and the slider 33 is fixedly connected to the inner ring surface of the outer ring seat 32;

Eight radial fixing members 4 are fixedly installed around the roller shaft 1 , and the eight radial fixing members 4 are arranged opposite to each other on both sides of the inner ring seat 31 , and are located on one side of the inner ring seat 31 . The four radial fixing members 4 on the side are evenly arranged around the roller shaft 1, and the extending ends of the radial fixing members 4 are detachably connected to the outer ring seat 32;

As can be seen in FIG. 1 and FIG. 3 , the radial fixing member 4 includes a fixing seat 41 fixedly installed on the roller shaft 1 and a clamping seat 42 fixedly installed on the end surface of the outer ring seat 32 . A slot 43 is radially opened on the protruding end surface of the fixing seat 41 , the fixing seat 41 is fixedly connected with the end surface of the inner ring seat 31 , and a socket 44 is opened on the clamping seat 42 . The hole 44 and the slot 43 are screwed with the same bolt 45 .

When it is necessary to replace the roller sleeve 2, just take out the bolt 45, pull the roller sleeve 2 to slide along the axial direction of the roller shaft 1 until the roller sleeve 2 is separated from the roller shaft 1, and then align the outer ring seat 32 of the new roller sleeve 2 with the roller shaft 1. The inner ring seat 31 on the roller shaft 1 is connected correspondingly, and the new roller sleeve 2 is pushed to slide along the axial direction of the roller shaft 1 until the insertion hole 44 and the slot 43 are coincident, and then the bolt 45 is inserted and locked.

Finally, it should be noted that the above description is only a preferred embodiment of the present invention, and those skilled in the art can make a variety of similar It is indicated that such transformations fall within the protection scope of the present invention.

Claims (7)

1. A wear-resistant and detachable ball press roller, characterized in that it comprises a roller shaft (1) and a roller sleeve (2) with a ball socket sleeved on the roller shaft (1), the roller The sleeve (2) and the roller shaft (1) are slidably connected through the roller sleeve sliding member (3); The roller sleeve sliding member (3) includes an inner ring seat (31) and an outer ring seat (32) that are slidably connected, and the inner ring surface of the inner ring seat (31) is fixedly connected with the roller shaft (1), The outer ring surface of the outer ring seat (32) is fixedly connected with the inner surface of the roller sleeve (2), and a plurality of radial fixing pieces (4) are fixedly installed around the roller shaft (1). The protruding end of the fixing member (4) is detachably connected with the outer ring seat (32). 2. The wear-resistant and detachable ball press roller according to claim 1, wherein the number of said radial fixing members (4) is eight, and the number of said eight radial fixing members (4) is two Two are arranged on both sides of the inner ring seat (31) facing each other, and the four radial fixing members (4) located on one side of the inner ring seat (31) are evenly arranged around the roller shaft (1) . 3. The wear-resistant and detachable ball press roller according to claim 1, characterized in that: the lengths of the inner ring seat (31) and the outer ring seat (32) are the same as the length of the roller sleeve (2). ) of the same length, and the radial fixing member (4) includes a fixing seat (41) fixedly installed on the roller shaft (1) and a snap seat fixedly installed on the end face of the outer ring seat (32). (42), a slot (43) is radially provided on the protruding end surface of the fixing seat (41), and a socket (44) is provided on the clamping seat (42), and the socket (44) The same bolt (45) is threadedly connected to the slot (43). 4. The wear-resistant and detachable ball press roller according to claim 3, characterized in that: a plurality of sliding grooves are axially opened on the outer ring surface of the inner ring seat (31). A sliding block (33) is slidably installed in the groove, the sliding block (33) is fixedly connected with the inner ring surface of the outer ring seat (32), and the fixing seat (41) is connected with the inner ring seat (31). ) end face fixed connection. 5. The wear-resistant and detachable ball press roller according to claim 4, characterized in that: there are eight chutes, and the eight chutes are evenly arranged on the inner ring seat (31) The length of the slider (33) is consistent with the length of the chute. 6 . The wear-resistant and detachable ball press roller according to claim 5 , wherein the cross-sectional shape of the ball socket along the axial direction of the roller sleeve ( 2 ) is an inverted one formed by opposite involutes. 7 . The shape of the water droplet, the shape of the mouth of the ball and socket is an oval. 7 . The wear-resistant and detachable ball press roller according to claim 6 , wherein the size of the ball socket is 35-45 mm in length, 28-35 mm in width, and 6-15 mm in depth. 8 .
