Abstract

The utility model provides a gynaecology is with portable vagina belt cleaning device, is including wasing the structure, fixed knot constructs, blowdown structure, the washing structure include the medicament bottle, be equipped with the couple on the medicament bottle, the bottom of medicament bottle is through first transfer line and sheathed tube one end intercommunication, the sheathed tube other end communicates with the one end of income siphunculus, the other end of income siphunculus is sealed, all be equipped with a plurality of spraying medicine mouths on sleeve pipe and the income siphunculus, it passes through the fixed plate and is connected with the push rod to go into the siphunculus, the one end that the fixed plate was kept away from to the push rod passes first transfer line and extends to the outside of first transfer line, the. By adopting the structure, the adjustment is convenient, the device is suitable for puerpera patients with different physiques, and the working efficiency is improved; the cleaning is more comprehensive, and the spraying strength of the cleaning liquid is freely adjusted by matching with an air pump structure; the recovery of the cleaning liquid is convenient, and the overflow of the cleaning liquid in the use process is avoided; the whole device is simple in structure, convenient to use, high in portability and high in practicability.

Description

Gynaecology is with portable vagina belt cleaning device
Technical Field
The utility model relates to the field of medical equipment, especially a gynaecology is with portable vagina belt cleaning device.
Background
At present, before gynecological medical personnel carry out various examinations to the lying-in woman, all need wash the disinfection to the inside and outside vagina of lying-in woman, the method of adoption mostly directly through tweezers, press from both sides and get the cotton ball and dip in the artifical clearance disinfection of disinfectant, such disinfection method wastes time and energy, and the cleaning performance is general, whole disinfection cleaning process's inefficiency. And also some medical personnel adopt the vagina purger to go to carry out vulva disinfection work in to the lying-in woman, though use the vagina purger to wash the disinfection and improved the cleaning efficiency greatly, but current vagina purger is fixed to the size, to the lying-in woman of physical difference, the suitability is poor, thereby lead to the cleaning process, the washing liquid flows out from lying-in woman private parts, both caused the pollution to the operation panel easily, the degree of difficulty of later stage cleaning work has also been increased simultaneously, influence the effect of cleaning and disinfecting work even.
Disclosure of Invention
The utility model aims to solve the technical problem of providing a portable vagina cleaning device for gynecology, which realizes convenient adjustment, is suitable for puerpera patients with different physiques and improves the working efficiency; the cleaning is more comprehensive, the fold parts of the inner wall of the vagina can be cleaned, and the spraying strength of the cleaning liquid can be freely adjusted by matching with the structure of the air pump, so that the cleaning is more convenient; the cleaning liquid can be conveniently recovered, the overflow of the cleaning liquid in the using process is avoided, and the subsequent picking and finishing are convenient; the whole device is simple in structure, convenient to use, high in portability and high in practicability.
In order to solve the technical problem, the utility model discloses the technical scheme who adopts is: a portable gynecological vagina cleaning device comprises a cleaning structure, a fixing structure and a pollution discharge structure, wherein the cleaning structure comprises a medicament bottle, a hook is arranged on the medicament bottle, the bottom of the medicament bottle is communicated with one end of a sleeve through a first infusion tube, the other end of the sleeve is communicated with one end of an inlet tube, the other end of the inlet tube is sealed, a plurality of medicament spraying openings are formed in the sleeve and the inlet tube, the inlet tube is connected with a push rod through a fixing plate, one end, far away from the fixing plate, of the push rod penetrates through the first infusion tube and extends to the outside of the first infusion tube, and a first control valve is arranged at one end, close to the medicament bottle, of the first infusion;
the fixing structure comprises a sealing cover, a fixing hole and a sewage outlet are formed in the sealing cover, the sealing cover is fixed at the joint of the first infusion tube and the sleeve through the fixing hole, and the sealing cover is connected with the fixing waistband through a plurality of connecting bands;
the sewage discharging structure comprises a sewage bottle, the sewage bottle is connected with a sewage discharging port on the sealing cover through a second liquid conveying pipe, and a second control valve is arranged on the second liquid conveying pipe.
In a preferred scheme, the top of the medicament bottle is provided with a plurality of liquid injection ports.
In a preferable scheme, the first infusion tube is communicated with the air pump through an air tube.
In a preferable scheme, one end of the push rod, which is positioned outside the first infusion tube, is provided with a limiting handle.
In a preferable scheme, one end of the inlet pipe, which is far away from the sleeve pipe, is provided with an annular bulge.
In a preferred scheme, a sealing strip is arranged on the edge of the sealing cover.
In a preferable scheme, a second adjusting buckle is arranged on the connecting belt.
In a preferable scheme, a first adjusting buckle is arranged on the fixing waistband.
In the preferred scheme, a sealing ring is arranged at the connecting end of the second infusion tube and the sewage draining outlet.
In a preferred scheme, the sleeve and the inlet pipe are both made of medical silica gel materials.
The utility model provides a portable vagina belt cleaning device for gynaecology through adopting above-mentioned structure, has following beneficial effect:
(1) the adjustment is convenient, the device is suitable for puerpera patients with different physiques, and the working efficiency is improved;
(2) the cleaning is more comprehensive, the fold parts of the inner wall of the vagina can be cleaned, and the spraying strength of the cleaning liquid can be freely adjusted by matching with the structure of the air pump, so that the cleaning is more convenient;
(3) the cleaning liquid can be conveniently recovered, the overflow of the cleaning liquid in the using process is avoided, and the subsequent picking and finishing are convenient;
(4) the whole device is simple in structure, convenient to use, high in portability and high in practicability.
Drawings
The invention will be further explained with reference to the following figures and examples:

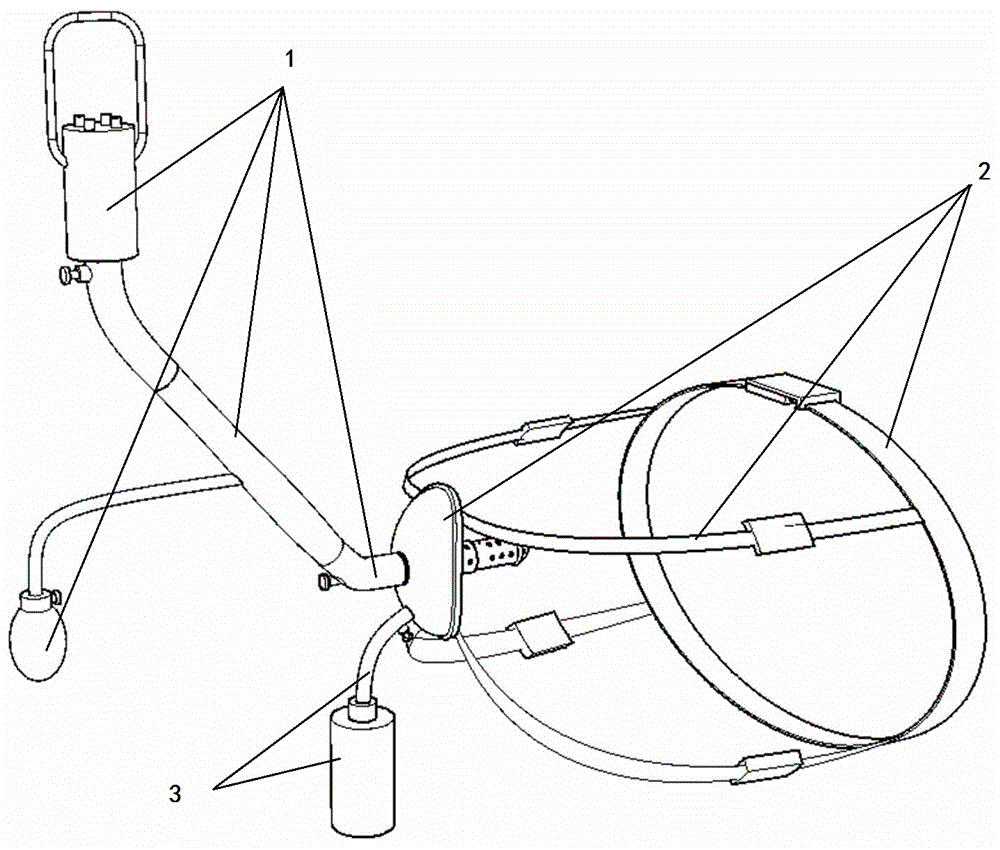

fig. 1 is a schematic view of the overall structure of the present invention.
Fig. 2 is a schematic view of the cleaning structure of the present invention.
Fig. 3 is a schematic view of the fixing structure of the present invention.
Fig. 4 is a schematic view of the sewage draining structure of the present invention.
Fig. 5 is a sectional view of the inlet tube structure of the present invention.
In the figure: the cleaning structure 1, the fixing structure 2, the sewage discharging structure 3, the medicine bottle 4, the liquid injection port 5, the hook 6, the first infusion tube 7, the first control valve 8, the vent pipe 9, the air pump 10, the limiting handle 11, the sleeve 12, the inlet tube 13, the medicine injection port 14, the sealing cover 15, the sealing strip 16, the fixing hole 17, the sewage discharging port 18, the fixing waistband 19, the connecting band 20, the first adjusting buckle 21, the second adjusting buckle 22, the second infusion tube 23, the sealing ring 24, the second control valve 25, the sewage bottle 26, the push rod 27, the fixing plate 28 and the annular bulge 29.
Detailed Description
As shown in fig. 1-5, a portable gynecological vaginal cleaning device comprises a cleaning structure 1, a fixing structure 2 and a sewage disposal structure 3, wherein the cleaning structure 1 comprises a medicament bottle 4, a hook 6 is arranged on the medicament bottle 4, the bottom of the medicament bottle 4 is communicated with one end of a sleeve 12 through a first infusion tube 7, the other end of the sleeve 12 is communicated with one end of an inlet tube 13, the other end of the inlet tube 13 is sealed, a plurality of medicament spraying ports 14 are respectively arranged on the sleeve 12 and the inlet tube 13, the inlet tube 13 is connected with a push rod 27 through a fixing plate 28, one end of the push rod 27 far away from the fixing plate 28 penetrates through the first infusion tube 7 and extends to the outside of the first infusion tube 7, and one end of the first infusion tube 7, which is close to the medicament bottle 4, is provided with a;
the fixing structure 2 comprises a sealing cover 15, a fixing hole 17 and a sewage discharge outlet 18 are arranged on the sealing cover 15, the sealing cover 15 is fixed at the joint of the first infusion tube 7 and the sleeve 12 through the fixing hole 17, and the sealing cover 15 is connected with a fixing waistband 19 through a plurality of connecting bands 20;
the sewage discharging structure 3 comprises a sewage bottle 26, the sewage bottle 26 is connected with the sewage discharging port 18 on the sealing cover 15 through a second transfusion pipe 23, and a second control valve 25 is arranged on the second transfusion pipe 23.
In a preferred embodiment, the top of the medicine bottle 4 is provided with a plurality of injection ports 5. The mixing of liquid medicines with different dosages is convenient and fast to control.
In a preferred scheme, the first infusion tube 7 is communicated with an air pump 10 through an air vent tube 9. The intensity of being convenient for adjust liquid medicine and spouting, except utilizing the abluent mode of gravity flow automatically, to the pathological change position of patient's deeper, also can wash thoroughly, the practicality is strong.
In a preferred scheme, a limit handle 11 is arranged at one end of the push rod 27 positioned outside the first infusion tube 7. The body depth of the body tube 13 can be conveniently adjusted, and the practicability is high.
In a preferred embodiment, the end of the body tube 13 remote from the sleeve 12 is provided with an annular protrusion 29. The utility model is convenient for the process of inserting the body tube 13, the internal vagina wall fold part is convenient to be supported, and the cleaning effect is improved.
In a preferred scheme, a sealing strip 16 is arranged on the edge of the sealing cover 15. The sealing performance of the whole device is improved, and the overflow of the liquid medicine in the using process is avoided.
In a preferred embodiment, the connecting band 20 is provided with a second adjusting buckle 22. The adjustable fixing size is convenient to adjust, the adjustable fixing size is suitable for patients with different physiques, and the practicability is high.
In a preferable scheme, a first adjusting buckle 21 is arranged on the fixing waistband 19. The adjustable fixing size is convenient to adjust, the adjustable fixing size is suitable for patients with different physiques, and the practicability is high.
In a preferable scheme, a sealing ring 24 is arranged at the connecting end of the second infusion tube 23 and the sewage draining exit 18. The sealing performance of the whole device is improved, and the overflow of the liquid medicine in the using process is avoided.
In a preferred scheme, the cannula 12 and the inlet tube 13 are both made of medical silica gel. Soft and comfortable, has better hardness and corrosion resistance, and is convenient to clean.
The utility model discloses a use method does: firstly, pouring liquid medicine and sterile water into a medicine bottle 4 from a liquid injection port 5, uniformly mixing, hanging the medicine bottle 4 to a high place through a hook 6, then putting a body inlet pipe 13 into a patient body, adjusting the position of a sealing cover 15, fixing the body inlet pipe through a fixing waistband 19 and a connecting belt 20, opening a first control valve 8, adjusting the injection strength of the medicine through an air pump 10 according to the situation, adjusting the extending length of the body inlet pipe 13 through a limiting handle 11 in the cleaning process, and controlling the cleaning area;
after the cleaning is finished, the inlet pipe 13 is withdrawn, the second control valve 25 is opened, the cleaned sewage flows into the sewage bottle 26 through the sewage discharge outlet 18 and the second infusion pipe 23 to be collected, finally, after a large amount of sewage is discharged, the fixing waistband 19 is loosened, the sealing cover is taken down, and finally, the patient is cleaned.
The utility model has the advantages that: the adjustment is convenient, the device is suitable for puerpera patients with different physiques, and the working efficiency is improved; the cleaning is more comprehensive, the fold parts of the inner wall of the vagina can be cleaned, and the spraying strength of the cleaning liquid can be freely adjusted by matching with the structure of the air pump, so that the cleaning is more convenient; the cleaning liquid can be conveniently recovered, the overflow of the cleaning liquid in the using process is avoided, and the subsequent picking and finishing are convenient; the whole device is simple in structure, convenient to use, high in portability and high in practicability.

Claims (10)

1. The utility model provides a gynaecology is with portable vagina belt cleaning device, includes cleaning structure (1), fixed knot constructs (2), blowdown structure (3), its characterized in that: the cleaning structure (1) comprises a medicament bottle (4), a hook (6) is arranged on the medicament bottle (4), the bottom of the medicament bottle (4) is communicated with one end of a sleeve (12) through a first infusion tube (7), the other end of the sleeve (12) is communicated with one end of an inlet tube (13), the other end of the inlet tube (13) is sealed, a plurality of medicament spraying openings (14) are formed in the sleeve (12) and the inlet tube (13), the inlet tube (13) is connected with a push rod (27) through a fixing plate (28), one end, far away from the fixing plate (28), of the push rod (27 penetrates through the first infusion tube (7) and extends to the outside of the first infusion tube (7), and a first control valve (8) is arranged at one end, close to the medicament bottle (4), of the first infusion tube (7);
the fixing structure (2) comprises a sealing cover (15), a fixing hole (17) and a sewage draining exit (18) are arranged on the sealing cover (15), the sealing cover (15) is fixed at the joint of the first infusion tube (7) and the sleeve (12) through the fixing hole (17), and the sealing cover (15) is connected with a fixing belt (19) through a plurality of connecting bands (20);
the sewage draining structure (3) comprises a sewage bottle (26), the sewage bottle (26) is connected with a sewage draining outlet (18) on the sealing cover (15) through a second infusion tube (23), and a second control valve (25) is arranged on the second infusion tube (23).
2. The portable gynecological vaginal irrigation device as claimed in claim 1, characterized in that: the top of the medicament bottle (4) is provided with a plurality of liquid injection ports (5).
3. The portable gynecological vaginal irrigation device as claimed in claim 1, characterized in that: the first infusion tube (7) is communicated with the air pump (10) through an air pipe (9).
4. The portable gynecological vaginal irrigation device as claimed in claim 1, characterized in that: one end of the push rod (27) positioned outside the first infusion tube (7) is provided with a limit handle (11).
5. The portable gynecological vaginal irrigation device as claimed in claim 1, characterized in that: an annular bulge (29) is arranged at one end of the inlet pipe (13) far away from the sleeve (12).
6. The portable gynecological vaginal irrigation device as claimed in claim 1, characterized in that: and a sealing strip (16) is arranged on the edge of the sealing cover (15).
7. The portable gynecological vaginal irrigation device as claimed in claim 1, characterized in that: the connecting band (20) is provided with a second adjusting buckle (22).
8. The portable gynecological vaginal irrigation device as claimed in claim 1, characterized in that: the fixed waistband (19) is provided with a first adjusting buckle (21).
9. The portable gynecological vaginal irrigation device as claimed in claim 1, characterized in that: and a sealing ring (24) is arranged at the connecting end of the second infusion tube (23) and the sewage draining exit (18).
10. The portable gynecological vaginal irrigation device as claimed in claim 1, characterized in that: the sleeve (12) and the inlet pipe (13) are made of medical silica gel materials.
