Abstract

The utility model relates to the field of enema bags, in particular to an enema bag assembly which is beneficial for the collection of stools of bedridden patients after enema, comprising an enema liquid storage bag, an enema tube and a stool collection bag, and the upper end of the enema liquid storage bag is formed with a liquid inlet, The lower end of the enema tube is fixedly connected with a hose, the front end and the side of the hose are formed with a liquid outlet, the stool collection bag is slidably connected to the lower end of the enema tube, and the upper end of the stool collection bag is formed with an excretion port, and the upper end of the excretion port is along the edge. A foam sticker is adhered all the way around, an enema hose storage bag is fixedly installed on the side of the stool collection bag, an opening is formed on the side of the enema hose storage bag, and a zipper for easy closing and opening of the opening is fixedly installed on the opening; the beneficial effects are: : By sticking the foam tape on the patient's buttocks, the stool can be excreted while enema, and an enema hose storage bag is provided, which can realize the storage of the hose, and avoid the contamination of the environment when the hose is taken out after the enema.

Description

An enema bag assembly that facilitates the collection of stools after enema for bedridden patients

technical field

The utility model relates to the field of enema bags, in particular to an enema bag assembly which is beneficial to the collection of stools of bedridden patients after enema.

Background technique

Enema is a medical method that uses a catheter to perfuse liquid from the anus through the rectum into the colon to achieve defecation and exhaust. It can stimulate peristalsis, soften and remove feces, and can cool, induce labor, dilute intestinal poisons, and reduce the absorption of low-temperature solutions for high fever. For the cooling effect of patients, enema usually uses an enema bag. The existing enema bag can only inject the enema liquid into the patient's body, and then the patient can go to the bathroom to discharge it or use the bedpan to collect stool. Patients who improve defecation are prone to leakage while filling. Direct leakage of stool will easily lead to contamination of the patient's skin and bed sheets, making the patient feel uncomfortable and splashing on the medical staff. At the same time, the hose after the enema is pulled out without Local placement is easy to pollute the environment and bring inconvenience to medical staff.

Utility model content

In order to overcome the above-mentioned shortcomings, the present invention aims to provide a technical solution that can solve the above-mentioned problems.

An enema bag assembly that facilitates stool collection of bedridden patients after enema, comprising an enema liquid storage bag, an enema tube and a stool collection bag, the upper end of the enema liquid storage bag is formed with a liquid inlet, and the upper end of the enema tube is detachably connected At the lower end of the enema liquid storage bag, the enema tube is communicated with the enema liquid storage bag; the lower end of the enema tube is fixedly connected with a hose, and the front end and the side of the hose are formed with a liquid outlet, and the hose is connected with the enema. The pipes are connected; the stool collection bag is slidably connected to the lower end of the enema tube, the upper end of the stool collection bag is formed with an excretion port, and the upper end of the excretion port is adhered with a foam tape around the edge, and the side of the stool collection bag is An enema hose storage bag is fixedly installed, an opening is formed on the side of the enema hose storage bag, and a zipper for easy closing and opening of the opening is fixedly installed on the opening.

Preferably, the lower end of the enema liquid storage bag is fixedly installed with a first tubular joint, the first joint communicates with the enema liquid storage bag, and the upper end of the enema tube is fixedly installed with a tubular second joint, the second joint Embedded in the first joint and tightly matched with the first joint, the enema tube is detachably connected to the enema liquid storage bag through the second joint.

Preferably, a flow regulator is installed on the enema tube.

Preferably, the side end of the stool collection bag is formed with a through hole matching the size of the enema tube, an annular sealing ring is fixedly installed in the through hole, and the enema tube extends through the through hole to the interior of the stool collection bag , the stool collection bag is slidably connected with the enema tube through the through hole.

Preferably, an annular pressure relief pad is fixedly installed on the side end of the discharge opening of the stool collection bag along the periphery.

Preferably, an upwardly protruding annular protective sheet is adhered to the upper end of the discharge opening of the stool collection bag along the periphery, and the protective sheet is installed on the periphery of the foam tape.

Compared with the prior art, the beneficial effect of the present utility model is: the enema liquid storage bag and the stool collection bag are connected by an enema tube, the excretion port of the stool collection bag is aligned with the patient's anus, and the feces collection bag is affixed to the patient's anus through foam tape. The buttocks can achieve the effect of expelling stool while enema patients, solve the disadvantage of bedridden patients inconvenient to move and defecate, and can greatly reduce the spattering of stools, avoid skin damage caused by repeated use of the bedpan for a long time, and also avoid The elderly patients repeatedly change their body position and cause discomfort or falls. At the same time, an enema hose storage bag is provided. The zipper can realize the storage of the enema hose, so as to avoid the hose being taken out and pollute the environment, saving a lot of time for medical staff. trouble.

Additional aspects and advantages of the invention will be set forth, in part, from the following description, and in part will be apparent from the following description, or learned by practice of the invention.

Description of drawings

In order to more clearly illustrate the embodiments of the present utility model or the technical solutions in the prior art, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are just some embodiments of the present invention, and for those of ordinary skill in the art, other drawings can also be obtained from these drawings without any creative effort.

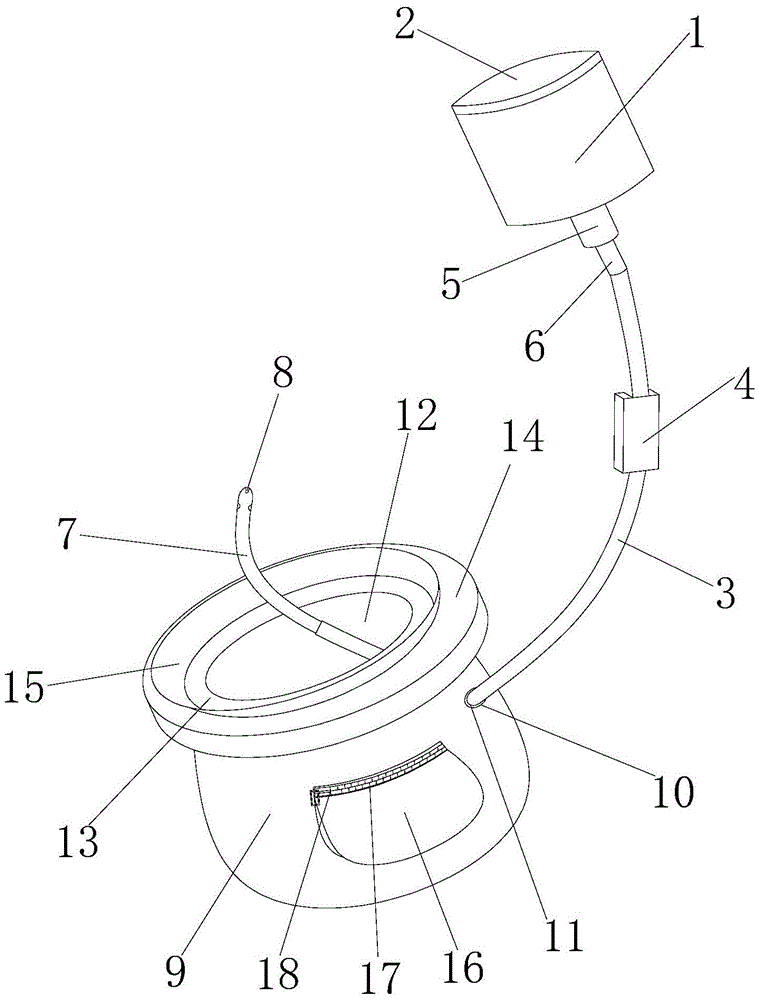

FIG. 1 is a schematic structural diagram of the present utility model.

Fig. 2 is the working state diagram of the enema hose storage bag in the present invention.

In the picture: 1. Enema liquid storage bag, 2. Liquid inlet, 3. Enema tube, 4. Flow regulator, 5. First connector, 6. Second connector, 7. Hose, 8. Liquid outlet, 9. Stool collection bag, 10. Through hole, 11. Sealing ring, 12. Drainage port, 13. Foam tape, 14. Decompression pad, 15. Protective sheet, 16. Enema hose storage bag, 17. Opening , 18, zipper.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below. Obviously, the described embodiments are only a part of the embodiments of the present invention, rather than all the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIGS. 1-2. In an embodiment of the present utility model, an enema bag assembly for collecting stools from bedridden patients after enema includes an enema liquid storage bag 1, an enema tube 3 and a stool collection bag 9. The enema liquid storage bag The upper end of 1 is formed with a liquid inlet 2, the upper end of the enema tube 3 is detachably connected to the lower end of the enema liquid storage bag 1, and a flow regulator 4 is installed on the enema tube 3, which can control the infusion speed of the enema liquid in real time. , the enema tube 3 communicates with the enema liquid storage bag 1, the lower end of the enema liquid storage bag 1 is fixedly installed with a tubular first joint 5, and the first joint 5 communicates with the enema liquid storage bag 1. The enema tube The upper end of 3 is fixedly installed with a tubular second joint 6, the second joint 6 is embedded in the first joint 5, and is tightly matched with the first joint 5, and the enema tube 3 is connected to the enema liquid storage bag through the second joint 6. 1 Removable connection, easy to replace the enema tube;

The lower end of the enema tube 3 is fixedly connected with a hose 7, and both the front end and the side of the hose 7 are formed with a liquid outlet 8, so that the enema liquid can flow out from multiple angles, so that the intestinal tract can be cleaned more comprehensively. It communicates with the enema tube 3; the stool collection bag 9 is slidably connected to the lower end of the enema tube 3, and the side end of the stool collection bag 9 is formed with a through hole 10 that matches the size of the enema tube 3, and the through hole 10 is fixed inside An annular sealing ring 11 is installed, the enema tube 3 extends to the interior of the stool collection bag 9 through the through hole 10, the stool collection bag 9 is slidably connected to the enema tube 3 through the through hole 10, and the stool collection bag 9 A discharge opening 12 is formed on the upper end of the discharge opening 12, and the upper end of the discharge opening 12 is adhered with a foam tape 13 around the edge, which is convenient for adhering the stool collection bag 9 to the buttocks of the bedridden patient. A ring-shaped decompression pad 14 is fixedly installed on the side end along the edge to reduce the pressure between the buttocks of the bedridden patient and the stool collection bag 9 and improve the comfort of the bedridden patient. The upper end of the discharge port 12 of the stool collection bag 9 is along the edge. A ring-shaped protective sheet 15 that protrudes upwards is adhered around the circumference. The protective sheet 15 is installed on the periphery of the foam adhesive tape 13 to prevent the splashing of stool. The side of the stool collection bag 9 is fixedly installed with an enema hose storage bag 16. , an opening 17 is formed on the side of the enema hose storage bag 16, and a zipper 18 is fixedly installed on the opening 17 to facilitate the closing and opening of the opening 17;

During operation, through the connection of the first joint 5 and the second joint 6, the enema liquid storage bag 1 is communicated with the enema tube 3 to facilitate the output of the enema liquid, and the lower end of the enema tube 3 is passed through the through hole 10 of the stool collection bag 9. And make the hose 7 protrude from the excretion port 12 of the stool collection bag 9, align the excretory port 12 of the stool collection bag 9 with the anus of the bedridden patient, and insert the hose 7 at the lower end of the enema tube 3 into the bedridden patient's anus. In the anus, the stool collection bag 9 is tightly attached to the buttocks of the bedridden patient through the foam tape 13, the flow regulator 4 of the enema tube 3 is opened, and the bedridden patient is enema. The effect of expelling feces and avoiding feces splashing, during enema, the enema liquid flows out through the liquid outlet 8 of the hose 7, when the enema is completed, the hose 7 at the lower end of the enema tube 3 is completely extended out of the excretion port 12, and put it in. Put it into the enema tube storage bag 16, and pull it up through the zipper 18, so as to avoid the environmental pollution caused by pulling out the tube 7 after the enema.

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, and that the present invention may be implemented in other specific forms without departing from the spirit or essential characteristics of the present invention. Therefore, the embodiments are to be regarded in all respects as illustrative and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, which are therefore intended to fall within the scope of the claims. All changes within the meaning and scope of the equivalents of , are included in the present invention.

Claims (6)

1. The utility model provides a do benefit to enema bag subassembly that bed patient defecates after enema was collected which characterized in that: the device comprises an enema storage bag, an enema tube and a stool collection bag, wherein a liquid inlet is formed at the upper end of the enema storage bag, the upper end of the enema tube is detachably connected to the lower end of the enema storage bag, and the enema tube is communicated with the enema storage bag; the lower end of the enema tube is fixedly connected with a hose, liquid outlets are formed in the front end and the side face of the hose, and the hose is communicated with the enema tube; stool collection bag sliding connection is in the lower extreme of enema pipe, stool collection bag's upper end shaping has the escape orifice, and the upper end of escape orifice is stained with the bubble celloidin along edge a week and pastes, stool collection bag's side fixed mounting has the enema hose to deposit the bag, and the side shaping that the bag was deposited to the enema hose has the opening, and fixed mounting has the zip fastener of being convenient for the opening closure and opening on the opening.

2. The enema bag assembly of claim 1, which facilitates collection of stool after enema of a bedridden patient, wherein: the lower extreme fixed mounting of enema liquid storage bag has and is pipy first joint, and first joint communicates with each other with enema liquid storage bag, the upper end fixed mounting of enema pipe has and is pipy second joint, in the second joint embedding first joint and with first joint looks tight fit, the enema pipe passes through the second joint and can dismantle with enema liquid storage bag and be connected.

3. The enema bag assembly of claim 1, which facilitates collection of stool after enema of a bedridden patient, wherein: and the enema tube is provided with a flow regulator.

4. The enema bag assembly of claim 1, which facilitates collection of stool after enema of a bedridden patient, wherein: the side shaping of excrement collection bag has the through-hole with enema pipe size looks adaptation, and fixed mounting has annular sealing washer in the through-hole, the enema pipe passes the through-hole and extends the inside of excrement collection bag, excrement collection bag passes through-hole and enema pipe sliding connection.

5. The enema bag assembly of claim 1, which facilitates collection of stool after enema of a bedridden patient, wherein: an annular pressure reducing pad is fixedly arranged at the side end of the excrement collecting bag discharge port along the periphery.

6. The enema bag assembly of claim 1, which facilitates collection of stool after enema of a bedridden patient, wherein: an annular protection sheet protruding upwards is adhered to the upper end of the excrement collecting bag discharge opening along one circle of the edge, and the protection sheet is arranged on the periphery of the foam adhesive tape.
