CN211534816U - Multifunctional supporting tool for operating room - Google Patents

Abstract

The utility model relates to the technical field of medical equipment, in particular to a multifunctional holder for an operating room, comprising an upper cover, a lower cover, a storage cavity and an electric power cavity. One end of the upper cover is provided with a first handle, and one end of the lower cover is provided with a first handle. A second handle is provided, end handles are provided at both ends of the outer side of the lower cover, a lamp cavity is provided at both ends of the top side of the lower cover, a gas strut is arranged between the upper cover and the lower cover, and the storage cavity is A large cavity, a medium cavity and a small cavity are provided, and the inner ends of the large cavity, the medium cavity and the small cavity are provided with elastic bands and a UV germicidal lamp, and the top of the UV germicidal lamp is fixed with a baffle plate, The front end of the large cavity is provided with a drying lamp, and there is a limit baffle plate between the power cavity and the storage cavity. Through the set storage cavity, the storage cavity is provided with a large cavity, a medium cavity and a small cavity. Practical Compared with the existing brackets, the surgical tools are specially placed to prevent clutter and make the equipment more efficient in use.

Description

A kind of multifunctional bracket for operating room

technical field

The utility model relates to the technical field of medical equipment, in particular to a multifunctional holder for an operating room.

Background technique

The operating room bracket is a tool that is used in the internal work of the operating room. The operating room bracket can ensure that the doctor can quickly find the tools that need to be used during work, and the operating room bracket needs to be able to ensure the cleanliness of the tools used by the doctor. Sterile, operating room holder is a device for storing medical tools needed for surgery or work, so it is very important for doctors, which greatly affects the efficiency of doctors in surgery or work.

Although there are many kinds of operating room brackets today, most of them are only changes in form, and their functions have not changed much. Due to their simple structure, today's operating room brackets contain a single function and are extremely difficult to use. It is convenient, and various tools are usually placed together, which is relatively messy. It takes time and effort for doctors to find them, and delays the operation time and affects the life safety of patients. Therefore, a multi-functional bracket for operating rooms is needed to change the status quo.

Utility model content

The purpose of the present utility model is to provide a multifunctional holder for operating room, so as to solve the problems raised in the above background technology.

To achieve the above object, the utility model provides the following technical solutions:

A multifunctional holder for an operating room, comprising an upper cover, a lower cover, a storage cavity and a power cavity, the outer end of the upper cover is provided with a visual window, one end of the visual window is provided with a control panel, and one end of the upper cover is provided with a visual window. There is a first handle, the inner side of the upper cover is provided with a cloth bag, both ends of the inner side of the upper cover are provided with lighting lamps, one end of the lower cover is provided with a second handle, and the outer ends of the lower cover are provided with end handles, Both ends of the top side of the lower cover are provided with lamp cavities, the middle ends of the upper cover and the lower cover are provided with magnets, a gas strut is arranged between the upper cover and the lower cover, and the storage cavity is provided with a large size There are elastic bands and UV germicidal lamps at the inner ends of the large, medium and small cavities. The UV germicidal lamp is fixed with a baffle at the top, and the large A drying lamp is arranged at the front end of the cavity, a partition is arranged in the middle of the electric cavity, a radiator is arranged at both ends of the partition, and a limit baffle is arranged between the electric cavity and the storage cavity.

Preferably, the inner end of the power cavity is provided with required power equipment such as a battery and a PLC controller, and a proximity sensor is provided at the bottom end of the lamp cavity, the proximity sensor is electrically connected to the PLC controller, and the PLC controller and the Lighting electrical connection.

Preferably, partitions are provided between the large cavity, medium cavity and small cavity, ventilation openings are provided at both ends of the partitioning board and the power cavity, and a filter screen is provided at the inner end of the ventilation opening.

Preferably, the material of the storage bag is a double-strand fabric.

Preferably, sealing gaskets are provided around the inner sides of the upper cover and the lower cover, and are connected by hinges.

Preferably, the first handle and the second handle are fixed to the upper cover and the lower cover by bolts, and both the first handle and the second handle are made of elastic material.

Preferably, the inner diameter of the lamp cavity is slightly larger than the outer diameter of the lighting lamp, and the length from the limiting baffle to the top of the lower cover is equal to the height of the storage cavity and the partition.

Preferably, one end of the gas strut is fixed on the inner side of the upper cover, and the other end is fixed on one side of the UV germicidal lamp.

Compared with the prior art, the beneficial effects of the present utility model are:

1. In the present utility model, through the setting cavity, the storage cavity is provided with a large cavity, a medium cavity and a small cavity, and a partition is provided between the large cavity, the medium cavity and the small cavity, and the large cavity is provided. The inner ends of the cavity, the medium cavity and the small cavity are provided with elastic bands. The large cavity, the medium cavity and the small cavity can be used to place different surgical tools respectively. The messy placement will affect the use of doctors, and there is a storage bag on the inside of the upper cover. The material of the storage bag is double-strand fabric, which makes the storage bag more durable. The storage bag can also be used to place tools. Compared with the existing support In terms of tools, special placement of surgical tools prevents clutter and makes the equipment more efficient when used.

2. In the present utility model, the UV germicidal lamps and lighting lamps are provided. The UV germicidal lamps are installed on the inside of the storage cavity, and there are multiple groups. The top of the germicidal lamp is fixed with a baffle, which can prevent the UV germicidal lamp from harming people when the doctor uses it. The lighting lamp is installed at both ends of the inner side of the upper cover, and there are lamp cavities at both ends of the top side of the lower cover. The inner diameter of the lamp cavity is slightly larger than The outer diameter of the lighting lamp, and the bottom end of the lamp cavity is provided with a proximity sensor. The proximity sensor is electrically connected to the PLC controller, and the PLC controller is electrically connected to the lighting lamp. When the lighting lamp is placed in the inner end of the lamp chamber, the PLC controller is electrically connected. Control the lighting to turn off. When the lighting leaves the lamp cavity, the PLC controller controls the lighting to turn on. There is a drying lamp at the front of the large cavity, and there are partitions between the large cavity, the medium cavity and the small cavity. , There are ventilation openings at both ends of the partition, and the drying lamp can dry the surgical tools, keep the surgical tools dry, and make the equipment more hygienic when used.

3. In the present utility model, through the provided first handle and second handle, since magnets are provided at the middle ends of the upper cover and the lower cover, a gas strut is arranged between the upper cover and the lower cover, and the upper The cover and the lower cover are opened or closed and fixed by magnets, and there are end handles on both ends of the outer side of the lower cover. , compared with the single structure of the existing bracket, the utility model provides a variety of usage modes, which makes the device more convenient to use.

Description of drawings

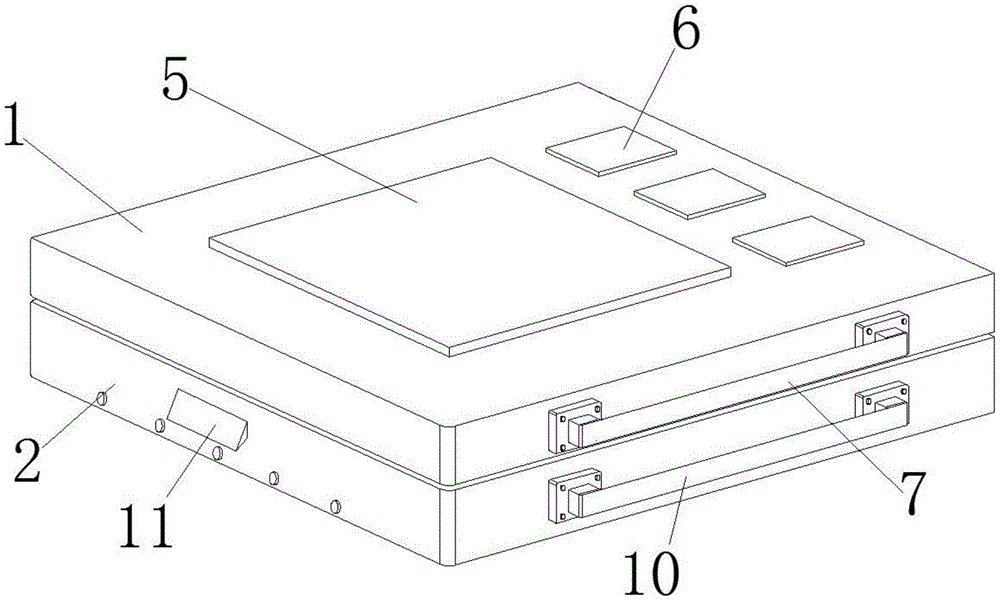

Fig. 1 is the overall schematic diagram of the utility model;

2 is a schematic diagram of the internal structure of the utility model;

3 is a schematic diagram of a power cavity of the present invention;

In the picture: 1- upper cover, 2- lower cover, 3- storage cavity, 4- power cavity, 5- visual window, 6- control panel, 7- first handle, 8- storage bag, 9- lighting lamp, 10 -Second handle, 11-end handle, 12-lamp cavity, 13-magnet, 14-gas strut, 15-large cavity, 16-medium cavity, 17-small cavity, 18-elastic band, 19-UV Germicidal lamp, 20-baffle, 21-drying lamp, 22-partition, 23-radiator, 24-limit baffle

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. For example, based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without creative work shall fall within the protection scope of the present invention.

Please refer to Figures 1-3 The present utility model provides a technical solution:

A multifunctional holder for an operating room, comprising an upper cover 1, a lower cover 2, a storage cavity 3 and an electric power cavity 4, the outer end of the upper cover 1 is provided with a visual window 5, one end of the visual window 5 is provided with a control panel 6, and the upper cover One end of 1 is provided with a first handle 7, the inner side of the upper cover 1 is provided with a cloth bag 8, both ends of the inner side of the upper cover 1 are provided with lights 9, and one end of the lower cover 2 is provided with a second handle 10. For the second handle 10 , since the middle ends of the upper cover 1 and the lower cover 2 are provided with magnets 13 , a gas strut 14 is arranged between the upper cover 1 and the lower cover 2 , and the upper cover 1 and the lower cover 2 are connected by the gas strut 14 . Open or close, it is fixed by the magnet 13, and the outer ends of the lower cover 2 are provided with end handles 11. The user can lift the holder through the first handle 7 and the second handle 10, or use the end handle 11 to lift the holder. Compared with the single structure of the existing support, the present invention provides a variety of ways of use, which makes the equipment more convenient to use. The outer ends of the lower cover 2 are provided with end handles 11, and the lower cover 2 There are lamp cavities 12 at both ends of the top side, magnets 13 are arranged at the middle ends of the upper cover 1 and the lower cover 2, a gas strut 14 is arranged between the upper cover 1 and the lower cover 2, and a large cavity 15 is arranged in the storage cavity 3 , the medium cavity 16 and the small cavity 17, the large cavity 15, the medium cavity 16 and the small cavity 17 are provided with elastic bands 18 and UV germicidal lamps 19 at both ends. There are large cavity 15, medium cavity 16 and small cavity 17. There are partitions between large cavity 15, medium cavity 16 and small cavity 17. Large cavity 15, medium cavity 16 and small cavity Both ends of the inner side of the cavity 17 are provided with elastic bands 18. The large cavity 15, the medium cavity 16 and the small cavity 17 can be used to place different surgical tools respectively. The elastic bands 18 are used for fixing, avoiding the messy placement of tools. It affects the use of doctors, and the inside of the upper cover 1 is provided with a storage bag 8. The material of the storage bag 8 is a double-strand fabric, which makes the storage bag 8 more durable. The storage bag 8 can also be used to place tools. For some brackets, the surgical tools are specially placed to prevent clutter and make the equipment more efficient in use. The top of the UV germicidal lamp 19 is fixed with a baffle 20, and the front end of the large cavity 15 is provided with a drying lamp 21. A partition 22 is arranged in the middle of the cavity 4, a radiator 23 is arranged at both ends of the partition 22, and a limit baffle 24 is arranged between the power cavity 4 and the storage cavity 3. Installed on the inside of the storage cavity 3, there are multiple groups, and the placed surgical tools are sterilized and disinfected by the UV germicidal lamp 19 to prevent the growth of bacteria. The top of the UV germicidal lamp 19 is fixed with a baffle 20, which can prevent the doctor from using it The UV germicidal lamp 19 causes harm to people. The lighting lamp 9 is installed on both ends of the inner side of the upper cover 1, and the two ends of the top side of the lower cover 2 are provided with a lamp cavity 12. The inner diameter of the lamp cavity 12 is slightly larger than the outer diameter of the lighting lamp 9, and the lamp The bottom end of the cavity 12 is provided with a proximity sensor, the proximity sensor is electrically connected with the PLC controller, and the PLC controller is electrically connected with the lighting lamp 9. When the lighting lamp 9 is placed in the inner end of the lamp chamber 12, the PLC controller is electrically connected. Control the lighting lamp 9 to turn off, when the lighting lamp 9 leaves the lamp cavity 12, the PLC controller controls the lighting 9 lamp to turn on, and the front end of the large cavity 15 is provided with a drying lamp 21, the large cavity 15, the medium cavity 16 and the small cavity There are partitions between the cavities 17, and there are ventilation openings at both ends of the partitions. The drying lamp 21 can dry the surgical tools, keep the surgical tools dry, and make the equipment more hygienic when used, which has a certain promotion. value.

The working process of the utility model: when in use, manually separate the upper cover 1 and the lower cover 2, so that the bracket is opened, and the upper cover 1 is fixed by the gas strut 14. When the upper cover 1 leaves the lower cover 2, the PLC controller controls The lighting lamp 9 is on, which can assist the user to search for surgical tools. The user can put different types or different sizes of surgical tools into the inner ends of different storage chambers 3, and fix them with the elastic band 18. Through the UV germicidal lamp 19 and The drying lamp 21 sterilizes and dries the surgical tool. After use, the upper cover 1 is pressed down, and then the gas strut 14 is stretched and retracted to cause the upper cover 1 and the lower cover 2 to be combined together. At this time, the PLC controller controls The lighting lamp 9 is extinguished, the storage cavity 3 and the upper cover 1 form a sealed space to prevent dust from entering, and the user can transport the bracket by hand or end-holding, which makes the device more convenient to use and has a certain promotion value. .

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (8)

1. A multifunctional holder for an operating room, comprising an upper cover (1), a lower cover (2), a storage cavity (3) and an electric power cavity (4), characterized in that: the outer end of the upper cover (1) A visual window (5) is provided, one end of the visual window (5) is provided with a control panel (6), one end of the upper cover (1) is provided with a first handle (7), and the inner side of the upper cover (1) is provided with a first handle (7). There is a cloth bag (8) for storage, the inner two ends of the upper cover (1) are provided with lighting lamps (9), one end of the lower cover (2) is provided with a second handle (10), and the outer side of the lower cover (2) is provided with a second handle (10). Both ends are provided with end handles (11), both ends of the top side of the lower cover (2) are provided with lamp cavities (12), and the middle ends of the upper cover (1) and the lower cover (2) are provided with magnets (13). ), a gas strut (14) is provided between the upper cover (1) and the lower cover (2), and the storage cavity (3) is provided with a large cavity (15), a medium cavity (16) and a small cavity (16). Number cavity (17), the inner ends of the large cavity (15), medium cavity (16) and small cavity (17) are provided with elastic bands (18) and UV germicidal lamps (19), the UV sterilization A baffle plate (20) is fixed at the top of the lamp (19), a drying lamp (21) is arranged at the front end of the large cavity (15), and a partition (22) is arranged in the middle of the power cavity (4). 22) Radiators (23) are provided at both ends, and limit baffles (24) are provided between the power chamber (4) and the storage chamber (3). 2. A kind of multifunctional holder for operating room according to claim 1, characterized in that: the inner end of the power chamber (4) is provided with required power equipment such as a battery, a PLC controller, and the lamp chamber (4). 12) A proximity sensor is provided at the bottom end, the proximity sensor is electrically connected with the PLC controller, and the PLC controller is electrically connected with the lighting lamp (9). 3. A kind of multifunctional holder for operating room according to claim 1, characterized in that: the large cavity (15), the medium cavity (16) and the small cavity (17) are all provided with There is a partition, both ends of the partition and the power cavity (4) are provided with ventilation openings, and the inner end of the ventilation opening is provided with a filter screen. 4 . The multifunctional holder for an operating room according to claim 1 , wherein the material of the storage bag ( 8 ) is a double-strand fabric. 5 . 5 . The multifunctional holder for operating room according to claim 1 , wherein the upper cover ( 1 ) and the lower cover ( 2 ) are provided with sealing gaskets around the inner sides and are connected by hinges. 6 . 6. The multifunctional holder for an operating room according to claim 1, wherein the first handle (7) and the second handle (10) are fixed to the upper cover (1) and the lower cover by bolts The cover (2) is provided, and the first handle (7) and the second handle (10) are made of elastic material. 7. The multifunctional holder for an operating room according to claim 1, wherein the inner diameter of the lamp cavity (12) is slightly larger than the outer diameter of the lighting lamp (9), and the limit baffle The length from (24) to the top of the lower cover (2) is equal to the height of the storage cavity (3) and the partition (22). 8. A multifunctional holder for an operating room according to claim 1, characterized in that: one end of the gas strut (14) is fixed to the inner side of the upper cover (1), and the other end is fixed to the UV germicidal lamp ( 19) One side.
