Abstract

The utility model relates to the technical field of lithium battery production line equipment, in particular to a transfer tool. The transfer tool includes a transfer mechanism and a storage mechanism for storing the connecting piece of the battery cell, the transfer mechanism is configured to be able to obtain and transport the connecting piece on the storage mechanism, and the transfer mechanism includes an error-proof unit, The error-proofing unit is arranged to enable the transport mechanism to transport the connecting piece in a preset orientation of the connecting piece. The transfer tool is provided with a storage mechanism and a transfer mechanism, so that the connecting piece can be stored in the storage mechanism and the transfer operation is carried out through the transfer mechanism. The problem in the prior art that the manipulator transfers the misplaced connecting piece to the battery core, resulting in the inability to precisely weld with the tabs of the battery core, is solved, the yield is improved, and the safety performance is better.

Description

transfer tooling

technical field

The utility model relates to the technical field of lithium battery production line equipment, in particular to a transfer tool.

Background technique

With the increasing demand for new energy, lithium-ion batteries have become more and more widely used. The production process of lithium-ion batteries is complex and there are many procedures, and the production quality of each step directly determines the safety performance of the final product. Among them, taking the ultrasonic welding process between the tabs and the connecting pieces of the cell as an example, a stack of connecting pieces is stored on the storage rack, and the robot can take the top connecting piece on the storage rack and transport it to the battery at the core, so that the connection piece can be soldered to the tab of the battery core.

However, the manipulator cannot judge whether the front and back of the connecting piece to be taken are reversed, so that the manipulator will pick up the reversed connecting piece and transport the connecting piece to the cell for welding, resulting in that the tabs of the cell cannot be connected with each other. The connection piece is precisely welded, and problems such as laser welding explosion, welding deviation, and lack of welding occur, which reduce the practical performance of the cell, which is easy to cause short circuits, and the safety is also at greater risk.

Utility model content

In view of this, the present utility model aims to propose a transfer tooling, so as to solve the problem that in the prior art, the manipulator cannot judge whether the connecting piece is placed on the front and back, but the reversed connecting piece is welded to the battery cell. question.

In order to achieve the above object, the technical scheme of the present utility model is achieved in this way:

A transfer tool, the transfer tool includes a transfer mechanism and a storage mechanism for storing a connecting piece of a battery cell, the transfer mechanism is set to be able to acquire and transport the connecting piece on the storage mechanism, the transfer mechanism An error-proofing unit is included, the error-proofing unit being arranged to enable the transport mechanism to transport the connecting piece in a preset orientation of the connecting piece.

Optionally, the connecting piece includes an acquisition portion and an error-proofing portion on different planes, the transfer mechanism includes a taking unit for picking up the acquisition portion to obtain the connecting piece, and the error-proofing unit is set to The connection piece can be prevented from being reversed by monitoring the distance between the error-proofing portion and the error-proofing unit.

Optionally, the transfer mechanism includes a moving unit, the moving unit is connected to the taking unit and is configured to drive the taking unit to move, the error-proof unit includes a measuring element and a first control module, so The first control module is respectively electrically connected with the measuring element and the moving unit, the measuring element is arranged to be able to monitor the distance between the error-proofing part and the measuring element and send out a corresponding signal, the first control module It is arranged to be able to receive the signal and to control the transport direction of the mobile unit in accordance with the signal.

Optionally, the taking unit includes a mounting base connected to the moving unit and an adsorption piece mounted on the mounting base, and the adsorption piece is configured to be capable of adsorbing the acquisition part to pick up the acquisition part.

Optionally, the acquiring part and the error-proofing part are in two planes parallel to each other, and the taking unit includes a flattening piece mounted on the mounting seat, and the flattening piece is set to be able to abut against the error-proofing part. part so that the error prevention part and the acquisition part extend in the horizontal direction.

Optionally, the storage mechanism includes a storage rack and a holding unit, the storage rack is used for positioning and storing a plurality of the connecting pieces arranged in layers, and the holding unit is configured to be capable of holding up a plurality of the connecting pieces. connecting pieces and lifting the uppermost connecting piece among the plurality of connecting pieces to a preset position, so that the picking unit can pick up the acquiring part of the connecting piece.

Optionally, the storage rack includes a positioning groove for accommodating and defining a plurality of the connecting pieces.

Optionally, the error-proof part is provided with a positioning hole, the storage rack includes a positioning column, and the positioning column is mounted on the bottom wall of the positioning slot and extends vertically upward, so as to be inserted into a plurality of positions. into the positioning hole of the error-proof part of the connecting piece.

Optionally, the bottom wall of the positioning slot includes an opening, the lifting unit includes a lifting member and a power member disposed under the positioning groove, and one end of the lifting member is connected to the power member and Extending vertically upward, the other end of the lifting member passes through the opening to abut against the acquiring portion, and the power member is configured to be capable of driving the lifting member to perform a lifting movement in a vertical direction.

Optionally, the lifting member is configured as an elastic member;

And/or, the storage mechanism includes a second control module and a sensor mounted on the fixed part of the power element, the sensor is arranged to be able to measure the distance between the abutting part of the acquisition part and the sensor and A corresponding signal is sent, the second control module is electrically connected to the sensor and the power element respectively, and the second control module is configured to receive the signal and control the power element to perform corresponding actions according to the signal.

Compared with the prior art, the transfer tooling described in the present utility model has the following advantages:

The transfer tool is provided with a storage mechanism and a transfer mechanism, so that the connecting piece can be stored in the storage mechanism and the transfer operation is carried out through the transfer mechanism. The problem in the prior art that the manipulator transfers the misplaced connecting piece to the battery cell and cannot be accurately welded with the tab of the battery core is solved, the yield is improved, and the safety performance is better.

Other features and advantages of the present invention will be described in detail in the detailed description section that follows.

Description of drawings

The accompanying drawings constituting a part of the present invention are used to provide further understanding of the present invention, and the schematic embodiments of the present invention and descriptions thereof are used to explain the present invention and do not constitute an improper limitation of the present invention. In the attached image:

Fig. 1 is the mechanism schematic diagram when the storage mechanism of the transfer tooling according to the embodiment of the utility model holds up the connecting piece;

Fig. 2 is the top view of the storage mechanism shown in Fig. 1;

Fig. 3 is the top view of the connecting piece shown in Fig. 1;

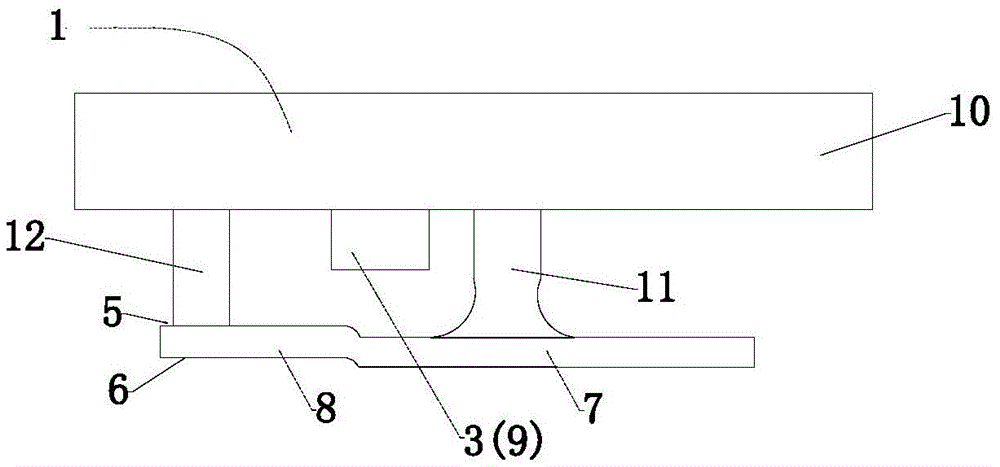

Fig. 4 is the structural representation that the transfer mechanism of the transfer tool obtains the connecting piece through the taking unit;

FIG. 5 is a schematic structural diagram of the connecting piece in FIG. 4 .

Description of reference numbers:

1. Transfer mechanism; 2. Storage mechanism; 3. Error-proofing unit; 4. Connecting piece; 5. Front; 6. Back; 7. Acquiring part; 8. Error-proofing part; 9. Measuring part; 10. Mounting seat; 11. Adsorption part; 12. Flattening part; 13. Storage rack; 14. Positioning slot; 15. Positioning column; 16. Opening; 17. Lifting part; 18. Power part; 19. Sensor; 20. Crease .

Detailed ways

It should be noted that the embodiments of the present invention and the features of the embodiments can be combined with each other unless there is conflict.

The present utility model will be described in detail below with reference to the accompanying drawings and in conjunction with the embodiments.

The utility model provides a transfer tool, as shown in Figures 1-5, the transfer tool includes a transfer mechanism 1 and a storage mechanism 2 for storing the connecting piece 4 of the battery cell, and the transfer mechanism 1 is set to be able to obtain And transport the connecting piece 4 on the storage mechanism 2, the transfer mechanism 1 includes an error-proof unit 3, and the error-proof unit 3 is arranged to enable the transfer mechanism 1 to be pre-set with the connecting piece 4. Oriented to transport the connecting piece 4 . The preset orientation of the connecting piece 4 refers to a certain specific placement direction preset by the connecting piece 4 .

Through the above technical solutions, the present invention provides a transfer tooling. The transfer tooling is provided with a storage mechanism 2 and a transfer mechanism 1, so that the connecting piece 4 can be stored in the storage mechanism 2 and the transfer operation is performed through the transfer mechanism 1. The transfer mechanism 1. A misplacement prevention unit 3 is provided to avoid the problem of misplacement of the connecting piece 4 in the transfer mechanism 1, which solves the problem that the manipulator transfers the wrongly placed connecting piece to the battery cell in the prior art. The problem of precise welding improves the pass rate and has better safety performance.

As shown in FIG. 4 , the connecting piece 4 includes an acquisition part 7 and an error prevention part 8 on different planes, and the transfer mechanism 1 includes a taking unit for picking up the acquisition part 7 to acquire the connecting piece 4 , the error-proofing unit 3 is set to be able to prevent the connecting piece 4 from being reversed by monitoring the distance between the error-proofing part 8 and the error-proofing unit 3, and to quantify the monitoring results, which is convenient for judgment and reduces the Misplacement rate of connection piece 4. Wherein, the reverse placement of the connecting piece 4 refers to the reverse placement of the acquisition portion 7 and the error prevention portion 8 of the connecting piece 4 and/or the reverse placement of the front side 5 and the reverse side 6 of the connecting piece 4 .

In order to intelligently control the transfer operation of the connecting piece 4, for example, the transfer mechanism 1 includes a moving unit, the moving unit is connected with the picking unit and is configured to drive the picking unit to move, and the error preventing unit 3. It comprises a measuring piece 9 and a first control module, the first control module is electrically connected with the measuring piece 9 and the moving unit respectively, and the measuring piece 9 is arranged to be able to monitor the error proofing part 8 and the measuring piece 9 and emit a corresponding signal, the first control module being arranged to be able to receive the signal and to control the transport direction of the mobile unit according to the signal.

When in use, the connecting piece 4 stored in the storage mechanism 2 is transferred through the transfer mechanism 1, and the following process can be referred to for details. First, the taking unit first takes the obtaining part 7 of the connecting piece 4 to obtain the connecting piece 4 from the storage mechanism 2 , and then the measuring piece 9 of the error-proofing unit 3 measures the wrong-proofing part 8 of the connecting piece 4 and the measuring piece 9 to obtain the measured value, the first control module receives the signal corresponding to the measured value from the measuring element 9 and judges whether the measured value is in the preset range, then: if it is within the preset range, the first control module The control module controls the moving unit to move toward the cell, and transports the connecting piece 4 to the cell for assembly; if it is not within the preset range, the first control module controls the moving unit to move to other positions, and further, the transfer tool can be set with bad materials box, the moving unit moves to the bad material box to transport the reversed connecting piece 4 to the bad material box for storage. Wherein, the first control module may be configured as various reasonable control units capable of realizing the above operations.

As shown in FIG. 4 , in order to enable the pickup unit to quickly and firmly obtain the connecting piece 4 , the pickup unit includes a mounting base 10 connected to the moving unit and a suction member 11 mounted on the mounting base 10 , The suction part 11 is configured to be able to absorb the acquisition part 7 to take the acquisition part 7 , the structure is simple, the positioning and suction of the connecting piece 4 is convenient, and the positioning accuracy of the suction piece 11 after repeatedly sucking the connecting piece 4 is improved. , which is beneficial to improve the reliability of the measurement results of the measuring element 9, optimize the error-proofing effect of the error-proofing unit 3, and prevent the connecting piece 4 from being damaged compared with the method of clipping to obtain the connecting piece 4. , deformation, and improve the production qualification rate of the battery.

In order to ensure that the transport mechanism 1 transports the webs 4 in their preset orientation, the webs 4 comprise, according to FIGS. 3 and 5 , a crease 20 between the acquisition portion 7 and the error-proof portion 8 , so that all The acquisition part 7 and the mistake-proof part 8 are in two planes parallel to each other, and the pick-up unit includes a flattening piece 12 mounted on the mounting seat 10 , and the flattening piece 12 is arranged to be able to abut against the mistake-proofing The part 8 is arranged so that the error-proof part 8 and the obtaining part 7 extend in the horizontal direction, which is beneficial to the suction member 11 to firmly absorb the connecting piece. Wherein, as shown in FIG. 4 , the measuring piece 9 can be installed directly under the mounting seat 10 , and the measuring piece 9 is arranged just above the error-proofing part 8 to measure the height difference between the measuring piece 9 and the error-proofing part 8 That is, to measure the vertical distance between the position directly below the measuring piece 9 and the measuring piece 9 of the error-proofing portion 8 , in view of the fact that the error-proofing portion 8 is kept horizontal under the cooperative action of the flattening piece 12 and the suction piece 11 , The measurement accuracy of the measurement piece 9 is improved, and the error-proofing effect of the error-proofing unit is optimized. In addition, according to the field test, the weight of the error prevention part 8 of the connecting piece is lighter than that of the acquisition part 7. After the suction part 11 sucks the acquisition part 7, in order to prevent the error prevention part 8 from lifting upward, the flattening part 12 is downward. The front surface (upper surface as shown in FIG. 4 ) of the error prevention part 8 is pressed so that the error prevention part 8 and the acquisition part 7 extend horizontally. The flattening member 12 can be set to a reasonable structure, such as a rod; the adsorption member 11 can be set to various reasonable structures, such as a vacuum suction cup; the measuring member 9 can be set to various reasonable structures, such as a laser distance meter.

In order to improve the transfer efficiency of the transfer tool, the storage mechanism 2 includes a storage rack 13 and a holding unit. The storage rack 13 is used for positioning and storing a plurality of the connecting pieces 4 arranged in layers. In order to be able to hold up a plurality of the connecting pieces 4 and lift the uppermost connecting piece 4 among the plurality of connecting pieces 4 to a preset position, so that the taking unit can take the connecting piece 4 The acquisition part 7 is convenient for transferring the connecting pieces 4 in batches.

As shown in FIGS. 1 and 2 , the storage rack 13 includes a positioning slot 14 for accommodating and defining a plurality of the connecting pieces 4 , so that the storage rack 13 can position and store a plurality of connecting pieces 4 . The connecting pieces 4 can be uniformly extended along the left and right directions shown in FIG. 2 , and are arranged as a whole, which is beneficial for the transfer mechanism to quickly absorb the connecting pieces 4 .

Further, the error-proofing portion 8 is provided with a positioning hole, and the storage rack 13 includes a positioning column 15. The positioning column 15 is installed on the bottom wall of the positioning slot 14 and extends vertically upward for insertion. The positioning holes of the wrong-proof parts 8 of the connecting pieces 4 improve the positioning accuracy of the connecting pieces 4 by the storage rack 13 and avoid the wrong placement of the connecting pieces in the left and right directions.

As shown in FIGS. 1 and 2 , the bottom wall of the positioning groove 14 includes an opening 16 , and the lifting unit includes a lifting member 17 and a power member 18 disposed under the positioning groove 14 . One end of the lifting member 17 is connected to the power member 18 and extends vertically upward, the other end of the lifting member 17 passes through the opening 16 to abut the acquisition portion 7, and the power member 18 is configured to drive the The lifting member 17 moves up and down along the vertical direction, the structure is simple, the operation is convenient, and the efficiency of the storage mechanism for supplying the connecting piece to the transfer mechanism is improved.

Further, the lifting member 17 is configured as an elastic member to prevent damage and deformation of the acquiring portion of the lowermost connecting piece. Wherein, the lifting member 17 can be set as a spring, and the spring is always in the elastic deformation range during the whole transfer process.

In order to intelligently control the supply operation of the storage mechanism 2 , the storage mechanism 2 includes a second control module and a sensor 19 mounted on the fixed part of the power member 18 , and the sensor 19 is configured to measure the value of the acquisition part 7 . Abutting the distance between the part and the sensor 19 and sending out a corresponding signal, the second control module is electrically connected to the sensor 19 and the power element 18, respectively, the second control module is configured to receive the signal and The power element 18 is controlled to perform corresponding actions according to the signal. Wherein, the sensor 19 can be set as a laser ranging sensor; the power element 18 can be set as a servo motor.

When in use, the connecting piece 4 is supplied through the storage mechanism, and the specific operation process is as follows:

First, place the plurality of connecting pieces 4 in the positioning grooves 14 of the storage rack 13, and insert the positioning posts 15 into the positioning holes of the error-proof parts 8 of the plurality of connecting pieces 4 in sequence, so that the plurality of connecting pieces are positioned in a stacked manner Storage, to prevent the connection piece from being placed in reverse; then, the lifting member 17 passes through the opening 16 of the positioning groove 14 and abuts against the acquisition portion of the lowermost connecting piece 4, while the lifting member 17 is in the vertical direction. Compression deformation occurs; then, the distance between the abutting part of the acquisition part 7 and the sensor 19 is measured by the sensor 19 to obtain the actual measurement value, and the second control module receives the actual measurement value sent by the sensor 19 and the actual measurement value. Corresponding signal and judging whether the actual measured value is the same as the preset value, then: if the two are the same, it means that the uppermost connecting piece 4 is lifted to the preset position, and the second control module controls the power member 18 to remain stationary, so that The suction member 11 of the transfer mechanism 1 can smoothly absorb the uppermost connecting piece 4; if the actual measured value is greater than the preset value, it indicates that the uppermost connecting piece 4 is higher than the preset position, and the second control module controls the power member 18 Drive the lifting member 17 to move down until the uppermost connecting piece 4 drops to the preset position, so that the suction member 11 of the transfer mechanism 1 can smoothly absorb the uppermost connecting piece 4; if the actual measured value is less than the preset value value, indicating that the uppermost connecting piece 4 is lower than the preset position, and the second control module drives the lifting member 17 to rise by controlling the power member 18 until the uppermost connecting piece 4 rises to the preset position, so as to facilitate the transfer The suction member 11 of the mechanism 1 can smoothly absorb the uppermost connecting piece 4 . It can be understood that, taking the lifting member 17 as an example of a spring, when the recovery deformation of the spring is less than the thickness of a single connecting piece, the plurality of connecting pieces are transported by the transfer mechanism one by one from top to bottom, and each time the storage rack decreases by one. The connecting piece and the spring release a certain elastic potential energy and restore a certain amount of deformation accordingly. It is worth mentioning that, in order to enable the uppermost connecting piece to move and stay at a predetermined position for the transfer mechanism to acquire, the preset value set by the second control module should gradually increase as the number of connecting pieces decreases. That is, every time a connecting piece is reduced on the storage rack, the preset value increases the thickness of one connecting piece accordingly (the connecting piece is set to an equal-thickness structure), and accordingly, the spring restores a certain amount of deformation, and the spring is in the power element. Under the driving action, the remaining distance is raised, so that the plurality of connecting pieces can rise simultaneously by a distance equal to the thickness of a single connecting piece.

The above descriptions are only the preferred embodiments of the present invention, and are not intended to limit the present invention. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present invention shall be included in the within the scope of protection of the present invention.

Claims (10)

1. The transfer tool is characterized by comprising a transfer mechanism (1) and a storage mechanism (2) used for storing a connecting sheet (4) of a battery core, wherein the transfer mechanism (1) is arranged to be capable of acquiring and transporting the connecting sheet (4) on the storage mechanism (2), the transfer mechanism (1) comprises a mistake-proofing unit (3), and the mistake-proofing unit (3) is arranged to be capable of enabling the transfer mechanism (1) to transport the connecting sheet (4) according to the preset orientation of the connecting sheet (4).

2. Transfer tooling according to claim 1, wherein the connection piece (4) comprises an acquisition portion (7) and a mistake-proofing portion (8) on different planes, the transfer mechanism (1) comprises an access unit to access the acquisition portion (7) to acquire the connection piece (4), and the mistake-proofing unit (3) is arranged to prevent the connection piece (4) from being put backwards by monitoring the distance between the mistake-proofing portion (8) and the mistake-proofing unit (3).

3. Transfer tool according to claim 2, characterized in that the transfer mechanism (1) comprises a mobile unit connected to the pick-up unit and arranged to be able to bring the pick-up unit in motion, the error protection unit (3) comprises a measuring member (9) and a first control module electrically connected to the measuring member (9) and the mobile unit, respectively, the measuring member (9) being arranged to be able to monitor the distance between the error protection (8) and the measuring member (9) and to emit a corresponding signal, the first control module being arranged to be able to receive the signal and to control the transport direction of the mobile unit according to the signal.

4. Transfer tooling according to claim 3, wherein the pick-up unit comprises a mounting seat (10) connected to the moving unit and an adsorbing member (11) mounted on the mounting seat (10), the adsorbing member (11) being arranged to adsorb the acquisition portion (7) to pick up the acquisition portion (7).

5. Transfer tooling according to claim 4, wherein the acquisition portion (7) and the error protection portion (8) are in two planes parallel to each other, the take-up unit comprising a flattening piece (12) mounted to the mounting seat (10), the flattening piece (12) being arranged to be able to abut against the error protection portion (8) so that the error protection portion (8) and the acquisition portion (7) extend in a horizontal direction.

6. The transfer tool according to claim 2, wherein the storage mechanism (2) comprises a storage rack (13) and a lifting unit, the storage rack (13) is used for positioning and storing the connecting sheets (4) which are arranged in a stacked manner, and the lifting unit is arranged to lift the connecting sheets (4) and lift the uppermost connecting sheet (4) of the connecting sheets (4) to a preset position so that the picking unit can pick up the acquisition part (7) of the connecting sheet (4).

7. Transfer tooling according to claim 6, characterized in that said storage rack (13) comprises positioning slots (14) for housing and defining a plurality of said connecting tabs (4).

8. Transfer tooling according to claim 7, wherein the error-proofing portion (8) is provided with positioning holes, and the storage rack (13) comprises positioning columns (15), the positioning columns (15) being mounted on the bottom wall of the positioning slots (14) and extending vertically upwards for insertion into the positioning holes of the error-proofing portions (8) of the plurality of connection sheets (4).

9. Transfer tooling according to claim 7, wherein the bottom wall of the positioning slot (14) comprises an opening (16), the supporting unit comprises a supporting member (17) and a power member (18) arranged below the positioning slot (14), one end of the supporting member (17) is connected to the power member (18) and extends vertically upwards, the other end of the supporting member (17) penetrates through the opening (16) to abut against the acquisition part (7), and the power member (18) is arranged to drive the supporting member (17) to perform lifting movement along the vertical direction.

10. The transfer tooling of claim 9, wherein:

the supporting piece (17) is arranged as an elastic piece;

and/or the storage mechanism (2) comprises a second control module and a sensor (19) mounted on a fixed part of the power member (18), wherein the sensor (19) is arranged to measure the distance between the abutting part of the acquisition part (7) and the sensor (19) and send a corresponding signal, the second control module is respectively electrically connected with the sensor (19) and the power member (18), and the second control module is arranged to receive the signal and control the power member (18) to perform corresponding action according to the signal.
