Abstract

The utility model discloses an auxiliary device for detecting internal force of a bridge foundation pile, which comprises a bottom plate, wherein the bottom end of the bottom plate is uniformly and fixedly connected with a plurality of damping plates, universal wheels are installed at the bottom ends of the damping plates, an installation cavity is arranged in the middle of the top end of the bottom plate, a slide rail is fixedly connected with the top end of the bottom plate, the top end of the slide rail is slidably connected with an angle seat, a rotating motor is installed in the inner cavity of the installation cavity, a motor shaft on the rotating motor is fixedly connected with a rotating shaft, and the top end of the rotating; the utility model discloses a pneumatic cylinder stretches out or packs up the telescopic link, and then utilizes the telescopic link to promote to put the thing board and reciprocate along first guide rail, and then can adjust check out test set and reciprocate, can adjust check out test set's height, can drive the rotation of grudging post along with the rotation of angle seat simultaneously, and then it is rotatory to drive check out test set, can adjust check out test set's angle to can promote check out test set's application convenience by a wide margin, can promote the convenience that check out test set used by a wide margin.

Description

Auxiliary device for detecting internal force of bridge foundation pile
Technical Field
The utility model relates to a bridge check out test set technical field specifically is an auxiliary device that bridge foundation pile internal force detected.
Background
Early bridges generally refer to structures erected on rivers, lakes and seas to allow vehicles, pedestrians and the like to smoothly pass through. In order to adapt to the traffic industry with high-speed development, modern bridges are also introduced into the infrastructure field crossing various traffic demands such as mountain stream, unfavorable geology, municipal rail and the like, so that the traffic is more convenient. The bridge mainly comprises five small parts and five large parts. The five small parts comprise bridge deck pavement, a waterproof and drainage system, railings, expansion joints and lighting, are parts directly related to bridge service functions and refer to a bridge deck structure. The five major components comprise a bridge span structure (a bridge hole structure and an upper structure), a support system, a pier, a bridge abutment, a digging well or a pile foundation, and are bridge span upper structures and bridge span lower structures for bearing automobile or other vehicle transportation loads of the bridge, and the bridge span upper structures and the bridge span lower structures are used for ensuring the safety of the bridge structure. Among these, the pile foundation is one of the most important parts. Pile foundation bearing capacity determines the safe and healthy operation of all components. The foundation pile internal force detection can determine the stress state, the working mechanism and the bearing capacity exertion rule of the single pile under the actual working condition.
In the process of detecting the internal force of the actual bridge foundation pile, the detection equipment is heavy and is not easy to carry, and the detection equipment needs to be temporarily carried by an auxiliary device, so that a detection person can conveniently operate the detection equipment. However, the existing auxiliary device can only rotate to carry and adjust the detection equipment through the universal wheel, is very inconvenient to operate, and is difficult to meet the use requirement of detecting the internal force of the bridge foundation pile under the complex working condition environment.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an auxiliary device that bridge foundation pile internal force detected to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
the utility model provides an auxiliary device that bridge foundation pile internal force detected, includes the bottom plate, a plurality of shock attenuation boards of the even fixedly connected with in bottom of bottom plate, the universal wheel is installed to the bottom of shock attenuation board, the top middle part of bottom plate is equipped with the installation cavity, the top fixedly connected with slide rail of bottom plate, the slide rail is the ring structure, and the slide rail cover is established in the outside of installation cavity, the top sliding connection angle seat of slide rail, the rotating electrical machines is installed to the inner chamber of installation cavity, the last motor shaft fixed connection pivot of rotating electrical machines, the top fixed connection of pivot is in the bottom of angle seat, and it is rotatory to drive the pivot through the rotating electrical machines, and then utilizes the pivot to drive angle seat sliding rotation.
The top end of the angle seat is fixedly connected with a vertical frame which is of an H-shaped structure, a through hole is arranged in the middle of the vertical frame, first guide rails are symmetrically arranged on the left side wall and the right side wall of an upper inner cavity of the vertical frame, a hydraulic cylinder is fixedly arranged on the bottom wall of the lower inner cavity of the vertical frame, the top end of a telescopic rod on the hydraulic cylinder penetrates through the through hole and is fixedly connected with a storage plate matched with the first guide rail, the detection equipment is arranged on the storage plate, the telescopic rod is extended or retracted through the hydraulic cylinder, further utilizes the telescopic rod to push the object placing plate to move up and down along the first guide rail, thereby adjusting the detection equipment to move up and down, the height of the detection equipment can be adjusted, and simultaneously the rotation of the angle seat can drive the stand to rotate, so as to drive the detection equipment to rotate, the angle of the detection equipment can be adjusted, so that the application convenience of the detection equipment can be greatly improved, and the application convenience of the detection equipment can be greatly improved.
Lateral wall symmetry is equipped with the second guide rail about the lower part inner chamber of grudging post, the outside cover of telescopic link is equipped with the steadying plate with second guide rail matched with, be sliding connection between steadying plate and the second guide rail, along with stretching out or accomodating of telescopic link, can promote the steadying plate and slide from top to bottom along the second guide rail to guarantee the stability that the telescopic link stretches out or accomodates, and then guarantee the stability that check out test set goes up and down, be favorable to improving the accuracy that check out test set detected.
In a further embodiment, the side of bottom plate is even is equipped with a plurality of fixed plates, threaded connection screw rod on the fixed plate, the top fixed connection carousel of screw rod, the bottom of screw rod are rotated through the bearing frame and are connected and grab the anchor board, the bottom of grabbing the anchor board is equipped with the skid resistant course, the skid resistant course chooses for use the rubber material preparation to form, and when whole device stopped to use, earlier drives screw rod forward rotation through the carousel for the screw rod is rotatory to be descended, and then descends and grab the anchor board, utilizes and grabs the anchor board and hug closely ground, thereby stabilizes the bottom plate, and then stabilizes whole device, thereby guarantees the stability of check out test set, thereby guarantees detection quality.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses a pneumatic cylinder stretches out or packs up the telescopic link, and then utilizes the telescopic link to promote to put the thing board and reciprocate along first guide rail, and then can adjust the check out test set and reciprocate, can adjust the height of check out test set, can drive the rotation of grudging post along with the rotation of angle seat simultaneously, and then drive the check out test set rotation, can adjust the angle of check out test set to can promote the application convenience of check out test set by a wide margin, can promote the convenience that the check out test set used by a wide margin;
2. when the utility model is used, the stabilizing plate can be pushed to slide up and down along the second guide rail along with the extension or the storage of the telescopic rod, so that the stability of extension or storage of the telescopic rod is ensured, the stability of lifting of the detection equipment is further ensured, and the accuracy of detection of the detection equipment is favorably improved;
3. the utility model discloses a when whole device stops to use, drive the screw rod forward rotation through the carousel earlier for the screw rod is rotatory to be descended, and then falls and grab the anchor plate, utilizes and grabs the anchor plate and hug closely ground, thereby stabilizes the bottom plate, and then stabilizes whole device, thereby guarantees check out test set's stability, thereby guarantees detection quality.
Drawings

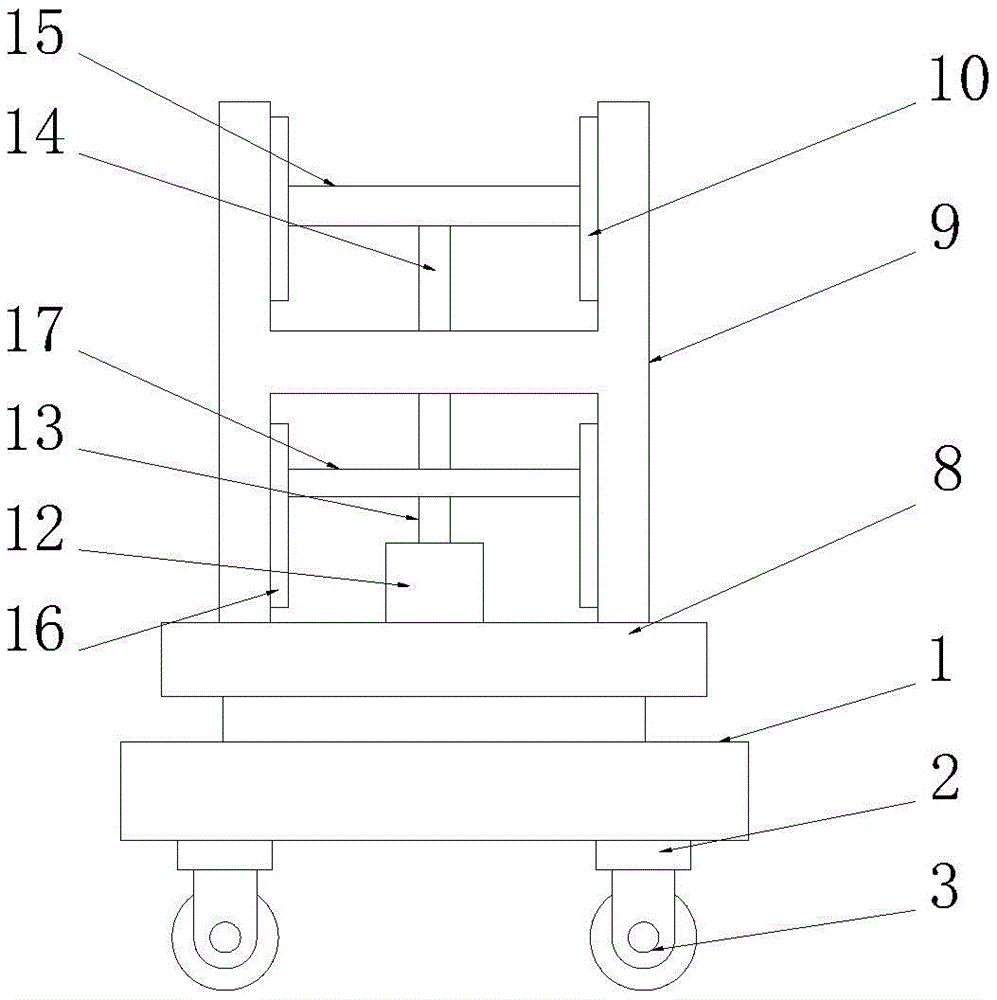

FIG. 1 is a schematic structural diagram of an auxiliary device for detecting internal force of a bridge foundation pile;
FIG. 2 is a schematic structural diagram of a partial cross-sectional view of an auxiliary device for detecting internal force of a bridge foundation pile;
FIG. 3 is a schematic perspective view of a vertical frame of an auxiliary device for detecting internal force of a bridge foundation pile;
fig. 4 is a schematic structural diagram of another embodiment of an auxiliary device for detecting the internal force of a bridge foundation pile.
In the figure: 1-bottom plate, 101-fixed plate, 102-screw rod, 103-rotary table, 104-bearing seat, 105-anchor grasping plate, 2-damping plate, 3-universal wheel, 4-installation cavity, 5-rotating motor, 6-rotating shaft, 7-sliding rail, 8-angle seat, 9-vertical frame, 10-first guide rail, 11-through hole, 12-hydraulic cylinder, 13-telescopic rod, 15-object placing plate, 16-second guide rail and 17-stabilizing plate.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Example 1
Please refer to fig. 1-3, an auxiliary device for detecting internal force of a bridge foundation pile comprises a bottom plate 1, wherein a plurality of damping plates 2 are fixedly connected to the bottom end of the bottom plate 1, universal wheels 3 are installed at the bottom ends of the damping plates 2, an installation cavity 4 is arranged in the middle of the top end of the bottom plate 1, a sliding rail 7 is fixedly connected to the top end of the bottom plate 1, the sliding rail 7 is of a circular ring structure, the sliding rail 7 is sleeved outside the installation cavity 4, the top end of the sliding rail 7 is slidably connected with an angle seat 8, a rotating motor 5 is installed in the inner cavity of the installation cavity 4, a motor shaft on the rotating motor 5 is fixedly connected with a rotating shaft 6, the top end of the rotating shaft 6 is fixedly connected to the bottom end of the angle seat 8, the rotating shaft 5 drives the rotating shaft 6 to rotate, and.
The top end of the angle seat 8 is fixedly connected with a vertical frame 9, the vertical frame 9 is of an H-shaped structure, a through hole 11 is formed in the middle of the vertical frame 9, first guide rails 10 are symmetrically arranged on the left side wall and the right side wall of an upper inner cavity of the vertical frame 9, a hydraulic cylinder 12 is fixedly mounted on the bottom wall of a lower inner cavity of the vertical frame 9, the top end of a telescopic rod 13 on the hydraulic cylinder 12 penetrates through the through hole 11 and is fixedly connected with an object placing plate 15 matched with the first guide rails 10, the detection equipment is mounted on the object placing plate 15, the telescopic rod 13 is extended or retracted through the hydraulic cylinder 12, the object placing plate 15 is pushed by the telescopic rod 13 to move up and down along the first guide rails 10, the detection equipment can be adjusted to move up and down, the height of the detection equipment can be adjusted, meanwhile, the rotation of the vertical frame 9 can be driven along with the rotation of the angle seat, the convenience of the application of the detection equipment can be greatly improved.
The lower part inner chamber bilateral wall symmetry of grudging post 9 is equipped with second guide rail 16, the outside cover of telescopic link 13 is equipped with the steadying plate 17 with second guide rail 16 matched with, be sliding connection between steadying plate 17 and the second guide rail 16, along with stretching out or accomodating of telescopic link 13, can promote steadying plate 17 and slide from top to bottom along second guide rail 16 to guarantee the stability that telescopic link 13 stretched out or accomodate, and then guarantee the stability that check out test set goes up and down, be favorable to improving the accuracy that check out test set detected.
Example 2
Referring to fig. 4, a plurality of fixing plates 101 are uniformly arranged at the side end of the bottom plate 1, a screw 102 is connected to the fixing plates 101 in a threaded manner, a turntable 103 is fixedly connected to the top end of the screw 102, the bottom end of the screw 102 is rotatably connected to an anchor grabbing plate 105 through a bearing seat 104, an anti-slip layer is arranged at the bottom end of the anchor grabbing plate 105, the anti-slip layer is made of rubber, when the whole device is stopped for use, the turntable 103 drives the screw 102 to rotate forward, so that the screw 102 rotates and descends, the anchor grabbing plate 105 is tightly attached to the ground, the bottom plate 1 is stabilized, the whole device is stabilized, the stability of detection equipment is guaranteed, and the detection quality is guaranteed.
Working principle of examples 1-2: when the whole device is stopped for use, the screw 102 is driven to rotate forwards through the turntable 103, so that the screw 102 rotates and descends, the anchor grasping plate 105 is further lowered, and the anchor grasping plate 105 is tightly attached to the ground, thereby stabilizing the base plate 1, further stabilizing the whole device, extending or retracting the telescopic rod 13 through the hydraulic cylinder 12, further using the telescopic rod 13 to push the object placing plate 15 to move up and down along the first guide rail 10, further adjusting the detection device to move up and down, the height of the detection device can be adjusted, meanwhile, the rotating shaft 6 is driven to rotate by the rotating motor 5, and then the rotating shaft 6 is used for driving the angle seat 8 to slide and rotate on the slide rail 7, the rotation of the angle seat 8 can drive the stand 9 to rotate, and then the detection device is driven to rotate, the angle of the detection equipment can be adjusted, so that the application convenience of the detection equipment can be greatly improved, and the application convenience of the detection equipment can be greatly improved.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.

Claims (6)

1. The auxiliary device for detecting the internal force of the bridge foundation pile comprises a bottom plate (1) and is characterized in that the bottom of the bottom plate (1) is uniformly and fixedly connected with a plurality of damping plates (2), universal wheels (3) are installed at the bottoms of the damping plates (2), an installation cavity (4) is arranged in the middle of the top end of the bottom plate (1), a sliding rail (7) is fixedly connected to the top end of the bottom plate (1), an angle seat (8) is slidably connected to the top end of the sliding rail (7), a rotating motor (5) is installed in an inner cavity of the installation cavity (4), a motor shaft on the rotating motor (5) is fixedly connected with a rotating shaft (6), and the top end of the rotating shaft (6) is fixedly connected to the bottom end of the angle;
top fixed connection grudging post (9) of angle seat (8), grudging post (9) are H shape structure, and the middle part of grudging post (9) is equipped with through-hole (11), and the upper portion inner chamber left and right sides lateral wall symmetry of grudging post (9) is equipped with first guide rail (10), the lower part inner chamber diapire fixed mounting of grudging post (9) has pneumatic cylinder (12), through-hole (11) and fixedly connected with and first guide rail (10) matched with put thing board (15) are run through on the top of telescopic link (13) on pneumatic cylinder (12).
2. The auxiliary device for detecting the internal force of the bridge foundation pile according to claim 1, wherein the sliding rail (7) is of a circular ring structure, and the sliding rail (7) is sleeved outside the installation cavity (4).
3. The auxiliary device for detecting the internal force of the bridge foundation pile according to claim 1, wherein the left and right side walls of the lower inner cavity of the stand (9) are symmetrically provided with second guide rails (16), the outer side of the telescopic rod (13) is sleeved with a stabilizing plate (17) matched with the second guide rails (16), and the stabilizing plate (17) is in sliding connection with the second guide rails (16).
4. The auxiliary device for detecting the internal force of the bridge foundation pile according to any one of claims 1-3, wherein a plurality of fixing plates (101) are uniformly arranged at the side end of the bottom plate (1), a screw rod (102) is connected to the fixing plates (101) in a threaded manner, the top end of the screw rod (102) is fixedly connected with a rotating disc (103), and the bottom end of the screw rod (102) is rotatably connected with an anchor grabbing plate (105) through a bearing seat (104).
5. The auxiliary device for detecting the internal force of the bridge foundation pile is characterized in that the bottom end of the anchor grasping plate (105) is provided with an anti-slip layer.
6. The auxiliary device for detecting the internal force of the bridge foundation pile according to claim 5, wherein the anti-slip layer is made of rubber.
