CN211525734U - DRPE composite reinforced hollow winding structure wall A-type pipe for buried drainage in Japanese shape - Google Patents

Abstract

The utility model relates to an A-shaped pipe with a DRPE composite reinforced hollow winding structure wall for Japanese-shaped buried drainage, comprising a pipe layer formed by spirally winding a pipe strip; the pipe strip comprises a skeleton and a cavity, and the cavity There are reinforcing ribs that are vertically and fixedly connected to the top and bottom of the skeleton through the connecting pieces; the left and right outer side walls of the adjacent pipe strips are welded in turn after the pipe strip is spirally wound; the outer side wall of the pipe layer is annularly provided with reinforcement A tensile layer, the inner side wall is annularly provided with a wear-resistant layer, and the wear-resistant layer and the pipe strip are integrally formed in a structure; by arranging a reinforced tensile layer on the outer side wall of the pipe layer and arranging reinforcement in the cavity of the pipe strip The rib method enhances the overall strength of the A-type pipe, and the wear-resistant layer and the pipe strip are integrally formed to make the inner wall of the A-type pipe have higher wear resistance.

Description

DRPE composite reinforced hollow winding structure wall A-type pipe for buried drainage in Japanese shape

technical field

The utility model relates to the field of drainage pipes, in particular to a DRPE composite reinforced hollow winding structure wall A-type pipe for buried drainage in a Japanese shape.

Background technique

At present, the hollow winding pipe is a structural wall pipe made of high-density polyethylene as a raw material by a thermal winding molding process. It is widely used in municipal drainage, farmland water delivery and industrial sewage discharge. It can replace traditional concrete pipes and cast iron pipes. However, due to the limited external pressure that the hollow structure can withstand, it is prone to deformation. The strength of the coiled pipe in the prior art needs to be further strengthened. In addition, most of the inner walls of the existing drainage pipes are coated to achieve the effect of wear resistance, which easily causes the wear layer to fall off under the continuous action of the water flow.

Utility model content

The utility model aims to solve the problems existing in the above-mentioned prior art, and provides a DRPE composite reinforced hollow winding structure wall A-type pipe for buried underground drainage. The way of arranging reinforcing ribs in the strip cavity enhances the overall strength of the A-type pipe, and the wear-resistant layer and the pipe strip are integrally formed to make the inner wall of the A-type pipe have higher wear resistance. The technical solutions adopted are as follows:

A Japanese-shaped DRPE composite reinforced hollow winding structural wall A-type pipe for buried drainage, comprising a reinforced stretch layer, a pipe material layer and a wear-resistant layer sequentially arranged from outside to inside; the pipe material layer is formed by spirally winding pipe strips. In this case, the pipe strip includes a skeleton and a cavity, and the cavity is provided with reinforcing ribs that are vertically and fixedly connected to the top and bottom of the skeleton through connecting pieces; the outer side walls of two adjacent pipe strips are welded; the The wear-resistant layer is integrally formed with the pipe strip.

As a preferred solution of the present invention, the welding part between the outer side walls of the two adjacent pipes and strips is welded by a special polyethylene bonding material.

As a preferred solution of the present invention, a rectangular steel strip is arranged inside the reinforcing rib.

As a preferred solution of the present invention, the outline of the skeleton is a polygon, including any one of a square, a rectangle, a hexagon, and an octagon.

As a preferred solution of the present invention, the shape of the connecting piece includes any one of a cylindrical shape, a circular truncated shape, and a stepped stage shape.

The beneficial effects of the present utility model are:

(1) In the present invention, a reinforced tensile plate is arranged on the outer wall of the A-type pipe, so that the strength of the composed pipe body is higher, and the bending resistance and bearing capacity are stronger;

(2) The setting of the wear-resistant layer effectively enhances the wear-resistant and anti-corrosion performance of the inner wall of the pipe, and improves the service life of the pipe;

(3) The reinforcing ribs arranged vertically in the cavity of the pipe and strip are beneficial to enhance the overall strength of the pipe body. The rectangular steel plate arranged inside the reinforcing ribs further enhances the firmness of the reinforcing ribs, and the connection between the reinforcing ribs and the skeleton of the pipe and strip is improved by changing the reinforcing ribs. The structure of the parts effectively enhances the structural stability of the reinforcing ribs;

(4) The wear-resistant layer and the pipe strip are integrated in the plastic extruder. During the process of winding into a pipe, the two are integrated into an integrated structure, which effectively reduces the wear-resistant layer of the pipe being washed by fluid during use. the possibility of falling off;

(5) The shape of the pipe strip is set to be square, rectangular, hexagonal and/or octagonal, and the regular geometric structure can effectively reduce the external force to a certain extent;

(6) Since the shape of the pipe and strip adopts a regular geometric shape, the contact surface between the adjacent pipe and strip after helical winding is smoother, which is conducive to the welding operation of the special polyethylene bonding material and makes the welding part more firm;

(7) Glass fiber cloth is arranged on the outer wall of the pipe layer, which further increases the strength and tensile strength of the pipe.

Description of drawings

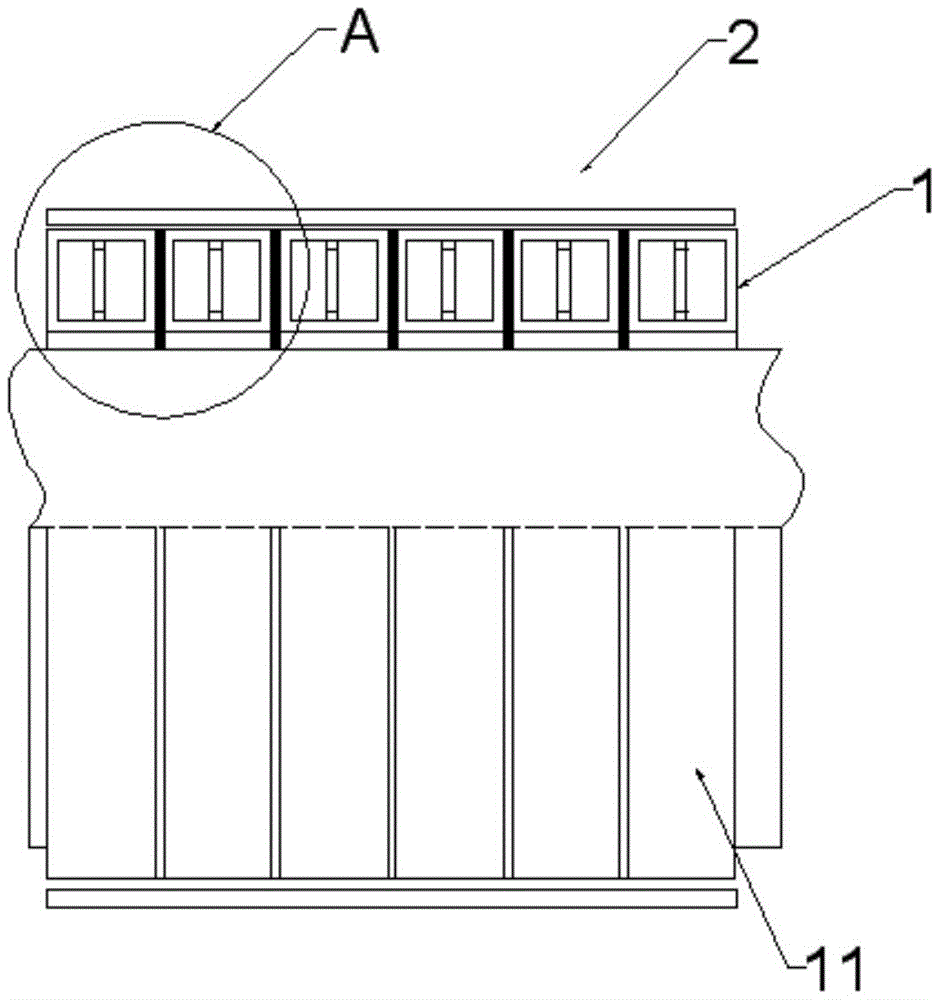

Fig. 1 is the structural representation of the DRPE composite reinforced hollow winding structure wall A-type pipe for buried drainage provided by the utility model;

Fig. 2 is the partial enlarged view of A place in Fig. 1;

Fig. 3 is the single pipe strip structure schematic diagram of the DRPE composite reinforced hollow winding structure wall A-type pipe provided by the utility model for buried drainage;

Fig. 4 is the pipe layer cross-sectional structure schematic diagram of the pipe strip skeleton shape of the DRPE composite reinforced hollow winding structure wall A-type pipe provided by the utility model for buried drainage in a square shape;

Fig. 5 is the DRPE composite reinforcement hollow winding structure wall A-type pipe provided by the utility model for the utility model. The profile of the pipe-strip skeleton of the utility model is a rectangular pipe layer cross-sectional structure schematic diagram;

Fig. 6 is the DRPE composite reinforcement hollow winding structure wall A-type pipe provided by the utility model for buried drainage in the shape of the pipe strip skeleton with a hexagonal shape of the pipe layer cross-sectional structure schematic diagram;

Fig. 7 is the DRPE composite reinforcement hollow winding structure wall A-type pipe provided by the utility model of the utility model;

Fig. 8 is the cross-sectional structure schematic diagram of the pipe strip under the situation that the reinforcing rib is provided with a rectangular steel strip in the DRPE composite reinforced hollow winding structure wall A-type pipe for buried drainage provided by the utility model;

Fig. 9 is the pipe strip cross-sectional structure schematic diagram under the situation that the joint of the DRPE composite reinforced hollow winding structure wall A-type pipe for the sun-shaped buried drainage provided by the utility model is a cylindrical shape;

10 is a schematic diagram of the cross-sectional structure of the pipe and strip under the circumstance that the joint of the DRPE composite reinforced hollow winding structure wall A-type pipe for buried drainage provided by the present utility model is a circular cone-shaped;

11 is a schematic diagram of the cross-sectional structure of the pipe and strip under the situation that the joint of the DRPE composite reinforced hollow winding structure wall A-type pipe for the sun-shaped buried drainage provided by the present invention is a terrace type;

12 is a schematic structural diagram of glass fiber cloth provided in the pipe layer of the DRPE composite reinforced hollow winding structure wall A-type pipe for buried drainage provided by the present invention.

Reference number:

1-pipe layer, 11-pipe strip, 111-frame, 112-cavity, 113-wear-resistant layer, 114-reinforcing rib, 115-connector, 116-rectangular steel strip, 12-special polyethylene bonding Material, 2- Reinforced stretch layer, 3- Fiberglass cloth.

Detailed ways

Below in conjunction with accompanying drawing, the utility model is further described:

Example 1

1 , 2 , 3 , 4 and 8 , it includes a reinforced tensile layer 2 , a pipe material layer 1 and a wear-resistant layer 113 arranged in sequence from the outside to the inside; the pipe material layer 1 is composed of pipe strips 11 is spirally wound, and the pipe strip 11 includes a skeleton 111 and a cavity 112. The cavity 112 is provided with reinforcing ribs 114 that are vertically and fixedly connected to the top and bottom of the skeleton 111 through connecting pieces 115; The outer side walls of the pipe strip 11 are welded; the wear-resistant layer 113 and the pipe strip 11 are integrally formed;

In this embodiment, after the pipe strips 11 are spirally wound, the left and right outer side walls of the adjacent pipe strips 11 are welded by a special polyethylene adhesive material 12 .

In this embodiment, the wear-resistant layer 113 and the pipe strip 11 are integrally formed; that is, the wear-resistant layer is integrated with the pipe strip before the plastic extruder extrudes the pipe strip.

In this embodiment, the outline of the skeleton is a square; the selection of a square structure is beneficial to the structural stability of the pipe wall of the pipe strip, thereby strengthening the DRPOE composite reinforced hollow winding structure for buried drainage provided by the present utility model. Overall strength of wall A-tube.

In this embodiment, the connecting member 115 is cylindrical in shape.

In this embodiment, the thickness of the reinforced stretch layer 2 is 0.5 mm, and the material used is high-density polyethylene.

In this embodiment, the thickness of the wear-resistant layer 113 is 2 mm, and the material used is UHMWPE ultra-high molecular weight polyethylene material.

In this embodiment, the Japanese-shaped DRPE composite reinforced hollow winding structure wall A-type pipe for buried drainage is assembled into a whole pipe by means of socket-type hot-melt connection and put into use on site.

Example 2

With reference to FIG. 5 , other technical features are the same as those of Embodiment 1, the difference is that the shape of the frame 111 is a rectangle.

Example 3

With reference to FIG. 6 , other technical features are the same as those of Embodiment 1, except that the skeleton 111 has a hexagonal shape.

Example 4

With reference to FIG. 7 , other technical features are the same as those of Embodiment 1, the difference is that the outer shape of the skeleton 111 is an octagon.

Example 5

With reference to FIG. 8 , other technical features are the same as those of Embodiment 1, the difference is that a rectangular steel strip 116 is provided inside the reinforcing rib 114 .

Example 6

Referring to FIG. 9 , other technical features are the same as those of Embodiment 1, except that the connecting piece 115 at the connection between the reinforcing rib 114 and the top edge and bottom edge of the frame 111 is cylindrical in shape.

Example 7

Referring to FIG. 10 , other technical features are the same as those of Embodiment 1, except that the connecting piece 115 at the connection between the reinforcing rib 114 and the top and bottom edges of the skeleton 111 is in the shape of a truncated cone.

Example 8

Referring to FIG. 11 , other technical features are the same as those of Embodiment 1, except that the connecting piece 115 at the connection between the reinforcing rib 114 and the top and bottom edges of the skeleton 111 is in the shape of a terrace.

Example 9

With reference to Fig. 12 , other technical features are the same as in Example 1, the difference is that a glass fiber cloth 3 is arranged between the pipe material layer and the reinforced stretch layer.

Example 10

With reference to Fig. 1, other technical features are the same as in Example 1, the difference is that the material used for the wear-resistant layer is modified polyolefin wear-resistant material GXCG-1101.

The basic principles, main features and advantages of the present invention have been shown and described above. It should be understood by those skilled in the art that the present invention is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principle of the present invention. Without departing from the spirit and scope of the present invention, the present invention There will also be various changes and improvements in the new model, which all fall within the scope of the claimed invention.

Claims (6)

1. a Japanese-shaped buried drainage with DRPE composite reinforced hollow winding structure wall A-type pipe, is characterized in that, comprises the reinforced stretch layer, the pipe material layer and the wear-resistant layer that are arranged successively from outside to inside; Described pipe material layer is made of The pipe strip is spirally wound, the pipe strip includes a skeleton and a cavity, and the cavity is provided with reinforcing ribs that are vertically and fixedly connected to the top and bottom of the skeleton through connecting pieces; the outer side walls of the adjacent two pipe strips Welding between; the wear-resistant layer and the pipe strip are integrally formed. 2. The DRPE composite reinforced hollow winding structure wall A-pipe for sun-shaped buried drainage according to claim 1 is characterized in that, the welding part between the outer side walls of the two adjacent pipe strips is bonded by special polyethylene Material welding. 3 . The DRPE composite reinforced hollow winding structural wall A-pipe for sun-shaped buried drainage according to claim 1 , wherein a rectangular steel strip is provided inside the reinforcing rib. 4 . 4. The DRPE composite reinforced hollow winding structure wall A-pipe for sun-shaped buried drainage according to claim 1, wherein the skeleton shape is any one of a square, a rectangle, a hexagon or an octagon kind. 5. The DRPE composite reinforced hollow winding structure wall A-pipe for sun-shaped buried drainage according to claim 4, wherein the shape of the connector is any one of a cylindrical shape, a truncated cone shape or a terrace shape . 6 . The DRPE composite reinforced hollow winding structural wall A-pipe for sun-shaped buried drainage according to claim 1 , wherein a glass fiber cloth is further arranged between the pipe material layer and the reinforced stretch layer. 7 .
