Abstract

The utility model discloses an active black twill fabric of regenerated air-conditioned silk fidelity cotton, which is characterized in that it comprises several minimum circulation structural units, and the minimum circulation structural unit is composed of 6 coil transverse paths and 3 coil columns. The 6-way structural unit in the column is, the 1st, 2, 3, and 5 way are loops, and the 4th and 6th way are floating lines; No. 5 is loop formation, No. 2 and No. 6 are tuck loops, No. 8 and No. 10 are floating lines; 2 and 4 are floating lines. The utility model develops a new knitted denim fabric structure, adopts two kinds of environmentally friendly functional fibers, achieves the effects of moisture absorption and perspiration, softness and comfort, reduces production costs, and makes up for the single variety and narrow application range of knitted denim fabrics on the market. , and improve market competitiveness.

Description

A kind of recycled air-conditioning silk fidelity cotton active black twill fabric

technical field

The utility model relates to a fabric, in particular to a regenerated air-conditioning silk fidelity cotton active black twill fabric.

Background technique

Denim fabrics have always been loved by consumers, but woven denim is stiff and airtight, with poor elasticity and softness, which is contrary to people's increasing emphasis on clothing comfort. The fabric used is mainly single-sided twill fabric, and the existing knitted denim fabric has a single variety and less fabric structure.

Utility model content

The purpose of this utility model is to aim at the deficiencies existing in the prior art, to provide a regenerated air-conditioned silk fidelity cotton active black twill fabric, which has developed a new fabric structure, and uses a new type of functional fiber to achieve moisture absorption and perspiration, softness Comfortable effect.

Technical scheme: The technical scheme adopted by the present utility model to solve the problem is: a regenerated air-conditioned silk fidelity cotton active black twill fabric, including several minimum circulation structural units, the minimum circulation structural unit is composed of 6 coil cross paths and 3 coils Consists of columns, where:

The 6-way structural unit of the I coil column is, the 1st, 2nd, 3rd, and 5th ways are circles, and the 4th and 6th ways are floating lines;

The 6-way structural unit of the second coil column is that the 1st, 3rd, 4th, and 5th lines are loops, the 2nd and 6th lines are tuck loops, and the 8th and 10th lines are floating lines;

The 6-way structural unit of the third coil column is that the 1st, 3rd, 5th, and 6th ways are coiled, and the 2nd and 4th ways are floating lines.

Preferably, the 1st, 3rd, and 5th odd-numbered paths are parallel weaving of Youfu regenerated air-conditioning yarn and spandex yarn.

Preferably, the 2nd, 4th, and 6th even-numbered roads are fidelity cotton.

Beneficial effects: The utility model has the following beneficial effects:

In the regenerated air-conditioning silk fuda cotton active black twill fabric disclosed by the utility model, the odd-numbered lines are loop-forming structural units, which are woven with excellent-rich regenerated air-conditioning yarns and elastic spandex yarns, while the even-numbered lines are loop-forming and emergent structures. The structural units are regularly arranged and cycled periodically. Two functional fibers are used to achieve better moisture absorption and perspiration and a soft and comfortable touch.

It is a knitted denim fabric with a new type of fabric structure developed by adjusting the weaving process. It solves the problem of a single variety of knitted denim fabrics and a small range of use, and adds a new type of knitted denim fabric, which increases the size of knitted denim. The range of fabrics used meets the diverse needs of the market and increases market competitiveness.

Description of drawings

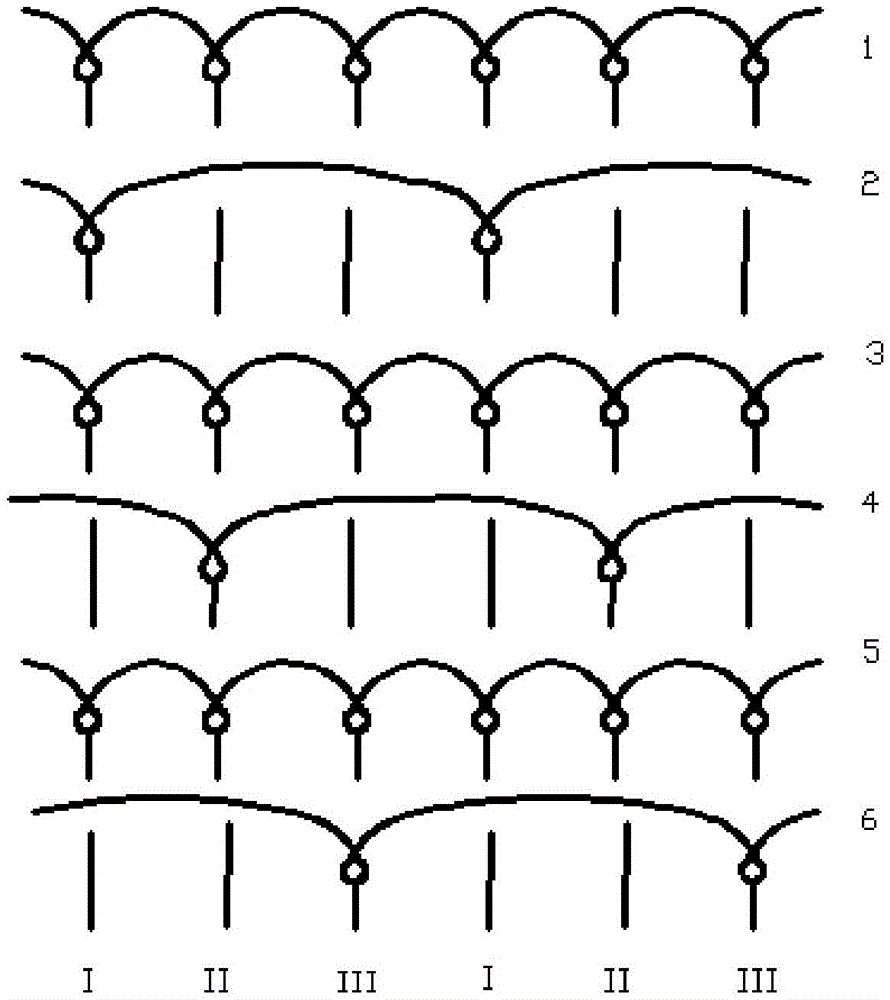

Fig. 1 is the weaving structure schematic diagram of the present utility model;

Fig. 2 is the weaving triangle diagram of the utility model.

Detailed ways

Below in conjunction with the accompanying drawings and specific embodiments, the present utility model will be further clarified. The present embodiment is implemented on the premise of the technical solution of the present utility model. It should be understood that these embodiments are only used to illustrate the present utility model and not to limit the present utility model. range.

As shown in Figures 1 and 2, a regenerated air-conditioning silk fidelity cotton active black twill fabric disclosed by the present utility model includes several minimum circulation structural units, and the minimum circulation structural unit consists of 6 coil transverse paths and 3 coil columns. consists of:

The 6-way structural unit of the I coil column is, the 1st, 2nd, 3rd, and 5th ways are circles, and the 4th and 6th ways are floating lines;

The 6-way structural unit of the second coil column is that the 1st, 3rd, 4th, and 5th lines are loops, the 2nd and 6th lines are tuck loops, and the 8th and 10th lines are floating lines;

The 6-way structural unit of the third coil column is, the 1st, 3rd, 5th, and 6th ways are circles, and the 2nd and 4th ways are floating lines;

The 1st, 3rd, and 5th odd-numbered paths are woven side by side with Ufu regenerated air-conditioning yarn and spandex yarn. The 2nd, 4th, and 6th even-numbered roads are Fidelity Cotton. The specific production steps are as follows: Youfu regenerated air-conditioning yarn and spandex are simultaneously distributed on the front side of the fabric, Fidelity cotton is distributed on the back side of the fabric, white blank weaving is performed, and then the fabric is dyed with reactive black to complete.

Youfu regenerated air-conditioning yarn is a functional filament, which is a recycled polyester filament with air conditioning function. With breathable and breathable moisture wicking properties, the wearer feels cool, dry and comfortable. The product has the ability to stay dry in a hot environment and keep warm and comfortable in a cold environment. It is the formation of a micro-climate layer between the fabric and the human body. . Fidelity cotton is a cotton-like polyester filament with various characteristics of cotton fiber. But it has a wooly feel, soft and smooth hand feel, natural luster, good drape, fluffy and natural touch of cotton, hygroscopicity of cotton yarn, and quick-drying of polyester, which has the effect of moisture absorption and perspiration. Strength, dyeability, pilling resistance, wrinkle resistance and dimensional stability of polyester yarns.

The purpose of the knitted fabric woven with these two functional filaments is to give full play to the functionality of the fabric, and then carry out reactive dyeing to meet the requirements of environmental protection. The product is widely used in casual wear, sportswear, shirts, underwear, outerwear, etc.

The above are only the preferred embodiments of the present invention. It should be pointed out that for those skilled in the art, without departing from the principles of the present invention, several improvements and modifications can be made. These improvements and Retouching should also be regarded as the protection scope of the present invention.

Claims (3)

1. The utility model provides a black twill surface fabric of cotton activity is richly reached to regeneration air conditioner silk which characterized in that: including a plurality of minimum circulation constitutional unit, minimum circulation constitutional unit comprises 6 coil horizontal lines and 3 coil vertical columns, wherein:

the 6-path structural unit of the I-th coil column is that the 1 st, 2 nd, 3 th and 5 th paths are formed into loops, and the 4 th and 6 th paths are floating lines;

the 6-path structural unit of the II coil column is that the 1 st, 3 rd, 4 th and 5 th paths are loop formation, the 2 nd and 6 th paths are tuck loops, and the 8 th and 10 th paths are floating lines;

the 6-path structural units of the III coil column are that the 1 st, 3 rd, 5 th and 6 th paths are formed into loops, and the 2 nd and 4 th paths are floating lines.

2. The regenerative air-conditioning silk Fuda cotton active black twill fabric according to claim 1, characterized in that: the 1 st, 3 rd and 5 th odd numbered paths are formed by weaving the optimally enriched regenerated air conditioning yarn and the spandex yarn in parallel.

3. The regenerative air-conditioning silk Fuda cotton active black twill fabric according to claim 1, characterized in that: the 2 nd, 4 th and 6 th even paths are Fuda cotton.
