Abstract

The utility model discloses an automatic oil-spraying device for a steel wire rope of a CDQ hoist, which comprises an oil tank, an oil pump arranged in the oil tank, a controller, an arc support, an oil delivery pipe, an oil injection main pipe and an oil injection nozzle; The oil pump, the arc end of the arc bracket is installed with the fuel injection main pipe, the oil transmission pipe is built in the arc bracket, and one end of the oil transmission pipe is connected to the oil outlet of the fuel tank, and the other end extends into the fuel injection main pipe. The lower part of the fuel injection main pipe is connected to several Root fuel injector; its controller controls the operation of the oil pump through the oil feeding program designed by the encoder, extracts the lubricating oil in the fuel tank during the design time period, and transmits it to the fuel injection main pipe and the fuel injection nozzle through the fuel pipe arranged in the arc bracket, and corrects the coiling. The wire rope on the hoist drum carries out the oil injection operation. The automatic oil spraying device of the CDQ hoist wire rope of the utility model realizes the uninterrupted oil supply of the hoist wire rope, enhances the lubricating effect of the wire rope, and has the advantages of simple structure, convenient installation and safe and reliable control program.

Description

An automatic oil-spraying device for the wire rope of the CDQ hoist

technical field

The utility model belongs to the field of coal mine coking industry, in particular to an automatic oil-spraying device for a wire rope of a CDQ hoist.

Background technique

Energy saving and environmental protection is currently the overall strategic goal of the country. As a coking industry, CDQ technology has become a very important part of the coking section in recent years. As a special CDQ equipment, the safety and stability of the CDQ hoisting system is very important, which is directly related to the normal production of coal mines, personnel safety and economic operation. Among them, improving the performance status of the wire rope is an important guarantee for improving the safety of the system. Due to long-term use, the steel wire rope is gradually worn out and its life is greatly shortened, which not only brings great economic losses, but also produces serious safety hazards. Therefore, in order to ensure the safety of coal mine hoisting, the "Coal Mine Safety Regulations" has detailed regulations on the wire rope of hoisting machine. At present, manual refueling of the hoist wire rope is generally used, and the manual refueling efficiency is low and affects the production efficiency.

Utility model content

Aiming at the technical problems of uneven lubrication and poor lubricating effect of the wire rope of the existing CDQ hoist, the utility model provides an automatic oil-spraying device for the wire rope of the CDQ hoist, which is simple in structure, convenient in installation and safe and reliable in control program.

In order to achieve the above purpose, the technical scheme adopted by the present utility model is as follows: an automatic oil-spraying device for a wire rope of a CDQ hoist, comprising an oil tank, an oil pump arranged in the oil tank, a controller, an arc support, an oil delivery pipe, an oil injection main pipe and an oil injection nozzle; the controller circuit is connected to an oil pump, an oil injection main pipe is installed on the arc-shaped end of the arc-shaped bracket, the oil delivery pipe is built in the arc-shaped bracket, and one end of the oil delivery pipe is connected to the oil outlet of the fuel tank, The other end extends into the fuel injection main pipe, and the lower part of the fuel injection main pipe is connected with a plurality of fuel injection nozzles.

The controller controls the operation of the oil pump through the oil feeding program designed by the encoder, extracts the lubricating oil in the oil tank during the design time period, and transmits it to the fuel injection main pipe and the fuel injection nozzle through the oil pipe arranged in the arc bracket, and corrects the coiled oil in the hoist. The wire rope on the drum is used for oil injection.

The oil pump is a miniature adjustable plunger pump with a flow range of 0.15ml/min-500ml/min.

The designed oil supply time of the controller is once every two hours, and the oil supply amount is 2ml/h.

The connection method is welding or bonding.

The number of the several fuel injection nozzles is 16; the positions of the 16 fuel injection nozzles are adapted to the 16 circular grooves of the wire rope coiled on the drum of the CDQ hoist.

The working principle of the utility model is as follows: the controller circuit with the encoder is connected to the oil pump, and then the encoder designs the oil supply program (oil supply time and oil supply amount of the wire rope) to control the oil pump operation, and extract the oil tank during the design time period. The lubricating oil is sent to the fuel injection main pipe and the fuel injection nozzle through the oil pipeline, and the wire rope coiled on the hoist drum is sprayed with oil.

Beneficial effects of the utility model: The advantage of the utility model is that in the long-term high-load production of the CDQ hoist, the oil supply amount and oil supply time of the wire rope during the operation of the hoisting system are ensured by automatic oil supply, and the lubrication effect of the wire rope is ensured. , avoiding the uncertainty of manual refueling by operators, and realizing the purpose of stable operation of the CDQ lifting system.

Description of drawings

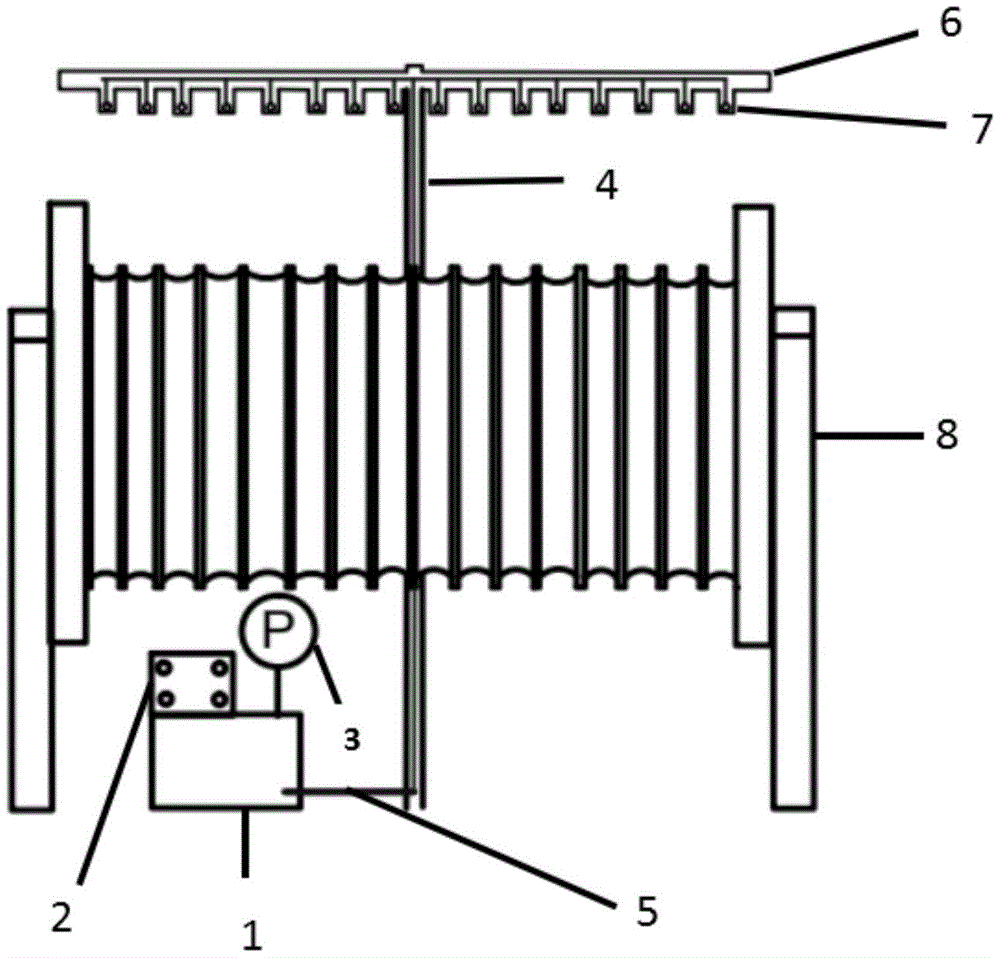

Fig. 1 is the front view of CDQ hoist wire rope automatic oil-spraying device provided by the utility model;

Fig. 2 is the left side view of CDQ hoist wire rope automatic oil-spraying device provided by the utility model;

Fig. 3 is the internal setting program diagram of the controller of the CDQ hoist wire rope automatic oil-spraying device provided by the utility model;

Among them, 1-fuel tank, 2-controller, 3-oil pump, 4-arc bracket, 5-fuel delivery pipe, 6-fuel injection main pipe, 7-fuel injection nozzle, 8-CDQ elevator drum.

Detailed ways

The present utility model will be further described below in conjunction with the accompanying drawings.

As shown in Figure 1-3, an automatic oil-spraying device for a wire rope of a CDQ hoist includes an oil tank, an oil pump arranged in the oil tank, a controller, an arc-shaped bracket, an oil delivery pipe, an oil injection main pipe and an oil injection nozzle; the The controller circuit is connected to the oil pump, the arc end of the arc bracket is installed with the fuel injection main pipe, the oil transmission pipe is built in the arc bracket and one end of the oil transmission pipe is connected to the oil outlet of the fuel tank, and the other end extends into the fuel injection main pipe, and the injection pipe is The lower part of the oil main pipe is opened to connect 16 fuel injection nozzles (the positions of the 16 fuel injection nozzles are adapted to the 16 circular grooves of the coiled wire rope on the drum of the CDQ hoist); The oil program controls the operation of the oil pump, extracts the lubricating oil in the oil tank during the design time period, and transmits it to the oil injection main pipe and the oil injection nozzle through the oil pipeline arranged in the arc bracket, and performs the oil injection operation on the wire rope coiled on the hoist drum.

The oil pump is a miniature adjustable plunger pump with a flow range of 0.15ml/min-500ml/min.

The designed oil supply time of the controller is once every two hours, and the oil supply amount is 2ml/h.

The working principle is: connect to the oil pump through the controller circuit with the encoder, and then the encoder designs the oil supply program (the oil supply time and oil supply amount of the wire rope) to control the oil pump operation, and extract the lubricating oil in the oil tank during the design time period, and pass The oil pipe is sent to the main fuel injection pipe and the fuel injection nozzle, and the wire rope coiled on the hoist drum is sprayed with oil.

Beneficial effects of the utility model: The advantage of the utility model is that in the long-term high-load production of the CDQ hoist, the oil supply amount and oil supply time of the wire rope during the operation of the hoisting system are ensured by automatic oil supply, and the lubrication effect of the wire rope is ensured. , avoiding the uncertainty of manual refueling by operators, and realizing the purpose of stable operation of the CDQ lifting system.

The present utility model has been exemplarily described above in conjunction with the accompanying drawings. Obviously, the specific implementation of the present utility model is not limited by the above-mentioned methods, as long as various non-substantial improvements made by the method concept and technical solutions of the present utility model are adopted, or If the concept and technical solutions of the present invention are directly applied to other occasions without improvement, they all fall within the protection scope of the present invention.

Claims (6)

1. An automatic oil spraying device for a steel wire rope of a dry quenching hoister is characterized by comprising an oil tank, an oil pump, a controller, an arc-shaped support, an oil conveying pipe, an oil spraying main pipe and an oil spraying nozzle, wherein the oil pump, the controller, the arc-shaped support, the oil conveying pipe, the oil spraying main pipe and the oil spraying nozzle are arranged in the oil tank; the controller line connection is in the oil pump, the oil spout is responsible for is installed to the arc end of arc support, place in defeated oil pipe the one end of arc support and defeated oil pipe is connected in the oil-out of oil tank, and in the other end extended to the oil spout main pipe, a plurality of fuel sprayer are connected in the trompil of oil spout main pipe lower part.

2. The automatic oil spraying device for the steel wire rope of the dry quenching hoister according to claim 1, wherein the controller controls the oil pump to operate through an oil feeding program designed by the encoder, the lubricating oil in the oil tank is extracted in a designed time period, and the lubricating oil is conveyed to the oil spraying main pipe and the oil spraying nozzle through an oil conveying pipe arranged in the arc-shaped support to perform oil spraying operation on the steel wire rope coiled on the hoister roller.

3. The automatic oil spraying device for the steel wire rope of the coke dry quenching hoister as claimed in claim 1, wherein the oil pump is a miniature adjustable plunger pump, and the flow rate ranges from 0.15ml/min to 500 ml/min.

4. The automatic oil spraying device for the steel wire rope of the coke dry quenching hoister in accordance with claim 1, wherein the controller is designed to supply oil once every two hours at an amount of 2 ml/h.

5. The automatic oil spraying device for the steel wire rope of the coke dry quenching elevator according to claim 1, wherein the number of the oil nozzles is 16.

6. The automatic oil spraying device for the steel wire rope of the dry quenching elevator as claimed in claim 1, wherein the position of the oil nozzle is adapted to a circular groove of the dry quenching elevator drum around which the steel wire rope is wound.
