CN211520391U - Glass conveyer - Google Patents

Abstract

The utility model provides a glass transport device. The glass transport device includes a base; two support plates, which are symmetrically and fixedly installed on the top of the base; two fixing mechanisms, which are respectively arranged on the two support plates ; a plurality of reinforcement rods, the plurality of reinforcement rods are fixedly installed on the two support plates; two inclined blocks, the two inclined blocks are respectively fixed and installed on the two support plates. The glass transport device provided by the utility model has the advantages of convenient use, firm fixation, stable glass placement, no easy toppling, and improved safety of glass transport.

Description

A glass transport device

technical field

The utility model relates to the technical field of transportation, in particular to a glass transportation device.

Background technique

Glass is an amorphous inorganic non-metallic material. It is generally made of a variety of inorganic minerals as the main raw material, and a small amount of auxiliary raw materials are added. Glass is divided into ordinary glass, tempered glass, etc. Among them, ordinary glass is the most widely used, but ordinary glass It is easy to break. After the glass is produced, it needs to be transported. In the prior art, the glass is placed on a transport device and transported by a car.

However, when placing the glass in the traditional transportation device, it needs to be fixed by ropes, which is inconvenient and unstable. When the car suddenly brakes or makes a sharp turn, the glass will fall over, resulting in property damage and casualties.

Therefore, it is necessary to provide a new glass transport device to solve the above technical problems.

Utility model content

The technical problem solved by the utility model is to provide a glass transport device which is easy to use, firm in fixation, stable in glass placement, does not easily fall over, and improves the safety of glass transportation.

In order to solve the above technical problems, the glass transportation device provided by the present invention includes: a base; two support plates, two of which are symmetrically and fixedly installed on the top of the base; two fixing mechanisms, two of the fixing mechanisms are respectively arranged on the two support plates; a plurality of reinforcement rods, which are fixedly installed on the two support plates; two inclined blocks, which are respectively fixed and installed on the two support plates on the support plate.

Preferably, the fixing mechanism includes an installation groove, the installation groove is opened on the support plate, a first threaded rod is rotatably installed in the installation groove, and a first installation block is threadedly installed on the first threaded rod , and the first installation block is slidably connected to the inner wall of the installation slot, a sliding plate is fixedly installed on the first installation block, an installation hole is opened on the sliding plate, and a second threaded rod is rotatably installed in the installation hole, A second mounting block is threadedly mounted on the second threaded rod, and the second mounting block is connected with the sliding rod of the inner wall of the mounting hole. A turret is rotatably mounted on the second mounting block, and a turret is fixedly mounted on the turret. Fixed plate.

Preferably, two sliding grooves are symmetrically opened on the support plate, and a sliding rod is fixedly installed in the sliding grooves.

Preferably, a sliding block is slidably installed on the sliding rod, and the sliding block is fixedly connected with the sliding plate.

Preferably, two limit rods are symmetrically and fixedly installed in the installation hole, and the limit rods penetrate through the second installation block and are slidably connected with the second installation block.

Preferably, the first mounting block is provided with a first threaded hole, and the inner wall of the first threaded hole is threadedly connected with the first threaded rod.

Preferably, the second mounting block is provided with a second threaded hole, and the inner wall of the second threaded hole is threadedly connected with the second threaded rod.

Compared with the related art, the glass transport device provided by the present utility model has the following beneficial effects:

The utility model provides a glass transport device. The installation groove is opened on the support plate, a first threaded rod is rotatably installed in the installation groove, and a first installation block is threadedly installed on the first threaded rod. And the first installation block is slidably connected to the inner wall of the installation slot, a sliding plate is fixedly installed on the first installation block, can be adjusted, and can be used for different heights of glass, the sliding plate is provided with installation holes, the A second threaded rod is rotatably installed in the installation hole, a second installation block is threadedly installed on the second threaded rod, and the second installation block is connected with the sliding rod of the inner wall of the installation hole, and a second installation block is rotatably installed on the second installation block. A turret, on which a fixing plate is fixedly installed, is convenient for fixing the glass, and the fixing is firm.

Description of drawings

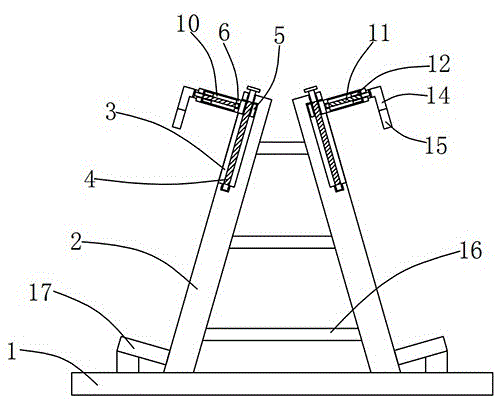

1 is a schematic structural diagram of a preferred embodiment of a glass transport device provided by the utility model;

Fig. 2 is the side view sectional structure schematic diagram shown in Fig. 1;

Fig. 3 is the sectional structure schematic diagram shown in Fig. 2;

Figure 4 is a perspective view of the turret shown in Figure 1;

FIG. 5 is a perspective view of the sliding plate shown in FIG. 1 .

Labels in the figure: 1, base, 2, support plate, 3, installation groove, 4, first threaded rod, 5, first installation block, 6, sliding plate, 7, sliding groove, 8, sliding rod, 9, sliding Block, 10, mounting hole, 11, second threaded rod, 12, second mounting block, 13, limit rod, 14, turret, 15, fixed plate, 16, reinforcement rod, 17, inclined block.

Detailed ways

The present utility model will be further described below with reference to the accompanying drawings and embodiments.

Please refer to FIGS. 1-5 in conjunction, wherein FIG. 1 is a schematic structural diagram of a preferred embodiment of a glass transport device provided by the present invention; FIG. 2 is a side sectional structural schematic diagram shown in FIG. 1 ; FIG. 2 is a schematic sectional view of the structure; FIG. 4 is a perspective view of the turret shown in FIG. 1 ; FIG. 5 is a perspective view of the sliding plate shown in FIG. 1 . The glass transportation device includes: a base 1; two support plates 2, which are symmetrically and fixedly installed on the top of the base 1; two fixing mechanisms, which are respectively arranged on the two On the support plate 2; a plurality of reinforcement rods 16, the plurality of reinforcement rods 16 are fixedly installed on the two support plates 2; two inclined blocks 17, the two inclined blocks 17 are fixedly installed on the two on the support plate 2.

The fixing mechanism includes an installation groove 3, the installation groove 3 is opened on the support plate 2, a first threaded rod 4 is rotatably installed in the installation groove 3, and a first threaded rod 4 is threadedly installed on the first threaded rod 4. An installation block 5, and the first installation block 5 is slidably connected to the inner wall of the installation groove 3, the first installation block 5 is fixedly installed with a sliding plate 6, and the sliding plate 6 is provided with an installation hole 10, the installation A second threaded rod 11 is rotatably installed in the hole 10, a second installation block 12 is threadedly installed on the second threaded rod 11, and the second installation block 12 is connected with the sliding rod of the inner wall of the installation hole 10. The second installation A turret 14 is rotatably mounted on the block 12 , and a fixing plate 15 is fixedly mounted on the turret 14 .

Two sliding grooves 7 are symmetrically opened on the support plate 2 , and a sliding rod 8 is fixedly installed in the sliding grooves 7 .

A sliding block 9 is slidably installed on the sliding rod 8 , and the sliding block 9 is fixedly connected with the sliding plate 6 .

Two limit rods 13 are symmetrically and fixedly installed in the installation hole 10 , and the limit rods 13 penetrate through the second installation block 12 and are slidably connected with the second installation block 12 .

The first mounting block 5 is provided with a first threaded hole, and the inner wall of the first threaded hole is threadedly connected with the first threaded rod 4 .

The second mounting block 12 is provided with a second threaded hole, and the inner wall of the second threaded hole is threadedly connected with the second threaded rod 11 .

The working principle of the glass transport device provided by the present invention is as follows:

When in use, the base 1 is fixedly installed on the transport vehicle, the turret 14 is rotated, the glass is placed on the inclined block 17, and then the turret 14 is rotated in the reverse direction, and the turret 14 drives the fixed plate 15 to move, so that the fixed plate 15 and the glass Contact, rotate the first threaded rod 4, the first threaded rod 4 drives the mounting block 5 to move downward in the installation groove 3, when the sliding plate 6 is in contact with the top of the glass, stop rotating the first threaded rod 4, and rotate the second threaded rod 11. The second threaded rod 11 drives the second mounting block 12 to move in the mounting hole 10, the second mounting block 12 drives the turret 14 to move, and the turret 14 drives the fixed plate 15 to move, so that the fixed plate 15 is close to the glass and the glass is moved. to be fixed.

Compared with the related art, the glass transport device provided by the present utility model has the following beneficial effects:

The utility model provides a glass transport device, the installation groove 3 is opened on the support plate 2, a first threaded rod 4 is rotatably installed in the installation groove 3, and a threaded rod is installed on the first threaded rod 4. The first installation block 5, and the first installation block 5 is slidably connected to the inner wall of the installation groove 3, and the sliding plate 6 is fixedly installed on the first installation block 5, which can be adjusted and can be used for different heights of glass. The sliding plate 6 is provided with an installation hole 10, a second threaded rod 11 is rotatably installed in the installation hole 10, a second installation block 12 is threadedly installed on the second threaded rod 11, and the second installation block 12 is connected with the installation The inner wall of the hole 10 is connected by a sliding rod, and a turret 14 is rotatably mounted on the second mounting block 12 , and a fixing plate 15 is fixedly mounted on the turret 14 , which facilitates the fixing of the glass and is firm.

The above are only the embodiments of the present invention, and are not intended to limit the patent scope of the present invention. Any equivalent structure or equivalent process transformation made by using the contents of the description and accompanying drawings of the present invention, or directly or indirectly applied to other Relevant technical fields are similarly included in the scope of patent protection of the present invention.

Claims (7)

1. A glass conveyance apparatus, comprising:

a base;

the two supporting plates are symmetrically and fixedly arranged on the top of the base;

the two fixing mechanisms are respectively arranged on the two supporting plates;

the reinforcing rods are fixedly arranged on the two supporting plates;

and the two inclined blocks are fixedly arranged on the two supporting plates respectively.

2. The glass conveying device according to claim 1, wherein the fixing mechanism comprises a mounting groove, the mounting groove is formed in the supporting plate, a first threaded rod is rotatably mounted in the mounting groove, a first mounting block is threadedly mounted on the first threaded rod and is slidably connected with the inner wall of the mounting groove, a sliding plate is fixedly mounted on the first mounting block, a mounting hole is formed in the sliding plate, a second threaded rod is rotatably mounted in the mounting hole, a second mounting block is threadedly mounted on the second threaded rod and is slidably connected with the inner wall of the mounting hole, a rotating frame is rotatably mounted on the second mounting block, and a fixing plate is fixedly mounted on the rotating frame.

3. The glass conveying device of claim 2, wherein the support plate is symmetrically provided with two sliding grooves, and sliding rods are fixedly arranged in the sliding grooves.

4. The glass transportation apparatus of claim 3, wherein the sliding bar has a sliding block slidably mounted thereon, the sliding block being fixedly attached to the sliding plate.

5. The glass conveying device of claim 2, wherein two limiting rods are symmetrically and fixedly mounted in the mounting holes, and the limiting rods penetrate through the second mounting block and are connected with the second mounting block in a sliding mode.

6. The glass conveying device of claim 2, wherein the first mounting block is provided with a first threaded hole, and the inner wall of the first threaded hole is in threaded connection with the first threaded rod.

7. The glass conveying device of claim 2, wherein the second mounting block is provided with a second threaded hole, and the inner wall of the second threaded hole is in threaded connection with the second threaded rod.
