Abstract

The utility model discloses a fire-retardant wood veneer of fire prevention, including plywood layer, two-layer surface course, plywood layer upper surface sets up the first recess of arranging the distribution along plywood layer length direction, and plywood layer lower surface sets up the second recess of arranging the distribution along plywood layer length direction, and the orthographic projection of first recess covers the spaced portion between two adjacent second recesses in below, all is provided with the fire prevention net check cloth layer in first recess, the second recess. The utility model has the advantages of it is following and effect: because the orthographic projection of the first groove covers the interval part between two adjacent second grooves below, the fireproof gridding cloth layers positioned in the first groove and the second grooves are staggered with each other at the moment so as to ensure the fireproof and flame-retardant effects; the surface layer can not be directly covered on the fireproof gridding cloth layer, so that the structural stability of the surface layer after being compounded can be improved; meanwhile, the first groove and the second groove are provided with cavities, so that a certain heat preservation effect is achieved.

Description

Fireproof flame-retardant wood veneer
Technical Field
The utility model relates to a finishing work technical field, in particular to fire-retardant wood veneer of preventing fires.
Background
The wood veneer is a decorative plate with single-sided decoration effect, which is prepared by precisely slicing solid wood into veneer with the thickness of more than 0.2mm, taking plywood as a base material and carrying out an adhesive process, and can be used for indoor decoration or furniture manufacture.
At present, the chinese patent of No. CN208930870U, 6 months and 4 days in 2019 discloses a damp-proof melamine finish coat, which comprises a substrate, the lower surface of substrate is equipped with the plastic foam board, plastic foam board and substrate fixed connection, the lower surface of plastic foam board is equipped with protection against insects board, protection against insects board and plastic foam board fixed connection, the lower surface of protection against insects board is equipped with the waterproof board, waterproof board and protection against insects board fixed connection, the lower surface of waterproof board is equipped with protection against insects board, protection against insects board and waterproof board fixed connection.
A large amount of wood materials are adopted in modern decoration, fire hazard is large, fire prevention and flame retardance are important indexes of decoration materials, but the moisture-proof melamine decorative surface layer does not have the function of fire prevention and flame retardance, so that the moisture-proof melamine decorative surface layer has defects in the using process.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a fire-retardant wood veneer of preventing fires has fire-retardant function.
The above technical purpose of the present invention can be achieved by the following technical solutions: the utility model provides a fire-retardant wood veneer of fire prevention, includes plywood layer, two-layer complex two surface course about plywood layer, a plurality of first recesses that arrange the distribution along plywood layer length direction are seted up to plywood layer upper surface, a plurality of second recesses that arrange the distribution along plywood layer length direction are seted up to plywood layer lower surface, the orthographic projection of first recess covers the spaced portion between two adjacent second recesses in below, all be provided with the fire prevention net check cloth layer in first recess, the second recess.
The utility model discloses a further set up to: the depth of the first groove is the same as that of the second groove, and the thickness of the fireproof gridding cloth layer is the same as that of the first groove.
The utility model discloses a further set up to: and fireproof paint layers are coated on the upper surface and the lower surface of the plywood layer except the first groove and the second groove.
The utility model discloses a further set up to: the plywood layer comprises an upper substrate layer, a middle flame-retardant board layer and a lower substrate layer which are sequentially compounded, wherein the first groove is formed in the upper surface of the upper substrate layer, and the second groove is formed in the lower surface of the lower substrate layer.
The utility model discloses a further set up to: embedding parts embedded in the upper substrate layer and the lower substrate layer are arranged on the upper surface and the lower surface of the middle flame-retardant plate layer respectively.
To sum up, the utility model discloses following beneficial effect has:
1. a plurality of first grooves and second grooves are respectively formed in the upper surface and the lower surface of the plywood layer, the orthographic projection of each first groove covers the interval part between two adjacent second grooves below, and the fireproof gridding cloth layers in the first grooves and the second grooves are staggered with each other at the moment, so that the fireproof and flame-retardant effects are guaranteed; the surface layer can not be directly covered on the fireproof gridding cloth layer, so that the structural stability of the surface layer after being compounded can be improved; meanwhile, as the first groove and the second groove are provided with the cavities, the heat insulation effect is certain;
2. the depth of the first groove is the same as that of the second groove, and the thickness of the fireproof gridding cloth layer is the same as that of the first groove, at the moment, the fireproof gridding cloth layer is filled in the first groove and the second groove, so that the fireproof gridding cloth layer can be pressed by the surface layer when the surface layer is compounded, and the fireproof gridding cloth layer is fixed;
3. the fireproof flame-retardant performance of the fireproof gridding cloth layer is higher than that of the fireproof paint layer, but the structural stability after the composition is poor due to the fact that the surface layer directly covers the fireproof gridding cloth layer, the fireproof paint layer is coated on the first groove and the second groove through the upper surface and the lower surface of the plywood layer, and the fireproof gridding cloth layer is arranged in the first groove and the second groove in a matched mode, so that the structural stability after the surface layer is combined is guaranteed under the condition that the fireproof flame-retardant performance is improved;
4. the plywood layer comprises an upper plywood layer, a middle flame-retardant board layer and a lower plywood layer, and the interior of the plywood can be flame-retardant through the middle flame-retardant board layer, so that the fireproof flame-retardant effect is improved; meanwhile, the embedded part on the middle flame-retardant layer is embedded into the upper substrate layer and the lower substrate layer, so that the structural strength of the plywood layer can be improved.
Drawings

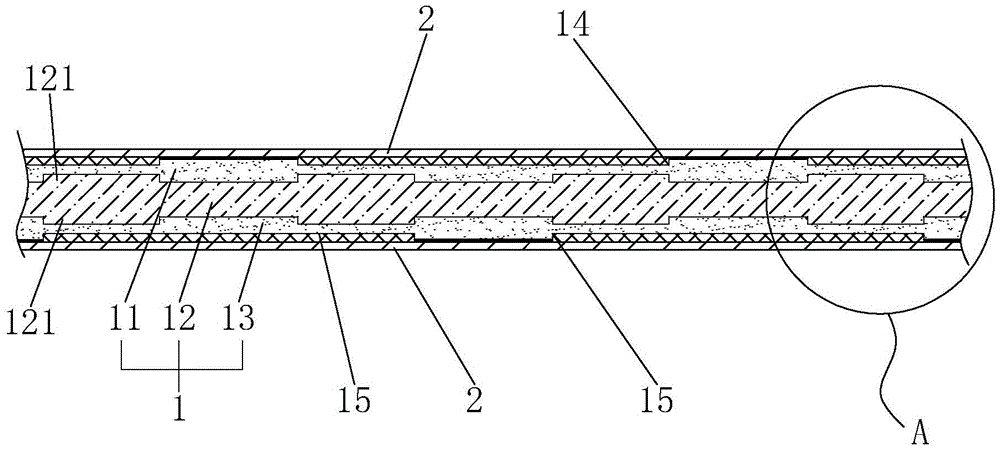

FIG. 1 is a sectional view of the structure of the present invention;
fig. 2 is a partial enlarged view at a in fig. 1.
Reference numerals: 1. a plywood layer; 11. an upper substrate layer; 12. an intermediate flame retardant ply layer; 121. an insertion section; 13. a lower substrate layer; 14. a first groove; 15. a second groove; 16. a fireproof gridding cloth layer; 17. a fireproof paint layer; 2. and (6) a surface layer.
Detailed Description
The present invention will be described in further detail with reference to the accompanying drawings.
Example 1: a fireproof and flame-retardant wood veneer comprises a plywood layer 1 and two surface layers 2 compounded on the upper surface and the lower surface of the plywood layer 1.
As shown in fig. 1, the plywood layer 1 includes an upper substrate layer 11, an intermediate flame-retardant board layer 12, and a lower substrate layer 13, which are sequentially laminated. The upper substrate layer 11, the middle flame-retardant board layer 12 and the lower substrate layer 13 are compounded through glue. A plurality of embedding parts 121 respectively embedded in the upper substrate layer 11 and the lower substrate layer 13 are arranged on both the upper surface and the lower surface of the middle flame-retardant sheet layer 12, and the embedding parts 121 are integrally formed on the middle flame-retardant sheet layer 12.
As shown in fig. 1 and 2, a plurality of first grooves 14 are formed on the upper surface of the upper substrate layer 11 of the plywood layer 1 and are arranged and distributed along the length direction of the plywood layer 1. A plurality of second grooves 15 are formed in the lower surface of the lower substrate layer 13 of the plywood layer 1 and arranged along the length direction of the plywood layer 1. The first grooves 14 and the second grooves 15 have the same depth. And the orthographic projection of the first groove 14 covers the space portion between the two second grooves 15 adjacent below.
As shown in fig. 1 and 2, a fireproof mesh fabric layer 16 is provided in each of the first groove 14 and the second groove 15. A fireproof paint layer 17 is coated on the upper surface of the upper substrate layer 11 except the first groove 14 and the lower surface of the lower substrate layer 13 except the second groove 15, and the thickness of the fireproof mesh fabric layer 16 is the same as the depth of the fireproof paint layer 17 combined with the depth of the first groove 14.
As shown in fig. 1 and 2, two surface layers 2 are respectively compounded on the upper substrate layer 11 and the lower substrate layer 13 by glue, and the surface layer 2 compresses the fireproof mesh fabric layer 16 after compounding.
The implementation effect is as follows: (1) a plurality of first grooves 14 and second grooves 15 are respectively formed in the upper surface and the lower surface of the plywood layer 1, the orthographic projection of each first groove 14 covers the interval part between two adjacent second grooves 15 below, and the fireproof gridding cloth layers 16 in the first grooves 14 and the second grooves 15 are staggered with each other at the moment, so that the fireproof and flame-retardant effects are guaranteed; the surface layer 2 can not be directly covered on the fireproof gridding cloth layer 16, so that the structural stability of the surface layer 2 after being compounded can be improved; meanwhile, the first groove 14 and the second groove 15 are provided with cavities, so that a certain heat preservation effect is achieved. (2) The depth of the first groove 14 is the same as that of the second groove 15, the thickness of the fireproof gridding cloth layer 16 is the same as that of the first groove 14, and at the moment, the fireproof gridding cloth layer 16 is filled in the first groove 14 and the second groove 15, so that the fireproof gridding cloth layer 16 can be compressed by the surface layer 2 when the surface layer 2 is compounded, and the fireproof gridding cloth layer 16 is fixed. (3) Because of fireproof grid cloth layer 16's fire behaviour is higher than fireproof paint layer 17's fire behaviour, but the direct structure steadiness after can leading to compounding that covers of surface course 2 on fireproof grid cloth layer 16 is relatively poor, be in first recess 14 through plywood layer 1 upper and lower two surfaces this moment, second recess 15 department has all been scribbled fireproof paint layer 17, cooperate first recess 14 again, the fireproof grid cloth layer 16 that sets up in the second recess 15, finally realize guaranteeing the structure steadiness after surface course 2 compounds under the condition that improves fireproof fire behaviour. (4) The plywood layer 1 comprises an upper substrate layer 11, a middle flame-retardant board layer 12 and a lower substrate layer 13, and the interior of the plywood can be flame-retardant through the middle flame-retardant board layer 12, so that the fireproof flame-retardant effect is improved; meanwhile, the embedding part 121 on the middle flame-retardant layer is embedded in the upper substrate layer 11 and the lower substrate layer 13, so that the structural strength of the plywood layer 1 can be improved.
The present embodiment is only for explaining the present invention, and it is not limited to the present invention, and those skilled in the art can make modifications to the present embodiment without inventive contribution as required after reading the present specification, but all of them are protected by patent laws within the scope of the claims of the present invention.

Claims (5)

1. The utility model provides a fire prevention fire-retardant wood veneer, includes plywood layer (1), two-layer complex surface course (2) on two surfaces about plywood layer (1), its characterized in that: plywood layer (1) upper surface is seted up a plurality of first recesses (14) of arranging the distribution along plywood layer (1) length direction, plywood layer (1) lower surface is seted up a plurality of second recesses (15) of arranging the distribution along plywood layer (1) length direction, the orthographic projection of first recess (14) covers the interval part between two adjacent second recesses (15) in below, all be provided with fire prevention net check cloth layer (16) in first recess (14), the second recess (15).
2. A fire retardant wood veneer according to claim 1, wherein: the depth of the first groove (14) is the same as that of the second groove (15), and the thickness of the fireproof gridding cloth layer (16) is the same as that of the first groove (14).
3. A fire retardant wood veneer according to claim 1, wherein: and fireproof paint layers (17) are coated on the upper surface and the lower surface of the plywood layer (1) except the first groove (14) and the second groove (15).
4. A fire retardant wood veneer according to claim 1, wherein: plywood layer (1) is including compound upper substrate layer (11), middle fire-retardant sheet layer (12), lower substrate layer (13) in proper order, first recess (14) are seted up at upper substrate layer (11) upper surface, second recess (15) are seted up at lower substrate layer (13) lower surface.
5. The fire-retardant wood veneer of claim 4, wherein: the upper surface and the lower surface of the middle flame-retardant plate layer (12) are respectively provided with a plurality of embedding parts (121) which are respectively embedded into the upper substrate layer (11) and the lower substrate layer (13).
