CN211517660U - Trimming fixing device is used in building templates production

Info

Publication number: CN211517660U
Application number: CN201921820845.XU
Authority: CN
Inventors: 王�华
Original assignee: Shuyang Ronghua Wood Industry Co Ltd
Current assignee: Shuyang Ronghua Wood Industry Co Ltd
Priority date: 2019-10-28
Filing date: 2019-10-28
Publication date: 2020-09-18
Anticipated expiration: 2029-10-28

Abstract

The utility model discloses a deburring fixing device is used in building templates production, including base, installation pipe and circular slot, the intermediate position department at base top is provided with the circular slot, and the inboard of circular slot is provided with annular spout, annular spout installs the carousel through the slider, the both ends at base top all are provided with the opening, and the inside one end of base installs first bearing, the internally mounted of first bearing has the threaded rod. The utility model discloses install first bearing, nut, splint, threaded rod, stopper and L type connecting rod, clockwise or anticlockwise rotation threaded rod because the nut in the threaded rod outside receives the stopper spacing, can not follow the threaded rod and rotate together, and the nut can only move to both ends or intermediate position department simultaneously through the screw thread, and the nut passes through L type connecting rod and drives splint and move together, can press from both sides the building templates tightly, and it is comparatively convenient, labour saving and time saving to press from both sides tight process operation.

Description

Trimming fixing device is used in building templates production

Technical Field

The utility model relates to a building templates production facility technical field specifically is a deburring fixing device is used in building templates production.

Background

The building template is a temporary supporting structure, which is manufactured according to the design requirements, so that a concrete structure and a component are formed according to the specified position and geometric dimension, the correct position of the concrete structure and the component is kept, the self weight of the building template and the external load acting on the building template are borne, the aim of template engineering is to ensure the quality of concrete engineering and construction safety, accelerate the construction progress and reduce the engineering cost, the building template needs to be fixed by using a trimming and fixing device in the production process, then four sides of the building template are flattened, side burrs of the building template are scraped and the like, when the existing trimming and fixing device for producing the building template is used, two sides or two ends of the building template need to be fixed, workers need to fix one end of the building template and then fix the other end of the building template, the device is inconvenient to operate, wastes time and labor, and simultaneously, the existing trimming and fixing device for producing the building template trims two sides of the building template, the two ends of the building template need to be trimmed, the fixing of the two ends of the building template needs to be released by workers at the moment, then the two sides of the building template are fixed, the side edge of the building template cannot be adjusted by directly rotating the template, the use is inconvenient, the workload of the workers is improved, and the trimming efficiency is reduced.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a deburring fixing device is used in building templates production to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a production of building templates is with deburring fixing device, includes base, installation pipe and circular slot, the intermediate position department at base top is provided with the circular slot, and the inboard of circular slot is provided with annular spout, the carousel is installed through the slider to annular spout, the both ends at base top all are provided with the opening, and the inside one end of base installs first bearing, the internally mounted of first bearing has the threaded rod, the threaded rod passes the base and extends to the outside of base, and the outside screw thread of threaded rod installs two sets of nuts, L type connecting rod is all installed at the top of nut, L type connecting rod all passes the opening, and the one end that nut was kept away from to L type connecting rod all installs splint, the installation pipe is all installed to the bottom of splint.

Preferably, the inside of installation pipe all installs expanding spring, and expanding spring keeps away from the one end of splint and all installs the gag lever post, the limiting plate is all installed to the one end that the installation pipe was kept away from to the gag lever post.

Preferably, the second bearing is installed in the middle position department of the inside bottom of circular slot, and the internally mounted of second bearing has the pivot, the one end that the second bearing was kept away from in the pivot is connected with the carousel.

Preferably, the both ends of the inside bottom of base all are provided with the spout, and the spout all installs the stopper through the slider, the stopper all is connected with the nut.

Preferably, the outer sides of the threaded rods are symmetrically provided with threads in opposite directions.

Preferably, the one end that splint are close to the carousel all installs anti-skidding rubber pad, and the outside of anti-skidding rubber pad all is provided with anti-skidding line.

Compared with the prior art, the beneficial effects of the utility model are that: the trimming and fixing device for producing the building template is provided with a first bearing, a nut, a clamping plate, a threaded rod, a limiting block and an L-shaped connecting rod, the threaded rod is rotated clockwise or anticlockwise, the nut on the outer side of the threaded rod is limited by the limiting block and cannot rotate along with the threaded rod, the nut can only move towards two ends or a middle position simultaneously through the thread, the nut drives the clamping plate to move together through the L-shaped connecting rod, the building template can be clamped, the clamping process is convenient and rapid to operate, time and labor are saved, meanwhile, a rotary plate, a second bearing and a rotating shaft are arranged, the rotary plate can rotate through the second bearing and the rotating shaft, the building template is placed at the top of the rotary plate, after trimming of two sides of the building template is finished, when the two ends of the building template need to be trimmed, the side edges of the building template can, the trimming efficiency is also improved.

Drawings

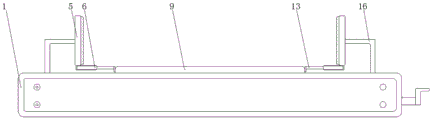

Fig. 1 is a schematic front sectional view of the present invention;

fig. 2 is a schematic front view of the present invention;

FIG. 3 is a schematic view of a partial structure of the present invention;

fig. 4 is a schematic top sectional view of the base of the present invention.

In the figure: 1. a base; 2. a first bearing; 3. a nut; 4. a port; 5. a splint; 6. installing a pipe; 7. an annular chute; 8. a circular groove; 9. a turntable; 10. a second bearing; 11. a rotating shaft; 12. a threaded rod; 13. a limiting rod; 14. a chute; 15. a limiting block; 16. an L-shaped connecting rod; 17. a tension spring; 18. and a limiting plate.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides an embodiment: the utility model provides a production of building templates is with deburring fixing device, the on-line screen storage device comprises a base 1, installation pipe 6 and circular slot 8, the intermediate position department at base 1 top is provided with circular slot 8, and the inboard of circular slot 8 is provided with annular chute 7, carousel 9 is installed through the slider to annular chute 7, the both ends at base 1 top all are provided with opening 4, and first bearing 2 is installed to the inside one end of base 1, the internally mounted of first bearing 2 has threaded rod 12, threaded rod 12 passes base 1 and extends to base 1's outside, and two sets of nuts 3 are installed to the outside screw thread of threaded rod 12, L type connecting rod 16 is all installed at nut 3's top, L type connecting rod 16 all passes opening 4, and splint 5 are all installed to the one end that L type connecting rod 16 kept away from nut 3, installation pipe 6 is all installed to splint 5.

In this implementation:

further, expanding spring 17 is all installed to the inside of installation pipe 6, and expanding spring 17 keeps away from the one end of splint 5 and all installs gag lever post 13, limiting plate 18 is all installed to the one end that installation pipe 6 was kept away from to gag lever post 13, when nut 3 drove splint 5 through L type connecting rod 16 and presss from both sides tight building templates, limiting plate 18 of splint 5 bottom contacts with carousel 9 earlier, limiting plate 18 passes through gag lever post 13 compression expanding spring 17, expanding spring 17's elastic action makes it promote limiting plate 18 and presss from both sides carousel 9 tightly through gag lever post 13, it is spacing to carousel 9 through limiting plate 18, can prevent that splint 5 from pressing from both sides the in-process carousel 9 of pressing from both sides tight building templates and taking place to rotate, be favorable to improving device.

Further, the second bearing 10 is installed to the intermediate position department of the inside bottom of circular slot 8, and the internally mounted of second bearing 10 has pivot 11, the one end that second bearing 10 was kept away from to pivot 11 is connected with carousel 9, make carousel 9 can rotate through second bearing 10 and pivot 11, the building templates is placed in carousel 9 top, after the building templates both sides are repaiied the limit, when needing to carry out the deburring to the building templates both ends, the accessible rotates carousel 9 and adjusts the side of building templates, the operation is comparatively convenient, not only reduced workman's work load, the deburring efficiency has still been improved.

Further, both ends of the inside bottom of base 1 all are provided with spout 14, and spout 14 all installs stopper 15 through the slider, and stopper 15 all is connected with nut 3, can be spacing nut 3, prevents that nut 3 from following threaded rod 12 and rotating together.

Further, the outer sides of the threaded rods 12 are symmetrically provided with threads in opposite directions, so that the nuts 3 can move to both ends or a middle position at the same time.

Furthermore, the anti-skid rubber pads are arranged at the ends, close to the rotary table 9, of the clamping plates 5, the anti-skid lines are arranged on the outer sides of the anti-skid rubber pads, the anti-skid effect is good, and the building templates can be prevented from sliding.

The working principle is as follows: when the building template trimming device is used, a building template to be trimmed is placed at the top of the turntable 9, the threaded rod 12 is rotated clockwise, the nut 3 on the outer side of the threaded rod 12 is limited by the limiting block 15, cannot rotate along with the threaded rod 12 and can only move towards the middle position through the threads, the nut 3 drives the clamping plates 5 to move together through the L-shaped connecting rod 16, so that the clamping plates 5 cling to the outer side of the building template, the two ends of the building template are clamped tightly through the clamping plates 5, both sides of the building template can be trimmed, after trimming of both sides of the building template is finished, the threaded rod 12 is rotated anticlockwise firstly, the nut 3 drives the clamping plates 5 to move towards both ends through the L-shaped connecting rod 16, so that the clamping plates 5 are far away from the building template, the limiting on the building template is removed, the turntable 9 is rotated, the building template at the top of the circular groove, clockwise rotation threaded rod 12 again, make nut 3 drive splint 5 through L type connecting rod 16 simultaneously and locate to remove to the intermediate position, make splint 5 press from both sides building templates both sides tightly, alright carry out the deburring to building templates's both ends, when nut 3 drives splint 5 through L type connecting rod 16 and presss from both sides tight building templates, limiting plate 18 of splint 5 bottom contacts with carousel 9 earlier, limiting plate 18 passes through gag lever post 13 compression expanding spring 17, expanding spring 17's elastic action makes it promote limiting plate 18 through gag lever post 13 and presss from both sides carousel 9 tightly, carry on spacingly through limiting plate 18 to carousel 9, can prevent that splint 5 from pressing from both sides the in-process carousel 9 of pressing from both sides tight building templates and taking place to rotate, be favorable to improving the stability of device.

Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.

Claims

1. The utility model provides a production of building templates is with deburring fixing device, includes base (1), installation pipe (6) and circular slot (8), its characterized in that: a round groove (8) is arranged in the middle of the top of the base (1), an annular sliding groove (7) is arranged on the inner side of the round groove (8), the annular chute (7) is provided with a turntable (9) through a slide block, both ends of the top of the base (1) are provided with through holes (4), and one end of the inner part of the base (1) is provided with a first bearing (2), a threaded rod (12) is arranged in the first bearing (2), the threaded rod (12) penetrates through the base (1) and extends to the outside of the base (1), and two groups of nuts (3) are arranged on the outer side of the threaded rod (12) in a threaded manner, L-shaped connecting rods (16) are arranged at the tops of the nuts (3), the L-shaped connecting rods (16) penetrate through the through holes (4), and the one end that nut (3) were kept away from in L type connecting rod (16) all installs splint (5), installation pipe (6) are all installed to the bottom of splint (5).

2. The trimming and fixing device for the production of building templates according to claim 1, wherein: extension spring (17) are all installed to the inside of installation pipe (6), and extension spring (17) keep away from the one end of splint (5) and all install gag lever post (13), limiting plate (18) are all installed to the one end that installation pipe (6) were kept away from in gag lever post (13).

3. The trimming and fixing device for the production of building templates according to claim 1, wherein: the middle position department of the inside bottom of circular slot (8) installs second bearing (10), and the internally mounted of second bearing (10) has pivot (11), the one end that second bearing (10) were kept away from in pivot (11) is connected with carousel (9).

4. The trimming and fixing device for the production of building templates according to claim 1, wherein: both ends of base (1) inside bottom all are provided with spout (14), and spout (14) all install stopper (15) through the slider, stopper (15) all are connected with nut (3).

5. The trimming and fixing device for the production of building templates according to claim 1, wherein: the outer side of the threaded rod (12) is symmetrically provided with threads in opposite directions.

6. The trimming and fixing device for the production of building templates according to claim 1, wherein: the anti-skidding rubber pads are mounted at one ends, close to the rotary table (9), of the clamping plates (5), and anti-skidding lines are arranged on the outer sides of the anti-skidding rubber pads.
