Abstract

The utility model discloses a breathing mask for fire emergency first aid, comprising a breathing mask main body, an oxygen port is connected inside the lower part of the breathing mask main body, an oxygen tank is connected inside the oxygen opening, and an air port is connected to the front side of the breathing mask main body , and a filter element is installed inside the air port, a sealing end cover is fitted on the outside of the air port, a headband is connected on both sides of the outside of the main body of the breathing mask, and a buckle is installed in the middle of the headband. The fire rescue breathing mask can give fresh oxygen to the wearer, so that the wearer can breathe more smoothly. The fire emergency breathing mask can inject fresh oxygen into the main body of the breathing mask through the oxygen tank at the bottom, so that the breathing of the wearer is smoother, so that they can physically move to a safe position and improve the first aid effect.

Description

A fire emergency breathing mask

technical field

The utility model relates to the technical field of face masks, in particular to a breathing mask for fire emergency first aid.

Background technique

"Fire protection" means eliminating hidden dangers and preventing disasters (that is, the general term for preventing and solving man-made, natural and accidental disasters that people encounter in the process of life, work, and study). Of course, the narrow meaning is: (extinguishing) fire meaning. When carrying out fire emergency, the trapped person will be put on a breathing mask. The breathing mask is suitable for adults to cover the nose or mouth and nose to isolate harmful gases in the air. Filter type fire mask is a fire escape respirator mask, which is a necessary personal protective breathing apparatus when a fire accident occurs in hotels, hotels, office buildings, shopping malls, banks, post and telecommunications, electricity, public entertainment places, factories, residences, subways, etc. protective device. Toxic fumes are bound to be produced during a fire. According to the statistics of the fire authority, more than 80% of the deaths in the fire are due to smoke poisoning or smoke suffocation and burn to death. Getting out of danger safely can greatly reduce the number of fire deaths.

Existing fire rescue breathing masks can only filter harmful gases in the air, and oxygen also needs to be obtained from the air, which cannot give the trapped extra fresh oxygen.

Utility model content

The purpose of the present invention is to provide a fire-fighting emergency breathing mask to solve the problem that the fire-fighting emergency breathing mask cannot give fresh oxygen to the trapped person proposed in the above-mentioned background art.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a fire-fighting first aid breathing mask, comprising a breathing mask body, an oxygen port is internally connected under the breathing mask body, and an oxygen tank is connected inside the oxygen port, and the breathing mask body is internally connected with an oxygen tank. An air port is connected to the front side of the main body of the mask, a filter element is installed inside the air port, a sealing end cover is fitted on the outside of the air port, and a headband is connected on both sides of the outside of the main body of the breathing mask, and the middle part of the headband is Buckle is installed.

Preferably, limit belts are connected on both sides of the front end of the main body of the breathing mask, and a limit soft plate is installed between the limit belts.

Preferably, a connecting cord is connected to the bottom of the sealing end cap, and a breathing mask body is mounted on the outside of the connecting cord.

Preferably, the limiting band and the headband are made of elastic band material, and the width of the headband is not less than 2CM.

Preferably, a sealing ring is connected inside the oxygen port, and the sealing ring is made of elastic rubber, and an oxygen tank is connected inside the sealing ring.

Preferably, an oxygen tank is connected above the limiting flexible board, and the axis of the oxygen tank is coincident with the vertical bisector of the limiting flexible board.

Compared with the prior art, the beneficial effect of the present invention is that the fire-fighting emergency breathing mask can give fresh oxygen to the wearer, so that the breathing of the wearer is smoother. The fire-fighting first aid breathing mask can inject fresh oxygen into the main body of the breathing mask through the oxygen tank at the bottom, so that the breathing of the wearer is smoother, so that they can physically move to a safe position and improve the first aid effect.

Description of drawings

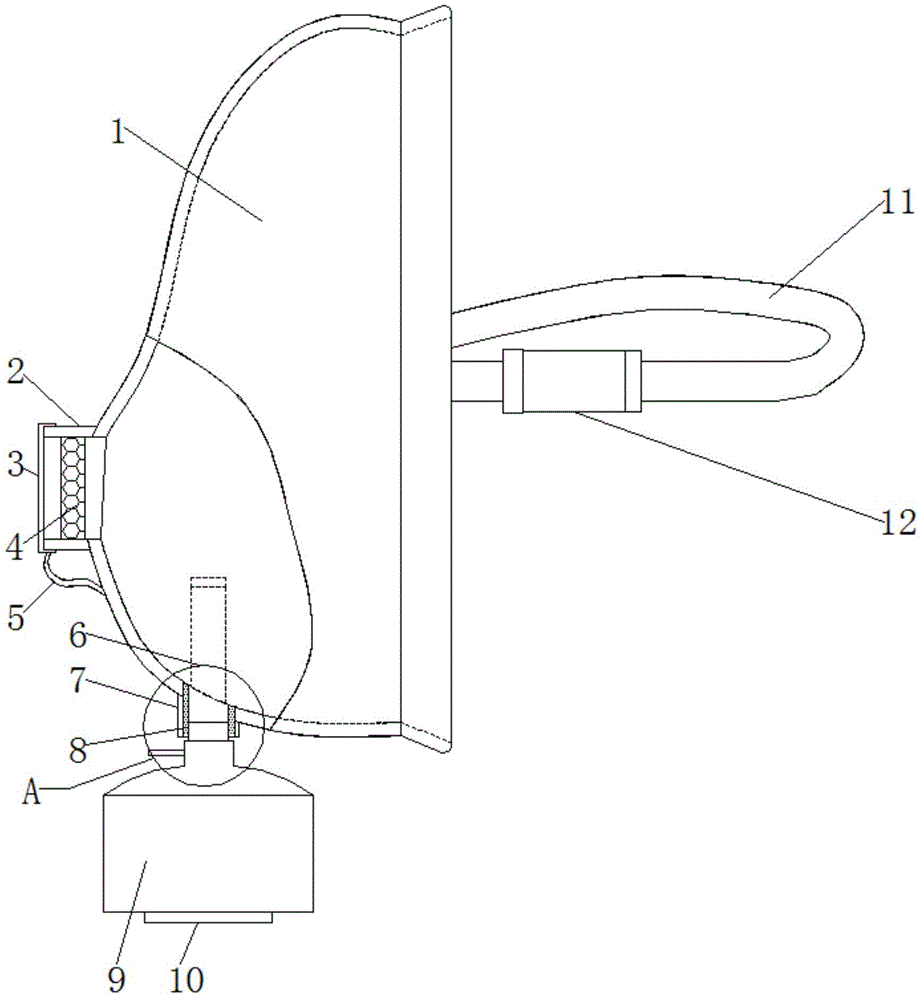

Fig. 1 is the side view structure schematic diagram of a kind of fire-fighting first aid breathing mask of the present invention;

Fig. 2 is the enlarged structural schematic diagram of place A in Fig. 1 of a kind of fire-fighting first aid breathing mask of the present invention;

FIG. 3 is a schematic view of the front structure of a fire-fighting first aid breathing mask of the present invention.

In the picture: 1. Respiratory mask body, 2. Air port, 3. Sealing end cap, 4. Filter element, 5. Connecting rope, 6. Limit belt, 7. Oxygen port, 8. Sealing ring, 9. Oxygen tank, 10. Limiting soft board, 11. Wearing a cloth belt on the head, 12. Buckle.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIGS. 1-3 , the present invention provides a technical solution: a fire-fighting first aid breathing mask, comprising a breathing mask main body 1 , an oxygen port 7 is connected inside the breathing mask main body 1 , and the oxygen port 7 is internally connected with oxygen Tank 9, both sides of the front end of the main body 1 of the breathing mask are connected to the limit belts 6, and the limiter soft plate 10 is installed between the limit belts 6. This structure enables the limit belts 6 to pass through the limit belts 6 on both sides and the breathing mask. The main body 1 is connected, the limit belt 6 and the head cloth belt 11 are made of elastic belts, and the width of the head cloth belt 11 is not less than 2CM. This structure allows the user to easily stretch the limit belt 6 and the head cloth belt. 11. Make the limit belt 6 and the headband 11 at a suitable length, and the headband 11 is wider, which can have a larger contact area with the wearer's head, making the wearer more comfortable, and the limit is soft. The oxygen tank 9 is connected above the board 10, and the axis of the oxygen tank 9 is coincident with the vertical bisector of the limiting soft board 10. This structure enables the bottom of the oxygen tank 9 to be received by the limiting soft board 10, so that the oxygen tank 9 will not easily The oxygen port 7 is internally connected with a sealing ring 8, and the sealing ring 8 is made of elastic rubber, and the sealing ring 8 is internally connected with an oxygen tank 9. This structure enables the top of the oxygen tank 9 to be sealed by the elastic rubber sealing ring 8. It is stuck and will not fall easily. An air port 2 is connected to the front side of the main body 1 of the respirator, and a filter element 4 is installed inside the air port 2. A sealing end cover 3 is fitted on the outside of the air port 2, and the bottom of the sealing end cover 3 is connected with a The connecting rope 5 is installed with the main body 1 of the respirator outside the connecting rope 5. This structure enables the sealing end cap 3 to be hanged by the connecting rope 5 when it is uncovered, and it will not be easily lost. The head wears a cloth belt 11, and a buckle 12 is installed in the middle of the head cloth belt 11. This structure makes the interior of the breathing mask body 1 not only enter the indoor air filtered by the filter element 4, but also enter the fresh oxygen released by the oxygen tank 9, It makes the wearer breathe more smoothly and is convenient for fire emergency use.

Working principle: When using the fire-fighting first aid breathing mask, the user can first open the buckle 12 and wrap the headband 11 around the head to wear the main body 1 of the breathing mask outside the nose, and then the user can place the limit The oxygen tank 9 on the soft board 10 is opened, so that the oxygen can be sent to the inside of the breathing mask body 1 through the oxygen port 7 for the user to breathe, and then the user can unplug the sealing end cap 3 on the connecting rope 5, and the air will Pass through the filter element 4 and enter the main body 1 of the respirator for the wearer to breathe. When the wearer escapes danger, the limit belt 6 can be stretched to pull out the empty oxygen tank 9, and then the bottom of the new oxygen tank 9 is placed at the limit On the soft board 10, the top of the oxygen tank 9 is inserted into the sealing ring 8 to be fixed, so as to complete a series of work.

Although the present invention has been described in detail with reference to the foregoing embodiments, for those skilled in the art, it is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements for some of the technical features. Within the spirit and principle of the present utility model, any modifications, equivalent replacements, improvements, etc. made shall be included within the protection scope of the present utility model.

Claims (6)

1. The utility model provides a respirator for fire control first aid, includes respirator main part (1), its characterized in that: breathing mask main part (1) below internal connection has oxygen mouth (7), and oxygen mouth (7) internal connection has oxygen jar (9), breathing mask main part (1) front side is connected with air mouth (2), and air mouth (2) internally mounted has filter core (4), air mouth (2) outside gomphosis has end cover (3), breathing mask main part (1) outside both sides are connected with head strap (11), and head strap (11) mid-mounting has eye-splice (12).

2. A fire emergency respirator as set forth in claim 1, wherein: both sides of the front end of the breathing mask main body (1) are connected with limiting belts (6), and a limiting soft board (10) is arranged between the limiting belts (6).

3. A fire emergency respirator as set forth in claim 1, wherein: the bottom of the sealing end cover (3) is connected with a connecting rope (5), and the outside of the connecting rope (5) is provided with a breathing mask main body (1).

4. A fire emergency respirator as set forth in claim 2, wherein: spacing area (6) and wear strap (11) are the elastic webbing material, and the width of wearing strap (11) is not less than 2 CM.

5. A fire emergency respirator as set forth in claim 1, wherein: oxygen mouth (7) internal connection has sealing ring (8), and sealing ring (8) are elastic rubber material to sealing ring (8) internal connection has oxygen jar (9).

6. A fire emergency respirator as set forth in claim 2, wherein: an oxygen tank (9) is connected above the limiting soft board (10), and the axis of the oxygen tank (9) coincides with the vertical bisector of the limiting soft board (10).
