Abstract

The utility model provides a refrigerant pipe fixing structure based on solution freezing and concentrating equipment. The refrigerant pipe fixing structure based on the solution freezing and concentration equipment includes: a fixing plate; a mounting plate, the back of the mounting plate is fixed to the front of the fixed plate, and movable plates are fixedly connected to both sides, and two movable plates are fixed. The two sides of the movable plate are provided with sockets, and the opposite sides of the two movable plates are provided with limited slots. The refrigerant pipe fixing structure based on the solution freezing and concentrating equipment provided by the utility model has the function of double fixing, which indirectly ensures the effect of the refrigerant pipe being fixed, and the auxiliary structure can assist in limiting the refrigerant pipe to avoid the refrigerant pipe. The movement of the pipe causes the subsequent reduction of the stability of the clamping of the refrigerant pipe, which not only further increases the stability of the refrigerant pipe being fixed, but also the effect of the refrigerant pipe after being fixed is good, the operation is simple, and the operation of the staff is convenient. It improves the efficiency of the refrigerant pipe being fixed.

Description

A refrigerant pipe fixing structure based on solution freezing and concentration equipment

technical field

The utility model relates to the field of solution freezing, in particular to a refrigerant pipe fixing structure based on a solution freezing and concentrating device.

Background technique

Freeze concentration is a kind of concentration method that has developed rapidly in recent years. It is realized by using the solid-liquid equilibrium relationship between dilute solution and ice below freezing point under normal pressure. With the advantages of biochemical changes and small loss of flavor, aroma, and nutrients, this low-energy-consumption, high-quality product processing technology has great potential for development. With the increasing demand for high-end products in society, freeze-concentration technology will further demonstrate its superiority and necessity.

In real life, for the use of refrigerant pipes, it is necessary to fix the refrigerant pipes. At this time, the refrigerant pipes need to be fixed with corresponding fixing structures. However, the existing fixing structures cannot effectively fix the refrigerant pipes, not only the fixing effect is relatively low. In addition, it is time-consuming and labor-intensive, and it is easy to cause damage to the refrigerant pipe, and the existing fixing structure does not have the function of double fixing, so that the effect of fixing the refrigerant pipe is reduced.

Therefore, it is necessary to provide a refrigerant pipe fixing structure based on a solution freeze-concentration equipment to solve the above-mentioned technical problems.

Utility model content

The utility model provides a refrigerant pipe fixing structure based on a solution freezing and concentrating equipment, which solves the problem that the existing fixing structure does not have dual fixing functions.

In order to solve the above-mentioned technical problems, the fixing structure of the refrigerant pipe based on the solution freezing and concentrating equipment provided by the present invention includes:

fixed plate;

Mounting plate, the back of the mounting plate is fixed to the front of the fixed plate, and both sides of the front of the fixed plate are fixedly connected with a movable plate, a socket is opened between the two sides of the two movable plates, and the two movable plates are opposite to each other. There are limit slots on one side;

Two driving structures, the two driving structures are respectively arranged inside the two sockets, the driving structures include an operating rod, the operating rod is movably connected to the inside of the sockets, and one end of the operating rod rotates A clamping plate is connected, and the other end of the operating rod is provided with an operating block;

Auxiliary structure, the auxiliary structure is arranged on the front of the fixing plate and at the bottom of the installation plate, the auxiliary structure includes an arc-shaped concave block, and the back of the arc-shaped concave block is fixed on the back of the installation plate. front;

Through the relative movement of the two clamping plates, the refrigerant pipe can be clamped, and the shape of the arc groove is adapted to the outer surface of the refrigerant pipe. the stability of the subsequent fixing of the tube;

The setting of the auxiliary structure is mainly to assist in limiting the refrigerant pipe to avoid the movement of the refrigerant pipe, resulting in a subsequent decrease in the stability of the clamping of the refrigerant pipe, which not only further increases the stability of the refrigerant pipe being fixed, but also the refrigerant pipe. After being fixed, the effect is good, the operation is simple, the operation of the staff is convenient, and the efficiency of fixing the refrigerant pipe is greatly improved.

Preferably, the limiting groove and the socket are arranged intersecting.

Preferably, the front surface of the mounting plate is provided with a cushion block, and the front surface of the cushion block is provided as an arc surface.

Preferably, the back of the clamping plate is slidably connected to the front of the mounting plate, one side of the clamping plate is provided with an arc-shaped groove, and one side of the inner wall of the arc-shaped groove is provided with a non-slip pad.

Preferably, limit blocks are provided on the top and bottom of the operating rod, and elastic pads are provided on one side of the two limit blocks.

Preferably, both sides of the inner wall of the arc-shaped concave block are slidably connected with arc-shaped clamping blocks, and magnet blocks are provided on opposite sides of the two arc-shaped clamping blocks.

Preferably, movable rods are provided on the separated sides of the two arc-shaped clamping blocks, and the separated sides of the two movable rods pass through the arc-shaped concave block and extend to the arc-shaped concave. outside of the block.

Compared with the related art, the refrigerant pipe fixing structure based on the solution freezing concentration equipment provided by the present invention has the following beneficial effects:

The utility model provides a refrigerant pipe fixing structure based on a solution freezing and concentrating equipment. The arc-shaped concave block can be limited by the relative rotation of the two arc-shaped clamping blocks, and through the two magnet blocks Contact, will generate adsorption force, thus ensuring the stability after the limit, through the setting of the auxiliary structure can help to limit the refrigerant pipe, avoid the movement of the refrigerant pipe, resulting in the subsequent reduction of the stability of the clamping of the refrigerant pipe, not only The stability of the refrigerant pipe being fixed is further increased, and the effect of the refrigerant pipe after being fixed is good, the operation is simple, the operation of the staff is convenient, and the efficiency of fixing the refrigerant pipe is greatly improved;

By moving the two operating rods in the opposite direction, the two clamping plates and the two limit blocks can be driven to move in the same direction through the movement of the two operating rods in the opposite direction. The refrigerant pipe on the front of the mounting plate is fixed and clamped, which has double fixed stability, which indirectly ensures the effect of the refrigerant pipe being fixed.

Description of drawings

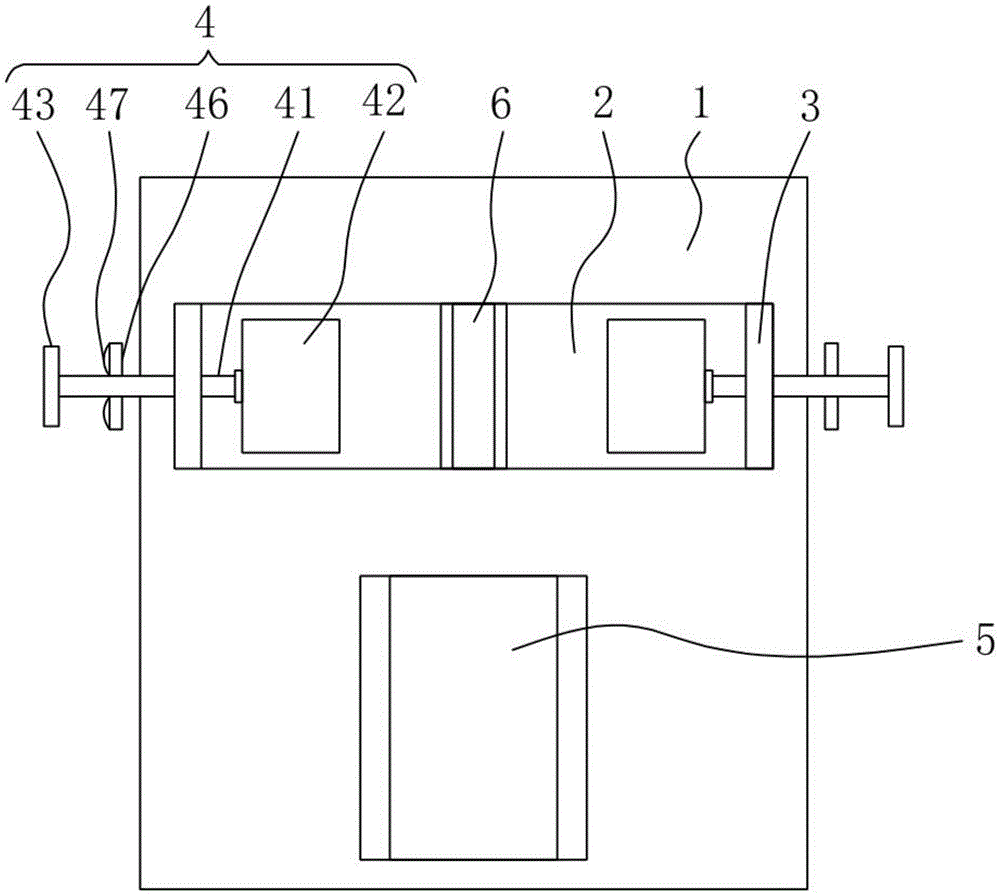

Fig. 1 is the structural representation of a kind of preferred embodiment of the refrigerant pipe fixing structure based on solution freezing concentration equipment provided by the utility model;

FIG. 2 is a top view of the structure of the mounting plate shown in FIG. 1;

Fig. 3 is the structural side view of the movable plate shown in Fig. 1;

FIG. 4 is a top view of the structure of the auxiliary structure shown in FIG. 1 .

Labels in the figure: 1, fixed plate, 2, mounting plate, 3, movable plate, 31, socket, 32, limit groove, 4, driving structure, 41, operating lever, 42, clamping plate, 43, operating block, 44, arc groove, 45, anti-skid pad, 46, limit block, 47, elastic pad, 5, auxiliary structure, 51, arc concave block, 52, arc clamping block, 53, magnet block, 54, activity Rod, 6, pad.

Detailed ways

The present utility model will be further described below with reference to the accompanying drawings and embodiments.

Please refer to Fig. 1, Fig. 2, Fig. 3 and Fig. 4 in conjunction with Fig. 1, wherein Fig. 1 is a schematic structural diagram of a preferred embodiment of a refrigerant pipe fixing structure based on a solution freezing and concentration equipment provided by the utility model; Fig. 2 is a diagram of 1 is a top view of the structure of the mounting plate; FIG. 3 is a side view of the structure of the movable plate shown in FIG. 1 ; FIG. 4 is a top view of the structure of the auxiliary structure shown in FIG. 1 . The fixed structure of the refrigerant tube based on the solution freeze-concentration equipment includes:

fixed plate 1;

Mounting plate 2, the back of the mounting plate 2 is fixed to the front of the fixed plate 1, both sides of the front of the fixed plate 1 are fixedly connected with a movable plate 3, and a socket 31 is opened between the two sides of the two movable plates 3. The opposite sides of each of the movable plates 3 are provided with limit slots 32;

Two driving structures 4, the two driving structures 4 are respectively disposed inside the two sockets 31, the driving structures 4 include an operating rod 41, and the operating rod 41 is movably connected to the inside of the sockets 31, One end of the operating rod 41 is rotatably connected with a clamping plate 42, and the other end of the operating rod 41 is provided with an operating block 43;

Auxiliary structure 5, the auxiliary structure 5 is arranged on the front of the fixing plate 1 and at the bottom of the mounting plate 2, the auxiliary structure 5 includes an arc-shaped concave block 51, and the back of the arc-shaped concave block 51 fixed on the front of the mounting plate 2;

Through the relative movement of the two clamping plates 42, the refrigerant pipe can be clamped, and the shape of the arc groove 44 is adapted to the outer surface of the refrigerant pipe. The stability of the subsequent fixing of the refrigerant pipe;

The setting of the auxiliary structure 5 is mainly to assist in limiting the refrigerant pipe to avoid the movement of the refrigerant pipe, resulting in a subsequent decrease in the stability of the clamping of the refrigerant pipe, which not only further increases the stability of the refrigerant pipe being fixed, but also reduces the stability of the refrigerant pipe. After the tube is fixed, the effect is good, the operation is simple, the operation of the staff is convenient, and the efficiency of the fixing of the refrigerant tube is greatly improved.

The limiting slot 32 is arranged to intersect with the socket 31;

The intersection angle between the limiting slot 32 and the socket 31 is ninety degrees.

The front of the mounting plate 2 is provided with a pad 6, and the front of the pad 6 is set as an arc surface;

The arrangement of the spacer 6 facilitates the contact and support of the back of the refrigerant pipe, and facilitates better subsequent fixation.

The back of the clamping plate 42 is slidably connected to the front of the mounting plate 2 , one side of the clamping plate 42 is provided with an arc-shaped groove 44 , and one side of the inner wall of the arc-shaped groove 44 is provided with a non-slip pad 45;

The arc-shaped groove 44 is suitable for the appearance of the refrigerant pipe, mainly to facilitate the arc-shaped groove 44 to better fit the outer surface of the refrigerant pipe, and the setting of the anti-skid pad 45 can increase the contact between the clamping plate 42 and the refrigerant pipe. post-stability.

The top and bottom of the operating rod 41 are provided with limit blocks 46, and one side of the two limit blocks 46 is provided with elastic pads 47;

The arrangement of the elastic pad 47 and the limit block 46 is mainly used to be in the limit groove 32, so as to clamp the operating rod 41 after the movement, and indirectly ensure the limit of the clamping plate 42 after the movement, and increase the The stability of the refrigerant pipe is fixed.

Both sides of the inner wall of the arc-shaped concave block 51 are slidably connected with arc-shaped clamping blocks 52, and the opposite sides of the two arc-shaped clamping blocks 52 are provided with magnet blocks 53;

One of the two magnet blocks 53 is the N pole and the other is the S pole, mainly through the adsorption of the two magnet blocks 53 in opposite directions, which can ensure the stability of the arc-shaped clamping block 52 after the movement.

A movable rod 54 is disposed on the separated sides of the two arc-shaped clamping blocks 52 , and the separated sides of the two movable rods 54 pass through the arc-shaped concave block 51 and extend to the arc-shaped the outside of the concave block 51;

The arrangement of the movable rod 54 is convenient for the staff to drive the arc-shaped clamping block 52 to perform rotational movement. bit to ensure the stability of subsequent fixation.

The working principle of the refrigerant pipe fixing structure based on the solution freezing and concentrating equipment provided by the present invention is as follows:

Place the refrigerant pipe that needs to be fixed on the front of the mounting plate 2 and the inside of the arc-shaped concave block 51, and manually rotate the two movable rods 54. Through the rotation of the two movable rods 54, the two arc-shaped clamps can be driven. The rotation movement of the clamping block 52 in the opposite direction, and through the rotation movement of the two arc-shaped clamping blocks 52 in the opposite direction, the arc-shaped concave block 51 can be limited, and through the contact of the two magnet blocks 53, it will generate Adsorption force, thereby ensuring the stability after the limit;

By moving the two operating rods 41 in opposite directions, the two clamping plates 42 and the two limiting blocks 46 can be driven to move in the same direction by the relative movement of the two operating rods 41 . Movement, the refrigerant pipe on the front of the mounting plate 2 can be fixed and clamped;

Then rotate the two operating rods 41 by 90 degrees, and through the ninety-degree rotation of the two operating rods 41, the rotation of the two limit blocks 46 can be driven, and they will cross the socket 31 and thus overlap with the limit groove 32. The rotating limit block 46 can be clamped and limited through the limit groove 32, thereby ensuring the stability of the movement of the operating rod 41, indirectly ensuring the clamping of the clamping plate 42 after the movement, and improving the cooling medium pipe. Fixed stability.

Compared with the related art, the refrigerant pipe fixing structure based on the solution freezing concentration equipment provided by the present invention has the following beneficial effects:

Through the relative rotation of the two arc-shaped clamping blocks 52, the position of the arc-shaped concave block 51 can be limited, and through the contact of the two magnet blocks 53, an adsorption force will be generated, thereby ensuring the stability after the limit. The setting of the auxiliary structure 5 can help to limit the refrigerant pipe, avoid the movement of the refrigerant pipe, and cause the subsequent reduction of the clamping stability of the refrigerant pipe, which not only further increases the stability of the refrigerant pipe being fixed, but also After the refrigerant pipe is fixed, the effect is good, the operation is simple, the operation of the staff is convenient, and the efficiency of the fixing of the refrigerant pipe is greatly improved;

By moving the two operating rods 41 in opposite directions, the two clamping plates 42 and the two limiting blocks 46 can be driven to move in the same direction by the relative movement of the two operating rods 41 . By moving, the refrigerant pipe on the front side of the mounting plate 2 can be fixed and clamped, which has the stability of double fixation, and indirectly ensures the effect of the refrigerant pipe being fixed.

The above are only the embodiments of the present invention, and are not intended to limit the patent scope of the present invention. Any equivalent structure or equivalent process transformation made by using the contents of the description and accompanying drawings of the present invention, or directly or indirectly applied to other Relevant technical fields are similarly included in the scope of patent protection of the present invention.

Claims (7)

1. a refrigerant pipe fixing structure based on solution freezing concentration equipment, is characterized in that, comprises: fixed plate; Mounting plate, the back of the mounting plate is fixed to the front of the fixed plate, and both sides of the front of the fixed plate are fixedly connected with movable plates, and sockets are opened between the two sides of the two movable plates, and the two movable plates are opposite to each other. There are limit slots on one side; Two driving structures, the two driving structures are respectively arranged inside the two sockets, the driving structures include an operating rod, the operating rod is movably connected to the inside of the sockets, and one end of the operating rod rotates A clamping plate is connected, and the other end of the operating rod is provided with an operating block; Auxiliary structure, the auxiliary structure is arranged on the front of the fixing plate and at the bottom of the installation plate, the auxiliary structure includes an arc-shaped concave block, and the back of the arc-shaped concave block is fixed on the back of the installation plate. front. 2 . The refrigerant pipe fixing structure based on the solution freezing and concentration equipment according to claim 1 , wherein the limiting groove and the socket are crossed. 3 . 3 . The refrigerant pipe fixing structure based on the solution freezing and concentration equipment according to claim 1 , wherein the front surface of the mounting plate is provided with a cushion block, and the front surface of the cushion block is provided as an arc surface. 4 . 4. The refrigerant pipe fixing structure based on solution freezing and concentration equipment according to claim 1, wherein the back side of the clamping plate is slidably connected to the front side of the mounting plate, and one side of the clamping plate is opened There is an arc groove, and one side of the inner wall of the arc groove is provided with a non-slip pad. 5. The refrigerant pipe fixing structure based on the solution freezing and concentrating equipment according to claim 1, wherein the top and the bottom of the operating rod are provided with limit blocks, and one side of the two limit blocks is provided with Elastic pad. 6 . The refrigerant pipe fixing structure based on the solution freezing and concentration equipment according to claim 1 , wherein both sides of the inner wall of the arc-shaped concave block are slidably connected with arc-shaped clamping blocks. The opposite sides of the shaped clamping block are provided with magnet blocks. 7 . The refrigerant pipe fixing structure based on the solution freezing and concentration equipment according to claim 6 , wherein the two sides of the two arc-shaped clamping blocks that are separated from each other are provided with movable rods, and the two movable rods are provided with movable rods. 8 . The separated sides penetrate through the arc-shaped concave block and extend to the outside of the arc-shaped concave block.
