CN211499814U - Material feeding unit is used to construction eminence - Google Patents

Abstract

The utility model discloses a feeding device for high places in building construction, belonging to the technical field of construction equipment. The utility model comprises a mixer body, the upper surface of the mixer body is fixedly connected with the lower surface of a driving device, and the bottom end of the driving device is connected with a stirring shaft The top of the stirring shaft is fixedly connected, the outer surface of the stirring shaft is sleeved with a first bearing, and the first bearing is clamped on the upper surface of the stirring body. The feeding device is used in the high construction of the building. By setting the mixing body, the mixing motor, the mixing shaft, the mixing rod and the conveying mechanism, when the mixing is completed, the material enters the conveying body along the mixing body, and then falls on the conveying mechanism. When the person starts the conveying mechanism, the material will fall on the second helical fan blade along the conveying mechanism. At this time, the third switch is activated, and the second motor drives the third rotating shaft to rotate. The material will rise along the second spiral fan blade until it falls into the placing box.

Description

A feeding device for high places in building construction

technical field

The utility model belongs to the technical field of construction equipment, in particular to a feeding device for high places in building construction.

Background technique

In construction, lifting devices are generally used to transport materials such as bricks and cement slurry on the ground into high-rise buildings. In the process of building construction, it is not practical to install elevators. The existing technology mainly uses a rope to pull the net bag to remove the material. It is sent into the sky, but its operation is complicated, and there is a certain safety in use, the applicability and practicability are limited to a certain extent, and the slow transportation process will also cause the cement slurry to solidify, which increases the construction difficulty of the staff.

Utility model content

(1) Technical problems solved

In order to overcome the above-mentioned defects of the prior art, the utility model provides a feeding device for high places in building construction, which solves the problem that the prior art mainly uses a drawstring to pull the net bag to feed the material into the sky, but its operation is complicated, and it also There is a certain safety in use, the applicability and practicability are limited to a certain extent, and the slow transportation process will also cause the cement slurry to solidify, increasing the construction difficulty of the staff.

(2) Technical solutions

In order to achieve the above purpose, the present utility model provides the following technical solutions: a feeding device for high places in building construction, comprising a stirring body, the upper surface of the stirring body is fixedly connected with the lower surface of the driving device, and the bottom end of the driving device is connected to the stirring body. The top end of the shaft is fixedly connected, the outer surface of the stirring shaft is sleeved with a first bearing, and the first bearing is clamped on the upper surface of the stirring body.

The left side of the stirring shaft is clamped with a second bearing, the number of the second bearing is six, and each of the six second bearings is sleeved with a second rotating shaft, and the left end of the second rotating shaft is connected to the stirring shaft. The right end of the rod is fixedly connected, the outer surface of the stirring rod is sleeved with a first helical fan blade, the lower surface of the stirring body is communicated with the upper surface of the transporting body, and the lower surface of the inner wall of the transporting body is connected with the lower surface of the conveying mechanism. Fixed connection on the lower surface.

The lower surface of the transport body is clamped with a third bearing, the third bearing is sleeved with a third rotating shaft, and the bottom end of the third rotating shaft is fixedly connected with the driving shaft of the second motor, and the second motor The lower surface of the fuselage is fixedly connected with the upper surface of the base, the outer surface of the third rotating shaft is sleeved with a second helical fan blade, the top end of the third rotating shaft is sleeved in a fourth bearing, and the fourth bearing is sleeved It is clamped on the upper surface of the inner wall of the transport body, the right side of the transport body is provided with a chute, a slider is slidably connected in the chute, and the right side of the slider is fixed with the left side of the placing box The bottom end of the placing box is fixedly connected with the top end of the electric push rod, and the bottom end of the electric push rod is fixedly connected with the upper surface of the base.

As a further solution of the present invention, the upper surface of the agitator body is communicated with the lower surface of the leak-proof bar, and there are two leak-proof bars.

As a further solution of the present utility model: the driving device includes a fixing frame, the number of the fixing frame is two, and the opposite surfaces of the two fixing frames are respectively fixedly connected with the left and right sides of the stirring motor body, and the fixing frame is The lower surface of the stirring body is fixedly connected with the upper surface of the stirring body, and the driving shaft of the stirring motor is fixedly connected with the top end of the stirring shaft.

As a further solution of the present invention, a support frame is arranged on the left side of the transport body, the number of support frames is three, and the upper surface of the base is fixedly connected with the lower surface of the support frame.

As a further solution of the present invention, a power source is fixedly connected to the left side of the transport body, and the left side of the power source is fixedly connected to the right sides of the first switch, the second switch and the third switch.

As a further solution of the present invention: the output end of the power supply is electrically connected to the input ends of the first switch, the second switch and the third switch respectively through wires, and the output end of the first switch is connected to the input end of the stirring motor through wires. The output end of the second switch is electrically connected to the input end of the electric push rod through a wire, and the output end of the third switch is electrically connected to the input end of the second motor through a wire.

(3) Beneficial effects

Compared with the prior art, the beneficial effects of the present utility model are:

1. The feeding device is used at the height of the building construction. By setting the mixer body, mixing motor, mixing shaft, mixing rod and transmission mechanism, when the staff needs to mix and lift the cement, they only need to turn on the first switch, and then use the mixer. When the material mixed with cement is poured into the mixer body, the stirring rod on the mixing shaft will stir the material. After the mixing is completed, the material enters the transport body along the mixer body, and then falls on the conveying mechanism. At this time, the staff will convey the material. When the mechanism starts, the material will fall on the second helical fan blade along the conveying mechanism. At this time, the third switch is activated, and the second motor drives the third rotating shaft to rotate. Because of the second helical fan blade, the stirred material will flow along the second helical fan blade. The second helical fan blade rises until it falls into the placing box.

2. The feeding device is used at the height of the building construction. Through the electric push rod and the placing box, when the material is lifted to the top of the transport body, it will fall into the placing box along the outlet. When the material needs to be used, just start the first Second switch, the electric push rod will move up and down, so as to move the placing box to the appropriate position, so that the staff can easily take out the mixed materials.

3. The feeding device is used at the height of the building construction. By setting the first spiral fan blade, when the staff dumps the material into the mixer body, the material can be stirred evenly, which improves the stirring efficiency and improves the practicality of the device. sex.

Description of drawings

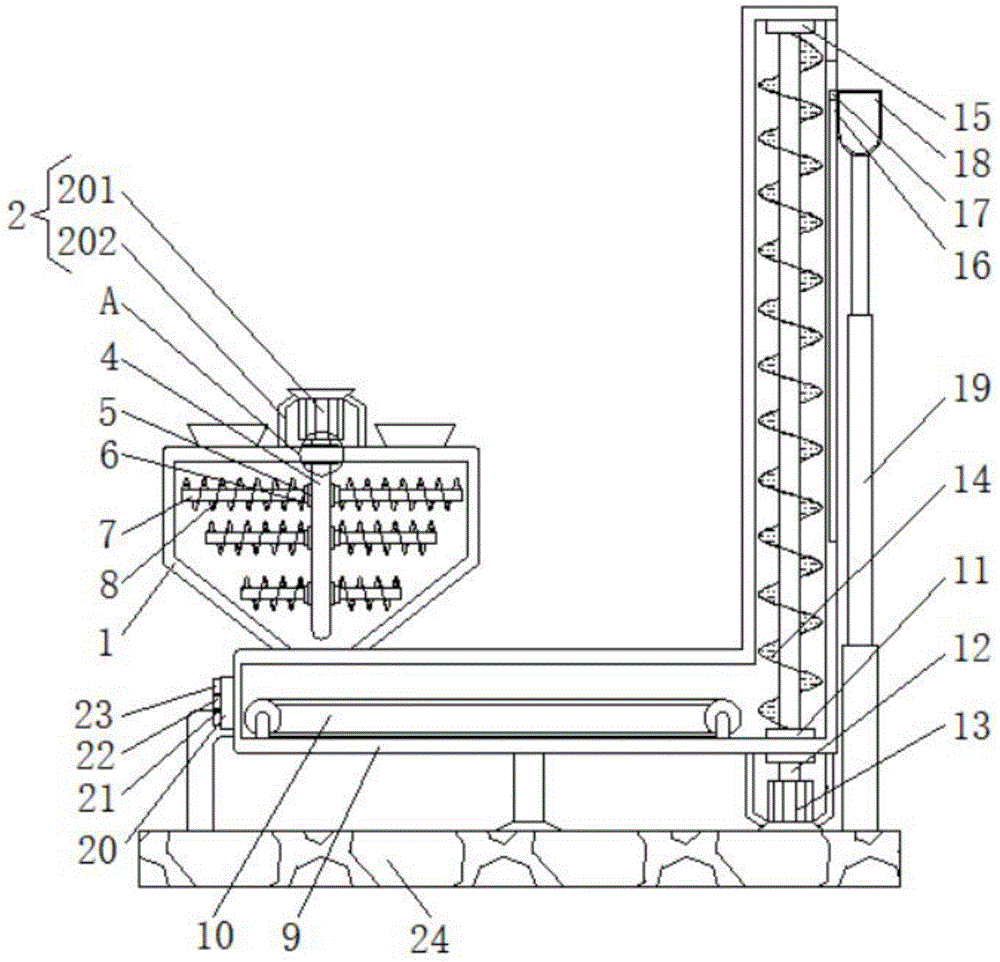

Fig. 1 is the sectional structure schematic diagram of the front view of the utility model;

Fig. 2 is the structural representation of the left side view of the base of the present invention;

Fig. 3 is the enlarged structural representation at the utility model A;

In the figure: 1 stirring body, 2 driving device, 201 stirring motor, 202 fixing frame, 3 first bearing, 4 stirring shaft, 5 second bearing, 6 second rotating shaft, 7 stirring rod, 8 first spiral fan blade, 9 Transport body, 10 transmission mechanism, 11 third shaft, 12 third bearing, 13 second motor, 14 second spiral fan blade, 15 fourth bearing, 16 chute, 17 slider, 18 placing box, 19 electric push rod , 20 power supply, 21 first switch, 22 second switch, 23 third switch, 24 base.

Detailed ways

The technical solution of the present patent will be described in further detail below in conjunction with specific embodiments.

As shown in Figures 1-3, the utility model provides a technical solution: a feeding device for high places in building construction, comprising a mixer body 1, the upper surface of the mixer body 1 is communicated with the lower surface of the leak-proof bar, leak-proof There are two fences. Because of the anti-leakage fence, when the staff dumps the material, the material is not easy to fall outside the anti-leakage fence, which saves the material. The upper surface of the mixer body 1 is fixedly connected with the lower surface of the driving device 2. , the driving device 2 includes a fixing frame 202, the number of the fixing frame 202 is two, and the opposite surfaces of the two fixing frames 202 are respectively fixedly connected with the left and right sides of the stirring motor 201 body, and the lower surface of the fixing frame 202 is connected with the stirring body 1 The upper surface of the stirring motor 201 is fixedly connected to the top of the stirring shaft 4, and the stirring motor 201 is provided, so that when the staff needs to stir the material, they only need to activate the first switch 21, and the stirring motor 201 The stirring shaft 4 is driven back to rotate, so that the stirring rod 7 connected to the stirring shaft 4 rotates in the stirring body 1, so as to stir the material, the bottom end of the driving device 2 is fixedly connected with the top of the stirring shaft 4, and the stirring shaft 4 The outer surface of the mixer body is sleeved with a first bearing 3 , and the first bearing 3 is clamped on the upper surface of the mixer body 1 .

The left side of the stirring shaft 4 is clamped with a second bearing 5, the number of the second bearing 5 is six, and the six second bearings 5 are sleeved with a second rotating shaft 6, and the left end of the second rotating shaft 6 is connected to the stirring shaft. The right end of the rod 7 is fixedly connected, the outer surface of the stirring rod 7 is sleeved with the first helical fan blade 8, and the lower surface of the stirring body 1 is communicated with the upper surface of the transport body 9, because the lower surface of the stirring body 1 and the transport body 9 are connected. The upper surface of the mixer body 1 is connected, so that after the mixer body 1 is finished stirring, the material will enter the transport body 9 along the lower surface of the mixer body 1, and the material will be lifted to a high place by the conveying mechanism 10 and the second spiral fan blade 14, which is convenient for work. For the operation of personnel, the left side of the transport body 9 is provided with a support frame, the number of which is three, the upper surface of the base 24 is fixedly connected with the lower surface of the support frame, and the left side of the transport body 9 is fixedly connected with a power supply 20, The left side of the power supply 20 is fixedly connected to the right side of the first switch 21, the second switch 22 and the third switch 23, and the output end of the power supply 20 is connected to the first switch 21, the second switch 22 and the third switch respectively through wires. The input end of 23 is electrically connected, the output end of the first switch 21 is electrically connected to the input end of the stirring motor 201 through a wire, the output end of the second switch 22 is electrically connected to the input end of the electric push rod 19 through a wire, and the third switch 23 The output end of the mixer is electrically connected to the input end of the second motor 13 through wires, because the first switch 21, the second switch 22 and the third switch 23 are provided, so that the staff can conveniently operate the mixer body 1 and the transport body 9, and the transporter The lower surface of the inner wall of the body 9 is fixedly connected to the lower surface of the conveying mechanism 10 .

The lower surface of the transport body 9 is clamped with a third bearing 12, the third bearing 12 is sleeved with a third rotating shaft 11, the bottom end of the third rotating shaft 11 is fixedly connected with the driving shaft of the second motor 13, and the second motor 13 The lower surface of the body is fixedly connected with the upper surface of the base 24, the second spiral fan blade 14 is sleeved on the outer surface of the third rotating shaft 11, and the top end of the third rotating shaft 11 is sleeved in the fourth bearing 15. The bearing 15 makes it difficult for the second motor 13 to shake when driving the third shaft 11 to rotate, and it is more stable. The fourth bearing 15 is clamped on the upper surface of the inner wall of the transport body 9, and the right side of the transport body 9 is provided with a chute 16. , a slider 17 is slidably connected in the chute 16, the right side of the slider 17 is fixedly connected with the left side of the placing box 18, the bottom end of the placing box 18 is fixedly connected with the top end of the electric push rod 19, and the electric push rod 19 The bottom end is fixedly connected with the upper surface of the base 24 .

The working principle of the utility model is:

S1. When it is necessary to mix and lift the cement, the staff only needs to turn on the first switch 21, and then pour the material for mixing the cement into the leak-proof column, and the material will enter the mixer body 1, because the mixing motor 201 Drive the stirring shaft 4 to rotate, and the stirring rod 7 on the stirring shaft 4 will stir the material. When the stirring is completed, the material enters the transport body 9 along the stirring body 1, and then falls on the conveying mechanism 10. At this time, the staff will When the conveying mechanism 10 is activated, the material will fall on the second helical fan blade 14 along the conveying mechanism 10, and the second motor 13 drives the third rotating shaft 11 to rotate, so that the material will be lifted along the second helical fan blade 14;

S2. When the material is lifted to the top of the transport body 9, it will fall into the placing box 18 along the outlet. When the material needs to be used, just activate the second switch 22, and the electric push rod 19 will move up and down, so that the The placement box 18 is moved to a suitable position;

S3. When the transportation is completed, the device will stop running only if the staff turns off the first switch 21, the second switch 22 and the conveying mechanism 10.

In the description of the present invention, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "connected" and "connected" should be understood in a broad sense, for example, it may be a fixed connection or a connectable connection. Detachable connection, or integral connection; may be mechanical connection or electrical connection; may be direct connection, or indirect connection through an intermediate medium, or internal communication between two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood through specific situations.

The preferred embodiments of the present patent have been described in detail above, but the present patent is not limited to the above-mentioned embodiments. Within the scope of knowledge possessed by those of ordinary skill in the art, various modifications can be made without departing from the purpose of the present patent. kind of change.

Claims (6)

1. The utility model provides a material feeding unit is used to construction eminence, includes stirring organism (1), its characterized in that: the upper surface of the stirring machine body (1) is fixedly connected with the lower surface of the driving device (2), the bottom end of the driving device (2) is fixedly connected with the top end of the stirring shaft (4), the outer surface of the stirring shaft (4) is sleeved with a first bearing (3), and the first bearing (3) is clamped on the upper surface of the stirring machine body (1);

the left side surface of the stirring shaft (4) is connected with second bearings (5) in a clamping mode, the number of the second bearings (5) is six, second rotating shafts (6) are sleeved in the six second bearings (5), the left ends of the second rotating shafts (6) are fixedly connected with the right ends of stirring rods (7), first spiral fan blades (8) are sleeved on the outer surfaces of the stirring rods (7), the lower surface of the stirring machine body (1) is communicated with the upper surface of a conveying machine body (9), and the lower surface of the inner wall of the conveying machine body (9) is fixedly connected with the lower surface of a conveying mechanism (10);

the lower surface joint of transport organism (9) has third bearing (12), third pivot (11) has been cup jointed in third bearing (12), the bottom of third pivot (11) and the drive shaft fixed connection of second motor (13), the lower surface of second motor (13) fuselage and the upper surface fixed connection of base (24), second spiral flabellum (14) has been cup jointed to the surface of third pivot (11), the top of third pivot (11) cup joints in fourth bearing (15), fourth bearing (15) joint is on the upper surface of transport organism (9) inner wall, spout (16) have been seted up to the right flank of transport organism (9), sliding connection has slider (17) in spout (16), the right flank of slider (17) and the left surface fixed connection who places case (18), the bottom of placing case (18) and the top fixed connection of electric putter (19), the bottom end of the electric push rod (19) is fixedly connected with the upper surface of the base (24).

2. The feeding device for high building construction according to claim 1, wherein: drive arrangement (2) are including mount (202), the quantity of mount (202) has two, and the opposite face of two mounts (202) respectively with the left and right sides face fixed connection of agitator motor (201) organism, the lower surface of mount (202) and the upper surface fixed connection of agitator body (1), the drive shaft of agitator motor (201) and the top fixed connection of (mixing) shaft (4).

3. The feeding device for high building construction according to claim 1, wherein: the left side of transportation organism (9) is provided with the support frame, and the quantity of support frame has three, the upper surface of base (24) and the lower fixed surface of support frame are connected.

4. The feeding device for high building construction according to claim 1, wherein: the upper surface of the stirring machine body (1) is communicated with the lower surface of the leakage-proof fence, and the number of the leakage-proof fence is two.

5. The feeding device for high building construction according to claim 2, wherein: the left side face of the transport machine body (9) is fixedly connected with a power supply (20), and the left side face of the power supply (20) is fixedly connected with the right side faces of a first switch (21), a second switch (22) and a third switch (23).

6. The feeding device for high building construction according to claim 5, wherein: the output of power (20) passes through the wire and is connected with the input electricity of first switch (21), second switch (22) and third switch (23) respectively, the output of first switch (21) passes through the wire and is connected with agitator motor (201)'s input electricity, the output of second switch (22) passes through the wire and is connected with electric putter (19)'s input electricity, the output of third switch (23) passes through the wire and is connected with the input electricity of second motor (13).
