Abstract

The utility model is suitable for a wine utensil packaging box, which comprises an outer box and an inner holder, the outer box comprises a box body and a box cover, the inner holder is placed in the box body, and the inner holder is provided with a plurality of In the groove for accommodating wine utensils, one end of the groove is provided with a limit tongue extending to the other end, the structure of the wine utensil packaging box is simple and easy to process, and the setting of the limit tongue enables the wine utensils to be obtained. better protection.

Description

A wine packaging box

technical field

The utility model belongs to the technical field of packaging, in particular to a wine utensil packaging box.

Background technique

Products are inseparable from packaging in the process from the manufacturer to the end to the consumer. The packaging box bears the important responsibility of containing, protecting the product and being beautiful. Among them, paper packaging boxes are more and more widely used in product packaging because of their light weight, foldable, convenient transportation, recyclability, and environmental protection. At present, in the existing paper packaging box, a line is generally performed on the paper sheet to form a crease on the paper sheet, and then the required packaging box is formed along the crease, and in the process of forming the packaging box, The connection surface or sealing part of the packaging box is generally connected or sealed by nailing, gluing or pasting adhesive tape. The molding process of the entire packaging box is cumbersome and not environmentally friendly, resulting in waste of resources and high processing costs. Further, in the existing packaging box, the product is often not fixed and falls off.

SUMMARY OF THE INVENTION

The purpose of the utility model is to provide a wine utensil packaging box, which aims to solve the problems of the wine utensil packaging box wasting materials, not being environmentally friendly, and the wine utensils being easily damaged.

The utility model is realized in this way, a wine utensil packaging box includes an outer box and an inner support, the outer box includes a box body and a box cover, the inner support is placed in the box body, and the inner support is provided with There are a plurality of grooves for accommodating wine utensils, and one end of the grooves is provided with a limiting tongue extending to the other end.

A further technical solution of the present invention is: the inner support further comprises a left side plate, a first bearing plate, a first folding plate, a second folding plate, a second bearing plate, a third folding plate and a fourth folding plate which are connected in sequence. plate, a third carrying plate and a right side plate, the free end of the left side plate is provided with a first flap and a third flap, and the free end of the right side plate is provided with a second flap and a fourth flap , the free end of the first flap is provided with a first insertion tongue, the free end of the second flap is provided with a second insertion tongue, and the free end of the third flap is provided with a third insertion tongue, so The free end of the fourth flap is provided with a fourth insertion tongue, the first folding plate and the second folding plate are respectively provided with sockets adapted to the first insertion tongue, the first folding The board and the second folding board are also provided with sockets adapted to the third insertion tongues, and the third folding board and the fourth folding board are respectively provided with the second insertion tongues Matching sockets, the third folding board and the fourth folding board are also provided with sockets matching the fourth tongue, and the two ends of the first carrying board are respectively provided with a socket. a support plate and a second support plate, the two ends of the second support plate are respectively provided with a third support plate and a fourth support plate, and the two ends of the third support plate are respectively provided with a fifth support plate and a sixth support plate support plate.

A further technical solution of the present invention is: the box body includes a bottom plate, both ends of the bottom plate are respectively provided with a first side enclosure and a second side enclosure, and both sides of the bottom plate are respectively provided with a third side enclosure plate and the fourth side wall, the free end of the first side wall is provided with a first limit plate, the free end of the first limit plate is provided with a first limit tongue, the bottom plate is connected to the The connecting end of the first side wall is provided with a first limit hole matching with the first limit tongue, the free end of the second side wall is provided with a second limit plate, the The free end of the second limiting plate is provided with a second limiting tongue, and the connecting end of the bottom plate and the second side wall is provided with a second limiting tongue adapted to the second limiting tongue The two ends of the fourth side enclosure are respectively provided with a first fixing plate and a second fixing plate, and both ends of the third side enclosure are respectively provided with a third fixing plate and a fourth fixing plate. The free end of the fourth side enclosure is connected to the free end of the third support plate, the box cover includes a cover, one side of the cover is connected to the third side enclosure, and the cover is The other side is provided with a side cover plate, the two ends of the side cover plate are respectively provided with a fifth fixing plate and a sixth fixing plate, and the two ends of the cover plate are respectively provided with a left cover plate and a right cover plate.

The beneficial effects of the utility model are that the structure of the wine utensil packaging box is simple and easy to process, and the setting of the limiting tongues can prevent the wine utensils from falling off, so that the wine utensils can be better protected.

Description of drawings

Fig. 1 is the plan development view of a kind of wine utensil packing box that the utility model embodiment provides;

2 is a schematic diagram of a folded state of a wine utensil packaging box provided by an embodiment of the present invention;

3 is a schematic diagram of another folded state of a wine utensil packaging box provided by an embodiment of the present invention;

4 is a schematic diagram of another folded state of a wine utensil packaging box provided by an embodiment of the present invention;

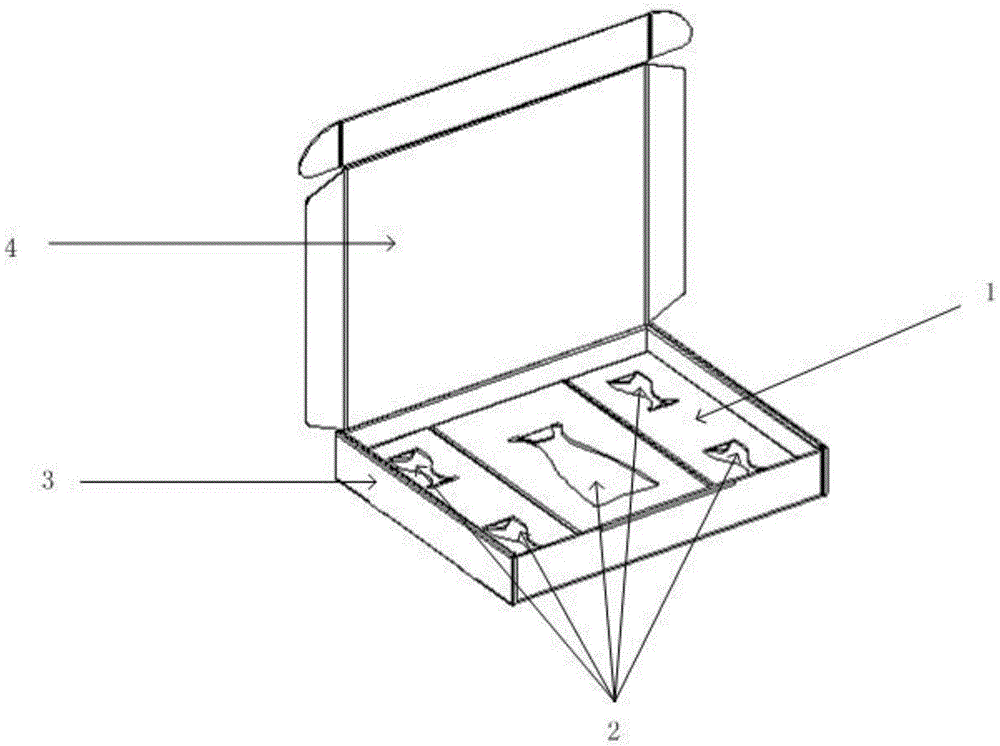

5 is a schematic structural diagram of a wine utensil packaging box provided by an embodiment of the present invention;

The names of the parts in the figure are as follows:

1- inner support; 2- groove; 3- box body; 4- box cover; 11- left side plate; 12- first carrying plate; 13- first folding plate; 14- second folding plate; 15- first 2 carrying board; 16-third folding board; 17-fourth folding board; 18-third carrying board; 19-right side board; 20-first fold; 21-second fold; 22-third fold Sheet; 23- fourth flap; 24-first tongue; 25-second tongue; 26-third tongue; 27- fourth tongue; 28-first support plate; 29-second support plate 30-The third support plate; 31- The fourth support plate; 32- The fifth support plate; 33- The sixth support plate; - Third side panel; 215- Fourth side panel; 216- First limit plate; 217- Second limit plate; 218- First limit tongue; 219- Second limit tongue; 220 - first limit hole; 221- second limit hole; 222- cover plate; 223- side cover plate; 224- left cover plate; 225- right cover plate; 226- first fixing plate; 227- second fixing plate plate; 228- the third fixing plate; 229- the fourth fixing plate; 230- the fifth fixing plate; 231- the sixth fixing plate.

Detailed ways

The specific embodiments of the present invention will be described with reference to the above drawings.

A wine utensil packaging box in this embodiment includes an outer box and an inner support 1, the outer box includes a box body 3 and a box cover 4, the inner support 1 is placed in the box body 3, and the inner support 1 is placed in the box body 3. The holder 1 is provided with a plurality of grooves 2 for accommodating wine utensils. One end of the groove 2 is provided with a limit tongue extending to the other end. The inner wall of the wine set.

In this technical solution, the inner support 1 further comprises a left side plate 11, a first bearing plate 12, a first folding plate 13, a second folding plate 14, a second bearing plate 15, a third folding plate 16, The fourth folding plate 17 , the third carrying plate 18 and the right side plate 19 . The free end of the left side plate 11 is provided with a first flap 20 and a third flap 22 , and the free end of the right side plate 19 is provided with a first flap 20 and a third flap 22 . There are a second flap 21 and a fourth flap 23, the free end of the first flap 20 is provided with a first insertion tongue 24, and the free end of the second flap 21 is provided with a second insertion tongue 25, so The free end of the third flap 22 is provided with a third insertion tongue 26, the free end of the fourth flap 23 is provided with a fourth insertion tongue 27, the first folding plate 13 and the second folding plate 14 The first foldable plate 13 and the second foldable plate 14 are also provided with sockets that are compatible with the third insert tongue 26. A socket, the third folding board 16 and the fourth folding board 17 are respectively provided with sockets that are adapted to the second plug tongue 25, the third folding board 16 and the fourth folding board 17 There are also sockets corresponding to the fourth plug tongues 27 on the tops, and the two ends of the first support plate 12 are respectively provided with a first support plate 28 and a second support plate 29. The second support plate Both ends of 15 are respectively provided with a third support plate 30 and a fourth support plate 31, and both ends of the third bearing plate 18 are respectively provided with a fifth support plate 32 and a sixth support plate 33, and the left side plate 11 , the first folding plate 13 , the second folding plate 14 , the first supporting plate 28 , the second supporting plate 29 , the first folding sheet 20 and the third folding sheet 22 are folded to form the support of the first carrying plate 12 After the first folding board 13, the second folding board 14, the third folding board 16, and the fourth folding board 17 are folded, two supporting beams of the second carrying board 15 are formed, and the third folding board After the plate 16 , the fourth folding plate 17 , the right side plate 19 , the second flap 21 , the fourth flap 23 , the fifth supporting plate 32 and the sixth supporting plate 33 are folded, the third supporting plate 18 is formed. support.

In this technical solution, the box body 3 includes a bottom plate 211 , both ends of the bottom plate 211 are respectively provided with a first side enclosure plate 212 and a second side enclosure plate 213 , and both sides of the bottom plate 211 are respectively provided with a third side enclosure plate 211 . The side wall 214 and the fourth side wall 215, the free end of the first side wall 212 is provided with a first limit plate 216, the free end of the first limit plate 216 is provided with a first limit plug tongue 218 , the connecting end of the bottom plate 211 and the first side wall 212 is provided with a first limit hole 220 which is matched with the first limit plug tongue 218 , the second side wall 213 A second limiting plate 217 is provided at the free end of the second limiting plate 217, a second limiting tongue 219 is provided at the free end of the second limiting plate 217, and the connecting end of the bottom plate 211 and the second side surrounding plate 213 is provided with a second limiting tongue 219. There is a second limit hole 221 which is matched with the second limit plug tongue 219. The two ends of the fourth side enclosure plate 215 are respectively provided with a first fixing plate 226 and a second fixing plate 227. Both ends of the third side enclosure plate 214 are respectively provided with a third fixing plate 228 and a fourth fixing plate 229 , the free end of the fourth side enclosure plate 215 is connected with the free end of the third support plate 30 , the The box cover 4 includes a cover plate 222. One side of the cover plate 222 is connected to the third side enclosure plate 214. The other side of the cover plate 222 is provided with a side cover plate 223. Both ends are respectively provided with a fifth fixing plate 230 and a sixth fixing plate 231 , both ends of the cover plate 222 are respectively provided with a left cover plate 224 and a right cover plate 225 , the bottom plate 211 , the first side surrounding plate 212 , The second side wall 213, the third side wall 214, the fourth side wall 215, the first limit plate 216, the second limit plate 217, the first fixing plate 226, the second fixing plate 227, the third fixing plate After the plate 228 and the fourth fixing plate 229 are folded, the box body 3 is formed. After the fifth fixing plate 230 and the sixth fixing plate 231 are folded, the box cover 4 is formed, and the material of the wine utensil packaging box is corrugated paper.

The above are only preferred embodiments of the present invention, and are not intended to limit the present invention. Any modifications, equivalent replacements and improvements made within the spirit and principles of the present invention shall be included in the present invention. within the scope of protection of the utility model.

Claims (3)

1. a wine utensil packaging box, is characterized in that, comprises outer box and inner support, described outer box comprises box body and box cover, and described inner support is placed in described box body, and described inner support is provided with a plurality of A groove for accommodating wine utensils, one end of the groove is provided with a limiting tongue extending to the other end. 2 . The wine utensil packaging box according to claim 1 , wherein the inner support further comprises a left side plate, a first bearing plate, a first folding plate, a second folding plate and a second bearing plate which are connected in sequence. 3 . , the third folding board, the fourth folding board, the third bearing board and the right side board, the free end of the left side board is provided with a first flap and a third flap, and the free end of the right side board is provided with The second flap and the fourth flap, the free end of the first flap is provided with a first insertion tongue, the free end of the second flap is provided with a second insertion tongue, and the free end of the third flap is provided with a second insertion tongue. The end is provided with a third insertion tongue, the free end of the fourth flap is provided with a fourth insertion tongue, and the first folding plate and the second folding plate are respectively provided with a corresponding first insertion tongue The first folding board and the second folding board are also provided with sockets matching the third insertion tongues, and the third folding board and the fourth folding board are respectively provided with sockets. There is a socket adapted to the second insertion tongue, the third folding board and the fourth folding board are also provided with sockets adapted to the fourth insertion tongue, the first Both ends of the carrying plate are respectively provided with a first supporting plate and a second supporting plate, both ends of the second supporting plate are respectively provided with a third supporting plate and a fourth supporting plate, and both ends of the third supporting plate are respectively provided with a third supporting plate and a fourth supporting plate. A fifth support plate and a sixth support plate are provided. 3 . The wine utensil packaging box according to claim 2 , wherein the box body comprises a bottom plate, and both ends of the bottom plate are respectively provided with a first side wall and a second side wall, and the bottom plate has a bottom plate. 4 . The two sides are respectively provided with a third side enclosure plate and a fourth side enclosure plate, the free end of the first side enclosure plate is provided with a first limit plate, and the free end of the first limit plate is provided with a first limit plate. The connecting end of the bottom plate and the first side wall is provided with a first limit hole which is matched with the first limit tongue, and the free end of the second side wall is provided with a position plug tongue. There is a second limit plate, the free end of the second limit plate is provided with a second limit plug tongue, and the connecting end of the bottom plate and the second side wall is provided with a second limit plug. The tongue is adapted to the second limit hole, the two ends of the fourth side wall are respectively provided with a first fixing plate and a second fixing plate, and the two ends of the third side wall are respectively provided with a third fixing plate the free end of the fourth side enclosure is connected with the free end of the third support plate, the box cover includes a cover plate, one side of the cover plate is connected to the third side The enclosure plates are connected, the other side of the cover plate is provided with a side cover plate, the two ends of the side cover plate are respectively provided with a fifth fixing plate and a sixth fixing plate, and the two ends of the cover plate are respectively provided with a left cover and right cover.
