Abstract

The utility model provides an electromagnetic magnetic separation device for handling solid waste, including support, magnet subassembly, end plate flange, supply plate electrode, carbon brush electrode, power input shaft and magnetic separation cylinder etc.. The magnet assembly mainly comprises an electrode lead, a connecting shaft, a coil and an iron core, and is respectively and fixedly connected with end plate flanges at two ends of the magnetic separation roller through the connecting shafts at the two ends; the electrode supply plate is provided with an outer electrode plate and an inner electrode plate; during rubbish magnetic separation, magnetic waste is adsorbed on the surface of the roller by the magnetic force of the electromagnet, and after the adsorbed magnetic waste rotates along with the roller and passes through the partition plate, the electromagnet disappears due to the loss of electricity, and the magnetic waste falls into the magnetic waste conveying belt due to the action of gravity, so that the magnetic waste is separated. The utility model discloses practiced thrift the energy, reduced the cost that waste sorting and handled, avoided striking off magnetic waste and magnetic waste to the harm that burns burning furnace from high-intensity magnetic field machinery, improved the reliability and the economic benefits of the life of the efficiency of burning of solid waste, solid waste magnetic separation equipment and production line.

Description

An electromagnetic magnetic separation device for processing solid waste

technical field

The utility model relates to an electromagnetic magnetic separation device for processing solid waste, in particular to an electromagnetic magnetic separation device, which is mainly used for the pretreatment of magnetic materials in solid waste, etc., which can prevent the magnetic waste from damaging the incinerator during the incineration process and prolong the The solid waste magnetic separation equipment has a long service life and saves energy.

technical background

Solid waste refers to the solid waste produced by people in daily life. It has complex components, various types and different sizes. If it is not disposed of in time, it will greatly pollute the environment, endanger human health, and also occupy and pollute a large amount of land resources. . There are three main methods of solid waste disposal: sanitary landfill, composting and incineration. At present, sanitary landfill treatment accounts for about 78% of the domestic waste disposal; composting is difficult to form a more effective recycling due to the poor classification and subdivision of waste; incineration can greatly reduce the volume and weight of waste and can be reused. Clean electric energy has become a more popular and popular disposal method due to the prominent waste problem in recent years. Since there are often magnetic wastes such as scrap iron in solid wastes, such wastes should not be used in sanitary landfills and composting, nor should they be treated by incineration, mainly because they will cause serious damage to the incinerator during the incineration process. This kind of ferromagnetic waste must be screened and separated before, which can not only improve the treatment efficiency of subsequent non-magnetic waste, but also recycle scrap iron resources for reuse, which not only saves energy but also protects the environment.

The working principle of the solid waste separation magnetic separation device is to use the magnetic force to absorb and separate the ferromagnetic materials in the solid waste. Existing magnetic separation equipment generally uses permanent magnets to screen and separate ferromagnetic materials from solid waste through the suction of a constant magnetic field (non-magnetic materials are not disturbed by the magnetic field). However, since the permanent magnet is a constant magnetic field and its magnetic field strength does not change, the magnetically selected magnetic waste can only be separated from the magnetic field (ie, separated from the magnetic separation drum) by the strong mechanical action of the scraper. The disadvantage of this method is that the scraper is subject to huge mechanical impact and is easily damaged, and the separation and recovery is difficult and incomplete. It also reduces the working reliability of the magnetic separation equipment and seriously shortens its service life. It also causes serious damage to the incinerator in the subsequent incineration process. damage.

SUMMARY OF THE INVENTION

The utility model provides an electromagnetic magnetic separation device for processing solid waste, which comprises a support, a magnet assembly, an end plate flange, a supply electrode plate, a carbon brush electrode, a power input shaft, a magnetic separation drum, etc. Including electrode lead, connecting shaft, coil and iron core. During the magnetic separation of garbage, the power input shaft drives the end plate flange to drive the magnetic separation drum to rotate, and the solid waste passes through the surface of the magnetic separation drum through the garbage feeding hopper. The garbage falls into the non-magnetic garbage conveyor belt from the surface of the drum under the action of its own gravity; the adsorbed magnetic garbage rotates with the drum, and after passing through the separator, the electrode plate and the carbon brush electrode are separated from the power supply, and this part of the magnetic separation drum The electromagnet inside the electromagnet disappears due to the loss of electricity, and the magnetic garbage adsorbed on its surface falls into the magnetic garbage conveyor belt due to the action of gravity; as the magnetic separation drum continues to rotate, the supply electrode plate and the carbon brush electrode are in contact again. The electromagnet in the area regenerates the electromagnetic force, and the solid magnetic waste can be adsorbed on the surface of the magnetic separation drum again; at this point, a cycle of magnetic separation of solid waste is completed, so that the continuous cycle can complete the magnetic separation of solid waste. Work.

beneficial effect

Aiming at the problem that the magnetic garbage in the existing garbage magnetic separation technology must be mechanically scraped from the strong magnetic field, which not only wastes energy but also seriously reduces the reliability and service life of the magnetic separation equipment, an electromagnetic magnetic field for processing solid garbage was invented. The sorting device avoids mechanical scraping of magnetic garbage from strong magnetic fields, saves energy, reduces the cost of garbage sorting and processing, and prolongs the life and trouble-free working time of garbage sorting equipment; in addition, it also improves the incineration of solid waste. It can effectively avoid the damage of the magnetic waste to the incinerator during the incineration process, and improve the service life of the solid waste magnetic material processing equipment and the reliability of the production line, trouble-free working time and economic benefits.

The utility model realizes the above-mentioned technical purpose through the following technical means:

An electromagnetic magnetic separation device for processing solid waste, comprising a power input shaft (1), an end plate flange (2), a carbon brush electrode (3), a supply electrode plate (4), a support (5), a magnet The assembly (8) and the magnetic separation drum (10), etc.; the magnet assembly (8) mainly includes the electrode lead (8-1), the connecting shaft (8-2), the coil (8-3) and the iron core (8-4) The magnet assembly (8) is fixed on the connecting shaft (8-2), and the connecting shafts (8-2) at both ends thereof are respectively fixedly connected with the end plate flanges (2) at both ends of the magnetic separation drum (10); The end plate flange (2), the flange shaft mounting hole (2-1), the magnetic separation drum (10) are concentric with the power input shaft (1), and the end plate flange (2) is installed through the drum flange The holes (2-3) are fixed on both ends of the magnetic separation drum (10); the two ends of the magnetic separation drum (10) are mounted on the support (5) through self-lubricating bearings (7), and one end passes through The flange shaft mounting hole (2-1) is fixedly connected with the power input shaft (1), and the other end is installed with an end plate flange (2) and a supply electrode plate (4), and the end plate flange (2) is connected with the supply electrode plate There is a gap of 3-5mm between (4), and the flange shaft and the roller flange mounting hole (2-3) on the supply electrode plate (4) are clearance fit to ensure that the carbon brush electrode (3) and the supply electrode plate ( 4) Smooth power supply and free rotation of the magnetic separation drum (10); the electrode leads (8-1) of the magnet assembly (8) are respectively connected with the carbon brush electrodes (3), and the carbon brush electrodes (3) are respectively installed in Electrode seat hole I (2-2) and electrode seat hole II (2-5) are used for power supply for magnetic separation of solid waste; the electrode plate (4) is fixedly installed on one end of the support (5). The inner side surface is provided with an outer electrode plate (4-1), an electrode plate mounting hole (4-2) and an inner electrode plate (4-3), the outer electrode plate (4-1), the inner electrode plate (4-2) 3) It is fixedly installed in the groove on the supply electrode plate (4) through the electrode plate installation hole (4-2) and connected with the magnetic cable (6) respectively, so as to provide the power energy for the magnetic separation of solid waste; the external electrode The surfaces of the two supply electrode plates (4-1) and the inner electrode plate (4-3) after installation are smooth and flat, so as to facilitate the smooth transition of power supply to the electrodes; the power input shaft (1) passes through the The two self-lubricating bearings (7) are connected with the support (5), and the support (5) can be fixed on the garbage sorting platform through the support mounting hole (9).

Preferably, the outer electrode plate (4-1) and the inner electrode plate (4-3) are fixed in the groove of the supply electrode plate (4) with glue, and the entire surface of the supply electrode plate is smooth and flat after grinding, In order to facilitate the good contact between the carbon brush electrode (3) and the electrode plate during the magnetic separation operation, the current is stable, and the stable and reliable magnetic separation operation is ensured.

Preferably, the length of the outer electrode plate (4-1) and the inner electrode plate (4-3) is five-eighths the length of the ring, and the installation and arrangement are between 90° and 315°, that is, at a right angle to the plane. The coordinate system starts from the second quadrant and goes through the third quadrant to half of the fourth quadrant, and after it is fixedly embedded in the groove of the supply electrode plate (4), the entire surface of the supply electrode plate (4) should be smooth and flat, Ensure reliable contact with the carbon brush electrode (3) and stable power supply.

Preferably, the material of the iron core (8-4) of the magnet assembly (8) is electrical pure iron, which can generate the strongest magnetic field force and at the same time reduce the cost.

Preferably, self-lubricating bearings (7) are selected for the electromagnetic magnetic separation device for solid waste treatment to be installed in different parts, because there is no need for lubrication during operation, and the gap is smaller, which can reduce the damage of the bearing, thereby improving the magnetic properties of solid waste. The service life and working reliability of the optional device.

Description of drawings

FIG. 1 is a schematic structural diagram of an electromagnetic magnetic separation device for processing solid waste according to the present invention.

Figure 2 is a schematic structural diagram of the end plate flange of the electromagnetic magnetic separation device of the present invention, wherein Figure (a) is a schematic diagram of the structure of the end plate flange without electrode seat holes, and Figure (b) is provided with electrode seat holes.

FIG. 3 is a schematic diagram of wiring of different connection methods when the lead wires of the coil electrodes of the magnet components of the electromagnetic magnetic separation device of the present invention are connected together.

4 is a schematic structural diagram of the carbon brush electrode of the electromagnetic magnetic separation device of the present invention.

5 is a schematic structural diagram of a supply electrode plate of the electromagnetic magnetic separation device of the present invention.

6 is a schematic structural diagram of the magnet assembly of the electromagnetic magnetic separation device of the present invention.

7 is a schematic diagram of the structure of the self-lubricating bearing of the electromagnetic magnetic separation device of the present invention.

FIG. 8 is a schematic diagram of the operation flow of the solid waste magnetic separation separation operation of the electromagnetic magnetic separation device.

The reference numerals are explained as follows:

1. Power input shaft; 2. End plate flange; 2-1. Flange shaft mounting hole; 2-2. Electrode seat hole I; 2-3. Roller flange mounting hole; 2-4. Magnet assembly mounting hole ; 2-5. Electrode seat hole II; 3. Carbon brush electrode; 3-1. Carbon brush; 3-2. Spring; 3-3. Electrode seat; 4. Supply electrode plate; 4-1. Outer electrode plate; 4-2. Electrode plate mounting hole; 4-3. Inner electrode plate; 5. Support; 6. Magnetic cable; 7. Self-lubricating bearing; 8. Magnet assembly; 8-1. Electrode lead wire; 8-2. Connecting shaft; 8-3. Coil; 8-4. Iron core; 9. Mounting hole for support; 10. Magnetic separation drum; 11. Garbage feeding hopper; 12. Solid waste; 13. Separation plate; Garbage; 15. Non-magnetic garbage conveyor belt; 16. Magnetic garbage conveyor belt; 17. Magnetic garbage.

Detailed ways

The structure, principle and working process of the present utility model will be further described below with reference to the accompanying drawings.

1-7 is a schematic structural diagram of an electromagnetic magnetic separation device for processing solid waste provided by the present utility model, including a power input shaft (1), an end plate flange (2), a carbon brush electrode (3), a power supply The pole plate (4), the support (5), the magnet assembly (8), the magnetic separation drum (10), etc.; the magnet assembly (8) mainly includes the electrode lead (8-1), the connecting shaft (8-2), the coil (8-3) and the iron core (2-4); the magnet assembly (8) is fixed on the connecting shaft (8-2), and the connecting shafts (8-2) at both ends of the magnet assembly (8-2) are respectively connected to the magnetic separation drum (10). The end plate flanges (2) at both ends of the ) are fixedly connected; the end plate flange (2), the flange shaft mounting hole (2-1), the magnetic separation drum (10) are concentric with the power input shaft (1) , the end plate flange (2) is fixedly connected to both ends of the magnetic separation drum (10) through the drum flange mounting holes (2-3). The power input shaft (1) is connected with the support (5) through two self-lubricating bearings (7), and the support (5) can be fixed on the garbage sorting platform through the support mounting hole (9). .

Figure 2 is a schematic structural diagram of the end plate flange (2) of the electromagnetic magnetic separation device of the present invention, wherein Figure (a) is provided with electrode seat holes, and Figure (b) is the end plate flange structure without electrode seat holes. Schematic. The end plate flange (2) is fixedly installed on both ends of the magnet drum (10) through the drum flange mounting holes (2-3), and the two ends of the connecting shaft (8-2) at both ends of the magnet assembly (8) are respectively installed and fixed The magnet assembly mounting holes (2-4) of the end plate flange (2), and the electrode seat holes provided on the end plate flange (2) as shown in Figure (a) are used to install the carbon brush electrodes (3). The electrode holder hole I is used to install one electrode lead (8-1) in the coil (8-3) connected to each magnet assembly (8), and the other electrode lead (8-1) in the coil (8-3) thereof. 1) It needs to be connected together, and connected with the carbon brush electrode (3) and fixedly installed in the electrode seat hole II (2-5). The electrode leads (8-1) in the coils (8-3) connected together can be two adjacent electrode leads (8-1) in the actual installation position of the magnet assembly (8), and then two electrode leads separated (8-1) and then connect two adjacent electrode leads (8-1) together, as shown in Figure 3(a); it can also be to connect the electrode leads (8-1) of every other electrode lead (8-1). 8-1) are connected together to obtain the electromagnetic field forces in different directions of the magnetic field lines, as shown in Fig. 3(b).

Figure 4 is a schematic structural diagram of the carbon brush electrode (3) of the electromagnetic magnetic separation device of the present invention. The carbon brush (3-1) is in contact with the outer electrode plate (4-1) or the inner electrode plate (4-3) of the supply electrode plate (4), and is used for receiving the electric energy transmitted by the supply electrode plate (4). , the electrode seat (3-3) is fixedly installed in the electrode seat hole I (2-2) or the electrode seat hole II (2-5), together with the spring (3-2) to ensure that the carbon brush (3-1) and the electrode The contact of the board is tight and effective.

Fig. 5 is a schematic structural diagram of the supply electrode plate (4) of the electromagnetic magnetic separation device of the present invention. The end face of the supply electrode plate (4) is provided with two large semi-circular grooves for embedded installation of the outer electrode plate (4-1) and the inner electrode plate (4-3). The body is fixedly connected. After installation, the entire surface should be smooth and smooth to facilitate the free sliding contact of the carbon brush electrode (3) and ensure reliable power supply; the electrode plate (4) is fixedly installed on the inner side of one end of the support (5), and its center The flange shaft installation hole (2-1) and the supporting shaft installed in it are concentric with the end plate flange (2) and the magnetic separation drum (10), and the flange shaft installation hole (2-1) is concentric with the flange shaft (2-1) installed in it. The supporting shaft is a clearance fit to ensure that the magnetic separation drum (10) can rotate freely, and the outer electrode plate (4-1), the inner electrode plate (4-3) and the carbon brush electrodes can freely slide and contact the carbon brush electrodes freely.

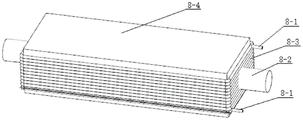

6 is a schematic structural diagram of the magnet assembly (8) of the electromagnetic magnetic separation device of the present invention, and FIG. 7 is a structural schematic diagram of the self-lubricating bearing (7) of the electromagnetic magnetic separation device of the present invention. The magnet assembly (8) is composed of an electrode lead (8-1), a connecting shaft (8-2), a coil (8-3) and an iron core (8-4), and the electrode lead (8-1) receives the magnetic force The electric energy transmitted by the cable (6), the supply electrode plate (4), and the carbon brush electrode (3) is used for adsorbing ferromagnetic solid waste; the connecting shaft (8-2) is used for fixing the magnet assembly (8) on the magnetic Select the correct position of the drum (10), and install it on both sides of the bracket (5) through the self-lubricating bearing (7). High magnetic materials such as iron are used to ensure the effective operation of the magnetic separation device.

FIG. 8 is a schematic diagram of the operation flow of the solid waste magnetic separation separation operation of the electromagnetic magnetic separation device. The magnetic separation separation process of the electromagnetic magnetic separation device of the utility model for processing solid waste is as follows:

a) After starting the machine, the power input shaft (1) drives the end plate flange (2) and the magnetic separation drum (10) to rotate.

b) The solid waste (12) passes through the surface of the magnetic separation drum (10) through the waste feeding hopper (11), at this time, the direction of the magnetic field force generated by the magnet assembly (8) due to the electricity is perpendicular to the direction of the magnetic separation drum (10). The tangential plane has the largest magnetic force, which can adsorb the magnetic waste (17) on the outer surface of the magnetic separation drum (10), while the non-magnetic waste (14) directly falls into the non-magnetic waste conveyor belt (15) under the action of gravity. .

c), the magnetic garbage (17) is adsorbed on the outer surface of the magnetic separation drum (10) due to the magnetic force of the magnet assembly (8) and continues to rotate, after passing through the partition plate (13), it is installed in the electrode hole seat I (2- 2) The carbon brush electrode (3) in the electrode hole seat II (2-5) is gradually separated from the contact with the outer electrode plate (4-1) and the inner electrode plate (4-3), and the magnet assembly (8) The coil (8-3) will lose the current supply, and the force of the magnet assembly (8) to absorb the magnetic separation garbage (17) will disappear. At this time, the magnetic garbage (17) will fall into the magnetic garbage transportation under the action of gravity due to the disappearance of the magnetic force. On the belt (16), the sorting and processing of the magnetic materials in the solid waste (12) is realized.

d) When the magnet assembly (8) continues to rotate with the magnetic separation drum (10), the carbon brush electrodes (3) installed in the electrode hole seat I (2-2) and the electrode hole seat II (2-5) gradually begin to rotate. In contact with the outer electrode plate (4-1) and the inner electrode plate (4-3), the coil (8-3) of the magnet assembly (8) is supplied with current again, and the household garbage (12) passes through the magnetic separation drum ( 10), the magnet assembly (8) can also adsorb the magnetic separation waste (17) on the outer surface of the magnetic separation drum (10); in this way, the continuous cycle can complete the electromagnetic separation of solid waste.

The embodiments are the preferred embodiments of the present invention, but the present invention is not limited to the above-mentioned embodiments, and any obvious improvements that can be made by those skilled in the art without departing from the essence of the present invention , replacement or modification all belong to the protection scope of the present invention.

Claims (6)

1. An electromagnetic magnetic separation device for treating solid garbage comprises a power input shaft (1), an end plate flange (2), a carbon brush electrode (3), an electrode supply plate (4), a support (5), a magnet assembly (8), a magnetic separation roller (10) and the like; the method is characterized in that: the magnet assembly (8) mainly comprises an electrode lead (8-1), a connecting shaft (8-2), a coil (8-3) and an iron core (8-4), wherein the electrode lead (8-1) is respectively connected with a carbon brush electrode (3), and the carbon brush electrode (3) is respectively arranged in an electrode base hole I (2-2) and an electrode base hole II (2-5); the magnet assembly (8) is fixed on the connecting shaft (8-2), and the connecting shafts (8-2) at the two ends of the magnet assembly are respectively and fixedly connected with the end plate flanges (2) at the two ends of the magnetic separation roller (10); the end plate flange (2), the flange shaft mounting hole (2-1) and the magnetic separation roller (10) are concentric with the power input shaft (1), and the end plate flange (2) is fixedly connected to two ends of the magnetic separation roller (10) through the roller flange mounting hole (2-3).

2. The electromagnetic magnetic separation device for treating solid waste is characterized in that the electrode supply plate (4) is fixedly arranged on the inner side surface of one end of the support (5), and is provided with an outer electrode plate (4-1), an electrode plate mounting hole (4-2) and an inner electrode plate (4-3), wherein the outer electrode plate (4-1) and the inner electrode plate (4-3) are fixedly arranged in a groove on the electrode supply plate (4) through the electrode plate mounting hole (4-2) and are respectively connected with a magnetic cable (6) for providing electric energy for magnetic separation of the solid waste; the surfaces of the outer electrode plate (4-1) and the inner electrode plate (4-3) after the electrode plate is installed and the surfaces of the electrode plates are smooth and flat.

3. The electromagnetic magnetic separation device for treating solid waste is characterized in that two ends of the magnetic separation drum (10) are mounted on the support (5) through self-lubricating bearings (7), one end of the magnetic separation drum is fixedly connected with the power input shaft (1) through a flange shaft mounting hole (2-1), the other end of the magnetic separation drum is provided with an end plate flange (2) and a power supply electrode plate (4), a gap of 3-5mm is reserved between the end plate flange (2) and the power supply electrode plate (4), and the flange shaft is in clearance fit with the drum flange mounting hole (2-3) on the power supply electrode plate (4).

4. The electromagnetic magnetic separation device for treating solid waste is characterized in that the length of the outer electrode plate (4-1) and the inner electrode plate (4-3) is five-eighths of a circle, the installation is arranged between 90 degrees and 315 degrees, and the whole surface of the outer electrode plate and the inner electrode plate is smooth and flat after the outer electrode plate and the inner electrode plate are fixedly embedded in the groove of the supply electrode plate (4).

5. An electromagnetic separator for solid waste treatment according to claim 1, characterized in that said support (5) is fixable to the waste sorting platform by means of support mounting holes (9); the self-lubricating bearing (7) is used for connecting the power input shaft (1) and the support shaft with the support (5).

6. An electromagnetic separator for solid waste treatment according to claim 1, characterized in that the iron core (8-4) of the magnet assembly (8) is made of electrician pure iron.
