CN211487368U - A low-protein piglet production matching device - Google Patents

Abstract

The utility model discloses a low-protein piglet matching production proportioning device, comprising a base and a feeding channel, self-locking rollers are arranged on the left and right sides of the lower end surface of the base, a bracket is arranged on the outer side of the collection box, and the A stirring rod is rotatably connected in the batching barrel, the feeding channel is placed on an electronic weighing scale, a hydraulic cylinder is fixed on the inner top of the feeding channel, and the lower side of the hydraulic cylinder is connected with the moving plate through a piston rod, The front end surface of the feeding channel is provided with a scale, and the bottom of the batching barrel is provided with an electric discharge valve. The low-protein piglet cooperates with the production proportioning device. When different materials are put into the corresponding feeding channels, the electronic weighing meter can weigh the materials in the feeding channel, which is convenient for batching according to the required weight ratio. , or by observing the scale to control the amount of material put in, it is convenient to batch according to the required volume ratio, so as to achieve the purpose of multi-modal batching.

Description

A low-protein piglet production matching device

technical field

The utility model particularly relates to the technical field of low-protein piglet cooperative production, in particular to a low-protein piglet cooperative production and proportioning device.

Background technique

In the process of feeding piglets, compound feed is needed. Compound feed refers to the nutritional needs of animals at different growth stages, different physiological requirements, and different production purposes, and based on experiments and researches on the evaluation of the nutritional value of feeds, according to scientific formulas Mix a variety of feeds from different sources evenly in a certain proportion. Before mixing, the feed needs to be proportioned, so a proportioning device is required.

The existing proportioning device has a single proportioning method, and the mixing effect of the materials is not uniform, thereby affecting the quality of the mixture, so it is not convenient to use. In view of the above problems, the existing equipment needs to be improved.

Utility model content

The purpose of this utility model is to provide a low-protein piglet production proportioning device, in order to solve the problem that the existing proportioning device proposed in the above background technology has a single proportioning method, and the mixing effect of materials is not uniform enough, thereby affecting the mixing effect. material quality issues.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a low-protein piglet matching production proportioning device, comprising a base and a feeding channel, the left and right sides of the lower end surface of the base are provided with self-locking rollers, and the base is provided with self-locking rollers. A collection box is placed, a bracket is arranged on the outside of the collection box, and the bracket is fixed on the upper end face of the base, and a batching bucket is fixed on the inner side of the top of the bracket. Both sides are fixed with electronic weighing scales by bolts, the feeding channel is placed on the electronic weighing scale, and the bottom of the feeding channel runs through the top of the batching barrel, and the inner top of the feeding channel is fixed with a hydraulic cylinder, and The lower side of the hydraulic cylinder is connected with the moving plate through the piston rod, the front end surface of the feeding channel is provided with a scale, and the bottom of the batching bucket is penetrated with an electric discharge valve.

Preferably, a motor is fixed on the top of the batching bucket, and the motor is arranged between the electronic weighing scales, and a stirring rod is rotatably connected to the lower side of the motor through the motor shaft.

Preferably, the electronic weighing scale is threadedly connected to the batching bucket through bolts, and there are two electronic weighing scales, and the two electronic weighing scales are arranged symmetrically.

Preferably, the feed channel is made of transparent material.

Preferably, the hydraulic cylinder forms a telescopic structure through a piston rod and a moving plate.

Preferably, the vertical central axis of the electric discharge valve coincides with the vertical central axis of the collection box.

Compared with the prior art, the beneficial effect of the present utility model is: the low-protein piglets cooperate with the production proportioning device,

(1) When different materials are put into the corresponding feeding channels, the electronic weighing scale can weigh the materials in the feeding channel, which is convenient for batching according to the required weight ratio, or control by observing the scale. The amount of material put in is convenient for batching according to the required volume ratio, so as to achieve the purpose of multi-method batching;

(2) After the batching is completed, the moving plate can move upward. At this time, the feeding channel is open, and the material falls into the batching barrel. The stirring rod can fully mix different materials together during the rotation process. This completes the mixing work;

(3) After the mixing is completed, open the electric discharge valve, and the material will fall into the collection box, which is convenient for centralized collection.

Description of drawings

Fig. 1 is the front view sectional structure schematic diagram of the utility model;

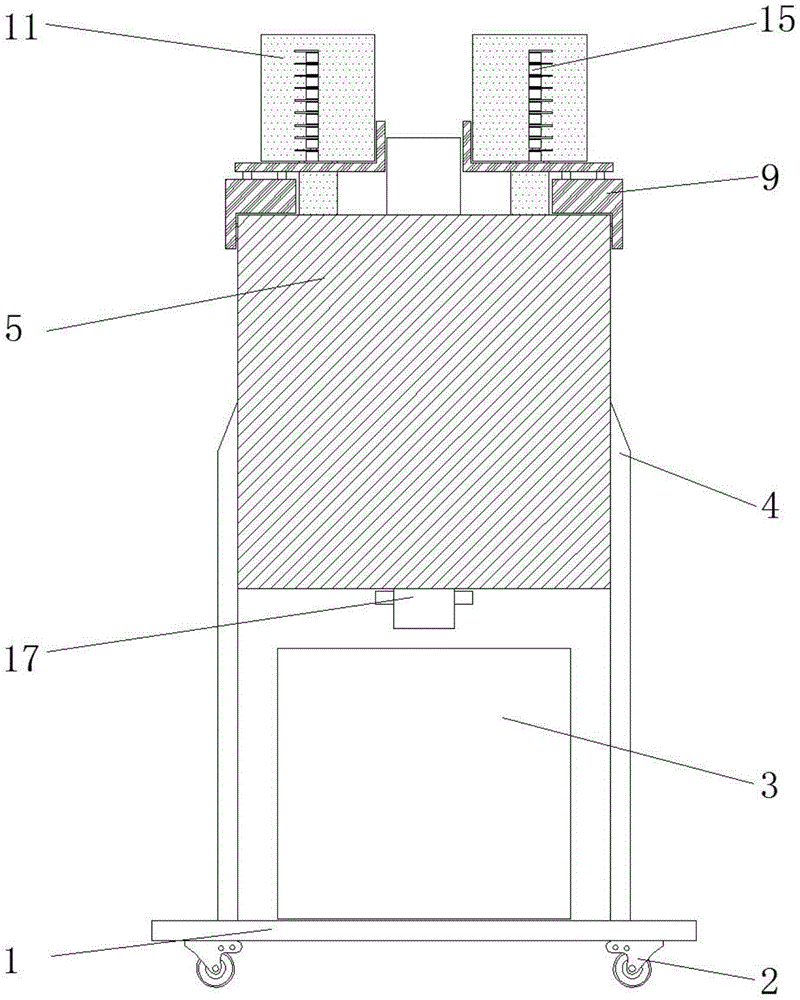

Fig. 2 is the front view structure schematic diagram of the utility model;

FIG. 3 is a schematic top view of the structure of the utility model.

In the picture: 1. Base, 2. Self-locking roller, 3. Collection box, 4. Bracket, 5. Batching bucket, 6. Motor, 7. Motor shaft, 8. Stirring rod, 9. Electronic weighing scale, 10. Bolt, 11, Feed channel, 12, Hydraulic cylinder, 13, Piston rod, 14, Moving plate, 15, Scale, 16, Electric discharge valve.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-3, the present utility model provides a technical solution: a low-protein piglet matching production proportioning device, according to FIG. 1, the left and right sides of the lower end surface of the base 1 are provided with self-locking rollers 2, and A collection box 3 is placed on the base 1, a bracket 4 is arranged on the outer side of the collection box 3, and the bracket 4 is fixed on the upper end face of the base 1, and a batching bucket 5 is fixed on the inner side of the top of the bracket 4, and a motor 6 is fixed on the top of the batching bucket 5, And the motor 6 is arranged between the electronic weighing scales 9, and at the same time, the lower side of the motor 6 is connected with a stirring rod 8 through the motor shaft 7. After the material is proportioned, it enters the batching bucket 5, and the stirring rod 8 can be between the motor 6 and the motor. Rotating under the action of the motor shaft 7, it is convenient to fully mix different materials together.

According to FIG. 1 and FIG. 2 , a stirring rod 8 is rotatably connected in the batching barrel 5 , and the left and right sides of the top of the batching barrel 5 are fixed with an electronic weighing scale 9 by bolts 10 , and the electronic weighing scale 9 is threaded through the bolts 10 It is connected to the batching bucket 5, and there are two electronic weighing scales 9. At the same time, the two electronic weighing scales 9 are arranged symmetrically. Tightening the bolts 10 can fix the electronic weighing scales 9 on the batching barrel 5. When put into the corresponding feeding channel 11, the electronic weighing scale 9 can play a role in weighing the material, which is convenient to complete the proportioning work according to the required weight ratio.

According to Fig. 1, Fig. 2 and Fig. 3, the feeding channel 11 is placed on the electronic weighing scale 9, and the bottom of the feeding channel 11 runs through the top of the batching barrel 5. The feeding channel 11 is made of transparent material. During the material process, the amount of material can be controlled by observing the scale 15, which is convenient to complete the proportioning work according to the required volume ratio. The inner top of the feeding channel 11 is fixed with a hydraulic cylinder 12, and the lower side of the hydraulic cylinder 12 passes the piston rod 13 Connected with the moving plate 14, the hydraulic cylinder 12 forms a telescopic structure through the piston rod 13 and the moving plate 14. After the proportioning work is completed, the moving plate 14 can move upward under the action of the hydraulic cylinder 12 and the piston rod 13, and the material is fed at this time. The channel 11 is in the open state, and the material falls into the batching bucket 5 accordingly, so as to facilitate the subsequent stirring and mixing processing. The vertical central axis of the electric discharge valve 16 coincides with the vertical central axis of the collection box 3. After the material is mixed, the electric discharge valve 16 is opened, and the material falls into the collection box 3, which facilitates the centralized collection of the material.

Working principle: When using the low-protein piglet with the production proportioning device, first move the device to the desired location through the self-locking roller 2, connect to the external power supply, and tighten the bolt 10 to fix the electronic weighing scale 9. On the feeding channel 11, put different materials into the corresponding feeding channel 11. At this time, you can understand the weight of the material by observing the number displayed on the electronic weighing scale 9, which is convenient to complete the preparation according to the required weight ratio. For comparison work, or you can understand the amount of material by observing the scale 15, it is convenient to complete the proportioning work according to the required volume ratio. After the proportioning work is completed, the hydraulic cylinder 12 is activated, and the hydraulic cylinder 12 drives the piston rod 13 to shrink, thereby driving the moving plate 14. Move upward, at this time, the feeding channel 11 is in the open state, and the material falls into the batching bucket 5. Start the motor 6, and the motor 6 drives the motor shaft 7 to rotate, thereby driving the stirring rod 8 to rotate, so as to carry out the mixing operation. After the material is completed, open the electric discharge valve 16, and the material will fall into the collection box 3. After the work is completed, the material in the collection box 3 can be taken out. The content that is not described in detail in this manual belongs to the professional technology in this field. prior art known to the person.

The terms "center", "portrait", "horizontal", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", The orientation or positional relationship indicated by "outside" is based on the orientation or positional relationship shown in the accompanying drawings, and is only a simplified description for the convenience of describing the present invention, rather than indicating or implying that the indicated device or element must have a specific Orientation, construction and operation are specific orientations, and therefore should not be construed as limiting the protection content of the present invention.

Although the present invention has been described in detail with reference to the foregoing embodiments, for those skilled in the art, it is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements for some of the technical features. Within the spirit and principle of the present utility model, any modifications, equivalent replacements, improvements, etc. made shall be included within the protection scope of the present utility model.

Claims (6)

1. A low-protein piglet cooperates with a production proportioning device, comprising a base (1) and a feeding channel (11), characterized in that: the left and right sides of the lower end face of the base (1) are provided with self-locking rollers (2 ), and a collection box (3) is placed on the base (1), a bracket (4) is provided on the outside of the collection box (3), and the bracket (4) is fixed on the upper end face of the base (1), while the bracket (4) ) a batching bucket (5) is fixed on the inner side of the top, a stirring rod (8) is rotatably connected in the batching bucket (5), and electronic weighing is fixed on the left and right sides of the top of the batching bucket (5) by bolts (10). The meter (9), the feeding channel (11) is placed on the electronic weighing scale (9), and the bottom of the feeding channel (11) runs through the top of the batching barrel (5), the feeding channel (11) A hydraulic cylinder (12) is fixed on the inner top of the hydraulic cylinder (12), and the lower side of the hydraulic cylinder (12) is connected with the moving plate (14) through the piston rod (13), and the front end surface of the feeding channel (11) is provided with a scale ( 15), an electric discharge valve (16) runs through the bottom of the batching bucket (5). 2. The low-protein piglet matching production proportioning device according to claim 1, characterized in that: a motor (6) is fixed on the top of the batching bucket (5), and the motor (6) is arranged on an electronic weighing scale ( 9), and at the same time, a stirring rod (8) is connected to the lower side of the motor (6) through the rotation of the motor shaft (7). 3. The low-protein piglet cooperative production proportioning device according to claim 1, characterized in that: the electronic weighing scale (9) is threadedly connected to the batching barrel (5) by means of a bolt (10), and is electronically weighed There are two scales (9), and the two electronic weighing scales (9) are symmetrically arranged at the same time. 4. The low-protein piglet matching production proportioning device according to claim 1, wherein the feeding channel (11) is made of transparent material. 5 . The low-protein piglet production and proportioning device according to claim 1 , wherein the hydraulic cylinder ( 12 ) forms a telescopic structure through a piston rod ( 13 ) and a moving plate ( 14 ). 6 . 6 . The low-protein piglet matching production proportioning device according to claim 1 , wherein the vertical central axis of the electric discharge valve ( 16 ) coincides with the vertical central axis of the collection box ( 3 ). 7 .
