CN211487011U

CN211487011U - Textile processing dust removal mechanism

Info

Publication number: CN211487011U
Application number: CN201921595949.5U
Authority: CN
Inventors: 田海刚; 罗劲松; 严勇军; 吴志军
Original assignee: Hubei Zhuoer Jinlong Textile Co ltd
Current assignee: Hubei Zhuoer Jinlong Textile Co ltd
Priority date: 2019-09-24
Filing date: 2019-09-24
Publication date: 2020-09-15
Anticipated expiration: 2029-09-24

Abstract

The utility model relates to a weaving dust removal field just discloses a weaving processing dust removal mechanism, and this weaving processing dust removal mechanism includes exhaust pipe, air pump, rose box, static electricity net, the ventilative baffle of technology water collection liquid, electrostatic generator, exhaust pipe's one end and convulsions wind channel correspond the tip and communicate each other, and exhaust pipe's the other end corresponds the fresh air inlet intercommunication that the side was dug with the rose box, and top one side intercommunication of rose box has the pipeline of giving vent to anger. This application loops through the mode furthest's that water curtain dust fall and filter screen hinder dirt with the dust concentration reduction in the workshop to utilize the electrostatic generator to produce static on the static net, improve the dust in the large granule and hold back the effect, the cooperation water curtain reaches good dust fall effect, and then realized the purpose to the weaving dust removal, when guaranteeing that outer discharge air quality is up to standard, and very big reduction the dust concentration in the workshop, thereby greatly reduced staff's dust suction volume, health has been guaranteed.

Description

Textile processing dust removal mechanism

Technical Field

The utility model relates to a weaving dust removal field specifically is a weaving processing dust removal mechanism.

Background

In the process of textile processing, a plurality of fine and strong-adhesion impurities can be generated, the impurities can float in the air and cause great harm to the body of a worker, the dust removal effect of the existing dust removal mechanism is poor, and the air quality does not reach the standard.

The invention patent number is CN204996801U discloses a textile processing dust removing mechanism and the practical patent number is CN204996801U discloses a textile processing dust removing mechanism, which solves the problems, but the two mechanisms have the common characteristics that the two mechanisms are only used on a workbench, as is well known, a textile workshop is provided with a plurality of workbenches, the mode of only removing dust on the workbench but not the whole workshop is single, and the effect is general.

Therefore, a dust removal mechanism for textile processing is designed.

SUMMERY OF THE UTILITY MODEL

Not enough to prior art, the utility model provides a textile processing dust removal mechanism has solved the problem that the weaving workshop removed dust.

In order to achieve the above purpose, the utility model adopts the technical scheme that:

a textile processing dust removal mechanism, which comprises an exhaust duct, an air pump, an electrostatic net, a process water collection breathable partition plate and an electrostatic generator, one end of the exhaust duct is communicated with the corresponding end part of the exhaust air duct, the other end of the exhaust duct is communicated with an air inlet hole which is cut on the corresponding side surface of the filter box, one side of the top of the filter box is communicated with an air outlet pipeline, one end of the air draft air duct far away from the air exhaust pipeline is connected with a dust hood, and a dust falling mechanism is arranged in the air draft air duct and comprises a process water collecting and ventilating partition plate fixedly connected with the lower edge of the inner wall of the air draft air duct, the process water collecting and ventilating partition plate is obliquely arranged, one end of a water pumping pipe is arranged at the lower side of the process water collecting and ventilating partition plate, one end of the water pumping pipe penetrates through the air exhaust duct and is connected with a circulating water tank, and circulating water tank passes through the outlet pipe and converges and communicate a plurality of spray pipes, and a plurality of spray pipes equidistance set up side by side in the interior top in convulsions wind channel and be fixed in the interior top surface in convulsions wind channel through the pipe clamp.

Furthermore, an air pump is arranged on the exhaust pipeline.

Furthermore, a plurality of uniformly distributed water spraying holes are drilled on the bottom peripheral surface of the water spraying pipe.

Furthermore, water pumps are mounted on the water pumping pipe and the water outlet pipe.

Furthermore, an electrostatic adsorption device is arranged at the bottom in the air draft air channel and comprises an electrostatic net, the electrostatic net is arranged in the air draft air channel and located above the process water liquid collection breathable partition plate, and an electrostatic generator connected with the electrostatic net is arranged on the outer side of the air draft air channel.

Furthermore, the filter box is fixed on a preset platform, a motor box for installing a motor is fixed on the preset platform, an output shaft of the motor is connected with the paddle in the filter box through a belt transmission member, the belt transmission member comprises a driving belt wheel sleeved with the output shaft of the motor through a coupler, the driving belt wheel passes through a driven belt wheel connected with a belt, the driven belt wheel is sleeved at one end of a rotating shaft, the rotating shaft is fixed on the motor box through a bearing seat, and the other end of the rotating shaft is sleeved with the paddle.

Furthermore, the dust filter net is arranged on one side, far away from the blade, of the filter box at equal intervals, the bottom sides of the dust filter net are inserted into sockets fixed on the inner bottom surface of the filter box, and the top sides of the dust filter net penetrate out of the filter box.

The utility model has the advantages that:

1. the utility model discloses a, through the hole for water spraying on a plurality of spray pipes-jet out the clear water to can form the water curtain in the convulsions wind channel, the water curtain fuses with the contact of dust-laden gas and forms sewage and gathers in the low side of technology water collection liquid ventilative baffle, then the suction realizes incessant dust fall and handles to the circulating water tank, utilizes electrostatic generator to produce static on the static net, improves the dust in the large granule and holds back the effect, cooperation water curtain reaches good dust fall effect.

2. The utility model discloses a, further gas secondary after the dust fall filters and holds back through the dust screen to further guarantee the cleanness of outer exhaust air, and can also regularly take out the dust screen and wash, avoid the ash scale to cover the long-pending influence its dust filtration effect.

Drawings

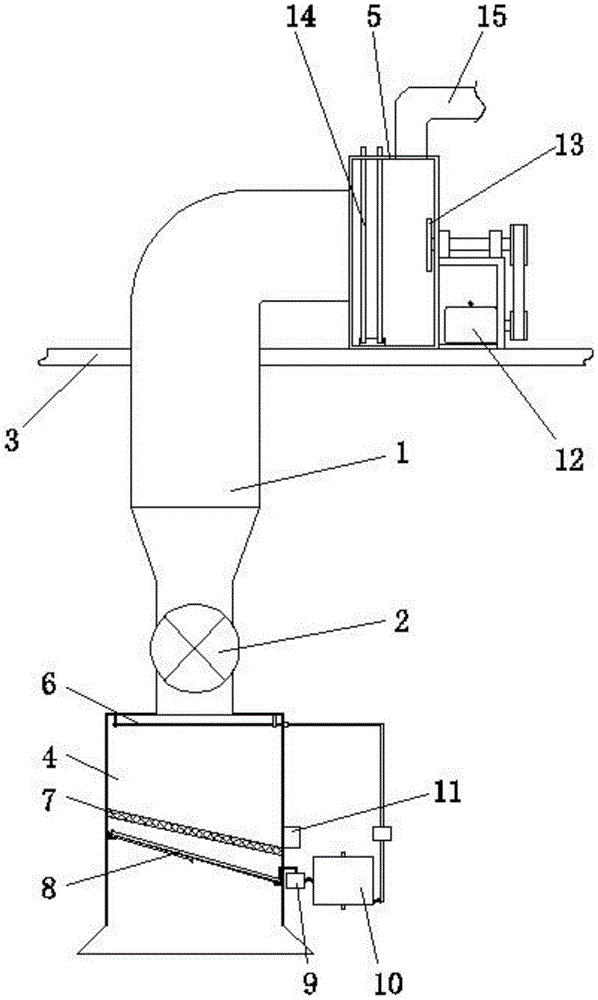

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a partial schematic view of an electrostatic adsorption apparatus according to the present invention;

fig. 3 is a schematic structural view of the middle spray pipe of the present invention.

In the figure: 1. an exhaust duct; 2. an air pump; 3. presetting a platform; 4. an air draft duct; 5. a filter box; 6. a water spray pipe; 6-1, water spraying holes; 7. a static grid; 8. a process water collection breathable partition plate; 9. a water pump; 10. a circulating water tank; 11. an electrostatic generator; 12. a motor; 13. a paddle; 14. a dust filter screen; 15. An air outlet pipeline.

Detailed Description

In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are some, but not all, embodiments of the present invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.

The first embodiment, referring to fig. 1-3, a textile processing dust removal mechanism comprises an exhaust duct 1, an air pump 2, an electrostatic net 7, a process water collecting and ventilating partition plate 8 and an electrostatic generator 11, wherein one end of the exhaust duct 1 is communicated with the end part corresponding to an exhaust air duct 4, the other end of the exhaust duct 1 is communicated with an air inlet hole drilled on the corresponding side of a filter box 5, one side of the top of the filter box 5 is communicated with an air outlet duct 15, and air after dust removal in a workshop can be discharged to the outside through the air outlet duct 15, so that the purpose of textile dust removal is realized, the quality of discharged air is guaranteed to reach the standard, and the dust concentration in the workshop is greatly reduced, thereby providing a good working environment for workers, greatly reducing the dust suction amount of the workers and guaranteeing health.

Further, an air pump 2 is installed on the exhaust duct 1 so as to be convenient for sucking dust-containing air from the workshop through an exhaust air duct 4.

The one end that exhaust duct 1 was kept away from to convulsions wind channel 4 is connected with the suction hood, and be provided with the dust fall mechanism in convulsions wind channel 4, dust fall mechanism includes the ventilative baffle 8 of process water collection liquid of fixed connection in 4 inner wall lower edges of convulsions wind channel, the ventilative baffle 8 slope setting of process water collection liquid, so that thick liquid can gather in the ventilative baffle 8 low side of process water collection liquid, and the ventilative baffle 8 low side department of process water collection liquid is equipped with the one end of drinking-water pipe, the one end of drinking-water pipe is worn out convulsions wind channel 4 and is connected with circulation tank 10, and circulation tank 10 converges through the outlet pipe and feeds through a plurality of

spray pipes

6, 6 equidistance of a plurality of spray pipes set up side by side in the interior top of convulsions wind channel 4 and be fixed in the interior top surface of convulsions wind channel 4 through the.

Furthermore, the bottom peripheral surface of the water spraying pipe 6 is provided with a plurality of uniformly distributed water spraying holes 6-1, clear water is sprayed out through the water spraying holes 6-1 on the water spraying pipes 6, so that a water curtain can be formed in the air draft air duct 4, the water curtain is contacted and fused with dust-containing gas to form sewage which is gathered at the low side of the process water collecting and ventilating partition plate 8 and then is pumped into the circulating water tank 10, and the circulating water tank 10 is connected with a water circulating system (not shown in the figure), so that the effect of replacing water in the circulating water tank 10 is achieved, and the uninterrupted dust settling treatment is realized.

Further, the water pump 9 is installed on the water pumping pipe and the water outlet pipe.

The bottom is provided with electrostatic adsorption equipment in convulsions wind channel 4, and electrostatic adsorption equipment includes electrostatic net 7, and electrostatic net 7 is installed in convulsions wind channel 4 and is in the top of the ventilative baffle 8 of technology water collection liquid, and the 4 outsides in convulsions wind channel are provided with the electrostatic generator 11 of being connected with electrostatic net 7, utilize electrostatic generator 11 to produce static on electrostatic net 7, improve the effect is held back to the large granule in the dust, and the cooperation water curtain reaches good dust fall effect.

The filter box 5 is fixed on the preset platform 3, a motor box for installing the motor 12 is fixed on the preset platform 3, an output shaft of the motor 12 is connected with the paddle 13 in the filter box 5 through a belt transmission piece, the belt transmission piece comprises a driving belt wheel sleeved with the output shaft of the motor 12 through a coupler, the driving belt wheel is connected with a driven belt wheel through a belt, the driven belt wheel is sleeved at one end of a rotating shaft, the rotating shaft is fixed on the motor box through a bearing seat, the other end of the rotating shaft is sleeved with the paddle 13, and then negative pressure is generated to discharge gas from the gas outlet pipeline 15.

In the second embodiment, referring to fig. 1, the following technical features are added to the first embodiment:

wherein, keep away from the filter screen 14 of paddle 13 one side in the rose box 5, filter screen 14 equidistance is provided with a plurality ofly and its bottom side pegs graft in being fixed in the socket of rose box 5 bottom surface, and filter box 5 is all worn out to the top side of filter screen 14, further filters the gas secondary after the dust fall and holds back through filter screen 14 to further guarantee the cleanness of outer discharge air, and can also take out filter screen 14 regularly and wash, avoid the dust dirt to cover the deposit and influence its filter effect.

To sum up, when the dust removal device is used, the gas after dust removal in the workshop can be discharged to the outside through the gas outlet pipeline 15, so that the purpose of dust removal for the textile is achieved, the quality of the discharged air is guaranteed to reach the standard, and the dust concentration in the workshop is greatly reduced, so that a good working environment is provided for workers; static electricity is generated on the static electricity net 7 by the static electricity generator 11, so that the effect of intercepting large particles in dust is improved, and a good dust falling effect is achieved by matching with a water curtain; gas after the dust fall is further secondarily filtered and intercepted through the dust filtering net 14, so that the cleanness of the discharged air is further ensured, the dust filtering net 14 can be periodically drawn out for washing, and the dust filtering effect is prevented from being influenced by dust scale deposition.

The above embodiments are only used to illustrate the technical solution of the present invention, and not to limit it; although the present invention has been described in detail with reference to the foregoing embodiments, it should be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention in its corresponding aspects.

Claims

1. The utility model provides a textile processing dust removal mechanism, includes exhaust duct (1), air pump (2), electrostatic net (7), ventilative baffle of technology water collection liquid (8) and electrostatic generator (11), its characterized in that: one end of the exhaust pipeline (1) is communicated with the corresponding end part of the exhaust air duct (4), the other end of the exhaust pipeline (1) is communicated with an air inlet hole drilled on the corresponding side surface of the filter box (5), one side of the top of the filter box (5) is communicated with an air outlet pipeline, one end of the exhaust air duct (4) far away from the exhaust pipeline (1) is connected with a dust hood, a dust falling mechanism is arranged in the exhaust air duct (4), the dust falling mechanism comprises a process water collecting and ventilating partition plate (8) fixedly connected to the lower edge of the inner wall of the exhaust air duct (4), the process water collecting and ventilating partition plate (8) is obliquely arranged, one end of a water pumping pipe is arranged at the lower side of the process water collecting and ventilating partition plate (8), one end of the water pumping pipe penetrates out of the exhaust air duct (4) and is connected with a circulating water tank (10), and the circulating water tank (, the plurality of water spray pipes (6) are arranged above the air draft air duct (4) in parallel at equal intervals and fixed on the inner top surface of the air draft air duct (4) through pipe clamps.

2. The textile processing dust removal mechanism of claim 1, wherein: an air pump (2) is installed on the exhaust pipeline (1).

3. The textile processing dust removal mechanism of claim 1, wherein: the bottom peripheral surface of the water spray pipe (6) is provided with a plurality of uniformly distributed water spray holes (6-1).

4. The textile processing dust removal mechanism of claim 1, wherein: and water pumps (9) are respectively arranged on the water pumping pipe and the water outlet pipe.

5. The textile processing dust removal mechanism of claim 1, wherein: the bottom is provided with electrostatic adsorption equipment in convulsions wind channel (4), and electrostatic adsorption equipment includes static electricity net (7), and static electricity net (7) are installed in convulsions wind channel (4) and are in the top of technology water collection liquid breathable partition (8), and convulsions wind channel (4) outside is provided with electrostatic generator (11) of being connected with static electricity net (7).

6. The textile processing dust removal mechanism of claim 1, wherein: the filter box (5) is fixed on a preset platform (3), a motor box for installing a motor (12) is fixed on the preset platform (3), an output shaft of the motor (12) is connected with a paddle (13) in the filter box (5) through a belt transmission piece, the belt transmission piece comprises a driving belt wheel sleeved with the output shaft of the motor (12) through a coupler, the driving belt wheel is sleeved at one end of a rotating shaft through a driven belt wheel connected with a belt, the rotating shaft is fixed on the motor box through a bearing seat, and the other end of the rotating shaft is sleeved with the paddle (13).

7. The textile processing dust removal mechanism of claim 1, wherein: the dust filtering device is characterized by further comprising a plurality of dust filtering nets (14) which are arranged in the filtering box (5) and far away from one side of the paddle (13), wherein the dust filtering nets (14) are arranged at equal intervals, the bottom sides of the dust filtering nets (14) are inserted into sockets fixed on the inner bottom surface of the filtering box (5), and the top sides of the dust filtering nets (14) penetrate out of the filtering box (5).
