Abstract

The utility model discloses a heavy object washing machine and a pesticide residue number detection device, comprising a base, a bracket is fixedly connected to the upper end of the base, a box body is fixedly connected to the upper end of the bracket, and the right end of the box body is fixedly installed There is an electric motor, the rotating shaft of the electric motor is rotatably connected with the box body, the left end of the rotating shaft is fixedly connected with a bevel gear, the left side of the bevel gear is meshed with a bevel tooth plate, and the inside of the bevel tooth plate is fixedly connected with a hopper, The hopper is a porous hollow structure. The heavy object cleaning machine and the pesticide residue number detection device install a motor on the box, drive the bevel gear to drive the bevel gear to rotate, and the bevel gear drives the hopper to rotate, so that the rotation cleaning can be realized, and the hopper is driven by the cylinder. For lifting, a rotatable rotating shaft is also designed to facilitate the transfer of the hopper. By designing a shaft seat at the bottom of the cylinder to connect with the hopper, when the hopper is moved out of the box, the hopper can be turned over and discharged, which is convenient and quick to discharge.

Description

A heavy object washing machine and pesticide residue number detection device

technical field

The utility model relates to the technical field of cleaning machines, in particular to a heavy object cleaning machine and a pesticide residue number detection device.

Background technique

Vegetables are agricultural products that people eat daily. They need to be cleaned after picking. Especially when some heavier agricultural products are cleaned in a centralized manner, a basket or bucket of vegetables needs to be cleaned.

In the cleaning process, manual cleaning is very inconvenient, and the cleaning efficiency is very low. There is a lack of special cleaning devices. Because pesticides are sprayed in the vegetables during the growth process, there will be pesticide residues in the vegetables, and there is a lack of detection of pesticide residues. . Therefore, a heavy object washing machine and a pesticide residue number detection device are proposed.

Utility model content

In view of the deficiencies of the prior art, the utility model provides a heavy object washing machine and a pesticide residue number detection device.

In order to achieve the above purpose, the utility model is realized by the following technical solutions: a heavy object washing machine and a pesticide residue number detection device, comprising a base, the upper end of the base is fixedly connected with a bracket, and the upper end of the bracket is fixedly connected with a box The right end of the box body is fixedly installed with a motor, the rotating shaft of the motor is rotatably connected with the box body, the left end of the rotating shaft is fixedly connected with a bevel gear, and the left side of the bevel gear is meshed with a bevel gear plate. A hopper is fixedly connected to the inside of the bevel gear plate. The hopper is a porous hollow structure. The lower end of the hopper is fixedly connected with a support seat. , the surface of the rotating shaft is fixedly connected with a handle, the upper end of the rotating shaft is fixedly connected with a support frame, the upper end of the support frame is fixedly installed with a cylinder, the cylinder rod of the cylinder passes through the support frame, and the cylinder rod A connecting ring is fixedly connected to the lower end of the connecting ring, a connecting sleeve is rotatably connected to the outer side of the connecting ring, a connecting rod is fixedly connected to the lower end of the connecting sleeve, and a fastening sleeve is threadedly connected to the outer side of the connecting sleeve. The sleeve is rotatably connected with the cylinder rod.

Preferably, a drain pipe is fixedly connected to the bottom of the box body, a drain valve is installed on the drain pipe, and a support seat is rotatably connected to the upper end of the drain pipe.

Preferably, a shaft seat is fixedly connected in the hopper, a connecting shaft is connected inside the shaft seat through a thread, and a connecting rod is rotatably connected in the connecting shaft.

Preferably, a rubber sleeve is bonded to the outer side of the connecting rod, and the lower end of the rubber sleeve is bonded to the inner bottom of the hopper.

Preferably, a side groove body is fixedly connected to the left end of the box body, a rubber seat is installed on the upper end of the side groove body, and a pesticide residue detection pen is inserted into the rubber seat.

Preferably, the surface of the rotating shaft is provided with a clamping slot, and a limiting pin is clamped in the clamping slot, and the limiting pin and the sleeve are connected by thread.

beneficial effect

The utility model provides a heavy object washing machine and a pesticide residue number detection device. Has the following beneficial effects:

(1) The heavy object cleaning machine and the pesticide residue number detection device install a motor on the box, drive the bevel gear to drive the bevel gear to rotate, and the bevel disc drives the hopper to rotate, so that the rotation cleaning can be realized. The drive realizes the lifting of the hopper, and a rotatable rotating shaft is also designed to facilitate the transfer of the hopper. By designing a shaft seat at the bottom of the cylinder to connect with the hopper, when the hopper is moved out of the box, the hopper can be turned over to discharge, which is convenient and quick to discharge. .

(2) The heavy object cleaning machine and the pesticide residue detection device are designed with a side tank body on the outside of the box body, a rubber seat is installed on the side tank body, and a pesticide residue detection pen is inserted into the rubber seat, which can clean the water inside the box body. Real-time detection of pesticide residues is carried out to facilitate the acquisition of pesticide residue information of products.

Description of drawings

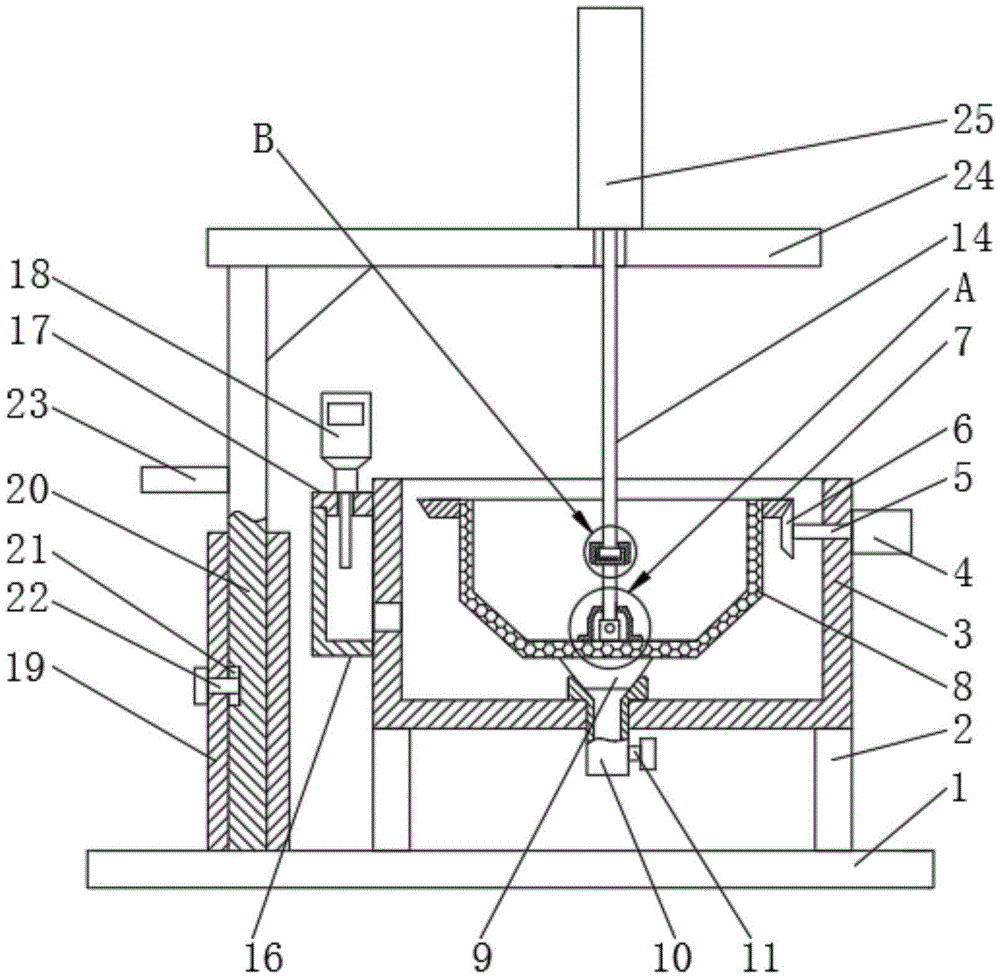

Fig. 1 is the overall structure schematic diagram of the present utility model;

Fig. 2 is an enlarged view of the structure of part A of Fig. 1 of the present utility model;

Fig. 3 is the top view of the box of Fig. 1 of the utility model;

Fig. 4 is the front view of the hopper of Fig. 1 of the utility model;

FIG. 5 is an enlarged view of the structure of part B of FIG. 1 of the present invention.

In the figure: 1. Base; 2. Bracket; 3. Box; 4. Electric motor; 5. Rotary shaft; 6. Bevel gear; 7. Bevel gear plate; 8. Hopper; 9. Support seat; 10. Drain pipe; 11 , drain valve; 12, shaft seat; 13, connecting shaft; 14, cylinder rod; 141, connecting ring; 15, rubber sleeve; 16, side groove body; 17, rubber seat; 18, pesticide residue detection pen; 19, sleeve barrel; 20, rotating shaft; 21, card slot; 22, limit pin; 23, handle; 24, support frame; 25, cylinder; 26, connecting rod; 27, connecting sleeve; 28, fastening sleeve.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-5, the present utility model provides a technical solution: a heavy object washing machine and a pesticide residue number detection device, comprising a base 1, the upper end of the base 1 is fixedly connected with a bracket 2, and the upper end of the bracket 2 is fixedly connected with a The box body 3, the right end of the box body 3 is fixedly installed with a motor 4, which is a waterproof motor and belongs to the prior art. A bevel gear 6 is fixedly connected, a bevel gear 7 is meshed on the left side of the bevel gear 6, a hopper 8 is fixedly connected to the inside of the bevel gear 7, the hopper 8 is a porous hollow structure, and the lower end of the hopper 8 is fixedly connected with a support seat 9, A sleeve 19 is fixedly connected to the upper end of the base 1, a rotating shaft 20 is rotatably connected to the sleeve 19, a handle 23 is fixedly connected to the surface of the rotating shaft 20, a support frame 24 is fixedly connected to the upper end of the rotating shaft 20, and the upper end of the support frame 24 is fixedly connected. A cylinder 25 is fixedly installed, which is a SC series standard cylinder, which belongs to the prior art and is equipped with a control switch. The cylinder rod 14 of the cylinder 25 passes through the support frame 24, and the lower end of the cylinder rod 14 is fixedly connected with a connecting ring 141. The connecting ring 141 A connecting sleeve 27 is rotatably connected to the outer side of the connecting sleeve 27 , and a connecting rod 26 is fixedly connected to the lower end of the connecting sleeve 27 .

A drain pipe 10 is fixedly connected to the bottom of the box body 3, a drain valve 11 is installed on the drain pipe 10, and a support seat 9 is rotatably connected to the upper end of the drain pipe 10. The drain valve 11 can control the opening and closing of the drain pipe 10 for drainage. , the hopper 8 is fixedly connected with the shaft seat 12, the inside of the shaft seat 12 is connected with the connecting shaft 13 through the thread, the connecting shaft 13 is rotatably connected with the connecting rod 26, and the shaft seat 12 and the connecting shaft 13 are matched with the connecting rod 26, which can be The shaft seat 12 can be rotated, so that the hopper 8 can be rotated. The outer side of the connecting rod rod 26 is bonded with a rubber sleeve 15, and the lower end of the rubber sleeve 15 is bonded with the inner bottom of the hopper 8. Through the design of the rubber sleeve 15, it is possible to The vegetables are protected to prevent the vegetables from colliding and wearing the shaft seat 12. A side groove body 16 is fixedly connected to the left end of the box body 3, a rubber seat 17 is installed on the upper end of the side groove body 16, and a pesticide residue detection pen 18 is inserted into the rubber seat 17. , Through the installation of the pesticide residue detection pen 18, the pesticide residue detection can be performed on the water in the box body 3. The surface of the rotating shaft 20 is provided with a clamping groove 21, and the clamping groove 21 is clamped with a limit nail 22, and the limit nail 22 and The sleeve 19 is connected by threads, and the rotation shaft 20 can be positioned through the cooperation of the clamping groove 21 and the limiting nail 22 .

When the heavy object washing machine and the pesticide residue detection device are used, the vegetables are first placed in the hopper 8, and then the plug of the motor 4 is inserted into the external socket, the rotating shaft 5 of the motor 4 drives the bevel gear 6 to rotate, and the bevel gear 6 drives the The bevel tooth plate 7 rotates, the bevel tooth plate 7 drives the hopper 8 to rotate, the hopper 8 drives the support base 9 to rotate, the hopper 8 drives the shaft base 12 to rotate, the shaft base 12 drives the connecting shaft 13 and the connecting rod 26 to rotate, and the connecting rod 26 drives the connecting sleeve 27 rotates to realize the rotary cleaning of the vegetables in the hopper 8 without manual cleaning, which is convenient and fast; when the vegetables in the hopper 8 need to be unloaded, the cylinder 25 is activated, and the cylinder rod 14 of the cylinder 25 moves upward, driving the connecting sleeve 27 Moving upward, the connecting sleeve 27 drives the connecting rod 26 to move upward, and the connecting rod 26 drives the connecting shaft 13 and the shaft seat 12 to move upward, thereby driving the hopper 8 to move upward, so that the hopper 8 is moved out of the box 3, and then the limit pin 22 is turned. , the limit pin 22 leaves the slot 21 of the rotating shaft 20, and then holds the handle 23 and rotates the rotating shaft 20, so that the support frame 24 is rotated, and the cylinder 25 is driven to rotate horizontally, so that the hopper 8 can be removed from the top of the box 3. , hold the hopper 8 by hand, and turn the hopper 8 over to unload the material, which is convenient and fast; the side groove body 16 is designed through the outer side of the box body 3, the rubber seat 17 is installed on the side groove body 16, and the rubber seat 17 is plugged into the pesticide residue detection. The pen 18 can perform real-time detection of pesticide residues in the cleaning water inside the box body 3, so as to facilitate the acquisition of pesticide residue information of the product.

It should be noted that, in this document, relational terms such as first and second are used only to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus. without more restrictions.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a device is examined to heavy object cleaning machine and incomplete number of farming, includes base (1), its characterized in that: the upper end of the base (1) is fixedly connected with a support (2), the upper end of the support (2) is fixedly connected with a box body (3), the right end of the box body (3) is fixedly provided with a motor (4), a rotating shaft (5) of the motor (4) is rotatably connected with the box body (3), the left end of the rotating shaft (5) is fixedly connected with a bevel gear (6), the left side of the bevel gear (6) is meshed with a bevel gear disc (7), the interior of the bevel gear disc (7) is fixedly connected with a hopper (8), the hopper (8) is of a porous hollow structure, the lower end of the hopper (8) is fixedly connected with a supporting seat (9), the upper end of the base (1) is fixedly connected with a sleeve (19), the rotating shaft (20) is rotatably connected in the sleeve (19), the surface of the rotating shaft (20) is fixedly connected with a handle (23), and the upper end, the air cylinder (25) is fixedly mounted at the upper end of the support frame (24), an air cylinder rod (14) of the air cylinder (25) penetrates through the support frame (24), a connecting ring (141) is fixedly connected to the lower end of the air cylinder rod (14), a connecting sleeve (27) is rotatably connected to the outer side of the connecting ring (141), a connecting rod (26) is fixedly connected to the lower end of the connecting sleeve (27), a fastening sleeve (28) is connected to the outer side of the connecting sleeve (27) through threads, and the fastening sleeve (28) is rotatably connected with the air cylinder rod (14).

2. The weight washing machine and the agricultural residue number detecting device according to claim 1, wherein: the bottom fixedly connected with drain pipe (10) of box (3), install drain valve (11) on drain pipe (10), the upper end of drain pipe (10) is rotated and is connected with supporting seat (9).

3. The weight washing machine and the agricultural residue number detecting device according to claim 1, wherein: the hopper is characterized in that a shaft seat (12) is fixedly connected in the hopper (8), a connecting shaft (13) is connected in the shaft seat (12) through threads, and a connecting rod (26) is rotationally connected in the connecting shaft (13).

4. The weight washing machine and the agricultural residue number detecting device according to claim 1, wherein: the outer side of the connecting rod (26) is bonded with a rubber sleeve (15), and the lower end of the rubber sleeve (15) is bonded with the bottom inside the hopper (8).

5. The weight washing machine and the agricultural residue number detecting device according to claim 1, wherein: the left end fixedly connected with side cell body (16) of box (3), rubber seat (17) are installed to the upper end of side cell body (16), it has pesticide residue detection pen (18) to peg graft in rubber seat (17).

6. The weight washing machine and the agricultural residue number detecting device according to claim 1, wherein: the surface of the rotating shaft (20) is provided with a clamping groove (21), a limiting nail (22) is clamped in the clamping groove (21), and the limiting nail (22) is in threaded connection with the sleeve (19).
