Abstract

The utility model relates to a rapid detection device for cable faults, comprising a casing, a first multi-core socket, a second multi-core socket and a power supply assembly. On the two multi-core sockets, a resistor and a light-emitting diode are connected in series on each cable connecting the first multi-core socket and the second multi-core socket, and a plurality of the light-emitting diodes are arranged in parallel and arranged in an array. on the casing. The utility model is convenient to use, easy to carry, can quickly find out the fault of the cable, improves the work efficiency, and has strong versatility.

Description

A rapid detection device for cable fault

technical field

The utility model relates to a rapid detection device for cable faults, which belongs to the field of electrical testing.

Background technique

The hand-held operating system that comes with the numerical control equipment is connected by the communication cable. Due to the long-term pulling, the communication line inside the communication cable is very easy to cause open circuit and virtual break failure, resulting in the poor operation of the handheld terminal and the shutdown. The cost is too high and can only be solved by continuous maintenance. At present, the on-off detection and maintenance of the cable can only be performed with a multimeter for resistance on-off detection. Since the small pins of the cable of the teach pendant are densely arranged, the pins at both ends need to be marked before testing. On the pins at both ends, the on-off status of the cable is displayed through the resistance value of the multimeter. In this method, due to the denseness of the pins, it is easy to cause overlapping or misconnection, resulting in misjudgment of faults. As for the position of the virtual break of the cable, when another person is required to bend the cable under force, due to poor contact during measurement, it is difficult to judge the position of the virtual break, resulting in frequent occurrence of cable faults that cannot be completely eradicated, and poor maintenance results. It can be solved by repurchasing new cables and replacing them, which wastes a lot of manpower, material resources and financial resources.

Utility model content

The main technical problem solved by the utility model is to provide a rapid detection device for cable faults that can quickly find out cable faults and improve work efficiency.

To achieve the above object, the technical scheme of the present utility model is:

A cable fault rapid detection device includes a casing, a first multi-core socket, a second multi-core socket and a power supply assembly, and both ends of the cable to be tested are connected to the first multi-core socket and the second multi-core socket. On each cable connecting the first multi-core socket and the second multi-core socket, a resistor and a light-emitting diode are connected in series, and a plurality of the light-emitting diodes are arranged in parallel and arranged on the casing.

Further, a terminal row is connected to each end of the cable, the first multi-core socket and the second multi-core socket are respectively installed on the corresponding terminal row through connecting wires, the first multi-core socket, the second multi-core socket The core socket can be detachably installed on the casing.

Further, the number of pins of the first multi-core socket and the second multi-core socket is less than or equal to the number of cables.

Further, the first multi-core sockets and the second multi-core sockets are a plurality of different specifications, and the plurality of the first multi-core sockets and the second multi-core sockets are connected in parallel.

Further, the power supply assembly includes a power plug, a power switch and a rectifier circuit, and the rectifier circuit rectifies the alternating current into 24V direct current.

Further, the power supply assembly further includes a power indicator light, and the power indicator light is installed on the casing.

Further, the first multi-core socket and the second multi-core socket are circular sockets or rectangular sockets.

Further, the colors of a plurality of the light-emitting diodes are different, corresponding to different cable numbers.

Further, a color identification is pasted on the casing corresponding to each of the light-emitting diodes.

To sum up, the rapid detection device for cable faults described in the present invention has the following advantages compared with the prior art:

(1) The device is easy to use, can quickly find out the cable fault, and can be completed by a single person, which improves the work efficiency and saves the labor intensity and time of workers.

(2) The device is integrated and installed in a casing, which is easy to carry.

(3) The first multi-core socket and the second multi-core socket in the device can be replaced according to the cables to be tested, so as to facilitate the detection of cables with different numbers of core wires, and improve the versatility of the device.

Description of drawings

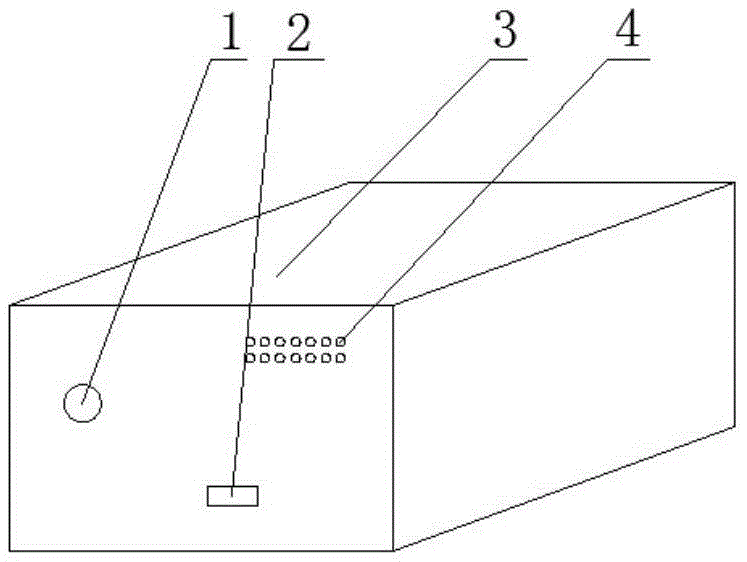

Fig. 1 is the structural diagram of the detection device of the present utility model;

Figure 2 is a circuit diagram of the present utility model.

As shown in FIG. 1 and FIG. 2 , a first multi-core socket 1 , a second multi-core socket 2 , a casing 3 , a light-emitting diode 4 , a resistor 5 , a cable 6 , and a power indicator 7 .

Detailed ways

Below in conjunction with the accompanying drawings and specific embodiments, the present utility model is described in further detail:

Example 1:

As shown in Figure 1 and Figure 2, the utility model provides a cable fault rapid detection device, including a first multi-core socket 1, a second multi-core socket 2, a casing 3 and a power supply assembly, the cable to be tested ( (not shown in the figure) are connected to the first multi-core socket 1 and the second multi-core socket 2, and each cable 6 between the first multi-core socket 1 and the second multi-core socket 2 is connected A light-emitting diode 4 and a resistor 5 are connected in series, and a plurality of light-emitting diodes 4 and the resistor 5 are connected in parallel. The first multi-core socket 1 and the second multi-core socket 2 may be circular sockets or rectangular sockets.

Both ends of the cable 6 are connected to a terminal block (not shown in the figure), and the number of terminals on the terminal block matches the maximum number of core wires of the cable to be tested. There are 14 cables 6 connected between the terminal blocks, and the number of pins of the first multi-core socket 1 and the second multi-core socket 2 is less than or equal to the number of cables 6, that is, the device can detect that the number of core wires is less than or equal to Equal to 14 cables to be tested. The first multi-core socket 1 and the second multi-core socket 2 are detachably mounted on the casing 3 . When it is necessary to detect different cables to be tested, replace the first multi-core socket 1 and the second multi-core socket 2, and press the pins of the first multi-core socket 1 and the second multi-core socket 2 through the connecting line respectively. Installed on the corresponding terminal block of the terminal block. The device can detect various specifications of cables to be tested through a detection device. The versatility of the detection device is improved.

In this embodiment, a plurality of light-emitting diodes 4 are arranged in parallel on the casing 3, and the number of light-emitting diodes 4 is also 14. The colors of the 14 light-emitting diodes 4 are different and correspond to different cable numbers, which is convenient for operators to observe. Corresponding to each light-emitting diode 4, a color mark is pasted on the casing 3, which is convenient to use.

The power supply assembly includes a power plug, a power switch, a rectifier circuit and a power indicator light 7. The power plug is inserted into the power socket of the testing workshop, and the rectifier circuit rectifies the 220V AC to 24V DC to supply power to the testing device, the power switch and the power indicator 7 is installed on the casing 3.

When using, the specific operation steps are as follows:

(1) Connect the plugs at both ends of the cable to be tested to the corresponding first multi-core socket 1 and second multi-core socket 2 .

(2) Insert the power plug of the device into the power socket of the testing workshop, and turn on the power switch.

(3) If all the lines of the cable to be tested are in good condition, the corresponding number of LEDs 4 on the detection device will light up at the same time.

If one or more wires in the cable to be tested are broken, the LED 4 corresponding to the wire will not light up, so that it can be detected whether the wire has been disconnected.

When a cable is bent for a long time, the fault point cannot be judged as a virtual break. By manually bending the cable, the fault point of the cable can also be quickly found, and the virtual break can be quickly eliminated to restore the normal state of the cable.

The device is easy to use, can quickly find out cable faults, and can be completed by a single person, which improves work efficiency and saves labor intensity and time of workers. In addition, the first multi-core socket 1 and the second multi-core socket 2 can be replaced according to the cables to be tested, so as to facilitate the detection of cables with different numbers of cores and improve the versatility of the device.

Embodiment 2:

The difference from the first embodiment is that a plurality of first multi-core sockets and second multi-core sockets can be installed on the casing 3 at the same time, and the plurality of sockets are of different specifications. The core sockets 2 are connected in parallel, and when different cables need to be detected, they can be inserted into different sockets.

As described above, similar technical solutions can be derived in conjunction with the solution content given in the accompanying drawings. However, any simple modifications, equivalent changes and modifications made to the above embodiments according to the technical essence of the present invention without departing from the content of the technical solutions of the present invention still fall within the scope of the technical solutions of the present invention.

Claims (9)

1. The utility model provides a cable conductor trouble short-term test device which characterized in that: the cable to be tested comprises a shell, a first multi-core socket, a second multi-core socket and a power supply assembly, wherein two ends of the cable to be tested are connected to the first multi-core socket and the second multi-core socket, a resistor and a light emitting diode are connected in series on each cable connected between the first multi-core socket and the second multi-core socket, and the light emitting diodes are arranged in parallel and arranged on the shell.

2. The cable fault rapid detection device according to claim 1, wherein: the two ends of the cable are respectively connected with a terminal row, the first multi-core socket and the second multi-core socket are respectively installed on the corresponding terminal rows through connecting wires, and the first multi-core socket and the second multi-core socket are detachably installed on the shell.

3. The cable fault rapid detection device according to claim 2, wherein: the number of the pins of the first multi-core socket and the second multi-core socket is less than or equal to the number of the cables.

4. The cable fault rapid detection device according to claim 1, wherein: the first multi-core socket and the second multi-core socket are multiple in different specifications, and the multiple first multi-core sockets and the multiple second multi-core sockets are connected in parallel.

5. The cable fault rapid detection device according to claim 1, wherein: the power supply assembly comprises a power plug, a power switch and a rectifying circuit, and the rectifying circuit rectifies alternating current into 24V direct current.

6. The cable fault rapid detection device according to claim 5, wherein: the power supply assembly further comprises a power supply indicator light, and the power supply indicator light is installed on the shell.

7. The cable fault rapid detection device according to claim 1, wherein: the first multi-core socket and the second multi-core socket are circular sockets or rectangular sockets.

8. The cable fault rapid detection device according to claim 1, wherein: the LEDs are different in color and correspond to different cable numbers.

9. The cable fault rapid detection device according to claim 7, wherein: and color marks are adhered on the shell corresponding to the light-emitting diodes.
