Abstract

The utility model discloses a combined and disassembled smart street lamp in the technical field of street lamps. The top of the charging pile is fixedly connected to a first lamp pole, the top of the first lamp pole is fixedly connected with a fixed block, and the fixed block is a limit card. Connected to the inner cavity of the connecting block, the connecting block is fixedly connected with the spring, the spring is arranged in the inner cavity of the rotating drum, the rotating drum is movably arranged in the inner cavity of the second light pole, and the top of the second light pole is connected with a first light pole. Three light poles, the third light pole is provided with a lighting street lamp, the top of the side frame is provided with a water tank, the nozzle is fixed on the top of the glass protective cover, the inner cavity of the side frame is provided with an electric telescopic rod horizontally, the The end of the electric telescopic rod is fixedly connected to the fixed plate, and the output end of the driving motor is fixedly connected to the cleaning brush rod arranged on the other side of the fixed plate. The utility model has the function of protecting the electronic display screen, and the light pole is combined and disassembled The structure is easy to install and the use effect is good.

Description

A combined split smart street light

technical field

The utility model relates to the technical field of street lamps, in particular to a combined and split smart street lamp.

Background technique

Smart street light refers to a street light that realizes remote centralized control and management of street lights by applying advanced, efficient and reliable power line carrier communication technology and wireless GPRS/CDMA communication technology. , fault active alarm, lamp cable anti-theft, remote meter reading and other functions, can greatly save power resources, improve the level of public lighting management, and save maintenance costs.

Smart street lights usually have electronic display screens, while the electronic display screens of existing smart street lights are exposed to the outdoors and lack corresponding protection measures. At the same time, there is the problem of difficult installation. For this reason, we propose a combined and split smart street light.

Utility model content

The purpose of the present invention is to provide a combined and split smart street lamp to solve the problems raised in the above background art.

In order to achieve the above purpose, the present invention provides the following technical solutions: a combined and split smart street lamp, comprising a charging pile, the top of the charging pile is fixedly connected to a first light pole, and the top of the first light pole is fixedly connected with a fixing block , the fixing block is clamped to the inner cavity of the connecting block, the connecting block is fixedly connected with the spring, the spring is arranged in the inner cavity of the rotating drum, the rotating drum is movably arranged in the inner cavity of the second lamp pole, and the The top of the second light pole is connected with a third light pole, the third light pole is provided with a lighting street lamp, the side wall of the second light pole is fixedly connected with a fixing frame, and the fixing frame is provided with an electronic display screen, so A glass protective cover is provided outside the electronic display screen, and a side frame is fixedly connected to the side wall of the electronic display screen, and a water tank is arranged on the top of the side frame. The other end is connected with the nozzle, the nozzle is fixed on the top of the glass protective cover, the inner cavity of the side frame is horizontally provided with an electric telescopic rod, the end of the electric telescopic rod is fixedly connected to a fixed plate, and the side wall of the fixed plate is fixed with a A driving motor, the output end of the driving motor is fixedly connected with the cleaning brush rod arranged on the other side of the fixed plate.

Further, the upper and lower ends of the second light pole are provided with inner limit grooves adapted to the fixing block, the fixing block is in a strip-shaped block structure, and the fixing block and the connecting block are in a plug-in relationship.

Further, there are two nozzles in total, and the nozzles are inclined and fixed on the electronic display screen through a bracket, and the water conduit is a Y-shaped water pipe.

Further, a control box is provided on the side wall of the second light pole and above the electronic display screen, and both the electric telescopic pole and the drive motor are electrically connected with the control box.

Further, the inner cavity of the side frame and the upper and lower sides of the electric telescopic rod are provided with horizontal reset rods.

Further, the side frame has an open inner hollow structure on the left side wall, and the rear side wall of the side frame is provided with a connecting bracket.

Compared with the prior art, the beneficial effects of the present utility model are: the utility model is simple in structure and reasonable in design, and a glass protective cover is provided outside the electronic display screen to form a protective effect on it, avoid long-term exposure to the outdoors, and prolong the electronic display screen. The life of the screen, the glass protective cover is regularly cleaned by the nozzle and cleaning brush rod to ensure the clear display of the electronic display screen; the light rod adopts a combined disassembly structure, which is realized by the structure of fixed block, connecting block, spring and sleeve. , reducing the difficulty of installation, improving work efficiency, and good use effect.

Description of drawings

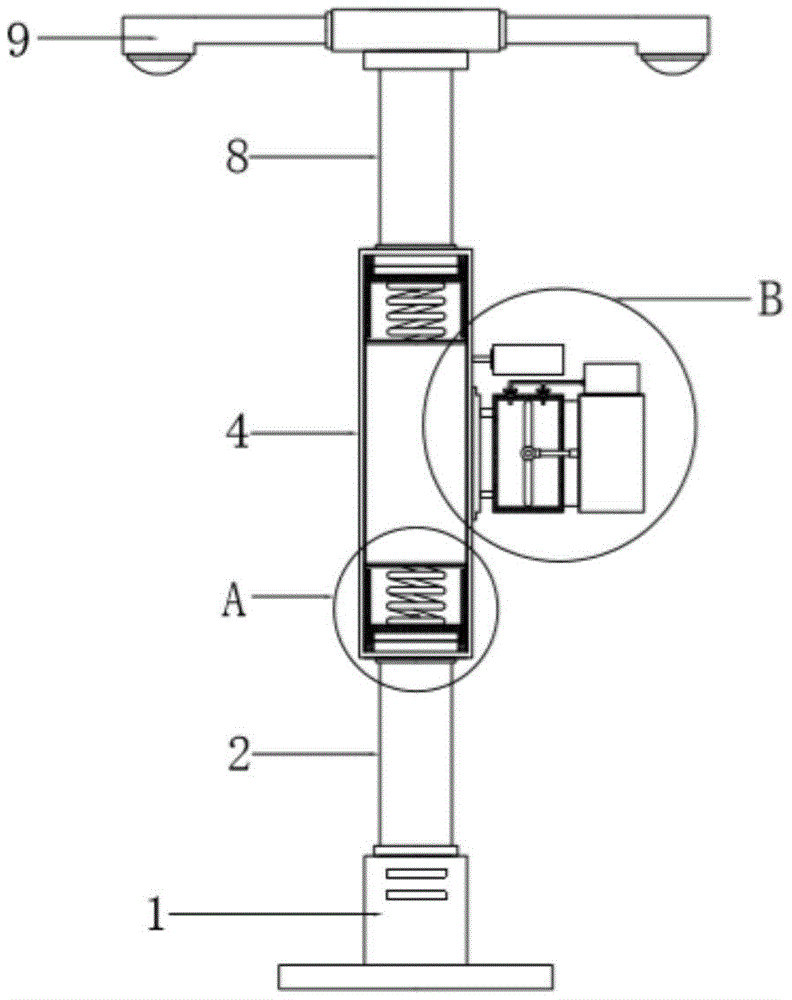

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the structural enlargement schematic diagram of the utility model B;

Fig. 3 is the structural enlarged schematic diagram of the utility model A;

FIG. 4 is a schematic diagram of the connection structure of the cleaning brush rod of the present invention.

In the picture: 1. Charging pile; 2. The first light pole; 3. The fixing block; 4. The second light pole; 5. The drum; 6. The connecting block; 7. The spring; 8. The third light pole; 9. Lighting street lamp; 10. Control box; 11. Fixing frame; 12. Electronic display screen; 13. Glass protective cover; 14. Side frame; 15. Water tank; 16. Aqueduct; 17. Bracket; 18. Nozzle; 19. Electric Telescopic rod; 20, fixed plate; 21, cleaning brush rod; 22, reset rod; 23, drive motor.

The accompanying drawings are for illustrative purposes only, and should not be construed as limitations on this patent; in order to better illustrate the present embodiment, some parts of the accompanying drawings may be omitted, enlarged or reduced, and do not represent the size of the actual product; for those skilled in the art It is understandable to the artisan that certain well-known structures and descriptions thereof may be omitted from the drawings.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

The utility model provides a combined and dismantled smart street lamp, which has the function of protecting an electronic display screen, and the lamp pole is a combined dismantled structure, which is convenient for installation and has good use effects:

Please refer to FIG. 1 and FIG. 3, a combined and split smart street light includes a charging pile 1, the top of the charging pile 1 is fixedly connected to a first light pole 2, and the top of the first light pole 2 is fixedly connected with a fixing block 3, the fixing block 3 The limit is clamped to the inner cavity of the connecting block 6. During installation, the connecting block 6 provided in the inner cavity of the second light pole 4 is aligned with the fixing block 3 on the first light pole 2, and the two are inserted into each other, and then rotated. The second light pole 4 and the fixing block 3 rotate together until the fixing block 3 rotates to correspond to the inner groove of the inner cavity of the second light pole 4, so that the fixing block 3 is stuck in the inner groove, and finally the penetrating positioning bolt can be used to further Strengthen the fixation, the connection block 6 is fixedly connected with the spring 7, the spring 7 is arranged in the inner cavity of the rotating drum 5, and the rotating drum 5 is movably arranged in the inner cavity of the second light pole 4,

Please refer to FIG. 1 , a third light pole 8 is connected to the top of the second light pole 4 , and the connection between the third light pole 8 and the second light pole 4 is the same as that of the first light pole 2 , that is, the third light pole 8 is connected to the second light pole 8 . The installation process of the light pole 4 is the same as that of the first light pole 2. The combination and split structure arrangement reduces the difficulty of installation and improves the installation efficiency. The third light pole 8 is provided with a lighting street lamp 9;

Please refer to FIG. 1 and FIG. 2 , a fixing frame 11 is fixedly connected to the side wall of the second light pole 4 , an electronic display screen 12 is arranged on the fixing frame 11 , and a glass protective cover 13 is arranged outside the electronic display screen 12 . The electronic display screen 12 is covered to avoid the problem that the electronic display screen 12 is exposed to the outdoors for a long time, resulting in damage and reduced life;

Please refer to FIG. 2 , a side frame 14 is fixedly connected to the side wall of the electronic display screen 12 , a water tank 15 is arranged on the top of the side frame 14 , a micro water pump electrically connected to the control box 10 is arranged in the inner cavity of the water tank 15 , and a water tank 15 is provided on the top of the water tank 15 . The water outlet can also be used to collect rainwater. The water outlet end of the water tank 15 is connected to one end of the water conduit 16, and the other end of the water conduit 16 is connected to the nozzle 18. The nozzle 18 is fixed on the top of the glass protective cover 13, and the water conduit 16 delivers clean water to the nozzle 18. The water is sprayed on the surface of the glass protective cover 13 to wet the surface of the glass protective cover 13, which is convenient for subsequent cleaning;

2 and 4 , the inner cavity of the side frame 14 is provided with an electric telescopic rod 19 horizontally, and the end of the electric telescopic rod 19 is fixedly connected to the fixed plate 20 . In the initial state, the electric telescopic rod 19 is in a retracted state, and the fixed plate 20 and The cleaning brush rod 21 is located in the inner cavity of the side frame 14. When cleaning is required, after the nozzle 18 sprays water to the glass protective cover 13, the electric telescopic rod 19 is stretched to drive the fixed plate 20 and the cleaning brush rod 21 to move to the glass protective cover 13. surface, and then the driving motor 23 drives the cleaning brush rod 21 to rotate on the surface of the glass protective cover 13, so as to achieve a cleaning effect, protect the electronic display screen 12 without affecting the clear display of the screen, the side wall of the fixed disk 20 is fixedly provided with a driving motor 23. The output end of the driving motor 23 is fixedly connected to the cleaning brush rod 21 disposed on the other side of the fixed plate 20.

The upper and lower ends of the second light pole 4 are provided with inner limit grooves adapted to the fixing block 3 , the fixing block 3 is in the form of a strip block, and the fixing block 3 and the connecting block 6 are in a plug-in relationship.

There are two nozzles 18 in total, and the nozzles 18 are obliquely fixed on the electronic display screen 12 through the bracket 17 , and the water conduit 16 is a Y-shaped water pipe.

A control box 10 is provided on the side wall of the second light pole 4 and above the electronic display screen 12 . The control box 10 is provided with a power supply module.

There are horizontal reset rods 22 in the inner cavity of the side frame 14 and on the upper and lower sides of the electric telescopic rod 19 .

The side frame 14 has an open inner hollow structure on the left side wall, and a connecting bracket is provided on the rear side wall of the side frame 14 for connecting with the electronic display screen 12 .

The standard parts used in the utility model can be purchased from the market, the special-shaped parts can be customized according to the description in the specification and the drawings, and the specific connection method of each part adopts the mature bolts, rivets and welding in the prior art. and other conventional means, the machinery, parts and equipment all adopt the conventional models in the prior art, and the circuit connection adopts the conventional connection manner in the prior art, which will not be described in detail here.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a combination split formula wisdom street lamp, is including filling electric pile (1), its characterized in that: the charging pile is characterized in that the top end of the charging pile (1) is fixedly connected with a first lamp post (2), the top end of the first lamp post (2) is fixedly connected with a fixed block (3), the fixed block (3) is in limited clamping connection with an inner cavity of a connecting block (6), the connecting block (6) is fixedly connected with a spring (7), the spring (7) is arranged in an inner cavity of a rotary drum (5), the rotary drum (5) is movably arranged in an inner cavity of a second lamp post (4), the top end of the second lamp post (4) is connected with a third lamp post (8), an illuminating street lamp (9) is arranged on the third lamp post (8), a fixed frame (11) is fixedly connected with the side wall of the second lamp post (4), an electronic display screen (12) is arranged on the fixed frame (11), a glass protective cover (13) is arranged outside the electronic display screen (12), a side frame (14) is fixedly connected with a side, the water outlet end of water tank (15) is connected with aqueduct (16) one end, the aqueduct (16) other end is connected with nozzle (18), nozzle (18) are fixed in glass protection casing (13) top, side frame (14) inner chamber level is provided with electric telescopic handle (19), electric telescopic handle (19) tip fixed connection fixed disk (20), fixed disk (20) lateral wall is fixed and is provided with driving motor (23), the output of driving motor (23) and clean brush-holder stud (21) fixed connection who locates fixed disk (20) another side.

2. The intelligent street lamp of claim 1, wherein: the upper end and the lower end of the second lamp pole (4) are provided with inner limiting grooves matched with the fixing blocks (3), the fixing blocks (3) are strip-shaped block structures, and the fixing blocks (3) and the connecting blocks (6) are in a splicing relation.

3. The intelligent street lamp of claim 1, wherein: the number of the nozzles (18) is two, the nozzles (18) are obliquely fixed on the electronic display screen (12) through a support (17), and the water guide pipe (16) is a Y-shaped water pipe.

4. The intelligent street lamp of claim 1, wherein: the side wall of the second lamp pole (4) is provided with a control box (10) above the electronic display screen (12), and the electric telescopic rod (19) and the driving motor (23) are electrically connected with the control box (10).

5. The intelligent street lamp of claim 1, wherein: horizontal reset rods (22) are arranged in the inner cavity of the side frame (14) and positioned on the upper side and the lower side of the electric telescopic rod (19).

6. The intelligent street lamp of claim 1, wherein: the side frame (14) is of a left side wall open type hollow structure, and a connecting support is arranged on the rear side wall of the side frame (14).
