Abstract

The utility model relates to the technical field of gypsum boards, and discloses a light steel keel paper-faced gypsum board which is easy to install and disassemble, comprising a bottom plate and a gypsum board body. The top of the gypsum board is fixedly installed with a butt board with one end running through and extending to the inside of the butt groove, the left and right sides of the gypsum board body are fixedly installed with wing boards, and the top of the wing board is provided with one end running through and extending to the bottom of the wing board. jack. The light-steel keel paper-faced gypsum board is easy to install and disassemble. Through the control slot on the limit rod and the installation screw on the bottom plate, when the user needs to disassemble the equipment, the user rotates the limit screw to disengage the threaded pipe and pulls the pull rod. The control clip is released from the slot, and the limit between the bottom plate and the gypsum board body is lost, and the user can remove the gypsum board body without worrying about disassembly, which is convenient for the user to use.

Description

A light steel keel gypsum board that is easy to install and disassemble

technical field

The utility model relates to the technical field of gypsum boards, in particular to a light steel keel paper-surface gypsum board which is easy to install and disassemble.

Background technique

Gypsum board is a material made of building gypsum as the main raw material. It is a building material with light weight, high strength, thin thickness, convenient processing, and good sound insulation, heat insulation and fire resistance. Gypsum board has been widely used in interior partition walls, wall cladding panels (instead of wall plastering layers), ceilings, Sound-absorbing panels, ground base panels and various decorative panels, etc., are not suitable for indoor installation in bathrooms or kitchens.

When the traditional light steel keel gypsum board is used as an equipment wallboard, the light steel keel gypsum board is generally fixed on the indoor floor. The traditional connection method is difficult to disassemble, which is a big problem for the later change of the house layout. , users are quite troubled by this, so a light steel keel gypsum board that is easy to install and disassemble is proposed.

Utility model content

(1) Technical problems solved

Aiming at the deficiencies of the prior art, the utility model provides a light steel keel gypsum board that is easy to install and disassemble, which has the advantages of convenient disassembly and installation, etc. At the time, the light steel keel gypsum board is generally fixed on the indoor floor, and the traditional connection method is difficult to disassemble.

(2) Technical solutions

In order to achieve the above purpose of convenient disassembly and installation, the utility model provides the following technical scheme: a light steel keel paper-faced gypsum board that is easy to install and disassemble, including a bottom plate and a gypsum board body, and the bottom of the gypsum board body is provided with a butt joint. The top of the bottom plate is fixedly installed with a butt board with one end passing through and extending into the interior of the butt groove, the left and right sides of the gypsum board body are fixedly installed with wing boards, and the top of the wing board is provided with one end penetrating and extending to the inside of the butt groove. The jack extending to the bottom of the wing plate, the top of the bottom plate and on the left and right sides of the butt plate are fixedly installed with an internally threaded pipe with one end passing through and extending into the interior of the jack, and one end of the internally threaded pipe is movably installed A limit screw that penetrates and extends to the top of the wing plate, the top of the limit screw is fixedly installed with a twist handle, the bottom of the wing plate is located on the side opposite to the jack, and there is a limit slot, and the top of the bottom plate is located at the The opposite side of the inner threaded pipe is fixedly installed with a limit rod whose one end penetrates and extends into the interior of the limit slot. The opposite side of the limit rod is provided with a control card slot, and the inner wall of the limit slot is opposite to each other. One side is installed with a loading slot opened on the wing plate, and the opposite side of the wing plate is movably installed with a pull rod whose one end penetrates and extends into the interior of the loading slot, the outside of the pull rod and the inside of the loading slot is sleeved with a tie rod. A return spring, the opposite side of the pull rod is fixedly installed with a control clip with one end penetrating and extending into the inside of the control card slot, and the top of the bottom plate and located on the opposite side of the limit rod is movably installed with one end penetrating and extending to the bottom Mounting screws on the bottom of the board.

Preferably, the butting groove and the butting plate are matched, the top of the butting plate is an inclined plane, and the butting plate is a stainless steel plate.

Preferably, the inside of the internally threaded pipe is provided with a thread matching the restriction screw, the torsion handle is a stainless steel rod, the outside of the torsion handle is provided with an anti-slip groove, and the length of the torsion handle is greater than the diameter of the socket .

Preferably, the limit groove and the limit rod are matched, and the top of the limit rod adopts an inclined design.

Preferably, the tie rod includes a cross bar and a pressure plate, a pressure plate is fixedly installed on the opposite side of the cross bar, and the diameter of the pressure plate is larger than the outer diameter of the return spring.

Preferably, the interior of the bottom plate is provided with a threaded through hole matching the mounting screw, and the bottom plate is a stainless steel plate.

(3) Beneficial effects

Compared with the prior art, the utility model provides a light steel keel gypsum board that is easy to install and disassemble, and has the following beneficial effects:

The light steel keel paper-faced gypsum board that is easy to install and disassemble, through the control slot set on the limit rod and the installation screw on the bottom plate, when the user uses the equipment, the user fixes the bottom plate through the mounting screw, and the docking plate extends The user inserts the restriction screw into the inner thread tube, turns the restriction screw, the restriction screw drives the twist handle to move down to press the flange and the bottom plate to fit together, and the control clip enters the slot again. Limiting wing plate, in this way, the installation of the equipment becomes simple. When the user needs to disassemble the equipment, the user rotates the limiting screw to disengage the threaded pipe, and pulls the pull rod to make the control clip come out of the slot, and the gap between the bottom plate and the gypsum board body is lost. The user can remove the gypsum board body without worrying about the disassembly problem, which is convenient for the user to use.

Description of drawings

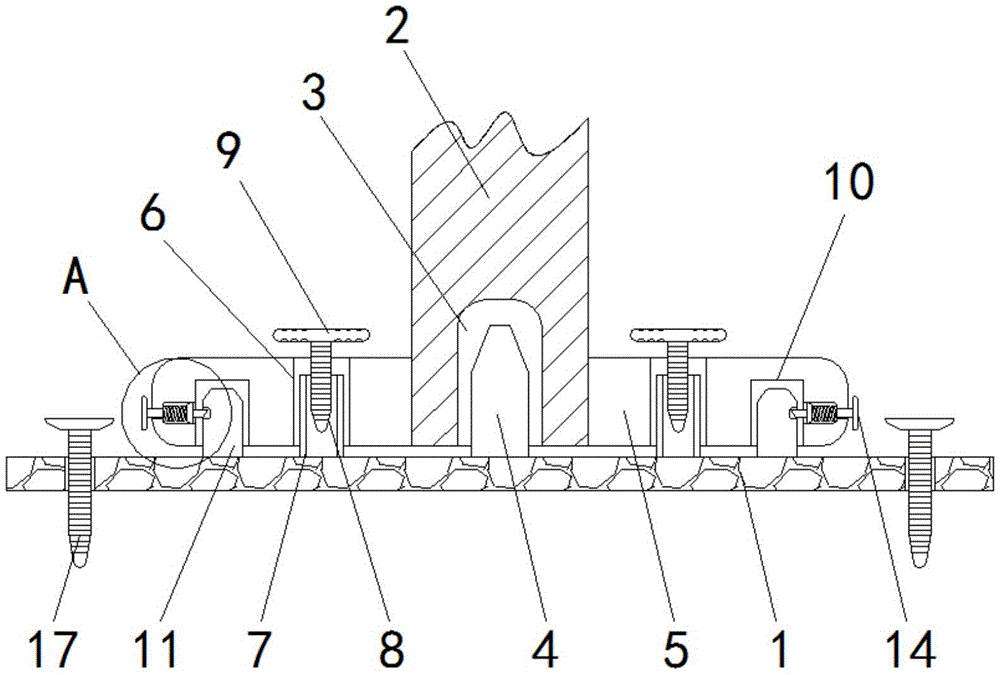

Fig. 1 is the structural representation of the utility model;

FIG. 2 is an enlarged view of part A in FIG. 1 of the utility model.

In the picture: 1 bottom plate, 2 gypsum board body, 3 butt groove, 4 butt plate, 5 wing plate, 6 socket, 7 inner threaded pipe, 8 limit screw, 9 twist handle, 10 limit groove, 11 limit rod , 12 control card slots, 13 loading slots, 14 pull rods, 15 return springs, 16 control staples, 17 installation screws.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Figure 1-2, a light steel keel paper-faced gypsum board that is easy to install and disassemble, including a bottom plate 1 and a gypsum board body 2. The bottom of the gypsum board body 2 is provided with a docking groove 3, and the top of the bottom plate 1 is fixedly installed There is a butt plate 4 with one end running through and extending to the inside of the butt groove 3, the butt groove 3 and the butt plate 4 are matched, the top of the butt plate 4 is an inclined plane, the butt plate 4 is a stainless steel plate, and the left and right sides of the gypsum board body 2 are The wing plate 5 is fixedly installed, and the top of the wing plate 5 is provided with an insertion hole 6 whose one end penetrates and extends to the bottom of the wing plate 5. The top of the bottom plate 1 and located on the left and right sides of the docking plate 4 are fixedly installed with one end passing through and extending to the bottom. The inner threaded pipe 7 inside the socket 6 is movably installed with a limit screw 8 which penetrates through one end and extends to the top of the wing plate 5, and the top of the limit screw 8 is fixedly installed with a twist handle 9, and the inner threaded pipe 7 The inside is provided with a thread that matches the limit screw 8, the twist handle 9 is a stainless steel rod, the outside of the twist handle 9 is provided with a non-slip groove, the length of the twist handle 9 is greater than the diameter of the jack 6, and the bottom of the wing plate 5 is located in the jack. A limit slot 10 is set on the opposite side of the base plate 1 , and a limit rod 11 , one end of which penetrates and extends into the limit slot 10 , is fixedly installed on the top of the bottom plate 1 and on the side opposite to the inner threaded pipe 7 . The limit slot 10 Matching with the limit rod 11, the top of the limit rod 11 adopts an inclined design, the side opposite to the limit rod 11 is provided with a control card slot 12, and the opposite side of the inner wall of the limit slot 10 is installed with a wing plate. The loading slot 13 on the 5, the opposite side of the wing plate 5 is movably installed with a pull rod 14 whose one end penetrates and extends into the interior of the loading slot 13. 14 includes a cross bar and a pressure plate. A pressure plate is fixedly installed on the opposite side of the cross bar. The diameter of the pressure plate is larger than the outer diameter of the return spring 15. The opposite side of the pull rod 14 is fixedly installed with one end that penetrates and extends to the control card slot 12. The internal control clip 16, the top of the bottom plate 1 and located on the side opposite to the limit rod 11 is movably installed with a mounting screw 17 that penetrates through and extends to the bottom of the bottom plate 1 at one end, and is provided inside the bottom plate 1 to match the mounting screw 17. The bottom plate 1 is a stainless steel plate. Through the control card slot 12 provided on the limit rod 11 and the installation screw 17 on the bottom plate 1, when the user uses the device, the user can use the installation screw 17 to fix the bottom plate 1 , the docking plate 4 extends into the docking slot 3, the inner threaded pipe 7 extends into the insertion hole 6, the user inserts the limiting screw 8 into the inner threaded pipe 7, rotates the limiting screw 8, and the limiting screw 8 drives the twist handle 9 to move down the pressing wing The plate 5 is attached to the bottom plate 1, and the control clip 16 enters the slot 12 to limit the wing plate 5 again. In this way, the installation of the device becomes simple. When the user needs to disassemble the device, the user rotates the limit screw 8 to disengage the threaded pipe 7. , pull the tie rod 14 to make the control clip 16 separate from the card slot 12, the limit between the bottom plate 1 and the gypsum board body 2 is lost, and the user can remove the gypsum board body 2 without worrying about the disassembly problem, which is convenient for the user. use.

To sum up, the light steel keel gypsum board that is easy to install and disassemble, through the control card slot 12 on the limit rod 11 and the installation screw 17 on the bottom plate 1, when the user uses the equipment, the user can pass the The mounting screw 17 fixes the bottom plate 1, the docking plate 4 extends into the docking slot 3, and the inner threaded pipe 7 extends into the insertion hole 6. The user inserts the limiting screw 8 into the inner threaded pipe 7, rotates the limiting screw 8, and the limiting screw 8 drives the The twist handle 9 is moved down to press the wing plate 5 and the bottom plate 1 to fit, and the control clip 16 enters the card slot 12 to limit the wing plate 5 again. In this way, the installation of the device becomes simple. When the user needs to disassemble the device, the user rotates Restrict the screw 8 from the threaded pipe 7, pull the pull rod 14 to make the control clip 16 separate from the slot 12, the limit between the bottom plate 1 and the gypsum board body 2 is lost, and the user can remove the gypsum board body 2 without worrying about dismantling The problem is that it is convenient for users to use, and solves the problem that when the traditional light steel keel gypsum board is used as an equipped wallboard, the light steel keel gypsum board is generally fixed on the indoor floor, and the traditional connection method is difficult to disassemble. , it is a big problem for the later change of the house layout, and the user is quite troubled by this.

It should be noted that, in this document, relational terms such as first and second are used only to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus. Without further limitation, an element qualified by the phrase "comprising a..." does not preclude the presence of additional identical elements in a process, method, article or apparatus that includes the element.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. A light steel keel paper-faced gypsum board that is easy to install and disassemble, comprising a bottom plate (1) and a gypsum board body (2), characterized in that: the bottom of the gypsum board body (2) is provided with a butt groove ( 3), the top of the bottom plate (1) is fixedly installed with a butt plate (4) with one end passing through and extending into the interior of the butt groove (3), and wings are fixedly installed on the left and right sides of the gypsum board body (2). Plate (5), the top of the wing plate (5) is provided with an insertion hole (6) through which one end penetrates and extends to the bottom of the wing plate (5), the top of the bottom plate (1) is located at the top of the butt plate (4) The left and right sides are fixedly installed with an inner threaded pipe (7) whose one end penetrates and extends to the inside of the jack (6), and the inner threaded pipe (7) is movably installed with one end penetrating and extending to the top of the wing plate (5). The limit screw (8), the top of the limit screw (8) is fixedly installed with a twist handle (9), the bottom of the wing plate (5) and the side opposite to the jack (6) is provided with a limit slot (10), a limit rod (11) with one end passing through and extending into the limit groove (10) is fixedly installed on the top of the bottom plate (1) and on the side opposite to the inner threaded pipe (7). A control card slot (12) is provided on the opposite side of the limit rod (11), and a loading slot (13) opened on the wing plate (5) is installed on the opposite side of the inner wall of the limit slot (10). , the opposite side of the wing plate (5) is movably installed with a pull rod (14) whose one end penetrates and extends to the inside of the loading slot (13), the outside of the pull rod (14) and the interior of the loading slot (13) A return spring (15) is sleeved, and the opposite side of the pull rod (14) is fixedly installed with a control card nail (16) whose one end penetrates and extends into the control card slot (12). The top of the bottom plate (1) And a mounting screw (17), one end of which penetrates through and extends to the bottom of the bottom plate (1), is movably mounted on the side opposite to the limit rod (11). 2. A light steel keel gypsum board with easy installation and disassembly according to claim 1, characterized in that: the butt groove (3) is matched with the butt plate (4), and the butt plate (4) The top of the plate is an inclined plane, and the butt plate (4) is a stainless steel plate. 3. A light steel keel gypsum board for easy installation and disassembly according to claim 1, characterized in that: the interior of the inner threaded pipe (7) is provided with a thread matching the restriction screw (8), The twist handle (9) is a stainless steel rod, an anti-slip groove is provided on the outside of the twist handle (9), and the length of the twist handle (9) is greater than the diameter of the insertion hole (6). 4. A light steel keel gypsum board for easy installation and disassembly according to claim 1, characterized in that: the limit groove (10) is matched with the limit rod (11), and the limit rod The top of (11) adopts a sloping design. 5. A light steel keel gypsum board easy to install and disassemble according to claim 1, characterized in that: the tie rod (14) comprises a cross bar and a pressure plate, and the opposite side of the cross bar is fixedly installed There is a pressure plate, and the diameter of the pressure plate is larger than the outer diameter of the return spring (15). 6. A light steel keel gypsum board for easy installation and disassembly according to claim 1, characterized in that: the bottom plate (1) is provided with a threaded through hole matching the installation screw (17), The bottom plate (1) is a stainless steel plate.
