Abstract

The utility model discloses a multi-use anti-theft express packaging with its own buffering effect, which comprises a packaging main body, the packaging main body has an integrated structure, and the packaging main body comprises a front cover, a left cover, a rear cover, a right cover, a front cover Side plate, left side plate, rear side plate, right side plate, front inner bottom plate, rear inner bottom plate, left outer bottom plate, right outer bottom plate, front wrinkle buffer structure and rear wrinkle buffer structure; The left side plate, the front inner bottom plate and the first joint are folded and connected, the left side plate is folded and connected with the left cover plate, the rear side plate and the left outer bottom plate respectively, and the rear side plate is folded with the rear cover plate, the right side plate and the rear inner bottom plate respectively The right side plate is folded and connected with the right cover plate and the right outer bottom plate respectively, the front inner bottom plate is folded and connected with the front wrinkle buffer structure, and the rear inner bottom plate is folded and connected with the rear wrinkle buffer structure. The utility model is a paper forming design which combines buffering and packaging into one, the buffering structure can be adapted to products of different sizes, and has both the functions of reusability and anti-theft.

Description

A multi-use anti-theft express packaging with its own buffer effect

technical field

The utility model relates to the technical field of express packaging, in particular to a multi-use anti-theft express packaging with its own buffer effect.

Background technique

As express packaging, its application purpose is transportation. It needs to protect the product during transportation, and has buffer packaging; it must have the function of convenient transportation, and the outer packaging must be cuboid, which is convenient for stacking; it must have the function of safety and anti-theft, and it must be safe during transportation. In the process, it is necessary to avoid the phenomenon of stealing and replacing the lost goods; there must be a green and environmental protection concept, and it can be reused. At present, the buffer of express packaging is still in a state of extreme waste. Foamed plastic or paper is generally used as a buffer, and then packed in corrugated boxes. It is difficult to recycle plastic for secondary use. Conducive to the purpose of contemporary conservation and environmental protection, the problem of theft in transportation cannot be ignored. Therefore, in the process of express delivery, the combination of reusable technology and anti-theft technology has become one of the key technical issues in the field of packaging technology.

Utility model content

The technical problem to be solved by the utility model is to provide a multi-use anti-theft self-contained buffer effect express package for the deficiencies of the above-mentioned prior art, which is a kind of buffer and anti-theft express package. The packaging is integrated into one paper forming design, the buffer structure can adapt to products of different sizes, and has both reusable and anti-theft functions.

In order to realize the above-mentioned technical purpose, the technical scheme adopted by the present utility model is:

A multi-use anti-theft express packaging with its own buffering effect, comprising a packaging main body, the packaging main body has an integrated structure, and the packaging main body comprises a front cover plate, a left cover plate, a rear cover plate, a right cover plate, a front side plate, Left side plate, rear side plate, right side plate, front inner bottom plate, rear inner bottom plate, left outer bottom plate, right outer bottom plate, front wrinkle buffer structure and rear wrinkle buffer structure;

The front side panel is respectively folded and connected with the front cover panel, the left side panel, the front inner bottom panel and the first joint, the left side panel is folded and connected with the left cover panel, the rear side panel and the left outer The plates are respectively folded and connected to the rear cover plate, the right side plate and the rear inner bottom plate, the right side plate is respectively folded and connected to the right cover plate and the right outer bottom plate, the front inner bottom plate is folded and connected to the front wrinkle buffer structure, and the rear inner bottom plate It is folded and connected with the rear wrinkle buffer structure;

The surface of the front cover is provided with a plurality of sets of top card slots distributed parallel to each other, and the top of the front cover is folded and connected with a top insert tongue; Tear crease line, the top of the rear cover is folded and connected with the top outer tongue through the tearable crease line; the top of the left cover is provided with a first inner lock and structure, and the top of the right cover is provided with a third Two inner locks and structures; the surfaces of the front inner bottom plate and the rear inner bottom plate are both provided with bottom slots; the left outer bottom plate is folded and connected with a second joint, and the middle part of the folded position is provided with a bottom outer card slot, the first The second joint is folded and connected with two bottom anti-theft inner tongues; the right outer bottom plate is folded and connected with a third joint, and the middle of the folded position is provided with a bottom anti-theft outer tongue for being inserted into the bottom outer card slot. The three joints are folded and connected with a flap, and the flap is provided with two bottom inner card slots for being inserted into the bottom anti-theft inner tongue.

As a further improved technical solution of the present invention, multiple sets of tearable crease lines are located in the middle of the surface of the rear cover, and multiple sets of tearing cardboard are provided on both sides of the multiple sets of tearable crease lines.

As a further improved technical solution of the present invention, the front wrinkle buffer structure is formed by folding five sets of inner buffer wrinkle bottom plates through a plurality of buffer wrinkle lines. The end of each group of inner buffer corrugated bottom plates is provided with a first buffer card slot;

The rear wrinkle buffer structure is formed by folding five sets of inner buffer wrinkle bottom plates through a plurality of buffer wrinkle lines, each set of inner buffer wrinkle bottom plates is provided with a plurality of buffer wrinkle lines, and the ends of each set of inner buffer wrinkle bottom plates are provided with The second buffer card slot is clamped with the first buffer card slot.

As a further improved technical solution of the present invention, the packaging body adopts single-layer corrugated paper.

The beneficial effects of the present utility model are:

(1) The utility model is a one-paper forming that combines buffering and packaging, which improves the utilization rate of corrugated paper.

(2) The front wrinkle cushioning structure and the rear wrinkle cushioning structure of the present invention break the size limitation of the packaged product on the contents, and can adapt to products of different sizes.

(3) The five groups of first buffer card slots on the front wrinkle buffer structure of the present invention and the five groups of second buffer card slots on the rear wrinkle buffer structure are engaged with each other to achieve the buffer function suitable for products of different sizes, so that the packaged The product is more firm and stable, and realizes the variable separation function.

(4) In this utility model, the second joint and the third joint are folded 90 degrees and penetrated into the box body from the bottom slot of the front inner bottom plate and the rear inner bottom plate, and the anti-theft outer tongue at the bottom is inserted into the outer card slot at the bottom. The anti-theft inner tongue is folded 90 degrees outward and the bottom inner card slot forms a dovetail card slot design. At this time, it cannot be opened from the outside without destroying the box body, so as to achieve the effect of the bottom anti-theft; therefore, the utility model has good anti-theft protection Functional, portable, easy to take and put away.

(5) The packaging material of the present utility model is folded with a single layer of corrugated paper, which is green and pollution-free, and advocates green packaging.

(6) The utility model can be reused for many times, and multiple groups of torn cardboards and multiple groups of tearable crease lines enable the rear cover and the front cover to be plugged multiple times.

Description of drawings

FIG. 1 is an expanded view of the utility model.

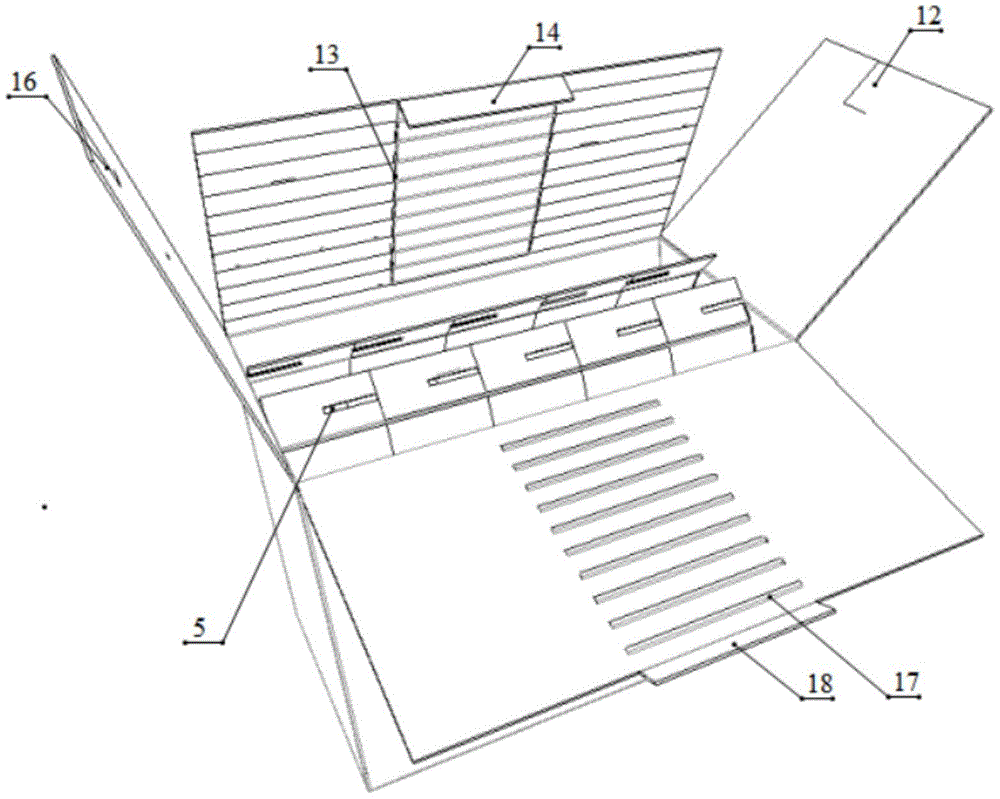

Fig. 2 is the folding effect diagram of the utility model.

3 is a folding effect diagram of the front wrinkle buffer structure and the rear wrinkle buffer structure in the partial structure of the present invention.

Fig. 4 is the effect diagram of bottom anti-theft folding in the partial structure of the utility model.

5 is a top view of the bottom anti-theft in the partial structure of the utility model.

FIG. 6 is an effect diagram of a folding step of the present invention.

FIG. 7 is an effect diagram of the second folding step of the present invention.

FIG. 8 is an effect diagram of the third folding step of the present invention.

FIG. 9 is an effect diagram of the fourth folding step of the present invention.

FIG. 10 is an effect diagram of the fifth folding step of the present invention.

FIG. 11 is an effect diagram of the sixth folding step of the present invention.

Detailed ways

In the description of the present invention, it should be understood that the terms "center", "longitudinal", "horizontal", "upper", "lower", "front", "rear", "left", "right", The orientations or positional relationships indicated by "vertical", "horizontal", "top", "bottom", "inside", "outside", etc. are based on the orientations or positional relationships shown in the accompanying drawings, and are only for the convenience of describing the present invention The novel and simplified description does not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operate in a particular orientation, and therefore should not be construed as limiting the invention. In addition, the terms "first", "second", etc. are used for descriptive purposes only, and should not be construed as indicating or implying relative importance or implying the number of indicated technical features. Thus, a feature defined as "first", "second", etc., may expressly or implicitly include one or more of that feature. In the description of the present invention, unless otherwise specified, "plurality" means two or more.

In the description of the present invention, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "connected" and "connected" should be understood in a broad sense, for example, it may be a fixed connection or a connectable connection. Detachable connection, or integral connection; may be mechanical connection or electrical connection; may be direct connection, or indirect connection through an intermediate medium, or internal communication between two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood through specific situations.

Below in conjunction with Fig. 1 to Fig. 11, the utility model is further described:

As shown in Figures 1 to 5, a multi-use anti-theft express packaging with its own buffering effect includes a packaging main body, the packaging main body is an integral structure, and the packaging main body includes a front cover E, a left cover F, a rear cover Cover G, Right Cover H, Front Side A, Left Side B, Rear Side C, Right Side D, Front Inner Bottom I, Rear Inner K, Left Outer J, Right Outer L, Front The wrinkle buffer structure M, the rear wrinkle buffer structure N and the first joint O.

The front side panel A is folded and connected to the left side panel B and the front inner bottom panel I through different crease lines, folded and connected to the front cover panel E through the box cover crease line 1, and is folded and connected to the manufacturer joint crease line 2. The first joint O is folded and connected. The left side panel B is folded and connected to the left cover panel F, the rear side panel C and the left outer bottom panel J respectively through different crease lines, and the rear side panel C is respectively connected to the rear cover panel G, The right side panel D and the rear inner bottom panel K are folded and connected, the right side panel D is folded and connected with the right cover panel H and the right outer bottom panel L through different crease lines, and the front inner bottom panel I and the front wrinkle buffer structure M are folded and connected. Folding connection, the rear inner bottom plate K is folded and connected with the rear wrinkle buffer structure N.

The surface of the front cover plate E is provided with a plurality of sets of top snap grooves 17 distributed in parallel with each other, and the top of the front cover plate E is folded and connected with a top insertion tongue 18 . The surface of the rear cover G is provided with multiple sets of tearing cardboards 15 and multiple sets of tearable crease lines 13, and multiple sets of tearable crease lines 13 are located in the middle of the surface of the rear cover G, and multiple sets of tearable Multiple groups of torn cardboards 15 are provided on both sides of the crack crease line 13 . The top of the rear cover panel G is folded and connected with a top external insertion tongue 14 through a tearable crease line 13 . The top of the left cover plate F is provided with a first inner lock and structure 16 (ie, L-shaped slot), and the top of the right cover plate H is provided with a second inner lock and structure 12 (ie, L-shaped slot). The surfaces of the front inner bottom plate 1 and the rear inner bottom plate K are all provided with a strip-shaped bottom slot 3. The left outer bottom plate J is folded and connected with a second joint through the first bottom crease line 7, and the middle of the first bottom crease line 7 is provided with a bottom outer card slot 8, and the second joint is folded and connected with two bottom anti-theft Insert tongue 6. The right outer bottom plate L is folded and connected to a third joint through the second bottom crease line 11, and the middle of the second bottom crease line 11 is provided with a bottom anti-theft outer tongue 10 for being inserted into the bottom outer card slot 8, The third joint is folded and connected with a flap, and the flap is provided with two bottom inner card slots 9 for inserting with the bottom anti-theft inner tongue 6 .

The front wrinkle buffer structure M is formed by folding five groups of inner buffer wrinkle bottom plates through a plurality of buffer wrinkle lines 4. The surface of each group of inner buffer wrinkle bottom plates is provided with a plurality of buffer wrinkle lines 4, and the inner buffer wrinkle bottom plates of each group are provided with a plurality of buffer wrinkle lines 4. Both ends are provided with a first buffer slot 5 . Similarly, the rear wrinkle buffer structure N is also formed by folding five groups of inner buffer wrinkle bottom plates through a plurality of buffer wrinkle lines 4, each group of inner buffer wrinkle bottom plates is provided with a plurality of buffer wrinkle lines 4 and each group of inner buffer wrinkle lines 4. Both ends of the bottom plate are provided with second buffer card slots for engaging with the first buffer card slots 5 .

The five sets of inner buffer corrugated bottom plates put objects in them and use a plurality of buffer corrugated lines 4 as buffers. The folding effect diagram of the front wrinkle buffer structure and the rear wrinkle buffer structure is shown in Figure 3. In this way, the wrinkling can achieve a buffer function suitable for products of different sizes, so that the packaged products are more firm and stable, and a variable separation function can be achieved.

The packaging body of this embodiment is folded from a single layer of corrugated paper.

As shown in the folding steps shown in Figure 6 to Figure 11, first, fold according to the effect diagram of step 3; secondly, fold the first bottom crease line 7 and the second bottom crease line 11 by 90 degrees (as shown in Figure 4). shown) and pass through the bottom slot 3 to the inside of the box, the bottom anti-theft outer tongue 10 is inserted into the bottom outer card slot 8, the bottom anti-theft inner tongue 6 is folded 90 degrees outward and the bottom inner card slot 9 forms a dovetail card The groove design (the effect diagram is shown in Figure 5), at this time, the box cannot be opened from the outside without destroying the box to achieve the effect of anti-theft at the bottom; then install the product, and put the product into the front and rear wrinkle buffer structure, you can The five groups of inner buffer corrugated bottom plates can be folded downwards or upwards. The shape of the card slot 5 is the same) to be engaged with each other to achieve the buffer function suitable for products of different sizes, so that the packaged product is more firm and stable, and realizes the variable separation function; the first inner lock and the structure 16, the second inner lock and The structure 12 is locked, and the top inner tongue 18 is inserted into the box; when it is used for the first time, the top outer tongue 14 is inserted into a top slot 17 closest to the front side panel A, and the packing box is folded; Seal the inserting place of the top outer tongue 14 and the top card slot 17 to achieve the anti-theft effect, and it is ready to use. The first connector O and the right side panel D in this embodiment can be fixedly connected by glue.

When the express package needs to be unpacked, the first group of torn cardboards 15 and the top of the top are inserted along the first row of torn cardboards 15 and the first row of tearable crease lines 13 on the rear cover G. The tongue 14 is torn off and the package is opened. For the second use of packaging, insert another top outer tongue 14 formed after tearing off into the top card slot 17 of the second row, and then seal it with a courier sticker. By analogy, this embodiment can be reused for many times, and the front cover E and the rear cover G can be plugged and connected for many times.

The basic principles, main features and advantages of the present invention have been shown and described above. It should be understood by those skilled in the art that the present invention is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principle of the present invention. Without departing from the spirit and scope of the present invention, the present invention There will also be various changes and improvements in the new model, which all fall within the scope of the claimed invention.

Claims (4)

1. an anti-theft self-contained buffering effect express package, comprising a package body, is characterized in that: The packaging body has an integrated structure, and the packaging body includes a front cover, a left cover, a rear cover, a right cover, a front side, a left side, a rear side, a right side, a front inner bottom, and a rear inner bottom , Left outer bottom plate, right outer bottom plate, front wrinkle buffer structure and rear wrinkle buffer structure; The front side panel is respectively folded and connected with the front cover panel, the left side panel, the front inner bottom panel and the first joint, the left side panel is folded and connected with the left cover panel, the rear side panel and the left outer The plates are respectively folded and connected to the rear cover plate, the right side plate and the rear inner bottom plate, the right side plate is respectively folded and connected to the right cover plate and the right outer bottom plate, the front inner bottom plate is folded and connected to the front wrinkle buffer structure, and the rear inner bottom plate It is folded and connected with the rear wrinkle buffer structure; The surface of the front cover is provided with a plurality of sets of top card slots distributed parallel to each other, and the top of the front cover is folded and connected with a top insert tongue; Tear crease line, the top of the rear cover is folded and connected with the top outer tongue through the tearable crease line; the top of the left cover is provided with a first inner lock and structure, and the top of the right cover is provided with a third Two inner locks and structures; the surfaces of the front inner bottom plate and the rear inner bottom plate are both provided with bottom slots; the left outer bottom plate is folded and connected with a second joint, and the middle part of the folded position is provided with a bottom outer card slot, the first The second joint is folded and connected with two bottom anti-theft inner tongues; the right outer bottom plate is folded and connected with a third joint, and the middle of the folded position is provided with a bottom anti-theft outer tongue for being inserted into the bottom outer card slot. The three joints are folded and connected with a flap, and the flap is provided with two bottom inner card slots for being inserted into the bottom anti-theft inner tongue. 2. The multi-use anti-theft express package with its own buffering effect according to claim 1, characterized in that: multiple groups of tearable crease lines are located in the middle of the surface of the back cover, and multiple groups of tearable crease lines Sets of torn cardboard are provided on both sides of the line. 3. The multi-use anti-theft self-contained buffering effect express package according to claim 1, characterized in that: The front wrinkle buffer structure is formed by folding five sets of inner buffer wrinkle bottom plates through a plurality of buffer wrinkle lines, the surface of each set of inner buffer wrinkle base plates is provided with a plurality of buffer wrinkle lines, and the ends of each set of inner buffer wrinkle base plates are is provided with a first buffer card slot; The rear wrinkle buffer structure is formed by folding five sets of inner buffer wrinkle bottom plates through a plurality of buffer wrinkle lines, each set of inner buffer wrinkle bottom plates is provided with a plurality of buffer wrinkle lines, and the ends of each set of inner buffer wrinkle bottom plates are provided with The second buffer card slot is clamped with the first buffer card slot. 4. The multi-use anti-theft express packaging with its own buffering effect according to claim 1, wherein the main body of the packaging adopts single-layer corrugated paper.
