The utility model discloses a motor end cover polisher with dust absorption function, including base, grinding device, suction hood, fan, dust collecting box, be provided with the bracing piece on the base, grinding device passes through supporting seat movable mounting on the bracing piece, the suction hood cover is in grinding device's the wheel top of polishing, the dust collecting box pass through the dust exhaust pipe with the dust collecting hood intercommunication, the fan set up at the suction hood with dust exhaust union coupling department. The utility model discloses a fan cooperation suction hood will polish the metal dust that produces and send into the dust box in, under the effect of dust box inner filter screen, the metal dust constantly piles up in the dust box.
Description
Technical Field
The utility model relates to a motor end cover processing field specifically is a motor end cover polisher with dust absorption function.
Background
After the motor end cover is machined by the machine tool, the motor end cover needs to be polished by a polisher so as to remove burrs on the motor end cover, the polisher can generate a large amount of metal dust in the polishing process, the environment is seriously polluted, and meanwhile, health can be seriously harmed after workers suck the dust.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a motor end cover polisher with dust absorption function to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a motor end cover sander with dust extraction, comprising:
the supporting seat is connected with an air cylinder which pushes the supporting seat to move up and down;
the polishing device comprises motor bases symmetrically arranged on the left side and the right side of the supporting base, motors are arranged on the motor bases, output shafts of the motors transversely extend out, and polishing wheels are arranged at the end parts of the output shafts of the motors;
the dust hood comprises two dust hoods which are respectively arranged above the grinding wheel, the dust hoods are fixed on the supporting seat through a supporting frame, the dust hoods wrap the upper half part of the grinding wheel, the top of each dust hood is connected with a dust exhaust pipe, and the dust exhaust pipes are converged and connected with a dust exhaust main pipe;
the fan is arranged at the joint of the dust hood and the dust exhaust pipe and used for sending the air in the dust hood into the dust exhaust pipe;
the middle part of one side of the dust accumulation box is communicated with the end, far away from the dust collection cover, of the dust exhaust main pipe, the top and the bottom in the dust accumulation box are respectively and horizontally provided with a filter frame and a dust storage hopper which can be drawn out from the side edge, a filter screen is arranged on the filter frame, and the top of the dust accumulation box is provided with an air outlet.
Furthermore, the supporting rod is provided with a limiting block for preventing the grinding wheel from touching the dust hood.
Furthermore, a valve is arranged on the dust exhaust pipe.
Furthermore, the filter screen in the filter frame comprises a plurality of layers.
Compared with the prior art, the beneficial effects of the utility model are that: 1. the metal dust generated by polishing is sent into the dust collection box through the matching of the fan and the dust collection cover, and the metal dust is continuously accumulated in the dust collection box under the action of the filter screen in the dust collection box, so that the dust collection purpose is achieved; 2. the two polishing wheels can be simultaneously assembled with polishing wheels with different thicknesses, so that the replacement of the polishing wheels is reduced, and the processing is convenient; 3. through setting up the laying dust fill and filtering frame, conveniently clear up the laying dust case.
Drawings

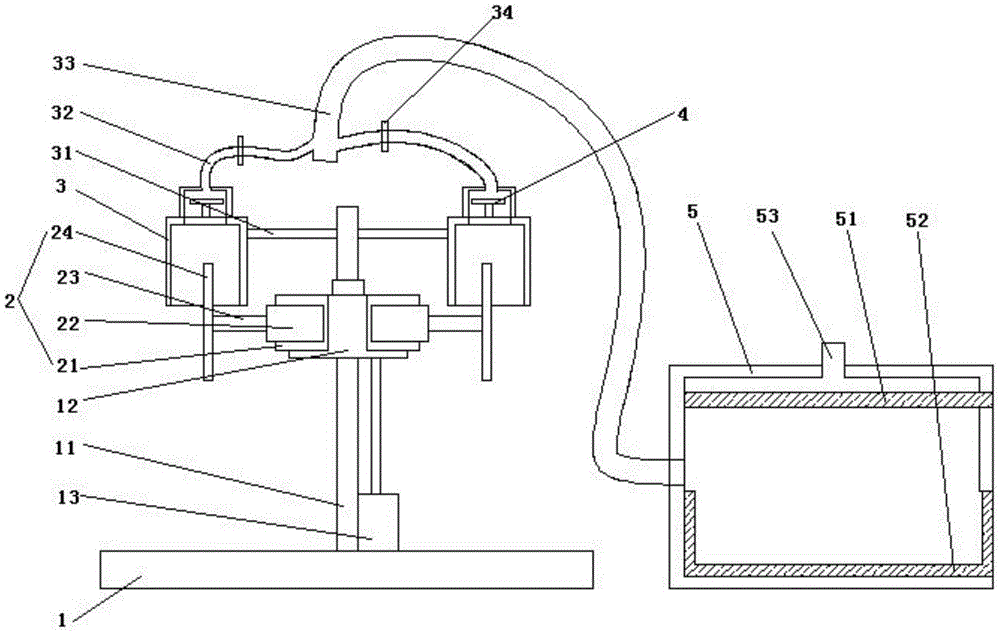

Fig. 1 is a schematic structural diagram of the present invention.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1, the present invention provides a technical solution: a motor end cover sander with dust extraction, comprising:
the grinding wheel mounting device comprises a base 1, wherein a support rod 11 is vertically arranged on the base 1, a support seat 12 sliding along the support rod 11 is arranged on the support rod 11, the support seat 12 is connected with an air cylinder 13 pushing the support seat to move up and down, and the position of the support seat is moved, so that the grinding wheel can be conveniently mounted and replaced;
the polishing device 2 comprises motor bases 21 symmetrically arranged on the left side and the right side of the supporting seat 12, motors 22 are arranged on the motor bases 21, output shafts 23 of the motors 22 transversely extend out, polishing wheels 24 are arranged at the end parts of the output shafts, the polishing wheels with different polishing precision can be respectively arranged at the two ends, and coarse polishing and fine polishing are convenient to carry out;
the dust hood 3 comprises two dust hoods which are respectively arranged above the grinding wheel 24, the dust hoods 3 are fixed on the supporting seat 12 through a supporting frame 31, the dust hoods 3 wrap the upper half part of the grinding wheel 24, the top of the dust hoods 3 is connected with a dust exhaust pipe 32, and the dust exhaust pipe 32 is connected with a dust exhaust main pipe 33 in a gathering manner;
the fan 4 is arranged at the joint of the dust hood 3 and the dust exhaust pipe 32, and is used for sending the air in the dust hood into the dust exhaust pipe, and continuously pumping the air in the dust hood to wrap the polished dust into the dust exhaust pipe;
the dust box 5 is characterized in that the middle of one side of the dust box 5 is communicated with the dust exhaust main pipe 33 far away from the end of the dust hood 3, a filter frame 51 and a dust storage hopper 52 which can be taken out from the side edge are horizontally arranged at the top and the bottom in the dust box 5 respectively, a filter screen is arranged on the filter frame 51, an air outlet 53 is formed in the top of the dust box 5, air wrapped with dust in the dust exhaust main pipe is filtered by the filter frame in the dust box and then is discharged from the air outlet, the dust is accumulated in the dust storage hopper, and the filter frame and the dust storage hopper are taken out regularly for cleaning.
The supporting rod 11 is provided with a limiting block 14 for preventing the grinding wheel 24 from touching the dust hood.
The dust exhaust pipe 32 is provided with a valve 34 to prevent dust from being ejected from an unused side.
The filter screen in the filter frame 51 comprises a plurality of layers, so that complete filtration is ensured.
The working principle is as follows: when polishing, the fan pulls the air in the dust hood to wrap the dust and enter the dust accumulation box through the dust exhaust pipe, the filtered air is exhausted from the air outlet under the filtration of the filter screen, the dust is continuously accumulated below the dust accumulation box, and the filter frame and the dust accumulation hopper are periodically pulled out to be cleaned.
