Abstract
The utility model discloses an adjustable operating platform of an elevator shaft, which relates to the technical field of building construction and is used for being arranged in the elevator shaft in parallel, a plurality of preformed holes are arranged on two opposite side surfaces in the elevator shaft, the adjustable operating platform comprises a platform plate and a fixed supporting piece, the platform plate comprises two groups of stereotyped platform plates and a longitudinal telescopic joint, and the longitudinal telescopic joint is telescopically connected between the two groups of stereotyped platform plates; the regularization platform plate includes two sets of design platform boards, horizontal telescopic joint, and horizontal telescopic joint telescopic is connected between two sets of design platform boards, and fixed support piece is equipped with a plurality ofly, and in fixed support piece's one end inserted the reservation hole, platform plate bottom and hold the platform plate are located to the other end, the utility model discloses can reach the platform plate in horizontal and vertically flexible purpose through horizontal telescopic joint and vertical telescopic joint, can realize turnover, used repeatedly many times to the elevator well of unidimensional not, construction cost is low, and the implementation is simple, operates safe and reliable.
Description
Technical Field
The utility model relates to a construction technical field specifically is an adjustable operation platform of elevartor shaft.
Background
When the building structure elevator shaft is constructed, a steel pipe scaffold is generally erected in the elevator shaft, and then reinforcement, formwork erection and concrete pouring in the elevator shaft are carried out. When the building height is higher, will set up the scaffold frame and carry out necessary protection layer by layer, because elevator well space is narrow and small, it is inconvenient to set up the scaffold frame and demolish work operation, and the efficiency of construction is low, and the material turnover cycle such as the steel pipe that the scaffold frame was used is long, is unfavorable for practicing thrift construction cost, when the building height was too high simultaneously, still has whole potential safety hazard.
SUMMERY OF THE UTILITY MODEL
In order to solve the technical problem, the utility model aims at providing an adjustable operation platform of elevartor shaft.
The utility model aims at realizing through the following technical scheme: the utility model provides an adjustable operation platform of elevartor shaft for parallel arrangement is in elevartor shaft 1, all be equipped with a plurality of preformed holes 101 on the relative both sides face in the elevartor shaft 1, including platform plate, fixed support piece 2, the platform plate includes two sets of regularization platform plate 3, vertical telescopic joint 4, 4 telescopic of vertical telescopic joint is connected between two sets of regularization platform plate 3, regularization platform plate 3 includes two sets of regularization platform plate 301, horizontal telescopic joint 302 telescopic is connected between two sets of regularization platform plate 301, fixed support piece 2 is equipped with a plurality ofly, just fixed support piece 2's one end inserts in the preformed holes 101, the other end is located platform plate bottom holds the platform plate.
In a preferred embodiment, the shaping platform plate 301 comprises a plurality of cross beams 303 and a plurality of longitudinal beams 304, the cross beams 303 and the longitudinal beams 304 are perpendicularly intersected to form a frame 305 shaped like a Chinese character tian, the same ends of the cross beams 303 are provided with first adjusting holes 306 arranged at intervals along the length direction of the cross beams, the bottoms of the longitudinal beams 304 are provided with square sleeves 310 arranged along the length direction of the longitudinal beams, the square sleeves 310 are provided with a plurality of second adjusting holes 307 at intervals, and through holes 308 penetrating along the length direction of the cross beams 303 are formed in the cross beams 303.
In a preferred embodiment, the ends of the two sets of the sizing platform plates 301 provided with the first adjusting holes 306 are oppositely arranged; the transverse beams 303 of the two sets of the shaping platform plates 301 are opposite to each other and are connected through the transverse expansion joints 302.
In a preferred embodiment, a plurality of third adjusting holes 309 corresponding to the first adjusting holes 306 are formed at two ends of the transverse telescopic joint 302, and the third adjusting holes 309 are connected with the first adjusting holes 306 through bolts.
In a preferred embodiment, the two sets of the shaped platform plates 3 are connected with the opposite square sleeves 310 by interposing the longitudinal expansion joints 4.
In a preferred embodiment, a plurality of fourth adjusting holes 401 corresponding to the second adjusting holes 307 are disposed at two ends of the longitudinal telescopic joint 4, and the fourth adjusting holes 401 are connected to the second adjusting holes 307 by bolts.
In a preferred embodiment, the fixed support member 2 includes an i-shaped steel 201 horizontally disposed, one end of the i-shaped steel 201 is disposed at the bottom of the platform plate and supports the platform plate, the other end of the i-shaped steel 201 is inserted into the preformed hole 101 and is fixedly connected to a steel plate 202 vertically disposed, and a pull ring 203 is fixedly connected to the opposite side of the connection side of the steel plate 202 and the i-shaped steel 201.
The utility model has the advantages that:
the utility model discloses carry out the regularization to elevartor shaft operation platform, can satisfy the use of most elevator well size, can be right in the use the utility model discloses stretch out and draw back, can realize turnover, used repeatedly many times to the elevator well of unidimensional not, construction cost is low, and the implementation is simple, operation safe and reliable.
Drawings
The present invention will be described in further detail with reference to the accompanying drawings.

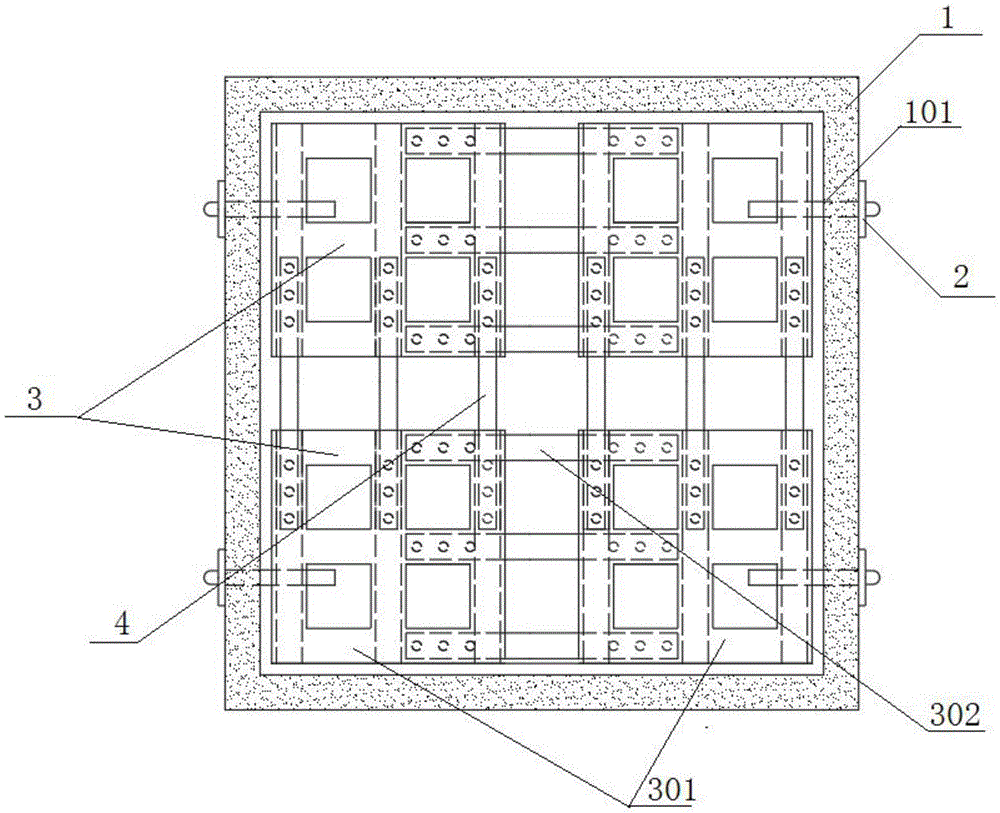

Fig. 1 is a top view of an adjustable operating platform for an elevator shaft according to an embodiment of the present invention;
fig. 2 is a front view of an adjustable operating platform for an elevator shaft according to an embodiment of the present invention;
fig. 3 is a schematic view of a disassembled structure of an adjustable operating platform of an elevator shaft according to an embodiment of the present invention;
fig. 4 is a partially disassembled structural schematic view of an adjustable operating platform of an elevator shaft according to an embodiment of the present invention;
fig. 5 is a schematic structural view of a shaping platform plate of an adjustable operating platform of an elevator shaft according to an embodiment of the present invention.
In the figure:
1. an elevator shaft; 101. reserving a hole; 2. a fixed support; 201. i-shaped steel; 202. a steel plate; 203. a pull ring; 3. shaping a platform plate; 301. shaping the platform plate; 302. a transverse expansion joint; 303. a cross beam; 304. a stringer; 305. a frame; 306. a first adjustment aperture; 307. a second adjustment aperture; 308. a through hole; 309. a third adjustment aperture; 4. a longitudinal expansion joint; 401. and a fourth adjustment hole.
Detailed Description
In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are some, but not all, embodiments of the present invention. The components of embodiments of the present invention, as generally described and illustrated in the figures herein, may be arranged and designed in a wide variety of different configurations. Thus, the following detailed description of the embodiments of the present invention, presented in the accompanying drawings, is not intended to limit the scope of the invention, as claimed, but is merely representative of selected embodiments of the invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention. Reference will now be made in detail to embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein like reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are exemplary and intended to be used for explaining the present invention, and should not be construed as limiting the present invention.
The invention will be further described with reference to the drawings and specific examples.
As shown in fig. 1-2, the utility model provides an adjustable operation platform of elevartor shaft for parallel arrangement in elevartor shaft 1, all be equipped with a plurality of preformed holes 101 on the relative both sides face in elevartor shaft 1, preformed hole 101 is the pore that elevartor shaft 1 reserved when being under construction, the utility model discloses a platform plate, fixed support piece 2, the platform plate includes two sets of regularization platform plate 3, vertical telescopic joint 4, and vertical telescopic joint 4 telescopic connects between two sets of regularization platform plate 3, makes the platform plate can vertically stretch out and draw back; the shaping platform plate 3 comprises two groups of shaping platform plates 301 and a transverse expansion joint 302, and the transverse expansion joint 302 is telescopically connected between the two groups of shaping platform plates 301 so that the platform plate can be transversely expanded and contracted; the fixed support pieces 2 are arranged in a plurality of numbers, one end of each fixed support piece 2 is inserted into the reserved hole 101, and the other end of each fixed support piece is arranged at the bottom of the corresponding platform plate and supports the corresponding platform plate to play a role in supporting the corresponding platform plate.
As shown in fig. 3-5, the shaping platform plate 301 includes a plurality of cross beams 303 and a plurality of longitudinal beams 304, the cross beams 303 and the longitudinal beams 304 are perpendicularly intersected to form a frame 305 shaped like a Chinese character tian, the same ends of the cross beams 303 are respectively provided with first adjusting holes 306 arranged at intervals along the length direction thereof, the bottoms of the longitudinal beams 304 are respectively welded with square sleeves 310 arranged along the length direction thereof, the square sleeves 310 are respectively provided with a plurality of second adjusting holes 307 at intervals (only part of the second adjusting holes 307 are shown in fig. 1-4), the number of the first adjusting holes 306 and the number of the second adjusting holes 307 can be determined according to actual conditions, and through holes 308 penetrating along the length direction are arranged inside the cross beams 303;
the embodiment of the utility model provides an in, "field" font frame 305 can be formed for crossbeam 303, the perpendicular crossing welding of longeron 304, and crossbeam 303 and longeron 304 adopt the square steel, and "field" font frame 305 also can be formed by two piece upper and lower "field" font steel sheet certain distance (can be according to the size determination of horizontal telescopic joint 302) stack welding, the embodiment of the utility model provides an in, crossbeam 303 and the preferred square steel material of longeron 304, crossbeam 303 is 120mm, square steel wall thickness 5mm with the square steel length that longeron 304 adopted.
As shown in fig. 3-4, the ends of the two sets of shaping platform plates 301 provided with the first adjusting holes 306 are arranged oppositely; the beams 303 of the two groups of shaping platform plates 301 are connected by inserting transverse expansion joints 302;
a plurality of third adjusting holes 309 corresponding to the first adjusting holes 306 are formed in the two ends of the transverse telescopic joint 302, and the third adjusting holes 309 are connected with the first adjusting holes 306 through bolts;
the embodiment of the utility model provides an in, the preferred square steel that adopts of horizontal telescopic joint 302, square steel length of side is 108mm, and the square steel wall thickness is 5mm, inserts the both ends of horizontal telescopic joint 302 respectively in the through-hole 308 of relative crossbeam 303, through adjusting the relative position between first regulation hole 306 and the third regulation hole 309, realizes the interval adjustment between two sets of design landing slabs, connects first regulation hole and third regulation hole with bolt and nut simultaneously, fixes crossbeam 303 and design landing slab 301.
As shown in fig. 4, the two sets of opposite square sleeves 310 of the shaped platform plate 3 are connected by inserting longitudinal expansion joints 4;
a plurality of fourth adjusting holes 401 corresponding to the second adjusting holes 307 are formed in the two ends of the longitudinal telescopic joint 4, and the fourth adjusting holes 401 are in bolt connection with the second adjusting holes 307;
the embodiment of the utility model provides an in, the preferred square steel that adopts of vertical telescopic joint 4, square steel length of side is 108mm, and the square steel wall thickness is 5mm, alternates the both ends of vertical telescopic joint 4 in relative square sleeve 310 respectively to through adjusting the relative position between second regulation hole 307 and the fourth regulation hole 401, realize the interval adjustment between two sets of regularization platform plates 3, square sleeve 310 is used for increasing the utility model discloses a stability.
As shown in fig. 1-2, the fixing and supporting member 2 is a prior art, and includes an i-beam 201 horizontally disposed, one end of the i-beam 201 is disposed at the bottom of the platform plate and supports the platform plate, the other end of the i-beam 201 is inserted into the preformed hole 101 and is fixedly connected to a steel plate 202 vertically disposed, and a pull ring 203 is fixedly connected to the opposite side of the connection side of the steel plate 202 and the i-beam 201.
To sum up, the utility model discloses can reach the platform plate in horizontal and vertical flexible purpose through horizontal telescopic joint and vertical telescopic joint, can realize turnover, used repeatedly many times to not unidimensional elevator well, construction cost is low, and the implementation is simple, operation safe and reliable.
Finally, it should be noted that: the above-mentioned embodiments are only used for illustrating the technical solution of the present invention, and not for limiting the same; although the present invention has been described in detail with reference to the foregoing embodiments, it should be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some or all of the technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention.
Claims (7)
1. An adjustable operating platform of elevator shaft for parallel arrangement in the elevator shaft (1), all be equipped with a plurality of preformed holes (101) on the relative both sides face in the elevator shaft (1), characterized in that: including platform plate, fixed support piece (2), the platform plate includes two sets of regularization platform plate (3), vertical telescopic joint (4) telescopic is connected between two sets of regularization platform plate (3), regularization platform plate (3) include two sets of regularization platform plate (301), horizontal telescopic joint (302) telescopic is connected in two sets of between stereotype platform plate (301), fixed support piece (2) are equipped with a plurality ofly, just the one end of fixed support piece (2) is inserted in preformed hole (101), the other end is located platform plate bottom holds the platform plate.
2. An adjustable operating platform for an elevator shaft according to claim 1, characterized in that: design landing deck (301) include a plurality of crossbeams (303), a plurality of longerons (304), crossbeam (303) with longeron (304) intersect perpendicularly and constitute "field" font frame (305), and is a plurality of crossbeam (303) all is equipped with along first regulation hole (306) that its length direction interval set up with the one end, and is a plurality of the bottom of longeron (304) all is equipped with along square sleeve pipe (310) that its length direction set up, the interval is equipped with a plurality of second regulation holes (307) on square sleeve pipe (310), the inside of crossbeam (303) is equipped with through-hole (308) that run through along its length direction.
3. An adjustable operating platform for an elevator shaft according to claim 2, characterized in that: the ends, provided with the first adjusting holes (306), of the two groups of sizing platform plates (301) are arranged oppositely; the transverse beams (303) opposite to the two groups of shaping platform plates (301) are connected through inserting the transverse expansion joints (302).
4. An adjustable operating platform for an elevator shaft according to claim 3, characterized in that: the both ends of horizontal telescopic joint (302) are equipped with a plurality ofly with first regulation hole (306) correspond third regulation hole (309), third regulation hole (309) with first regulation hole (306) bolted connection.
5. An adjustable operating platform for an elevator shaft according to claim 2, characterized in that: the square sleeves (310) opposite to the two groups of the sizing platform plates (3) are connected through inserting the longitudinal expansion joints (4).
6. An adjustable operating platform for an elevator shaft according to claim 5, characterized in that: and a plurality of fourth adjusting holes (401) corresponding to the second adjusting holes (307) are formed in two ends of the longitudinal telescopic joint (4), and the fourth adjusting holes (401) are connected with the second adjusting holes (307) through bolts.
7. An adjustable operating platform for an elevator shaft according to claim 1, characterized in that: the fixed support piece (2) comprises a horizontally arranged I-shaped steel (201), one end of the I-shaped steel (201) is arranged at the bottom of the platform plate and supports the platform plate, the other end of the I-shaped steel (201) is inserted into the preformed hole (101) and is fixedly connected with a vertically arranged steel plate (202), and pull rings (203) are fixedly connected with the opposite sides of the connecting sides of the steel plate (202) and the I-shaped steel (201).
