Abstract

The utility model discloses a novel supporting H-shaped steel beam-column structure. Both have upper and lower flange plates, the H-shaped steel beam is fixedly connected between the two steel column corbels through the connecting plate, and the front of the H-shaped steel beam near the two ends is fixed with the H-shaped steel beam front vertical stiffening plate and Three horizontal stiffening plates on the front of the H-shaped steel beam, and the back of the H-shaped steel beam near the two ends are symmetrically fixed with the front. The structural beam-column support is a hidden structure design, which removes the exposed corner braces and exposed haunches that are widely used in the current steel structure beam-column support design, which greatly improves the overall regularity of the building structure while increasing the building headroom. ,Convenient and practical.

Description

A new type of supporting H-shaped steel beam-column structure

technical field

The utility model relates to the technical field of steel structures, in particular to a novel supporting H-shaped steel beam-column structure.

Background technique

H-beam corner braces (horizontal bracing) are provided to prevent buckling and instability of H-beam compression flanges (lower flanges of H-beams) and increase the stability of the compression flanges. The setting is used to ensure the local stability of the compression part of the lower flange of the beam, and the local stability of the upper flange of the beam is ensured by the floor slab connected to it (the upper flange of the H-beam has studs, which are connected with the concrete floor). The slab is cast as a whole), so there is no overall stability problem for the upper flange of the beam.

The existing H-shaped steel beam support structure, including the corner bracing and the haunch, are exposed under the floor slab, which can be seen by almost every household on every floor. To a large extent, the construction cost is increased, so it is very necessary to propose a new type of support H-shaped steel beam-column structure to solve the above problems.

Utility model content

The purpose of the embodiments of the present invention is to provide a novel supporting H-shaped steel beam-column structure to solve the above problems.

To achieve the above object, the utility model provides the following technical solutions:

A new type of supporting H-shaped steel beam-column structure, including steel columns, H-shaped steel beams and H-shaped steel webs, a steel column corbel is symmetrically arranged on one side of the steel column, and upper and lower wings are arranged on both the H-shaped steel beam and the steel column corbel The flange plate, the H-shaped steel beam is welded between the two steel column corbels through the connecting plate and the upper and lower flange plates, and the front of the H-shaped steel beam near the two ends is fixed with a vertical stiffening plate on the front of the H-shaped steel beam and three A horizontal stiffening plate on the front of the H-shaped steel beam is fixed symmetrically with the front at the back of the H-shaped steel beam near both ends.

In an optional solution, the upper and lower flange plates of the H-shaped steel beam between the steel column corbels are connected by welding.

In an optional solution, the front lateral stiffening plate of the H-shaped steel beam and the rear lateral stiffening plate of the H-shaped steel beam are welded between the H-shaped steel web plate and the upper and lower flange plates on three sides.

In an optional solution: the front vertical stiffening plate of the H-shaped steel beam and the vertical stiffening plate on the back of the H-shaped steel beam are both inverted trapezoidal structures, and each vertical stiffening plate is provided with a rectangular plug welding hole. The width of the rectangular plug welding hole is the same as the thickness of the lateral stiffening plate, and the length is twice the thickness of the lateral stiffening plate. The opening position of the rectangular plug welding hole is aligned with the lateral stiffening plate. The outside of the stiffeners are welded together.

In an optional solution, the upper flange plate of the steel column corbel and the upper flange plate of the H-shaped steel beam are uniformly provided with a plurality of studs.

In an optional solution: the steel column corbel and the two outer sides of the two trapezoidal vertical stiffening plates and the three sides of the lower flange plate are all wrapped with fire protection layers.

Compared with the prior art, the beneficial effects of the embodiments of the present utility model are as follows:

1. The steel structure beam-column support is completely designed with invisible structure. Since the lower flange support bracket of the H-shaped steel beam and the lower haunch of the H-shaped steel beam are completely built-in and hidden in the H-shaped steel beam, the lateral stiffening plate plays an exposed corner. The vertical stiffening plate plays the role of the exposed steel beam and the armpit. The indoor residents can no longer see all kinds of unsightly steel structure supports. What they can see is only the horizontal and vertical steel beams and steel columns wrapped with 25mm fireproof paint. , The building structure is very regular, even if it is not decorated or suspended, it is very beautiful, and at the same time saves materials and construction costs, reduces engineering costs, and improves the actual usable space of the building.

Description of drawings

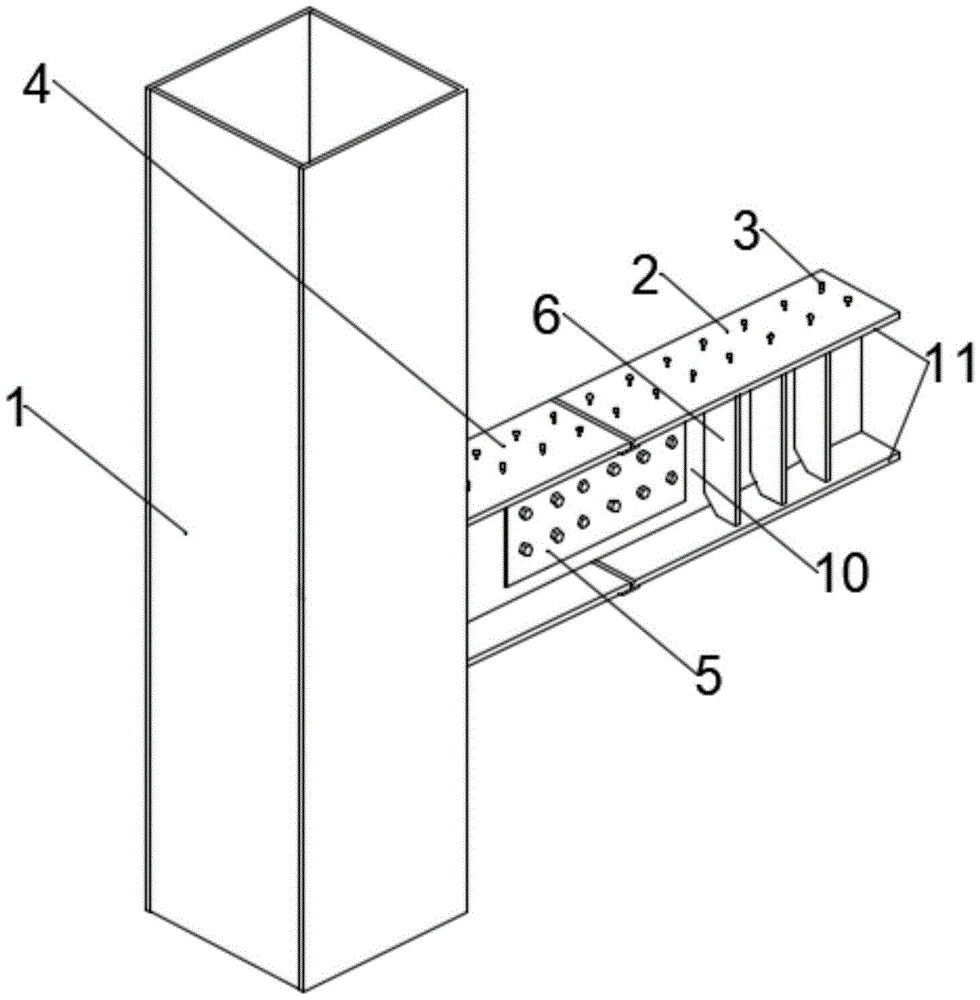

FIG. 1 is a schematic structural diagram of the first embodiment of the present invention.

FIG. 2 is a rear view of FIG. 1 .

FIG. 3 is a schematic structural diagram from another perspective of the first embodiment of the present invention.

FIG. 4 is a rear view of FIG. 3 .

Reference number notes: 1-steel column, 2-H-beam, 3-bolt, 4-steel column corbel, 5-connecting plate, 6-H-beam front transverse stiffening plate, 7-H-beam Horizontal stiffening plate on the back of the beam, vertical stiffening plate on the front of 8-H-shaped steel beam, vertical stiffening plate on the back of 9-H-shaped steel beam, 10-H-shaped steel web, 11-upper and lower flange plate, 12-rectangular plug welding hole.

Detailed ways

In order to make the purpose, technical solutions and advantages of the present utility model more clearly understood, the present utility model will be further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are only used to explain the present invention, and are not intended to limit the present invention.

Example 1

Please refer to FIGS. 1 to 4. In the embodiment of the present invention, a novel supporting H-shaped steel beam-column structure includes a steel column 1, an H-shaped steel beam 2 and an H-shaped steel web 10. One side of the steel column 1 is symmetrically provided with Steel column corbel 4, H-shaped steel beam 2 and steel column corbel 4 are all provided with upper and lower flange plates 11, steel column corbel 4 is welded and fixed with steel column 1, H-shaped steel web 10 is bolted through connecting plate 5 The connection and upper and lower flange plates 11 are welded between the two steel column corbels 4, and the connecting plate 5 is evenly provided with a plurality of bolt holes for connecting the steel column corbel 4 and the H-shaped steel beam 2. The upper and lower flange plates 11 of the steel beam 2 between the steel column corbels 4 are connected by welding, and the front of the H-shaped steel beam 2 near the two ends is fixedly provided with an H-shaped steel beam front vertical stiffening plate 8 and three H-shaped steel beams. The horizontal stiffening plate 6 on the front of the steel beam is symmetrically fixed with the front and the back of the H-shaped steel beam 2 near the two ends. The front transverse stiffening plate 6 of the H-shaped steel beam and the rear transverse stiffening plate 7 of the H-shaped steel beam are welded between the H-shaped steel web 10 and the upper and lower flange plates 11 on three sides, and the front vertical stiffening plate 8 of the H-shaped steel beam and the H-shaped steel The vertical stiffening plates 9 on the back of the beam are all inverted trapezoidal structures and each vertical stiffening plate is provided with 6 rectangular plug welding holes 12, the width of the rectangular plug welding holes 12 is the same as the thickness of the lateral stiffening plate, and the length is twice the horizontal The thickness of the stiffening plate, the spacing between the two adjacent transverse stiffening plates is half the height of the H-beam 2 and the thickness is the same as the thickness of the H-beam web 10. The rectangular plug welding hole 12 will be used for vertical stiffening during assembly welding installation. Plates and lateral stiffeners are welded together on the outside.

The upper flange plate of the steel column corbel 4 and the upper flange plate of the H-shaped steel beam 2 are evenly provided with a plurality of studs 3; The three sides of the flange board are covered with a fire protection layer, the thickness of the fire protection layer is 25 mm, and each layer is sprayed in five layers of 5 mm.

During the assembly welding installation, firstly weld the steel column 1 and the H-shaped steel beam 2, and weld three pieces of H-shaped steel beam front transverse stiffening plate 6 and the H-shaped steel beam back three pieces at the fixed positions of the H-shaped steel beam 2 respectively. A transverse stiffening plate 7, the H-shaped steel web 10 of the steel beam 2 is bolted to the web between the two steel column corbels 4 during assembly, and then the upper and lower flange plates 11 at both ends of the H-shaped steel beam 2 are fixed. Welded on the upper and lower flange plates 11 at both ends of the corbel 4 of the steel column respectively, and then filled the cavity of the upper and lower flange plates 11 of the H-shaped steel beam 2 and the H-shaped steel web 10 with lightweight concrete, and then welded the H-shaped steel. The vertical stiffening plate 8 on the front of the beam and the vertical stiffening plate 9 on the back of the H-shaped steel beam, and then fill the six rectangular plug welding holes 12 on the two vertical stiffening plates on the front and back until they are fully welded. Leg 4 and the two outer sides of the two trapezoidal vertical stiffeners and the three sides of the lower flange plate are wrapped with a 25mm fire protection layer, sprayed in 5 layers of 5mm each, and each layer is calendered with a trowel, fully dried, and then sprayed with the next layer. Layer, simple structure, convenient and practical.

Example 2

A new type of support H-shaped steel beam-column structure, the support is completely designed with invisible structure, because the corner brace between the lower flange of the H-shaped steel beam 2 and the steel column 1 and the addition of the lower flange of the H-shaped steel beam 2 and the steel column 1 are added. The haunches are completely built-in and hidden in the H-shaped steel beam 2. The lateral stiffening plates play the role of exposed corner braces, and the vertical stiffening plates play the role of adding haunches to the exposed steel beams. Users can no longer see all kinds of unsightly under the steel beams. Support, only the horizontal and vertical H-shaped steel beams 2 and steel columns 1 can be seen, which are wrapped with 25mm fireproof paint, so that users have the comfort of concrete structure and the sense of security of steel structure. The building structure is very regular, even if it is not decorated. It is also very beautiful without a suspended ceiling. At the same time, it saves materials and construction costs, reduces engineering costs, and improves the actual usable space of the building.

The assembly principle of the present utility model is as follows: first, connect the H-shaped steel webs 10 of the H-shaped steel beam 2 with the transverse stiffening plate, which has been made, between the two steel column corbels 4 by bolts, and then connect the H-shaped steel The upper and lower flange plates 11 at both ends of the beam 2 are welded to the upper and lower flange plates 11 of the steel column corbel 4 respectively, and then the upper and lower flange plates 11 of the H-shaped steel beam and the cavities of the H-shaped steel web 10 are filled with light weight. Concrete, then weld the vertical stiffening plate 8 on the front of the H-shaped steel beam 2 and the vertical stiffening plate 9 on the back of the H-shaped steel beam, and then weld the six rectangular plug welding holes 12 on each vertical stiffening plate until it is fully welded, and finally install the steel column. The outer two sides of the corbel 4 and the two trapezoidal vertical stiffeners and the three sides of the lower flange plate are wrapped with a 25mm fire protection layer, and each layer is sprayed in 5 layers of 5mm. Each layer is calendered with a trowel, fully dried, and then sprayed One floor, simple structure, convenient and practical.

The above are only preferred embodiments of the present invention, and are not intended to limit the present invention. Any modifications, equivalent replacements and improvements made within the spirit and principles of the present invention shall be included in the present invention. within the scope of protection of the utility model.

Claims (6)

1. The utility model provides a novel support H shaped steel beam column structure, including steel column (1), H shaped steel roof beam (2) and H shaped steel web (10), a serial communication port, steel column (1) one side symmetry is equipped with steel column bracket (4), all be equipped with about flange board (11) on H shaped steel roof beam (2) and steel column bracket (4), H shaped steel roof beam (2) weld between two steel column brackets (4) through connecting plate (5) and upper and lower flange board (11), it openly fixes being equipped with H shaped steel roof beam openly perpendicular stiffening plate (8) and three H shaped steel roof beam openly horizontal stiffening plates (6) to be close to both ends position in H shaped steel roof beam (2), it is fixed with the front perpendicular stiffening plate (9) in H shaped steel roof beam back and three H shaped steel roof beam backs horizontal stiffening plates (7) to be close to the back and the front symmetry of both ends position in H shaped steel roof beam (2).

2. The novel supporting H-beam column structure as claimed in claim 1, wherein the H-beams (2) are welded at the upper and lower flange plates (11) between the steel column brackets (4).

3. The novel supporting H-beam column structure as claimed in claim 1, wherein the H-beam front lateral stiffening plate (6) and the H-beam back lateral stiffening plate (7) are welded on three sides between the H-beam web (10) and the upper and lower flange plates (11).

4. The novel supporting H-shaped steel beam column structure as claimed in claim 1, wherein the H-shaped steel beam front vertical stiffening plate (8) and the H-shaped steel beam back vertical stiffening plate (9) are both inverted trapezoidal structures, each vertical stiffening plate is provided with (6) rectangular plug welding holes (12), the width of each rectangular plug welding hole (12) is the same as the thickness of the transverse stiffening plate, the length of each rectangular plug welding hole is twice the thickness of the transverse stiffening plate, and the rectangular plug welding holes (12) are provided with positions aligned with the transverse stiffening plates.

5. The novel supporting H-shaped steel beam column structure as claimed in claim 1, wherein a plurality of studs (3) are uniformly arranged on the upper flange plate of the steel column bracket (4) and the upper flange plate of the H-shaped steel beam (2).

6. The novel supporting H-shaped steel beam column structure as claimed in any one of claims 1 to 5, wherein the outer two side surfaces and the lower flange plate of the steel column corbel (4) and the two trapezoidal vertical stiffening plates are all wrapped with fireproof protective layers.
