CN211424824U - A cooling device for quartz tube processing - Google Patents

Abstract

The utility model discloses a cooling device for quartz tube processing, which comprises a working box. The working box is integrally designed with a hollow cube structure with a slot at the front end. A first cooling fan is fixedly installed on the upper surface of the working box. A pair of first cooling fans are installed symmetrically with respect to the vertical centerline of the upper surface of the working box, a water pumping pipe is fixedly connected to the back side of the bottom plate of the working box, and a water pump is fixedly installed at the other end of the water pumping pipe. The cooling device for quartz tube processing can cool the inside of the work box by setting a first cooling fan, a heat sink and a circulating water pipe, so as to realize the processing and cooling of the quartz tube. At the same time, by setting the first cooling fan on the upper surface of the circulating water tank and setting the sprinkler head at the end of the water outlet pipe, the inside of the circulating water tank can be dissipated synchronously, thereby greatly increasing the efficiency of circulating water use .

Description

A cooling device for quartz tube processing

technical field

The utility model relates to the technical field of quartz tubes, in particular to a cooling device for processing quartz tubes.

Background technique

Quartz tube is a special industrial technical glass made of silicon dioxide. It is a very good basic material. Quartz glass has a series of excellent physical and chemical properties. Heating effect, quartz tubes can be roughly divided into the following types, transparent quartz tubes, UV filter quartz tubes, colored quartz tubes, etc.

However, the existing quartz tube processing devices often do not have a cooling device, or the cooling device is extremely simple, and the heat generated by the processing device cannot be effectively removed when the quartz tube processing device is in normal operation, thereby greatly reducing the work efficiency, and even possible adversely affect processing equipment.

Utility model content

The purpose of this utility model is to provide a cooling device for quartz tube processing, in order to solve the problem that the existing quartz tube processing device proposed in the above-mentioned background technology is often not provided with a cooling device, or the cooling device is extremely simple and normal in the quartz tube processing device. The heat generated by the processing device cannot be effectively removed during operation, thereby greatly reducing the work efficiency, and may even have an adverse effect on the processing device.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a cooling device for quartz tube processing, comprising a work box, the work box as a whole is a hollow cube structure design with a slotted front end, and a fixed installation on the upper surface of the work box is provided. A pair of first cooling fans are installed symmetrically about the vertical centerline of the upper surface of the work box, and a water pump is fixedly connected to the back side of the bottom plate of the work box, and the other end of the water pump is fixedly installed with a water pump.

Preferably, a water outlet pipe is fixedly installed at the output end of the water pump, a circulating water tank is fixedly installed at the other end of the water outlet pipe, a second cooling fan is fixedly installed on the upper surface of the circulating water tank, and the lower end of the left surface of the circulating water tank is fixedly installed There is a water flow pipe, and the other end of the water flow pipe is fixedly connected with the back side of the bottom plate of the working box.

Preferably, a circulating water pipe is fixedly installed inside the bottom plate of the working box, one end of the circulating water pipe is fixedly connected with the water pumping pipe, the other end of the circulating water pipe is fixedly connected with the water flow pipe, and a cooling groove is fixedly opened on the left surface of the working box , and the heat dissipation grooves are installed symmetrically about the vertical center line of the work box, and the heat dissipation grooves are vertically arranged and distributed at equal distances with respect to the vertical center line of the work case.

Preferably, the upper end of the left surface of the circulating water tank is fixedly provided with a water inlet hole, and the inner side of the water inlet hole is fixedly installed with a water outlet pipe, the front end of the water outlet pipe is fixedly installed with a sprinkler head, and the lower end of the left side surface of the circulating water tank is fixed A water outlet hole is opened, and a water flow pipe is fixedly installed inside the water outlet hole.

Preferably, heat dissipation holes are fixed on the lower surface of the inner side of the work box, and the heat dissipation holes are arranged and installed at equal distances with respect to the center point of the lower surface of the work box.

Compared with the prior art, the beneficial effects of the present utility model are:

1. The cooling device for quartz tube processing can cool the inside of the work box by setting a first cooling fan, a heat sink and a circulating water pipe, thereby realizing the processing and cooling of the quartz tube, thereby greatly increasing the work efficiency;

2. The cooling device for quartz tube processing, by setting a circulating water tank, can pump out the circulating water in the circulating water pipe through a water pump, so that the circulating water can better absorb the heat generated, thereby greatly prolonging the service life;

3. The cooling device for quartz tube processing can synchronously dissipate heat inside the circulating water tank by setting the first cooling fan on the upper surface of the circulating water tank and setting the sprinkler head at the end of the water outlet pipe, thereby greatly increasing the efficiency of circulating water use. Enhanced usability.

Description of drawings

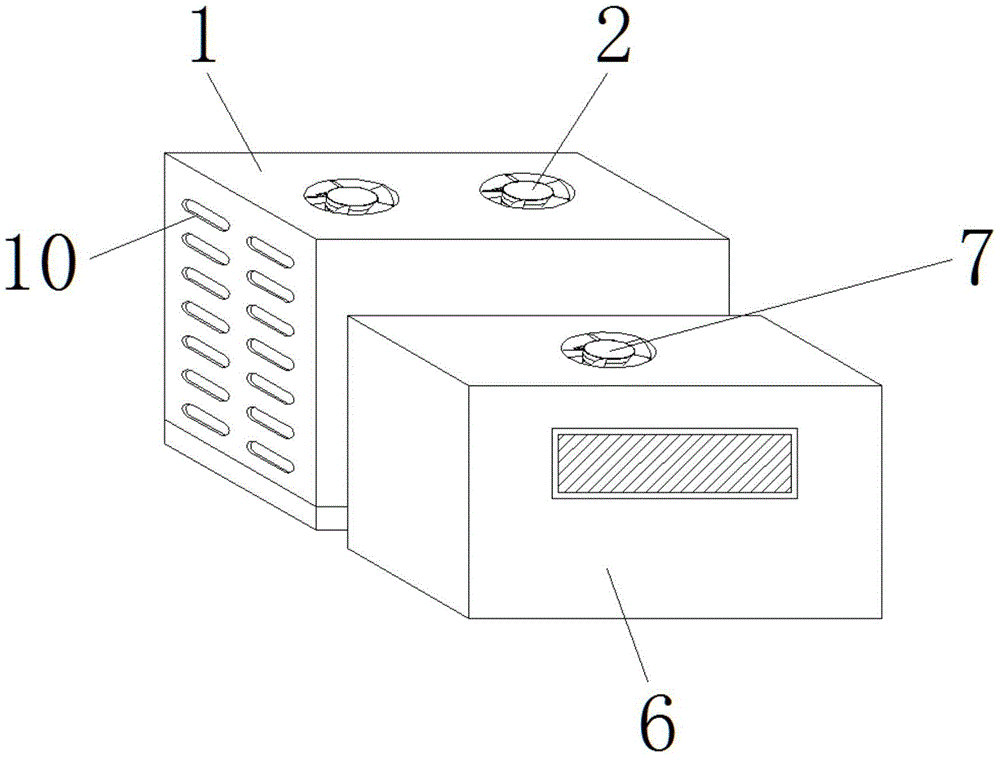

1 is a schematic diagram of the three-dimensional structure of the present utility model;

Fig. 2 is the top view structure schematic diagram of the present utility model;

Fig. 3 is the side view structure schematic diagram of the utility model;

4 is a schematic diagram of the internal structure of the bottom plate of the work box of the present utility model;

5 is a schematic diagram of the three-dimensional structure of the work box of the present invention.

In the figure: 1. Working box; 2. The first cooling fan; 3. The water pumping pipe; 4. The water pump; 5. The water outlet pipe; 6. The circulating water tank; 7. The second cooling fan; 8. The water flow pipe; 9. The circulating water pipe ; 10, heat sink; 11, water inlet; 12, sprinkler head; 13, water outlet; 14, cooling hole.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIGS. 1-5, the present utility model provides a technical solution: a cooling device for quartz tube processing, comprising a work box 1, the work box 1 as a whole is a hollow cube structure design with a slot at the front end, and the upper surface of the work box 1 is fixed A pair of first cooling fans 2 are installed symmetrically with respect to the vertical centerline of the upper surface of the working box 1, and a suction pipe 3 is fixedly connected to the back side of the bottom plate of the working box 1, and the other end of the suction pipe 3 is fixedly installed with a water pump 4.

Further, the output end of the water pump 4 is fixedly installed with a water outlet pipe 5, the other end of the water outlet pipe 5 is fixedly installed with a circulating water tank 6, the upper surface of the circulating water tank 6 is fixedly installed with a second cooling fan 7, and the lower end of the left side surface of the circulating water tank 6 is fixedly installed with a The water flow pipe 8, the other end of the water flow pipe 8 is fixedly connected to the back side of the bottom plate of the working box 1, and the second cooling fan 7 can dissipate and cool the circulating water inside the circulating water tank 6, thereby facilitating the work to be carried out better.

Further, a circulating water pipe 9 is fixedly installed inside the bottom plate of the work box 1, one end of the circulating water pipe 9 is fixedly connected with the water pumping pipe 3, the other end of the circulating water pipe 9 is fixedly connected with the water flow pipe 8, and the left side surface of the work box 1 is fixedly provided with a heat sink 10. , and the heat dissipation grooves 10 are installed symmetrically about the vertical center line of the work box 1, and at the same time, the heat dissipation grooves 10 are vertically arranged and distributed at equal distances with respect to the vertical center line of the work box 1, and the water can flow through the circulating water pipe 9 to absorb the heat and take away, thereby The cooling work inside the work box 1 is realized.

Further, the upper end of the left side surface of the circulating water tank 6 is fixedly provided with a water inlet hole 11, and the inner side of the water inlet hole 11 is fixedly installed with a water outlet pipe 5, the front end of the water outlet pipe 5 is fixedly installed with a shower head 12, and the lower end of the left side surface of the circulating water tank 6 is fixed. A water outlet hole 13 is fixedly opened, and a water flow pipe 8 is fixed inside the water outlet hole 13, and the circulating water is sprayed into the circulating water tank 6 from the sprinkler head 12, thereby greatly increasing the heat dissipation area of the water, thereby making the circulating water temperature higher. Lower quickly.

Further, heat dissipation holes 14 are fixedly opened on the lower surface of the inner side of the work box 1, and the heat dissipation holes 14 are arranged and installed at an equal distance from the center point of the lower surface of the work box 1. The heat dissipation holes 14 can make the circulating water absorb heat faster, thereby greatly increasing cooling. efficiency.

Working principle: When it is necessary to use the quartz tube processing cooling device to cool the quartz tube processing device, first place the quartz tube processing device smoothly inside the work box 1, then start the first cooling fan 2, and mirror the one set. The first cooling fan 2 can immediately perform blowing and cooling work on the processing device, and the heat dissipation grooves 10 fixed on both sides of the work box 1 also begin to dissipate the heat inside the work box 1, so as to cool the internal temperature of the work box 1. , the water in the circulating water pipe 9 inside the bottom plate of the working box 1 can absorb a lot of heat at the same time, so as to cool the internal temperature of the working box 1, and then start the water pump 4, because the input end of the water pump 4 is fixedly connected to the pumping pipe 3 and one end of the circulating water pipe 9 are tightly connected Connection, the output end of the water pump 4 is fixedly connected to the water outlet pipe 5 and the water inlet hole 11 of the circulating water tank 6 is fixedly connected, so that the water in the circulating water pipe 9 can be pumped in, and then sprayed out from the water inlet hole 11. Since the water inlet hole 11 is located in the circulation The upper end of the side surface of the water tank 6, and the shower head 12 is fixedly installed at one end of the water outlet pipe 5, so the water is sprayed from the water outlet pipe 5 and sprayed into the inside of the circulating water tank 6 through the shower head 12, which can greatly increase the heat dissipation surface area of the water in contact with the outside world. At the same time, the second cooling fan 7 performs cooling and heat dissipation work on the water in the circulating water tank 6, thereby greatly reducing the temperature of the circulating water, and then the water in the circulating water tank 6 flows into the circulating water pipe 9 through the water flow pipe 8 to realize the circulating use of cooling water, This greatly facilitates the work to be done better.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (5)

1. A cooling device for quartz tube processing, comprising a work box, characterized in that: the work box as a whole is a hollow cube structure design with a slotted front end, and a first cooling fan is fixedly installed on the upper surface of the work box, so the A pair of the first cooling fans are installed symmetrically about the vertical center line of the upper surface of the working box, and a water pump is fixedly connected to the back side of the bottom plate of the working box, and the other end of the water pump is fixedly installed with a water pump. 2 . The cooling device for quartz tube processing according to claim 1 , wherein a water outlet pipe is fixedly installed at the output end of the water pump, and a circulating water tank is fixedly installed at the other end of the water outlet pipe. A second cooling fan is fixedly installed on the surface, a water flow pipe is fixedly installed on the lower end of the left surface of the circulating water tank, and the other end of the water flow pipe is fixedly connected to the back side of the bottom plate of the working box. 3. A cooling device for quartz tube processing according to claim 2, characterized in that: a circulating water pipe is fixedly installed inside the bottom plate of the working box, one end of the circulating water pipe is fixedly connected with the suction pipe, and the other side of the circulating water pipe is fixedly connected. One end is fixedly connected with the water flow pipe, the left surface of the work box is fixedly provided with heat dissipation grooves, and the heat dissipation grooves are installed symmetrically about the vertical center line of the work box, and the heat dissipation grooves are vertically arranged and distributed at equal distances about the vertical center line of the work box. 4 . The cooling device for quartz tube processing according to claim 2 , wherein the upper end of the left surface of the circulating water tank is fixedly provided with a water inlet hole, and the inner side of the water inlet hole is fixedly installed with a water outlet pipe. 5 . A shower head is fixedly installed at the front end of the water outlet pipe, a water outlet hole is fixedly opened at the lower end of the left surface of the circulating water tank, and a water flow pipe is fixedly installed inside the water outlet hole. 5 . The cooling device for quartz tube processing according to claim 1 , wherein cooling holes are fixedly opened on the lower surface of the inner side of the working box, and the cooling holes are arranged and installed at equal distances from the center point of the lower surface of the working box. 6 .
