Abstract

The utility model relates to the technical field of automobiles, and discloses an installation and positioning structure for a light truck transmission shaft, which is used for the connection of the light truck transmission shaft and the frame beam, comprising a support block, a rotating seat arranged on the light truck transmission shaft, and the light truck transmission shaft passing through the light truck transmission shaft. The rotating base is connected with the rotating base to form a rotating connection. The two sides of the rotating base are provided with connecting ears, and the connecting ears are provided with connecting holes; the top surface of the support block is a support plane, the bottom surface of the support block is a support slope, and the two sides of the support block are The ends are provided with long slot holes corresponding to the connecting holes one-to-one. The center of the supporting inclined surface of the support block is provided with a U-shaped through slot. The long slotted hole is connected to the bottom surface of the U-shaped through slot. The nut is connected with the long slotted hole; a compensation washer is arranged between the connecting ear and the support plane, and the compensation washer is provided with a one-to-one corresponding avoidance slotted hole with the long slotted hole. The utility model has the beneficial effects that the installation is convenient and the installation angle of the light truck transmission shaft can be adjusted.

Description

A light truck drive shaft installation and positioning structure

technical field

The utility model relates to the technical field of automobiles, in particular to a light truck transmission shaft installation and positioning structure.

Background technique

The light truck drive shaft is an important part of the light truck power transmission system. The middle part of the drive shaft needs to be installed and positioned through the mounting bracket and the frame beam. The current mounting bracket is a sheet metal part, and the connection hole on the sheet metal part is directly connected with the rivet. The frame beams are fixed together. Due to the need for the angle when the drive shaft is installed, the light truck requires that the angle between the axis of the light truck drive shaft and the surface where the frame is located is 5°, so as to meet the assembly at both ends of the drive shaft and prevent interference with other components. , and the transmission shaft is fixed by the frame beam and the frame, there is an error in the assembly between the frame beam and the frame, and the transmission seat is installed with the top surface of the frame beam as the reference plane, so after installation, it is necessary to adjust the transmission The installation angle of the shaft is detected. If the installation angle does not meet the standard, it needs to be re-installed; however, since the sheet metal bracket is fixed by rivets, it is inconvenient to disassemble and the angle of the sheet metal bracket is difficult to adjust. Gold bracket.

Utility model content

In order to solve the above problems existing in the installation of the light truck transmission shaft in the prior art, the utility model provides a light truck transmission shaft installation and positioning structure which is easy to install and can adjust the installation angle of the light truck transmission shaft.

Light truck drive shaft installation and positioning structure

In order to achieve the above purpose, the utility model adopts the following technical solutions:

A light truck drive shaft installation and positioning structure is used for the connection between the light truck drive shaft and the frame beam, including a support block, and a rotating seat is arranged on the light truck drive shaft, and the light truck drive shaft passes through the rotating seat and forms a rotation with the rotating seat. The two sides of the rotating seat are provided with connecting ears, and the connecting ears are provided with connecting holes; the top surface of the support block is a support plane, the bottom surface of the support block is a support slope, and the support block Both ends are provided with long slot holes corresponding to the connecting holes one-to-one, the center of the support slope of the support block is provided with a U-shaped through slot, the long slot hole and the bottom surface of the U-shaped through slot pass through, the support The support surface of the block is welded and fixed to the top surface of the frame beam, and the connection holes on the connection ears are connected with the long slot holes by bolts, nuts; a compensation gasket is arranged between the connection ears and the support plane, and the The compensation gasket is provided with avoidance slot holes corresponding to the long slot holes one-to-one.

Before installation, after contacting the support slope of the support block with the frame beam, measure the angle between the support plane and the frame reference plane (a reference plane at a certain position of the frame) with an angle measuring instrument, and use the angle measuring instrument to measure the angle between the support plane and the frame reference plane. Compare the angle required by the light truck drive shaft. If the angle is consistent with the installation angle of the light truck drive shaft, weld the support block to the top surface of the frame beam, and then fix the connecting lugs and compensation washers to the support block with bolts and nuts. , the angle between the axis of the light truck drive shaft and the frame is the required angle; if the angle detected by the angle measuring instrument is inconsistent with the required angle, record the angle difference, remove the support block, and pass the The milling machine performs quantitative milling operations on the support inclined surface. After milling, the support inclined surface of the support block is contacted with the frame beam, and the angle is detected again. After the inspection, the angle meets the requirements. The support block and the top surface of the frame beam are welded and fixed, and finally the connection is made. The ears and compensating washers are fixed with the support block by bolts and nuts; since the support slope is milled, the final position height will be different, and the height difference can be compensated by selecting compensating washers of different thicknesses. This installation and positioning structure can process the support block (support bevel milling process) according to the specific frame, so as to meet the angle requirements of the light truck drive shaft after installation and ensure the angular accuracy of the light truck drive shaft after installation.

Preferably, the included angle formed between the support plane and the support slope is α, where 3°≤α≤7°. The included angle α is within this range, which is consistent with the final assembly angle of the light truck drive shaft. Even if the support slope needs to be milled, the amount of milling is small and the milling efficiency is high.

Preferably, the support plane is provided with a number of weight-reducing holes communicating with the bottom surface of the U-shaped through groove, and the center of the compensation gasket is provided with a weight-reducing long groove. U-shaped through grooves and weight-reducing holes are all to reduce weight and meet lightweight requirements.

Preferably, the two ends of the support block are provided with limit grooves, and the two ends of the compensation gasket are provided with limit lugs which are correspondingly snapped into the limit grooves; the lower edge of the support plane There are support ribs. The two ends of the compensation gasket are limited by the limit lugs and the limit groove, and the installation of the compensation gasket is more convenient.

Preferably, a plurality of saw teeth distributed perpendicular to the inclined direction are provided on the support inclined surface. When the supporting inclined surface needs to be milled, the sawtooth reduces the material to be milled per unit area, reduces the milling resistance of the milling cutter, and improves the milling efficiency of the milling cutter.

Therefore, the utility model has the beneficial effects that the installation is convenient and the installation angle of the light truck transmission shaft can be adjusted.

Description of drawings

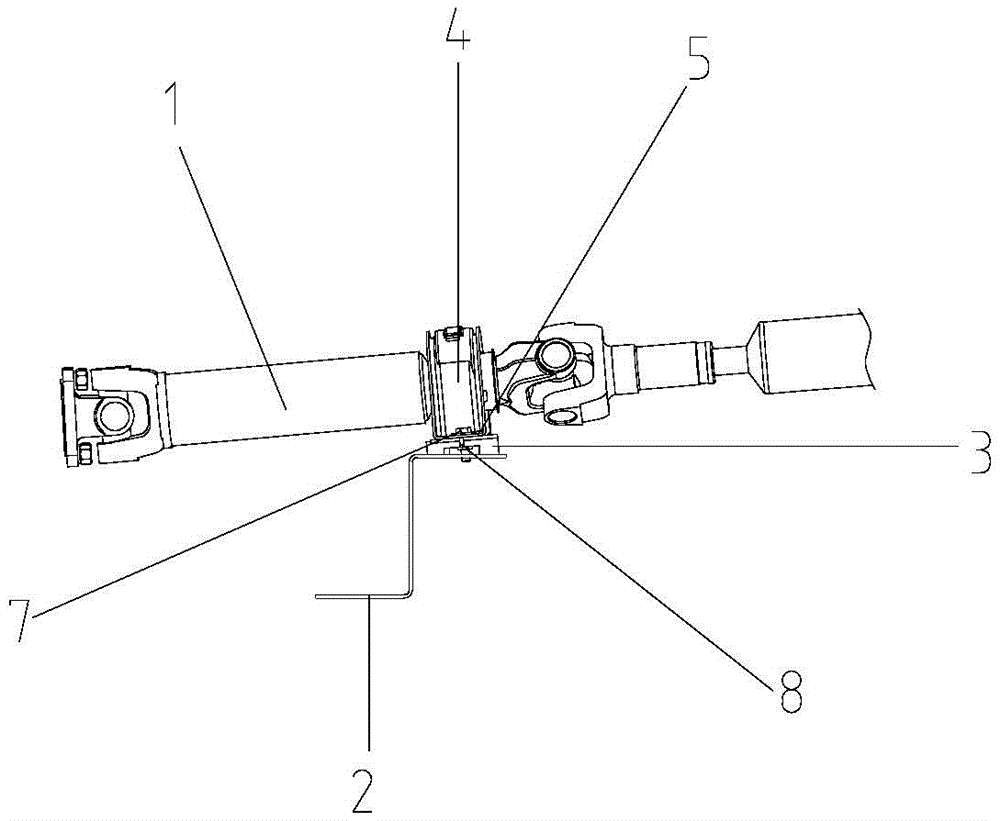

Fig. 1 is a kind of structure schematic diagram of the utility model.

FIG. 2 is a top view of FIG. 1 .

Figure 3 is a schematic diagram of the connection between the rotating seat, the support block and the frame beam.

FIG. 4 is a schematic diagram of the connection between the compensation gasket and the support block.

FIG. 5 is a top view of FIG. 4 .

FIG. 6 is a cross-sectional view at A-A in FIG. 5 .

In the figure: light truck drive shaft 1, frame beam 2, support block 3, support plane 30, support slope 31, sawtooth 310, U-shaped through groove 32, weight reduction hole 33, limit groove 34, support convex strip 35, Rotating base 4 , connecting ear 5 , long slot hole 6 , bolt 7 , nut 8 , compensation washer 9 , avoidance slot hole 90 , weight reduction long slot 91 , limit lug 92 .

Detailed ways

Below in conjunction with accompanying drawing and specific embodiment, the utility model is further described:

As shown in Figure 1, Figure 2, Figure 3, Figure 4, a light truck drive shaft installation and positioning structure is used for the connection between the light truck drive shaft 1 and the frame beam 2, including a support block 3, which is arranged on the light truck drive shaft. There is a rotating seat 4, and the light truck drive shaft 1 passes through the rotating seat 4 to form a rotating connection with the rotating seat 4. Both sides of the rotating seat 4 are provided with connecting ears 5, and the connecting ears are provided with connecting holes; the top surface of the support block 3 is The supporting plane 30, the bottom surface of the supporting block is the supporting inclined plane 31, and the angle formed between the supporting plane and the supporting inclined plane is α, where 3°≤α≤7°, α=5° in this embodiment, and the supporting inclined plane 31 There are a number of sawtooth 310 vertically distributed with the inclined direction; as shown in Figure 4, Figure 5 and Figure 6, both ends of the support block 3 are provided with long slot holes 6 corresponding to the connecting holes one-to-one, and the support block 3 supports The center of the inclined surface is provided with a U-shaped through groove 32, the long slot hole 6 is connected to the bottom surface of the U-shaped through groove, the support surface of the support block is welded and fixed with the top surface of the frame beam, and the connecting hole on the connecting ear 5 is connected by bolts 7. , the nut 8 is connected with the long slotted hole; there is a compensation washer 9 between the connecting ear 5 and the support plane, the compensation washer 9 is provided with an avoidance slot 90 corresponding to the long slotted hole one-to-one, and the support plane 30 is provided with A number of weight-reducing holes 33 communicated with the bottom surface of the U-shaped through groove, the center of the compensation washer 9 is provided with a weight-reduction long groove 91; There is a one-to-one correspondence with the limiting lugs 92 snapped into the limiting grooves, and the lower end edge of the supporting plane 3 is provided with a supporting protruding strip 35 .

With reference to the accompanying drawings, the principle of the present utility model is as follows: before installation, after the support slope of the support block is in contact with the frame beam, the support plane and the frame reference plane are measured by an angle measuring instrument (a certain position of the frame is taken as a reference plane). ), compare the angle with the angle required by the light truck drive shaft. If the angle is consistent with the installation angle of the light truck drive shaft, weld the support block to the top surface of the frame beam, and then connect the connecting lugs. . The compensation gasket is fixed with the support block by bolts and nuts. At this time, the angle between the axis of the light truck drive shaft and the frame is the required angle; if the angle detected by the angle measuring instrument is inconsistent with the required angle, Record the angle difference, remove the support block, and perform quantitative milling operations on the support inclined surface through a milling machine. After milling, contact the support inclined surface of the support block with the frame beam, and check the angle again. After the inspection, the angle meets the requirements. The top surface of the frame beam is welded and fixed, and finally the connecting ears and compensation washers are fixed to the support block through bolts and nuts; since the support slope is milled, the final position height will be different, and compensation washers of different thicknesses are selected to compensate for this height difference. This installation and positioning structure can process the support block (support bevel milling process) according to the specific frame, so as to meet the angle requirements of the light truck drive shaft after installation and ensure the angular accuracy of the light truck drive shaft after installation.

The above are only specific embodiments of the present invention, but the technical features of the present invention are not limited thereto. Any simple changes, equivalent replacements or modifications made on the basis of the present invention in order to solve basically the same technical problems and achieve basically the same technical effects are all included in the protection scope of the present invention.
