CN211410456U - A cardiovascular interventional bolus device - Google Patents

Abstract

The utility model discloses a bolus injection device for cardiovascular intervention, which comprises a base, a fixed cylinder, a pressing block and a syringe. The lower part of the fixed cylinder is connected with the upper part of the base, the syringe is sheathed in the fixed cylinder, and both ends of the fixed cylinder are provided with Guide tube, the guide tube is connected with the fixed cylinder through the connecting block, and the guide tubes are perpendicular to each other, the lower part of the pressure block is provided with a guide rod, the pressure block is connected with the guide tube through the guide rod, and the lower part of the pressure block is connected with the piston rod of the syringe, Both ends of the pressing block are provided with pressing handles. The utility model pushes the piston rod of the syringe by using the pressure block, the muscles of the arm can be used during the injection, it is easier to exert force, and the feeling of fatigue is reduced. The physical consumption during bolus injection improves the efficiency of bolus injection.

Description

A cardiovascular interventional bolus device

technical field

The utility model belongs to the field of medical devices, in particular to a cardiovascular interventional bolus device.

Background technique

Cardiovascular interventional therapy is a common method for diagnosing and treating cardiovascular diseases. In the process of cardiovascular interventional therapy, it is necessary to inject media such as contrast agents into the blood vessels to locate them by X-ray during surgery. A bolus is often used for injection. The structure of the bolus is similar to that of an ordinary syringe. Because the medium is relatively viscous and the handle of the bolus is thin, medical staff can only rely on the muscles of the palm to exert force, so it is difficult to grasp the strength. , affects the treatment, for this reason people developed a bolus device, such as a cardiovascular interventional bolus device disclosed in the Chinese patent application number 201620789198.0 and the cardiovascular intervention therapy device disclosed in the Chinese patent application number CN201020701352.7 These patents are driven by motors to reduce physical exertion, but the commonly used interventional bolus devices are mostly disposable. The structures of these two types of boluses are complicated, and the operation steps are increased, which is easy to cause errors. Therefore, A cardiovascular interventional bolus device is needed, which can reduce the physical exertion during the cardiovascular interventional bolus injection and improve the bolus injection efficiency.

Utility model content

In order to solve the above-mentioned technical problems, the present invention provides a cardiovascular interventional bolus device, which can solve the problem of inconvenient use in the prior art.

The utility model is realized by the following technical solutions.

A cardiovascular interventional injection device provided by the utility model comprises a base, a fixed cylinder, a pressing block and a syringe, the lower part of the fixed cylinder is connected with the upper part of the base, the syringe is sheathed in the fixed cylinder, and both ends of the fixed cylinder are provided with Guide tube, the guide tube is connected with the fixed cylinder through the connecting block, and the guide tubes are perpendicular to each other, the lower part of the pressure block is provided with a guide rod, the pressure block is connected with the guide tube through the guide rod, and the lower part of the pressure block is connected with the piston rod of the syringe, Both ends of the pressing block are provided with pressing handles.

An opening is provided on one side of the fixing cylinder, and the length of the opening is 1/2 to 4/5 of the length of the fixing cylinder.

The pressing block is provided with a connecting rod, the connecting rod is provided with a counterweight block, and the counterweight block is connected with the pressing block through the connecting rod.

The lower part of the syringe is provided with a hose, one end of the hose is communicated with the barrel of the syringe, the other end is protruded from the base, and the end is provided with a needle.

The lower part of the pressing block is provided with a groove, and the pressing block is connected with the piston rod of the syringe through the groove.

The syringe is a disposable syringe.

The beneficial effect of the utility model is that: by using the pressure block to push the piston rod of the syringe, the muscles of the arm can be used during the injection, which is easier to exert force and reduce fatigue. The gravity of the block reduces the physical consumption during bolus injection and improves the efficiency of bolus injection.

Description of drawings

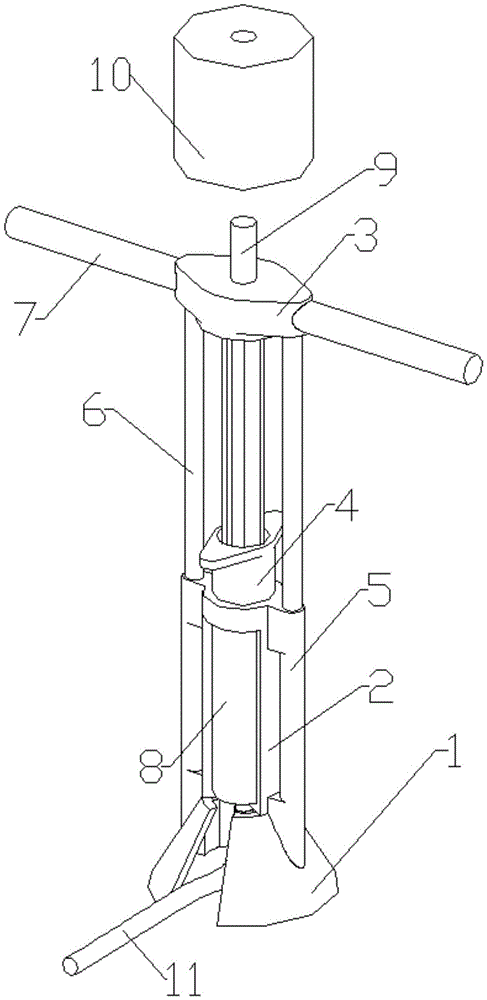

Fig. 1 is the structural representation of the present utility model;

Fig. 2 is the structural representation of the fixed cylinder and the lower part of the pressing block;

In the picture: 1-base, 2-fixed cylinder, 3-press block, 4-syringe, 5-guide tube, 6-guide rod, 7-pressing handle, 8-opening, 9-connecting rod, 10-counterweight , 11-hose, 12-groove.

Detailed ways

The technical solutions of the present invention are further described below, but the scope of protection is not limited to the description.

As shown in Figures 1 and 2, a cardiovascular interventional injection device includes a base 1, a fixed cylinder 2, a pressure block 3, and a syringe 4. The lower part of the fixed cylinder 2 is connected to the upper part of the base 1, and the syringe 4 is sleeved on the fixed cylinder. In the cylinder 2, the two ends of the fixed cylinder 2 are provided with guide pipes 5. The guide pipes 5 are connected with the fixed cylinder 2 through the connecting block, and the guide pipes 5 are perpendicular to each other. The lower part of the pressure block 3 is provided with a guide rod 6. 3 is connected with the guide tube 5 through the guide rod 6, and the lower part of the pressure block 3 is connected with the piston rod of the syringe 4, and the two ends of the pressure block 3 are provided with pressing handles 7.

When injecting the contrast medium, first use the syringe 4 to inhale the contrast medium, then insert it into the fixed cylinder 2, connect one end of the hose 11 to the barrel of the syringe 4, and then insert the guide rod 6 on the pressure block 3 into the guide tube 5, and put the counterweight 10, and place the whole device on the table of 60cm to 80cm. After the preparation is completed, insert the needle at one end of the hose 11 into the human blood vessel, and fix it with adhesive tape. Since the contrast agent is viscous , and the cross-sectional area of the needle tube is small, and the resistance during injection is relatively large. When injecting, hold the pressing handle 7 with both hands, move the center of gravity of the upper limb forward, press on the pressing handle 7, and press down the piston rod of the syringe 4 by the force of the arm. , to complete the operation of bolus injection of contrast agent, the traditional syringe injection can only use the muscles of the palm to exert force. The device can use the muscles of the upper limbs and the arms to exert force, and the force is greater, which can reduce the fatigue during bolus injection and improve the bolus injection efficiency.

An opening 8 is provided on one side of the fixed cylinder 2 , and the length of the opening 8 is 1/2 to 4/5 of the length of the fixed cylinder 2 . The situation in the syringe 4 can be observed through the opening 8 during bolus injection, which is convenient for operation.

The pressure block 3 is provided with a connecting rod 9, and the connecting rod 9 is provided with a counterweight block 10. The counterweight block 10 is connected with the pressure block 3 through the connection rod 9, and the gravity of the counterweight block 10 is used to generate a downward pressure and push the bottom. Physical consumption during injection.

The lower part of the syringe 4 is provided with a hose 11, one end of the hose 11 is communicated with the barrel of the syringe 4, the other end is pierced from the base 1, and a needle is provided at the end, and the contrast medium is injected into the human blood vessels through the hose 11 During the bolus injection, please shake the whole device without moving the needle, which improves the safety.

The lower part of the pressure block 3 is provided with a groove 12, and the pressure block 3 is connected with the piston rod of the syringe 4 through the groove 12. The piston rod of the syringe 4 is stuck in the groove 12 to prevent the piston rod from slipping off during injection.

The syringe 4 is a disposable syringe 4, and the syringe 4 adopts an existing syringe, which can be discarded after use, thereby reducing the risk of infection caused by repeated use.

Claims (6)

1. A cardiovascular interventional injection device, characterized in that: comprising a base (1), a fixed cylinder (2), a pressing block (3), a syringe (4), the lower part of the fixed cylinder (2) and the base (1) ) upper part is connected, and the syringe (4) is sleeved in the fixed cylinder (2); the two ends of the fixed cylinder (2) are provided with guide pipes (5), and the guide pipes (5) are connected with the fixed cylinder (2) through the connecting block, And the guide pipes (5) are perpendicular to each other; a guide rod (6) is provided at the lower part of the pressure block (3), the pressure block (3) is connected with the guide pipe (5) through the guide rod (6), and the pressure block (3) The lower part is connected with the piston rod of the syringe (4); both ends of the pressing block (3) are provided with pressing handles (7). 2. A cardiovascular interventional bolus device according to claim 1, characterized in that: an opening (8) is provided on one side of the fixing cylinder (2), and the length of the opening (8) is the length of the fixing cylinder (2) 1/2 to 4/5 of the length. 3. A cardiovascular interventional injection device according to claim 1, characterized in that: a connecting rod (9) is provided on the pressing block (3), and a counterweight (9) is provided on the connecting rod (9). 10), the counterweight block (10) is connected with the pressing block (3) through the connecting rod (9). 4. A cardiovascular interventional bolus device according to claim 1, characterized in that: the lower part of the syringe (4) is provided with a hose (11), and one end of the hose (11) is connected to the needle of the syringe (4). The cylinder is communicated, the other end is pierced from the base (1), and the end is provided with a needle. 5. A cardiovascular interventional bolus device according to claim 1, characterized in that: a groove (12) is provided in the lower part of the pressure block (3), and the pressure block (3) is connected with the groove (12) through the groove (12). The piston rod of the syringe (4) is connected. 6 . The cardiovascular interventional bolus device according to claim 1 , wherein the syringe ( 4 ) is a disposable syringe ( 4 ). 7 .
