Abstract

The utility model discloses a novel multifunctional steam cooker, which comprises a base, a casing is mounted on the top of the base, a control device is arranged on the side of the casing, and the top of the base is located inside the casing A heating inner tank is installed, the top of the heating inner tank is clamped with a first steamer, the inner bottom of the first steamer is provided with a steam hole, and the bottom of the steam hole is clamped with an energy-gathering cover, the first steamer. The side of the steamer is slidably connected with a first steaming hole plate, the top of the first steaming hole plate is clamped with a first steaming plate, the top of the first steamer is clamped with a second steamer, and the second steamer is clamped. The inner bottom of the second steamer is a third steamer plate, the side of the second steamer is slidably inserted with a second steamer plate, the top of the second steamer plate is clamped with a second steamer, and the second steamer There is a steam lid that snaps onto the top of the . The utility model is convenient to operate and flexible to use, and is not only suitable for the processing of rice peels, but also can be used for processing other foods.

Description

A new type of multifunctional steam boiler

technical field

The utility model relates to the technical field of steam cookers, in particular to a novel multifunctional steam cooker.

Background technique

The production of rice skin is very simple. Pour the ground rice slurry on a white cloth, steamer and other objects and steam it to make rice skin, and then put stuffing on the rice skin. It is loved by people.

The existing rice peel processing technology has the following defects: 1. It needs to be used in conjunction with a steamer, and the user does not necessarily have a steamer with a matching size at home, so it cannot be used. 2. The steaming tray is only suitable for steaming rice peels. The structure is difficult to use for cooking other foods, resulting in a narrow range of applications. To address these problems, we propose a new type of multifunctional steam cooker.

Utility model content

The purpose of the utility model is to propose a novel multifunctional steam boiler in order to solve the shortcomings existing in the prior art.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

A new type of multifunctional steam cooker includes a base, a casing is installed on the top of the base, a control device is arranged on the side of the casing, and a heating liner is installed on the top of the base and inside the casing , the top of the heating liner is clamped with a first steamer, the inner bottom of the first steamer is provided with a steam hole, the bottom of the steam hole is clamped with an energy collecting cover, and the side of the first steamer slides A first steaming orifice plate is inserted, the top of the first steaming orifice plate is clamped with a first steaming plate, the top of the first steamer is clamped with a second steamer, and the inner bottom of the second steamer is the first steamer. Three steaming orifice plates, a second steaming orifice plate is slidably inserted on the side of the second steamer, a second steaming plate is clamped on the top of the second steaming orifice plate, and a second steaming plate is clamped on the top of the second steamer Steam cover.

Preferably, a ventilation partition is installed at the bottom of the base.

Preferably, the side of the base is provided with a power socket.

Preferably, a heating tube is installed at the bottom of the heating inner tank.

Preferably, the energy collecting cover is in the shape of an inverted funnel.

Compared with the prior art, the beneficial effects of the present utility model are:

1. In the process of making the rice husks of the present invention, white cloth is spread on the first steaming tray and the second steaming tray, then the white cloth is poured with rice milk, water is added into the heating inner tank, and the heating is turned on by the control device. The inner tank, the heating inner tank heats the water to generate steam, the steam is polymerized through the energy-gathering cover and then enters the first steamer through the steam hole, and the first steaming plate is heated through the first steaming hole plate, and the steam passes through the third steaming hole at the same time. The plate enters the second steaming basket, and then the second steaming plate is heated by steam through the second steaming orifice plate, so that the rice peel can be obtained after a period of time, and the whole body is kept warm by the steaming cover;

2. The utility model can fumigate other foods on the first steaming plate and the second steaming plate at the same time, and at the same time, the first steaming plate and the second steaming plate can be removed, and the first steaming plate, the second steaming plate, For fumigation on the third steam perforated plate, you can also choose to use the first steamer and the second steamer together according to your needs, and the use is flexible;

3. In this utility model, a casserole can also be placed directly on the top of the heating inner tank, and then covered with a casserole cover, which is highly replaceable and meets the use of various appliances;

4. The energy collecting cover set in the utility model can concentrate steam for fumigation, and the effect is very good. The set ventilation partition can be used to dissipate heat at the bottom of the base to prevent the inner temperature of the shell from being too high.

Description of drawings

Fig. 1 is a front view of a novel multifunctional steam boiler proposed by the utility model;

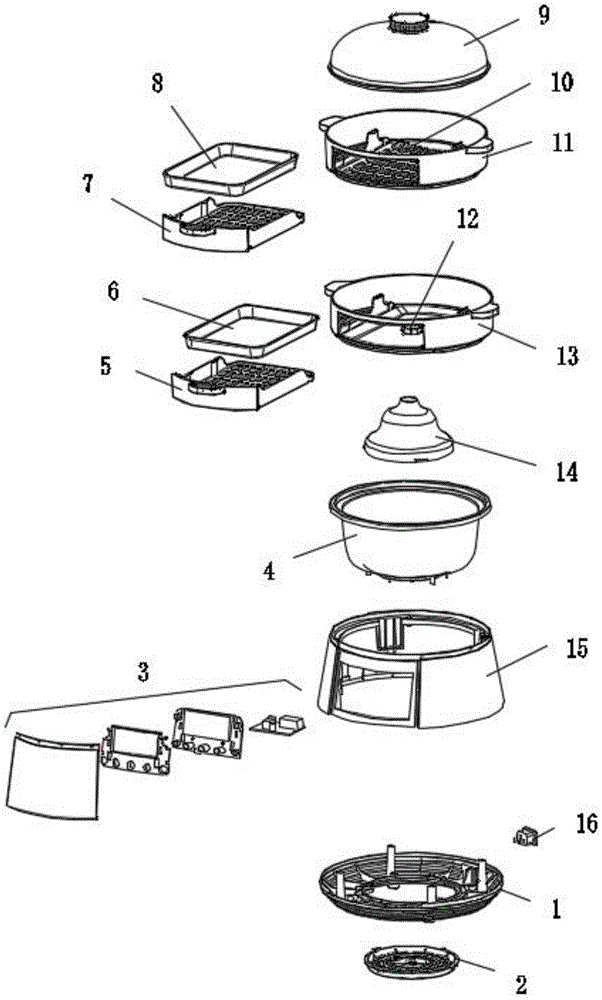

Figure 2 is an exploded view of a novel multifunctional steam boiler proposed by the utility model;

FIG. 3 is a schematic structural diagram of placing a casserole on the top of the base in the present invention.

In the figure: 1 base, 2 pass separation, 3 control device, 4 heating liner, 5 first steaming plate, 6 first steaming plate, 7 second steaming plate, 8 second steaming plate, 9 steaming cover, 10 The third steam hole plate, 11 the second steamer, 12 steam holes, 13 the first steamer, 14 energy gathering cover, 15 shell, 16 power socket.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

1-3, a new type of multifunctional steam cooker includes a base 1, a casing 15 is mounted on the top of the base 1, a control device 3 is arranged on the side of the casing 15, and the top of the base 1 is located in the casing 15. A heating inner tank 4 is installed inside the heating inner tank 4, a first steamer 13 is clamped on the top of the heating inner tank 4, a steam hole 12 is arranged at the inner bottom of the first steamer 13, and an energy collecting cover 14 is clamped at the bottom of the steam hole 12. A first steamer plate 5 is slidably connected to the side of a steamer 13, a first steamer 7 is clamped to the top of the first steamer plate 5, a second steamer 11 is clamped to the top of the first steamer 13, and a second steamer 11 is clamped to the top of the first steamer 13. The inner bottom of the steamer 11 is the third steamer plate 10, the side of the second steamer 11 is slidably inserted with the second steamer plate 7, the top of the second steamer plate 7 is clamped with the second steamer plate 8, and the second steamer plate 8 is attached to the top of the second steamer plate 7. The top of the steamer 11 is snapped with a steamer cover 9 .

Wherein, a ventilation partition 2 is installed at the bottom of the base 1 .

Wherein, the side of the base 1 is provided with a power socket 16 .

Among them, a heating tube is installed at the bottom of the heating inner tank 4 .

The energy collecting cover 14 is in the shape of an inverted funnel.

Working principle: In the process of making the rice husks of the present invention, white cloth is spread on the first steaming plate 6 and the second steaming plate 8, then the rice slurry is poured on the white cloth, and water is added into the heating liner 4, and the The control device 3 opens the heating inner tank 4, the heating inner tank 4 heats the water to generate steam, the steam is polymerized through the energy collecting cover 14 and then enters the first steamer 13 through the steam hole 12, and the first steaming plate 6 is connected to the first steaming plate 6 through the first steaming hole plate 5. Carry out steam heating, while steam enters the second steamer 11 through the third steaming orifice plate 10, and then steam heats the second steaming plate 8 through the second steaming orifice plate 7, so that the rice peel can be obtained after a period of time, At the same time, the whole is kept warm by the steaming cover 9;

The utility model can fumigate other foods on the first steaming plate 6 and the second steaming plate 8 at the same time, and at the same time, the first steaming plate 6 and the second steaming plate 8 can be removed, and the first steaming plate 5 and the second steaming plate can be directly fumigated on the first steaming plate 5 and the second steaming plate 8. For fumigation on the orifice plate 7 and the third steaming orifice plate 10, the first steamer 13 and the second steamer 11 can be used singly or together according to the needs, and the use is flexible;

As shown in Figure 3, in the present utility model, a casserole can also be placed directly on the top of the heating inner pot 4, and then covered with a casserole cover, which is highly replaceable and meets the use of various utensils;

The energy collecting cover 14 provided in the utility model can concentrate steam for fumigation, and the effect is very good.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.
