CN211405494U - Good pull-out type capacitor bank compensation module dispels heat - Google Patents

Abstract

The utility model discloses a draw-out capacitor bank compensation module with good heat dissipation, comprising a compensation module body, a fixing seat is arranged at the bottom of the compensation module body, and an embedded support mechanism is connected to the top of the fixing seat, and the The front side of the compensation module body is provided with a through slot, one side of the compensation module body is movably connected with an inspection door through a hinge, and the front side of the compensation module body is provided with a locking mechanism; Therefore, the support for the bottom and sides of the main body of the compensation module is strengthened, and space is saved during the supporting process, and the situation of occupying a large space is avoided; The dead block can be disengaged from the interior of the inspection door, and at the same time, the fixing of the inspection door can be released, the operation is relatively simple, and the use process is simple and convenient.

Description

A withdrawable capacitor bank compensation module with good heat dissipation

technical field

The utility model belongs to the technical field of electric power compensation equipment, in particular to a withdrawable capacitor bank compensation module with good heat dissipation.

Background technique

Capacitor bank is a working group composed of multiple capacitors. It has the characteristics of large capacity, large number of units, and high voltage level. In order to improve the quality of power supply, it is necessary to set up capacitor bank compensation modules. Capacitor bank compensation modules are generally withdrawable and modular. It has the advantages of structure, small size, simple on-site wiring, and convenient maintenance. In the process of using the existing capacitor bank compensation module, in order to ensure the fixing effect, a certain support frame is generally set on the outside, which has the problem of occupying more space. Therefore, we propose A draw-out capacitor bank compensation module with good heat dissipation.

Utility model content

The purpose of the present invention is to provide a withdrawable capacitor bank compensation module with good heat dissipation, so as to solve the problem that during the use process of the existing capacitor bank compensation module proposed in the above background technology, in order to ensure the fixing effect, a certain support is generally provided on the outside. rack, there is a problem of taking up more space.

In order to achieve the above purpose, the present invention provides the following technical solutions: a draw-out capacitor bank compensation module with good heat dissipation, comprising a compensation module body, a fixing seat is arranged at the bottom of the compensation module body, and a top of the fixing seat is connected with a Built-in support mechanism, the front of the compensation module body is provided with a through slot, one side of the compensation module body is movably connected with an access door through a hinge, the front of the compensation module body is provided with a locking mechanism, and the compensation module body is provided with a locking mechanism. A cover is fixed to the front of the module body.

Preferably, the built-in support mechanism includes a pulling block, a handle block is installed on the top of the pulling block, a connecting rod is movably connected to one side of the pulling block through a hinge, and the top of the connecting rod is movably connected through a hinge There is a support plate, the top of the support plate is fixed with a support block, the bottom of the support plate is connected with a support spring, the bottom of the support spring is fixed with a connection block, and the bottom of the connection block is provided with a sliding block.

Preferably, a sliding groove is provided inside the fixing seat, and a sliding matching member is formed between the sliding block and the sliding groove.

Preferably, the locking mechanism includes a protective shell, one inner wall of the protective shell is provided with a connecting spring, the other side of the connecting spring is fixed with a movable plate, and the other side of the movable plate is installed with a locking plate The outer side of the movable plate is movably connected with a pulley through a rotating shaft, one side of the movable plate is provided with a movable rod, and the other side of the movable rod is connected with a fixed block.

Preferably, the inside of the protective shell is provided with a through hole, and the outer side of the fixing block is provided with twill.

Preferably, a positioning groove is provided inside the access door, and the positioning groove is adapted to the locking mechanism.

Preferably, the outer side of the compensation module body is provided with a composite switch, and the outer side of the compensation module body is provided with an indicator light.

Compared with the prior art, the beneficial effects of the present utility model are:

(1) The utility model can strengthen the support for the bottom and side of the compensation module body through the setting of the built-in support mechanism, and saves space during the support process, avoiding the situation of occupying a large space.

(2) The utility model can be used in cooperation with the locking mechanism and the inspection door. When the inspection door is opened, only the fixing block can be pulled to the outside, and the locking block can be disengaged from the interior of the inspection door, and the fixing of the inspection door can be released at the same time. , the operation is relatively simple, and the use process is simple and convenient.

Description of drawings

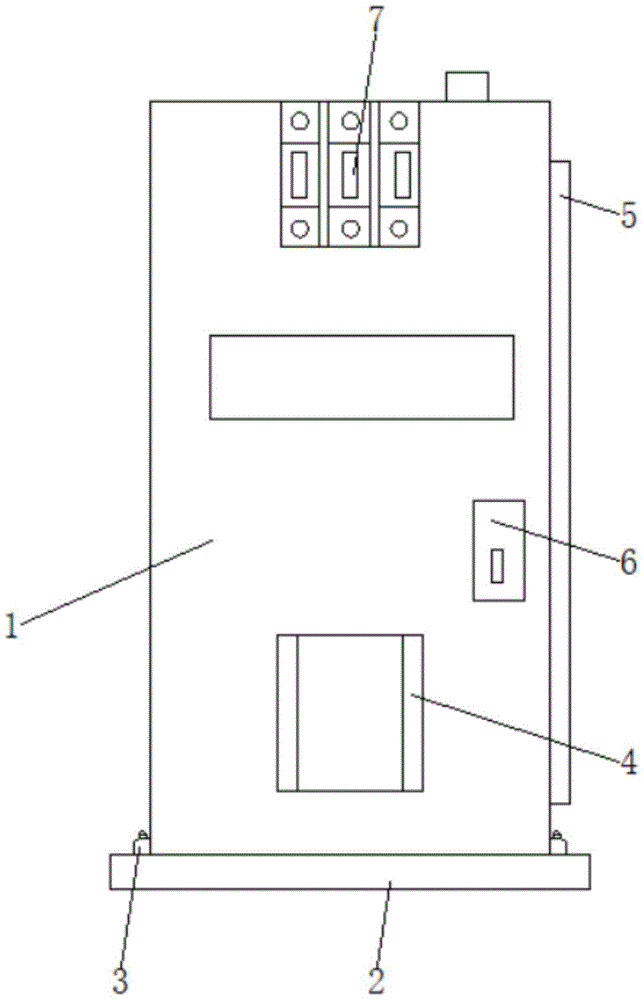

Fig. 1 is the overall structure schematic diagram of the present utility model;

2 is a schematic structural diagram of the embedded support mechanism of the present invention;

3 is a schematic structural diagram of a locking mechanism of the present invention;

In the figure: 1. Main body of compensation module; 2. Fixed seat; 3. Embedded support mechanism; 31. Pulling block; 32. Handle block; 33. Connecting rod; 34. Supporting plate; 35. Supporting block; 36. Support Spring; 37, connecting block; 38, sliding block; 4, through slot; 5, access door; 6, locking mechanism; 61, protective shell; 62, connecting spring; 63, movable plate; 64, locking block; 65 , pulley; 66, movable rod; 67, fixed block; 7, cover.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Example 1

1-2, the present utility model provides a technical solution: a draw-out capacitor bank compensation module with good heat dissipation, comprising a compensation module body 1, a fixing seat 2 is arranged at the bottom of the compensation module body 1, and the The top is connected with an embedded support mechanism 3, the front of the compensation module main body 1 is provided with a through slot 4, one side of the compensation module main body 1 is movably connected with an access door 5 through hinges, and the front of the compensation module main body 1 is provided with a locking mechanism 6 , a cover 7 is fixed on the front surface of the compensation module main body 1 .

In this embodiment, preferably, the built-in support mechanism 3 includes a pulling block 31 , a handle block 32 is installed on the top of the pulling block 31 , a connecting rod 33 is movably connected to one side of the pulling block 31 through a hinge, and the top of the connecting rod 33 A support plate 34 is movably connected by a hinge, a support block 35 is fixed at the top of the support plate 34, a support spring 36 is connected at the bottom of the support plate 34, a connection block 37 is fixed at the bottom of the support spring 36, and a sliding block is arranged at the bottom of the connection block 37. Block 38, when the device is in use, through the setting of the built-in support mechanism 3, it can drive the pulling block 31 to move by pushing the handle block 32 in the horizontal direction. At this time, the connecting rod 33 can drive the support plate 34 to move and make The support block 35 is snapped into the compensation module main body 1, and the elastic force provided by the support spring 36 can vertically press the support plate 34 and the support block 35, thereby strengthening the support for the bottom and sides of the compensation module main body 1, and during the supporting process It is more space-saving and avoids the situation of occupying a large space.

In this embodiment, preferably, a sliding groove is provided inside the fixing base 2 , and a sliding fitting member is formed between the sliding block 38 and the sliding groove.

In this embodiment, preferably, a positioning groove is provided inside the inspection door 5 , and the positioning groove is adapted to the locking mechanism 6 .

In this embodiment, preferably, a composite switch is provided on the outer side of the compensation module body 1 , and an indicator light is installed on the outer side of the compensation module body 1 .

Example 2

1-3, the present utility model provides a technical solution: a draw-out capacitor bank compensation module with good heat dissipation, comprising a compensation module main body 1, the bottom of the compensation module main body 1 is provided with a fixing seat 2, The top is connected with an embedded support mechanism 3, the front of the compensation module body 1 is provided with a through slot 4, one side of the compensation module body 1 is movably connected with an access door 5 through hinges, and the front of the compensation module body 1 is provided with a locking mechanism 6 , a cover 7 is fixed on the front surface of the compensation module main body 1 .

In this embodiment, preferably, the built-in support mechanism 3 includes a pulling block 31 , a handle block 32 is installed on the top of the pulling block 31 , a connecting rod 33 is movably connected to one side of the pulling block 31 through a hinge, and the top of the connecting rod 33 A support plate 34 is movably connected by a hinge, a support block 35 is fixed at the top of the support plate 34, a support spring 36 is connected at the bottom of the support plate 34, a connection block 37 is fixed at the bottom of the support spring 36, and a sliding block is arranged at the bottom of the connection block 37. Block 38, when the device is in use, through the setting of the built-in support mechanism 3, it can drive the pulling block 31 to move by pushing the handle block 32 in the horizontal direction. At this time, the connecting rod 33 can drive the support plate 34 to move and make The support block 35 is snapped into the compensation module main body 1, and the elastic force provided by the support spring 36 can press the support plate 34 and the support block 35 in a vertical direction, thereby strengthening the support for the bottom and sides of the compensation module main body 1, and during the supporting process It is more space-saving and avoids the situation of occupying a large space.

In this embodiment, preferably, a sliding groove is provided inside the fixing base 2 , and a sliding fitting member is formed between the sliding block 38 and the sliding groove.

In this embodiment, preferably, the locking mechanism 6 includes a protective shell 61 , one inner wall of the protective shell 61 is provided with a connecting spring 62 , the other side of the connecting spring 62 is fixed with a movable plate 63 , and the other side of the movable plate 63 A locking block 64 is installed, the outer side of the movable plate 63 is movably connected with a pulley 65 through a rotating shaft, one side of the movable plate 63 is provided with a movable rod 66, and the other side of the movable rod 66 is connected with a fixed block 67. During use, It can be used in conjunction with the locking mechanism 6 and the inspection door 5. When the inspection door 5 is opened, the fixing block 67 only needs to be pulled to the outside. At this time, the fixing block 67 can drive the movable rod 66 to move in the horizontal direction, and the movable rod 66 can drive the The movable plate 63 and the blocking block 64 move, and the blocking block 64 can be disengaged from the interior of the inspection door 5 , the operation is relatively simple, and the use process is simple and convenient.

In this embodiment, preferably, a through hole is formed inside the protective shell 61 , and twill lines are arranged on the outer side of the fixing block 67 to facilitate the user to pull the fixing block 67 .

In this embodiment, preferably, a positioning groove is provided inside the inspection door 5 , and the positioning groove is adapted to the locking mechanism 6 .

In this embodiment, preferably, a composite switch is provided on the outer side of the compensation module body 1 , and an indicator light is installed on the outer side of the compensation module body 1 .

The working principle and use process of the present utility model: when the device is in use, it can drive the pulling block 31 to move by pushing the handle block 32 in the horizontal direction through the setting of the built-in support mechanism 3. At this time, the connecting rod 33 can drive the pull block 31 to move. The support plate 34 moves, and the support block 35 is snapped into the compensation module body 1. The elastic force provided by the support spring 36 can press the support plate 34 and the support block 35 in a vertical direction, thereby strengthening the bottom and side surfaces of the compensation module body 1. It supports, and saves space during the support process, avoiding the situation of occupying a large space; in the process of use, it can be used in conjunction with the locking mechanism 6 and the access door 5. When the access door 5 is opened, it is only necessary to Pull the fixed block 67, at this time the fixed block 67 can drive the movable rod 66 to move in the horizontal direction, and the movable rod 66 can drive the movable plate 63 and the locking block 64 to move, and the locking block 64 can be removed from the interior of the inspection door 5. It is relatively simple, and the use process is simple and convenient.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides a good pull-out type capacitor bank compensation module dispels heat, includes compensation module main part (1), the bottom of compensation module main part (1) is provided with fixing base (2), its characterized in that: the top of fixing base (2) is connected with embedded supporting mechanism (3), logical groove (4) have been seted up in the front of compensation module main part (1), there is access door (5) one side of compensation module main part (1) through hinge swing joint, the front of compensation module main part (1) is provided with locking mechanism (6), the front of compensation module main part (1) is fixed with housing (7).

2. The extraction-type capacitor bank compensation module with good heat dissipation performance of claim 1, wherein: embedded supporting mechanism (3) are including pulling piece (31), handle piece (32) are installed at the top of pulling piece (31), one side of pulling piece (31) has connecting rod (33) through hinge swing joint, there is backup pad (34) at the top of connecting rod (33) through hinge swing joint, the top of backup pad (34) is fixed with supporting shoe (35), the bottom of backup pad (34) is connected with supporting spring (36), the bottom of supporting spring (36) is fixed with connecting block (37), the bottom of connecting block (37) is provided with sliding block (38).

3. The extraction-type capacitor bank compensation module with good heat dissipation according to claim 2, wherein: the inside of fixing base (2) is provided with the spout, be sliding fit component between sliding block (38) and the spout.

4. The extraction-type capacitor bank compensation module with good heat dissipation performance of claim 1, wherein: locking mechanism (6) including protective housing (61), one side inner wall of protective housing (61) is provided with connecting spring (62), the opposite side of connecting spring (62) is fixed with fly leaf (63), the dead piece of lock (64) are installed to the opposite side of fly leaf (63), there is pulley (65) in the outside of fly leaf (63) through pivot swing joint, one side of fly leaf (63) is provided with movable rod (66), the opposite side of movable rod (66) is connected with fixed block (67).

5. The drawn-out capacitor bank compensation module with good heat dissipation according to claim 4, wherein: the through hole has been seted up to the inside of protective housing (61), the outside of fixed block (67) is provided with the twill.

6. The extraction-type capacitor bank compensation module with good heat dissipation performance of claim 1, wherein: a positioning groove is formed in the access door (5), and the positioning groove is matched with the locking mechanism (6).

7. The extraction-type capacitor bank compensation module with good heat dissipation performance of claim 1, wherein: the outside of compensation module main part (1) is provided with blend switch, the pilot lamp is installed in the outside of compensation module main part (1).
