Abstract

The utility model discloses a drying box for electrophoresis, comprising a box body, a sealing door, a suspension rod, a suspension hook, a blowing fan, an air inlet pipe, an air outlet pipe, a circulating fan and a control device. One side of the box body is provided with a The sealed door is provided with several hanging rods, the hanging rods are arranged horizontally, and the bottom of the hanging rod is provided with several detachable hanging hooks, a blowing fan is arranged in the box body, and a blower is arranged at the bottom of the box body. An air inlet pipe, the end of the air inlet pipe is connected with the air outlet end of the circulating fan, a heating device is arranged in the air inlet pipe, an air outlet pipe is arranged on the top of the box body, and the air outlet pipe is connected with the air inlet end of the circulating fan, the blower Fans, circulating fans, and heating devices are all connected to the control device. In the utility model, by arranging the blowing fan in the box body, the hot air in the box body can be fully stirred, so that the drying parts are heated evenly, and the drying effect is improved.

Description

A drying oven for electrophoresis

【Technical field】

The utility model relates to the technical field of metal surface treatment, in particular to the technical field of a drying box for electrophoresis.

【Background technique】

Under the action of an electric field, charged particles move toward the opposite electrode, which is called electrophoresis. The technology that uses charged particles to move at different speeds in an electric field to achieve separation is called electrophoresis. In the electrophoresis process, drying treatment is required at the end. The drying effect of the existing drying equipment is not ideal, and the heating of the drying parts is not uniform enough.

【Content of utility model】

The purpose of the utility model is to solve the problems in the prior art, and proposes a drying box for electrophoresis, which can make the drying parts heat evenly and is not easy to pollute the air.

In order to achieve the above purpose, the utility model proposes a drying box for electrophoresis, which includes a box body, a sealing door, a suspension rod, a suspension hook, a blowing fan, an air intake pipe, an air outlet pipe, a circulating fan, and a control device. There is a sealing door on one side, a number of suspension rods are arranged in the sealing door, the suspension rods are arranged horizontally, and a number of detachable suspension hooks are arranged at the bottom of the suspension rods, a blowing fan is arranged in the box, and the box is The bottom of the body is provided with an air intake pipe, the end of the air intake pipe is connected with the air outlet end of the circulating fan, a heating device is arranged in the air intake pipe, and an air outlet pipe is arranged on the top of the box body, and the air outlet pipe is connected with the air intake end of the circulating fan The blowing fan, the circulating fan and the heating device are all connected with the control device.

Preferably, the blowing fan is composed of a motor, a rotating shaft and blades, the motor is located outside the box body, the rotating shaft penetrates the side wall of the box body, the rotating shaft is provided with a number of blades, the blades are located inside the box body, and the side wall of the box body is surrounded by Bearings are installed at the shaft penetrations.

Preferably, a moisture absorption device is installed on the air outlet pipe.

Preferably, a horizontally arranged partition plate is provided in the box, the partition plate is located below the suspension rod, and the partition plate is provided with a number of ventilation holes.

Preferably, the top of the box body is connected with an air suction device, the air outlet end of the air suction device is connected with an exhaust gas treatment device, a ventilation pipe is arranged at the bottom of the box body, and an electric control valve is arranged on the ventilation pipe. The control valve is connected to the control device.

Preferably, the air inlet end of the ventilation pipe is connected with an air supply device, and the air supply device is connected with the control device.

Preferably, the suspension hook is fixed on the suspension rod by means of screw connection.

Preferably, the air intake pipe is provided with a first temperature sensing device, the box is provided with a second temperature sensing device, and both the first temperature sensing device and the second temperature sensing device are connected to the control device.

The beneficial effects of the utility model: the utility model arranges the blowing fan in the box, so that the hot air in the box can be fully stirred, so that the drying parts are heated evenly, and the drying effect is improved; the suction device and the ventilation pipe The setting of the device makes it difficult for the exhaust gas generated in the drying process to pollute the air, so that the device has a certain environmental protection.

The features and advantages of the present invention will be described in detail through the embodiments in conjunction with the accompanying drawings.

【Description of drawings】

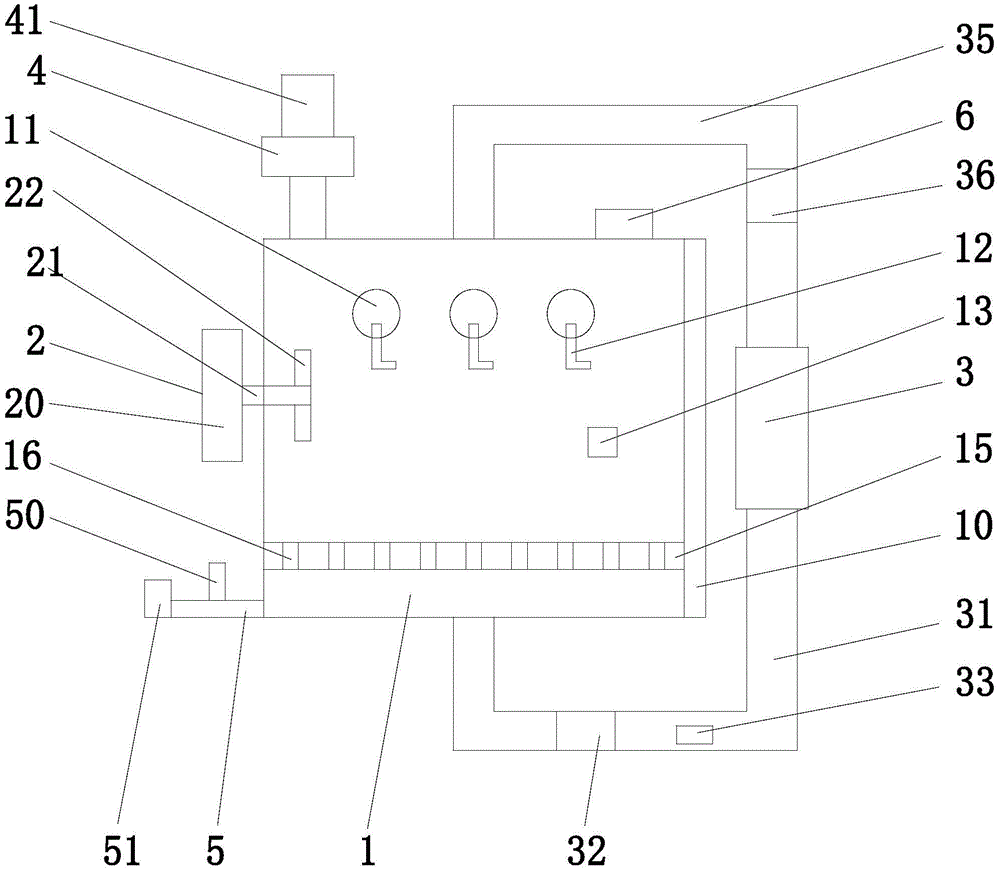

Figure 1 is a front view of a drying oven for electrophoresis of the present invention.

In the picture: 1-box, 2-blowing fan, 3-circulation fan, 4-suction device, 5-vent pipe, 6-control device, 10-sealing door, 11-hanging rod, 12-hanging hook, 13- -Second temperature sensing device, 15-Separating plate, 16-Through hole, 20-Motor, 21-Rotating shaft, 22-Blade, 31-Intake pipe, 32-Heating device, 33-First temperature sensing device, 35 -Outlet pipe, 36-hygroscopic device, 41-exhaust gas treatment device, 50-electrically controlled valve, 51-air supply device.

【Detailed ways】

Referring to FIG. 1, a drying box for electrophoresis of the present invention includes a box body 1, a sealing door 10, a hanging rod 11, a hanging hook 12, a blowing fan 2, an air inlet pipe 31, an air outlet pipe 35, a circulating fan 3, and a control device. 6. A sealing door 10 is provided on one side of the box body 1, and a plurality of suspension rods 11 are arranged in the sealing door 10. The suspension rods 11 are arranged horizontally, and the bottom of the suspension rod 11 is provided with a number of detachable suspension hooks 12, so The box body 1 is provided with a blowing fan 2, the bottom of the box body 1 is provided with an air inlet pipe 31, the end of the air inlet pipe 31 is connected with the air outlet end of the circulating fan 3, and a heating device 32 is arranged in the air inlet pipe 31, The top of the box body 1 is provided with an air outlet pipe 35, and the air outlet pipe 35 is connected to the intake end of the circulating fan 3. The blowing fan 2, the circulating fan 3, and the heating device 32 are all connected to the control device 6. The fan 2 is composed of a motor 20 , a rotating shaft 21 and blades 22 . The motor 20 is located outside the box body 1 , the rotating shaft 21 penetrates the side wall of the box body 1 , and a number of blades 22 are arranged on the rotating shaft 21 , and the blades 22 are located inside the box body 1 . , a bearing is installed where the side wall of the box body 1 is penetrated by the rotating shaft 21, a moisture absorption device 36 is installed on the air outlet pipe 35, and a horizontally arranged partition plate 15 is arranged in the box body 1. The partition plate 15 Located below the suspension rod 11, the partition plate 15 is provided with a number of ventilation holes, the top of the box body 1 is connected with an air suction device 4, and the air outlet end of the air suction device 4 is connected with an exhaust gas treatment device 41. The bottom of the body 1 is provided with a ventilation pipe 5, the ventilation pipe 5 is provided with an electronically controlled valve 50, the electronically controlled valve 50 is connected with the control device 6, and the air inlet end of the ventilation pipe 5 is connected with an air supply device 51, The air supply device 51 is connected to the control device 6 , the suspension hook 12 is fixed on the suspension rod 11 by means of screw connection, the air intake pipe 31 is provided with a first temperature sensing device 33 , and the box body 1 is provided with a second temperature sensing device 33 . The temperature sensing device 13 , the first temperature sensing device 33 and the second temperature sensing device 13 are all connected to the control device 6 .

The working process of the utility model:

During the working process of the drying box for electrophoresis of the utility model, the blowing fan 2 is arranged in the box body 1, so that the hot air in the box body 1 can be fully stirred, so that the drying parts are heated evenly, and the drying rate is improved. Effect: The arrangement of the suction device 4 and the ventilation pipe 5 makes it difficult for the exhaust gas generated in the drying process to pollute the air, so that the device has a certain environmental protection.

The above embodiment is an illustration of the present utility model, not a limitation of the present utility model. Any simple transformation scheme of the present utility model belongs to the protection scope of the present utility model.

Claims (8)

1. The utility model provides a stoving case for electrophoresis which characterized in that: comprises a box body (1), a sealing door (10), a hanging rod (11), a hanging hook (12), a blowing fan (2), an air inlet pipe (31), an air outlet pipe (35), a circulating fan (3) and a control device (6), wherein the sealing door (10) is arranged on one side of the box body (1), a plurality of hanging rods (11) are arranged in the sealing door (10), the hanging rods (11) are horizontally arranged, a plurality of detachable hanging hooks (12) are arranged at the bottom of the hanging rods (11), the blowing fan (2) is arranged in the box body (1), the air inlet pipe (31) is arranged at the bottom of the box body (1), the tail end of the air inlet pipe (31) is connected with the air outlet end of the circulating fan (3), a heating device (32) is arranged in the air inlet pipe (31), the air outlet pipe (35) is arranged at the top of the box body (1), and the air outlet, the blowing fan (2), the circulating fan (3) and the heating device (32) are all connected with the control device (6).

2. A drying box for electrophoresis as recited in claim 1, wherein: the blowing fan (2) is composed of a motor (20), a rotating shaft (21) and blades (22), the motor (20) is located outside the box body (1), the rotating shaft (21) penetrates through the side wall of the box body (1), the rotating shaft (21) is provided with the blades (22), the blades (22) are located inside the box body (1), and the side wall of the box body (1) is penetrated by the rotating shaft (21) and is provided with a bearing.

3. A drying box for electrophoresis as recited in claim 1, wherein: and a moisture absorption device (36) is arranged on the air outlet pipe (35).

4. A drying box for electrophoresis as recited in claim 1, wherein: the box body (1) is internally provided with a partition plate (15) which is horizontally arranged, the partition plate (15) is positioned below the suspension rod (11), and the partition plate (15) is provided with a plurality of vent holes.

5. A drying box for electrophoresis as recited in claim 1, wherein: the top of the box body (1) is connected with an air suction device (4), the air outlet end of the air suction device (4) is connected with a waste gas treatment device (41), the bottom of the box body (1) is provided with an air pipe (5), the air pipe (5) is provided with an electric control valve (50), and the electric control valve (50) is connected with a control device (6).

6. A drying box for electrophoresis as recited in claim 5, wherein: the air inlet end of the air pipe (5) is connected with an air supply device (51), and the air supply device (51) is connected with the control device (6).

7. A drying box for electrophoresis as recited in claim 1, wherein: the hanging hook (12) is fixed on the hanging rod (11) in a threaded connection mode.

8. A drying box for electrophoresis as recited in claim 1, wherein: be equipped with first temperature-sensing device (33) in intake pipe (31), be equipped with second temperature-sensing device (13) in box (1), first temperature-sensing device (33) and second temperature-sensing device (13) all link to each other with controlling means (6).
