CN211400519U - A raw material drying device for the production of refined low-gluten wheat flour - Google Patents

Abstract

The utility model relates to the technical field of flour processing, in particular to a raw material drying device for the production of refined low-gluten wheat flour. Disc, the connection relationship between the main shaft of the motor and the disc is a fixed connection, the two sides of the disc are rotatably connected with a first connecting rod, and the end of the first connecting rod is rotatably connected with a second connecting rod, so Both sides of the second connecting rod are provided with a first fixing block, the end of the second connecting rod is rotatably connected with a second fixing block, and one side of the second fixing block is fixedly connected with a horizontally arranged guide rod. In the utility model, through the fixed ring, the cover plate, the drying device and the drying lamp, the fan blade spindle and the fan blade inside the drying device, the drying is carried out simultaneously by air drying and electric heating drying, which further improves the efficiency of drying. The drying efficiency is improved and the drying quality is improved.

Description

A raw material drying device for the production of refined low-gluten wheat flour

technical field

The utility model relates to the technical field of flour processing, in particular to a raw material drying device for the production of refined low-gluten wheat flour.

Background technique

At present, most of the wheat flour drying devices on the market have a relatively single function, which can only dry wheat flour. Since wheat flour is all fine particles, the wheat flour inside is not easy to be dried due to the accumulation of wheat flour particles, resulting in The drying effect is unsatisfactory. Therefore, a raw material drying device for the production of refined low-gluten wheat flour is proposed in view of the above problems.

Utility model content

The purpose of this utility model is to provide a raw material drying device for the production of refined low-gluten wheat flour, so as to solve the problems raised in the above-mentioned background technology.

To achieve the above object, the utility model provides the following technical solutions:

A raw material drying device for the production of refined low-gluten wheat flour, comprising a disc, a motor is fixedly connected at the central position of one side of the disc, and the motor end of the motor runs through the disc, the main shaft of the motor and the disc The connection relationship is a fixed connection, the two sides of the disc are rotatably connected with a first link, the end of the first link is rotatably connected with a second link, and both sides of the second link are provided with a second link. A fixing block, the end of the second connecting rod is rotatably connected with a second fixing block, a horizontally arranged guide rod is fixedly connected to one side of the second fixing block, and the outer side of the guide rod is provided with a fixing ring, so The inner side of the fixing ring is provided with a filter screen fixing ring, the inner side of the filter screen fixing ring is fixedly connected with a horizontally arranged filter screen, the inner side of the fixing ring is provided with a drying device, and the inner side of the fixing ring is provided with a sliding rail , and the slide rail is slidably connected with a drawer, the end of the drawer is provided with a horizontally arranged handle, the fixing ring is provided with a sliding bearing, the inner side of the sliding bearing is provided with a positioning hole, and the top of the fixing ring is placed With cover.

Preferably, the number of the guide rods is two, and the distance between the two guide rods is two thirds of the diameter of the fixing ring.

Preferably, the connection relationship between the filter screen fixing ring and the guide rod is a fixed connection.

Preferably, the drying device includes a drying lamp, a main shaft of a fan blade and a fan blade, the drying lamp is a ring-shaped structure, and a fan blade is arranged on the inner side of the drying lamp, and a motor is fixedly connected to the center of the fan blade. Spindle.

Preferably, the connection relationship between the sliding bearing and the guide rod is sliding.

Preferably, the diameter of the positioning hole is slightly larger than the diameter of the guide rod.

Compared with the prior art, the beneficial effects of the present utility model are:

1. In the present utility model, the reciprocating motion can be realized by the provided disc, the first connecting rod and the second connecting rod. At this time, the flour can be screened, so that the flour is evenly spread on the filter screen, which is convenient for the next step. It is beneficial to dry the flour comprehensively, and the drying effect is more thorough.

2. In the present utility model, drying is carried out simultaneously by two methods of air drying and electric heating drying through the set fixing ring, cover plate, drying device and the drying lamp, fan blade spindle and fan blade inside the drying device, The drying efficiency is further improved, and the drying quality is improved.

3. In the present utility model, through the set drawer and the handle on one side of the drawer, the screened and dried flour can be collected uniformly, and then prepared for the next bagging, which has broad market prospects and huge economic benefits. , worthy of promotion.

Description of drawings

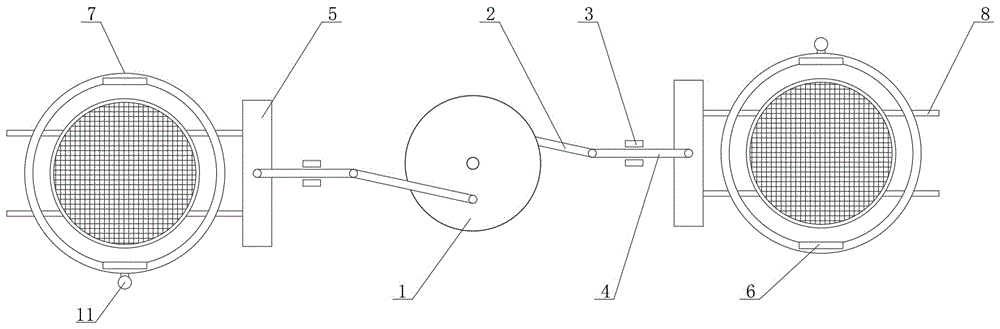

1 is a schematic diagram of the overall structure of the present utility model;

Fig. 2 is the installation structure schematic diagram of the filter screen of the utility model;

3 is a schematic diagram of the installation structure of the motor of the present invention;

4 is a schematic diagram of the internal structure of the drying device of the present invention;

5 is a schematic diagram of the installation structure of the drawer of the utility model;

FIG. 6 is a schematic diagram of the installation structure of the sliding bearing of the present invention.

In the picture: 1-disc, 2-first connecting rod, 3-first fixing block, 4-second connecting rod, 5-second fixing block, 6-drying device, 601-drying lamp, 602- Fan blade spindle, 603-fan blade, 7-fixing ring, 8-guide rod, 9-filter screen, 10-filter screen fixing ring, 11-handle, 12-positioning hole, 13-slide rail, 14-drawer, 15 -Slide bearing, 16-motor, 17-cover.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Figures 1-6, the present utility model provides a technical solution:

A raw material drying device for the production of refined low-gluten wheat flour, comprising a disc 1, a motor 16 is fixedly connected at a central position on one side of the disc 1, and the motor end of the motor 16 runs through the disc 1, the main shaft of the motor 16 and the The connection relationship of the disc 1 is a fixed connection, the two sides of the disc 1 are rotatably connected with a first connecting rod 2, the end of the first connecting rod 2 is rotatably connected with a second connecting rod 4, and both sides of the second connecting rod 4 are provided with There is a first fixing block 3, the end of the second connecting rod 4 is rotatably connected with a second fixing block 5, one side of the second fixing block 5 is fixedly connected with a horizontally arranged guide rod 8, and the outer side of the guide rod 8 is provided with a fixing ring 7. The inner side of the fixing ring 7 is provided with a filter screen fixing ring 10, the inner side of the filter screen fixing ring 10 is fixedly connected with a horizontally arranged filter screen 9, the inner side of the fixing ring 7 is provided with a drying device 6, and the inner side of the fixing ring 7 is provided with The slide rail 13 is slidably connected with a drawer 14, the end of the drawer 14 is provided with a horizontally arranged handle 11, the fixed ring 7 is provided with a sliding bearing 15, the inner side of the sliding bearing 15 is provided with a positioning hole 12, the fixing ring A cover plate 17 is placed at the top end of 7 .

The number of guide rods 8 is two, and the distance between the two guide rods 8 is two-thirds of the diameter of the fixed ring 7. The connection relationship between the filter screen fixed ring 10 and the guide rod 8 is a fixed connection, and the drying device 6 includes a drying lamp 601, a fan blade spindle 602 and a fan blade 603, the drying lamp 601 is a ring structure, and the inner side of the drying lamp 601 is provided with a fan blade 603, and the center of the fan blade 603 is fixedly connected with a motor spindle, The connection relationship between the sliding bearing 15 and the guide rod 8 is sliding, and the diameter of the positioning hole 12 is slightly larger than the diameter of the guide rod 8 .

Workflow: First, connect the motor 16 to the external power supply electrically, then pour the flour to be dried into the filter screen 9 inside the filter screen fixing ring 10 inside the fixing ring 7, turn on the motor 16 at this time, and then turn on the motor 16. The disc 1 starts to rotate under the action of the main shaft, and the rotation of the disc 1 drives the first connecting rod 2 to rotate. Reciprocate in the horizontal direction, and then drive the reciprocating motion of the guide rod 8. At this time, the filter screen 9 vibrates back and forth. Before the filter screen 9 vibrates, the cover plate 17 is placed on the top of the fixing ring 7, and then the motor that controls the fan blade 603 is turned on. , and the drying lamp 601 on the outside of the fan blade 603, so that the air-drying and drying processes operate at the same time, and the cover plate 17 effectively solves the problem of flour flying, and the flour after drying and screening falls into the drawer 14, At this time, by pulling the handle 11, the drawer 14 slides out along the slide rail 13, and the whole operation is completed.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides an exquisite low muscle raw materials drying device for wheat flour production, includes disc (1), its characterized in that: the disc type air purifier is characterized in that a motor (16) is fixedly connected to the central position of one side of the disc (1), the motor end of the motor (16) penetrates through the disc (1), the connection relation between the main shaft of the motor (16) and the disc (1) is fixed connection, the two sides of the disc (1) are rotatably connected with first connecting rods (2), the end of each first connecting rod (2) is rotatably connected with a second connecting rod (4), the two sides of each second connecting rod (4) are provided with first fixing blocks (3), the end of each second connecting rod (4) is rotatably connected with second fixing blocks (5), one side of each second fixing block (5) is fixedly connected with a guide rod (8) horizontally arranged, a fixing ring (7) is arranged on the outer side of each guide rod (8), a filter screen fixing ring (10) is arranged on the inner side of each fixing ring (7), and a filter screen (9) horizontally arranged on the inner side of each filter screen, the inboard of solid fixed ring (7) is provided with drying device (6), gu fixed ring (7) inboard is equipped with slide rail (13), and sliding connection has drawer (14) on slide rail (13), the end of drawer (14) is provided with handle (11) that the level set up, gu be provided with slide bearing (15) on fixed ring (7), the inboard of slide bearing (15) is provided with locating hole (12), apron (17) have been placed on the top of solid fixed ring (7).

2. The raw material drying device for producing refined low-gluten wheat flour as claimed in claim 1, wherein: the number of guide bars (8) is two, and two the distance between guide bars (8) is two-thirds of the diameter of fixed ring (7).

3. The raw material drying device for producing refined low-gluten wheat flour as claimed in claim 1, wherein: the connection relation between the filter screen fixing ring (10) and the guide rod (8) is fixed connection.

4. The raw material drying device for producing refined low-gluten wheat flour as claimed in claim 1, wherein: drying device (6) are including roast lamp (601), flabellum main shaft (602) and flabellum (603), roast lamp (601) are cyclic annular structure, and the inboard of roast lamp (601) is provided with flabellum (603), and the central fixedly connected with motor main shaft of flabellum (603).

5. The raw material drying device for producing refined low-gluten wheat flour as claimed in claim 1, wherein: the sliding bearing (15) and the guide rod (8) are connected in a sliding manner.

6. The raw material drying device for producing refined low-gluten wheat flour as claimed in claim 1, wherein: the diameter of the positioning hole (12) is slightly larger than that of the guide rod (8).
