Abstract

A suction-sweep combined cleaning device, the cleaning device includes a swing frame, the swing frame is equipped with a cleaning component, the cleaning component includes a casing, a horizontal axis type cleaning roller brush is assembled in the casing, and a horizontal axis type cleaning roller brush is assembled outside the casing. The cleaning brush motor matched with the roller brush has a suction port on the side wall of the casing, and a garbage opening on the bottom surface of the casing. The driving arm is also fixedly assembled with a rigidiser arm on the lateral sliding track, a lateral mounting seat is fixedly assembled on the rigidiser arm, and guide wheels are fixedly assembled at both ends of the lateral mounting seat, and a driving wire rope is wound on the guide wheel. The device has a suction-sweep combined cleaning device. The device is designed with a horizontal axis roller brush, a garbage suction port and its protective cover, which solves the problems of obvious dust, unclean cleaning and garbage backflow during cleaning. The device is more stable in work and more efficient.

Description

A suction-sweep combined cleaning device

technical field

The utility model relates to a three-wheel electric sweeper, in particular to a suction-sweep combined sweeping device.

Background technique

The current electric tricycle cleaning devices are mostly divided into two forms: disc brush and roller brush in structure; in function, there are generally pure sweeping mode; cleaning mode; suction sweeping mode, etc. The first mode raises dust obviously, causing secondary pollution; In the second mode, the road surface and mud will appear after sweeping the scattered water or directly washing with water, and the cleaning is not clean; the third mode is currently used less, and the suction and sweep area is small.

Therefore, in view of the deficiencies of the prior art, it is necessary to provide a vacuum-sweeping combined cleaning device to solve the deficiencies of the prior art.

Utility model content

The purpose of this utility model is to avoid the deficiencies of the prior art and provide a suction-sweep combined type cleaning device, the suction-sweep combined type cleaning device, the device is designed with a horizontal axis rolling brush, a garbage suction port and its protection The hood and other structures can solve the problems of obvious dust, unclean cleaning and small suction area during cleaning.

The above object of the present invention is achieved by the following technical means.

A suction-sweeping combined cleaning device is provided, the cleaning device includes a swing frame, and a cleaning component is assembled on the swing frame.

The cleaning assembly includes a housing, a horizontal axis cleaning roller brush is assembled in the housing, a cleaning brush motor matched with the horizontal axis cleaning roller brush is mounted on the outside of the housing, and a side wall of the housing is provided with a cleaning brush motor. The garbage suction port is provided with a garbage opening on the bottom surface of the casing.

Specifically, the swing frame includes a lateral sliding track, a first driving arm and a second driving arm are slidably assembled on the lateral sliding track, a rigidiser arm is also fixedly assembled on the lateral sliding track, and the rigidiser arm is fixedly assembled There is a lateral mounting seat, two ends of the lateral mounting seat are fixedly assembled with guide wheels, the guide wheels are wound with a driving wire rope, and one end of a first connecting block is fixed and assembled on the driving wire rope, and the first connecting block is The other end of the wire rope is fixedly assembled on the first swing arm, the driving wire rope is fixedly assembled with one end of the second connecting block, the other end of the second connecting block is fixedly assembled on the second swing arm, and the first connecting block and the second connecting block are fixedly assembled on the second swing arm. The connection blocks are respectively located at different ends of the driving wire rope, the middle part of the upper surface of the first connection block is fixedly assembled with a spring sleeve, the lateral mounting seat is fixedly assembled with a lateral push motor, and the lateral push motor is parallel to the spring sleeve , the lateral drive motor is equipped with a lateral push rod, one end of the lateral push rod is assembled with one end of the spring sleeve, and the two ends of the lateral sliding rail are fixedly assembled with two connecting plates, which are fixedly assembled on the vehicle body .

Preferably, the spring sleeve is equipped with a spring, the spring sleeve is provided with a limit opening, and one end of the lateral push rod is provided with a raised limit screw, and the limit screw is clamped in the limit opening, The other end of the spring sleeve is provided with an adjustment hole on the pipe wall, and the other end of the spring sleeve can be adjusted and assembled with an adjustment plug.

Specifically, the garbage suction port and the garbage opening are respectively located at different ends of the casing, an arc-shaped baffle is fixedly assembled in the casing, and one end of the baffle is located at the garbage suction mouth, and the other end is located in the garbage opening.

Preferably, the casing includes a fan-shaped casing and a rectangular casing, the fan-shaped casing and the rectangular casing are internally communicated, the garbage suction port is opened on the fan-shaped casing, and the horizontal axis cleaning roller The brush is assembled in the rectangular casing, and the garbage opening is opened on the bottom surface of the rectangular casing.

Specifically, the garbage outlet is fixedly equipped with a brush.

Further, the garbage suction port is fixedly equipped with a working protective cover.

The utility model relates to a suction-sweep combined type cleaning device. The suction-sweep combined type cleaning device is designed with a horizontal axis rolling brush, a garbage suction port and its protective cover, which can solve the problem of obvious dust during cleaning. , The problems of unclean cleaning and garbage backflow make the cleaning device more stable and efficient in work.

Description of drawings

The present invention will be further described with reference to the accompanying drawings, but the content in the accompanying drawings does not constitute any limitation to the present invention.

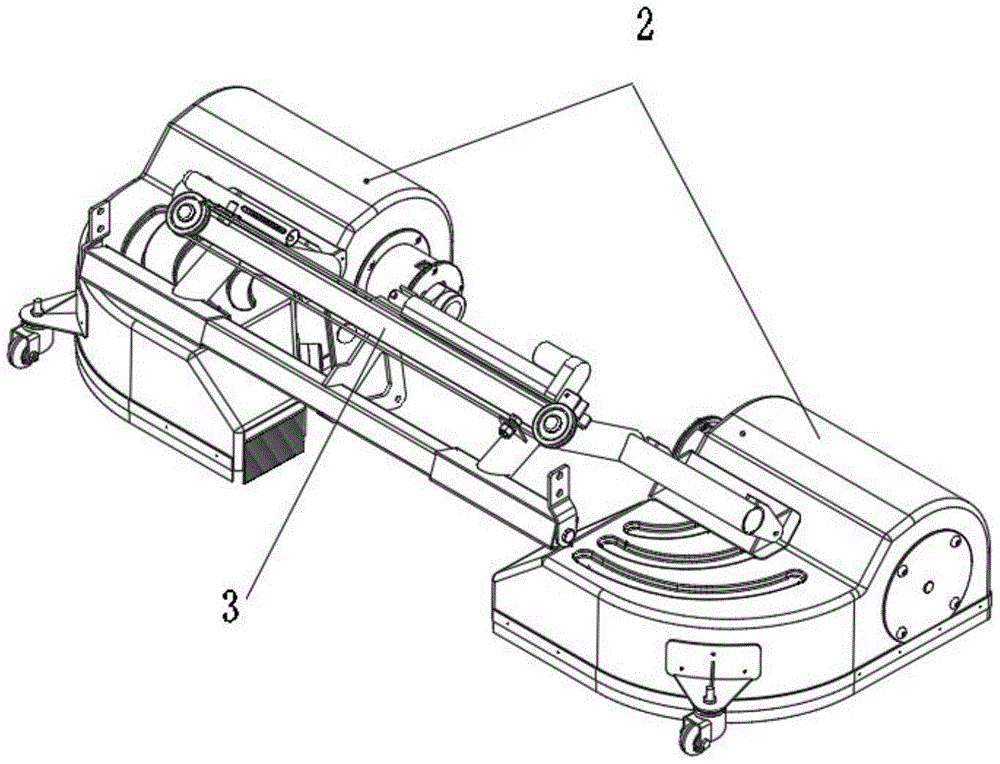

FIG. 1 is a schematic structural diagram of a suction-sweep combined cleaning device of the present invention.

FIG. 2 is a schematic diagram of the internal structure of the cleaning device in FIG. 1 .

FIG. 3 is an enlarged view of a portion of the lateral mounting seat in FIG. 1 .

FIG. 4 is an enlarged view of a portion of the spring sleeve in FIG. 1 .

Figure 5 is an enlarged view of the spring and the limit port portion.

From Figures 1 to 5, including:

1. Spring casing;

11. Spring, 12, Limit opening, 13, Adjustment hole, 14, Adjustment plug.

2. Cleaning components;

21, shell, 22, garbage suction port, 23, garbage opening, 24, cleaning brush motor, 25, horizontal axis cleaning roller brush, 26, arc deflector, 27, brush, 28, protective cover;

3. Swing rack;

31. Lateral push motor, 32, first swing arm, 33, second swing arm, 34, second connection block, 35 guide wheel, 36, drive wire rope, 37, lateral sliding track, 38, connecting plate, 39, lateral Mounting base, 310, first connecting block, 311, lateral push rod, 312, limit screw, 313, rigidiser arm;

Detailed ways

The present invention will be further described with reference to the following examples.

Example 1.

As shown in Figures 1-4, a suction-sweep combined cleaning device includes a vehicle body, the bottom end of the vehicle body is equipped with a swing frame 3, and the swing frame 3 is equipped with a cleaning assembly 2.

As shown in FIG. 2 , this embodiment has a cleaning device combined with suction and sweep. By improving the cleaning device, a better cleaning effect can be achieved and work efficiency can be improved.

As shown in FIG. 1 , the cleaning assembly 2 includes a housing 21 , a horizontal-axis cleaning roller brush 25 is assembled inside the housing 21 , and a cleaning brush motor 24 matched with the horizontal-axis cleaning roller brush 25 is mounted outside the housing 21 , The side wall of the housing 21 is provided with a garbage suction port, and the bottom surface of the housing 21 is provided with a garbage opening 23 .

When the cleaning component 2 is working, the cleaning brush motor 24 drives the cleaning roller brush to clean, and the garbage enters the middle of the cleaning vehicle through the garbage opening. The dust is absorbed in the dusting stage, avoiding the occurrence of secondary dust. The cleaning component 2 is a horizontal-axis cleaning roller brush 25, which reduces the difficulty of operation and saves the space in front of the vehicle.

As shown in FIG. 4 , the swing frame 3 includes a lateral sliding track 37 , the lateral sliding track 37 is slidably assembled with the first driving arm and the second driving arm, the lateral sliding track 37 is also fixedly assembled with a rigidiser arm, and the rigidiser arm is fixedly assembled with a The lateral mounting seat 39, the two ends of the lateral mounting seat 39 are fixedly assembled with guide wheels 35, the guide wheel 35 is wound with a driving wire rope 36, and one end of the first connecting block 310 is fixedly assembled on the driving wire rope 36. The other end is fixedly assembled on the first swing arm 32, the driving wire rope 36 is fixedly assembled with one end of the second connection block 34, the other end of the second connection block is fixedly assembled on the second swing arm 33, and the first connection block 310 and The second connecting blocks 34 are respectively located at different ends of the driving wire rope 36 , the middle part of the upper surface of the first connecting block 310 is fixedly assembled with the spring sleeve 1 , the lateral mounting seat 39 is fixedly assembled with the laterally pushing motor 31 , and the laterally pushing motor 31 Parallel to the spring sleeve 1, the transverse drive motor is equipped with a transverse push rod 311, one end of the transverse push rod 311 is assembled with one end of the spring sleeve 1, and the sliding ends of the transverse sliding track 37 are fixedly equipped with a connecting plate 38. The connecting plate 38 is fixedly assembled on the vehicle body.

As shown in FIG. 4, the lateral push motor 31 drives the lateral push rod 311 to reciprocate on the lateral mounting seat 39, thereby driving the spring sleeve 1 to reciprocate. Since the spring sleeve 1 is assembled on the first connecting block 310, that is, The first connecting block 310 is driven to reciprocate, and the first swing arm 32 moves with the movement of the first connecting block 310 .

When the lateral push rod 311 is retracted, the first connecting block 310 moves to the right, driving the driving wire rope 36 to move clockwise, and the second connecting block 34 on the driving wire rope 36 moves to the left along with the driving wire rope 36. The second connecting block 34 drives the second swinging arm 33 to move leftward. When the lateral push rod 311 performs the stretching motion, the first connecting block 310 moves to the left, and drives the driving wire rope 36 to move counterclockwise to drive the second connection on the wire rope 36. The block 34 moves to the right along with the driving wire rope 36, and at this time, the second connecting block 34 drives the second swing arm 33 to move to the right.

There is also a pulling and pushing motor in the car body. Under the bidirectional action of the pulling and pushing rod motor and the transverse push rod motor, the cleaning assembly 2 is extended longitudinally and laterally on the lateral sliding track 37 to the limit position, and starts the suction and sweeping operation. The cleaning brush motor 24 drives the horizontal axis cleaning roller brush 25 to rotate to clean the garbage, and the garbage is introduced into the cleaning truck through the internal deflector. It is folded and retracted into the car body. In fact, the middle horizontal rail facilitates the opening and closing of the cleaning component 2 at a constant speed, and the working width reaches 1500mm, which increases the width of the cleaning operation and improves the operation efficiency.

As shown in FIG. 5 , a spring 11 is assembled in the spring sleeve 1, a limit opening 12 is provided on the spring sleeve 1, and one end of the lateral push rod 311 is provided with a raised limit screw 312, and the limit screw 312 is clamped to the In the limit opening 12, an adjustment hole 13 is opened on the wall of the other end of the spring sleeve 1, and the other end of the spring sleeve 1 can be adjusted and assembled with an adjustment plug 14.

When the front cleaning housing hits a foreign object, the entire spring sleeve assembly 1 will shrink back, and the spring 11 inside it will be compressed at the same time, so as to appropriately reduce the expansion width during operation, so as to achieve the effect of protecting the front cleaning assembly.

As shown in FIG. 3 , the garbage suction port and the garbage opening are located at different ends of the housing 21 respectively. The housing 21 is fixedly fitted with an arc-shaped deflector 26, one end of the deflector is located at the garbage suction port 22, and the other end is Located at trash opening 23.

A deflector is provided in the housing 21 of the cleaning assembly, which can effectively guide the cleaned garbage to the outlet, and avoid the high-speed cleaning of granular garbage from splashing around.

As shown in FIG. 3 , the casing 21 includes a fan-shaped casing 21 and a rectangular casing 21. The fan-shaped casing 21 and the rectangular casing 21 communicate with each other inside. The garbage suction port is opened on the fan-shaped casing 21. 25 is assembled in the rectangular casing 21 , and the garbage opening is opened on the bottom surface of the rectangular casing 21 .

Dividing the casing 21 into two parts can effectively achieve internal flow diversion, and there will be no collision between the garbage suction port and the garbage in the working area of the horizontal axis cleaning roller brush 25, causing blockage.

As shown in FIG. 3 , a brush 27 is fixed at the garbage outlet, and adding a brush 27 to the garbage outlet can effectively reduce the splashing and backflow of garbage.

As shown in FIG. 3 , the garbage suction port 22 is fixedly equipped with a working protective cover 28 to prevent the dust from spreading around during the cleaning roller brush operation, so that the garbage suction port 22 has a better suction effect during operation.

In the utility model, a suction-sweep combined type cleaning device is designed. The suction-sweep combined type cleaning device is designed with a horizontal axis rolling brush, a garbage suction port 22 and its protective cover 28 and other structures to solve the problem of cleaning. The problems of obvious dust, unclean cleaning and garbage backflow make the cleaning device more stable and efficient in work.

Finally, it should be noted that the above embodiments are only used to illustrate the technical solutions of the present invention rather than to limit the protection scope of the present invention. Although the present invention has been described in detail with reference to the preferred embodiments, those skilled in the art should It is understood that the technical solutions of the present invention may be modified or equivalently replaced without departing from the spirit and scope of the technical solutions of the present invention.

Claims (7)

1. A suction and sweeping combined cleaning device is characterized by comprising a swing frame, wherein a cleaning assembly is assembled on the swing frame;

the cleaning assembly comprises a shell, a transverse shaft type cleaning rolling brush is assembled in the shell, a cleaning brush motor matched with the transverse shaft type cleaning rolling brush is assembled outside the shell, a garbage suction opening is formed in the side wall of the shell, and a garbage opening is formed in the bottom surface of the shell.

2. A suction-sweeping combined sweeping apparatus according to claim 1, wherein: the swing frame comprises a transverse sliding track, the transverse sliding track is assembled with a first driving arm and a second driving arm in a sliding mode, a reinforcing arm is further fixedly assembled on the transverse sliding track, a transverse mounting seat is fixedly assembled on the reinforcing arm, guide wheels are fixedly assembled at two ends of the transverse mounting seat, a driving steel wire rope is wound on the guide wheels, one end of a first connecting block is fixedly assembled on the driving steel wire rope, the other end of the first connecting block is fixedly assembled on a first swing arm, one end of a second connecting block is fixedly assembled on the driving steel wire rope, the other end of the second connecting block is fixedly assembled on a second swing arm, the first connecting block and the second connecting block are respectively located at different ends of the driving steel wire rope, a spring sleeve is fixedly assembled in the middle of the upper surface of the first connecting block, and a transverse pushing motor is fixedly assembled on the transverse mounting seat, and the transverse pushing motor is parallel to the spring sleeve, the transverse driving motor is provided with a transverse pushing rod, one end of the transverse pushing rod is assembled at one end of the spring sleeve, two sliding ends of the transverse sliding rail are fixedly provided with 2 connecting plates, and the connecting plates are fixedly assembled on the vehicle body.

3. A suction-sweeping combined sweeping apparatus according to claim 2, wherein: the spring sleeve is internally assembled with a spring, a limiting opening is formed in the spring sleeve, one end of the transverse pushing rod is provided with a raised limiting screw, the limiting screw is clamped in the limiting opening, an adjusting hole is formed in the wall of the other end of the spring sleeve, and the other end of the spring sleeve is adjustably assembled with an adjusting plug.

4. A suction-sweeping combined sweeping apparatus according to claim 3, wherein: the garbage suction port and the garbage opening are respectively located at different end parts of the shell, an arc-shaped guide plate is fixedly assembled in the shell, one end of the guide plate is located at the garbage suction port, and the other end of the guide plate is located at the garbage opening.

5. The suction-sweeping combined sweeping apparatus according to claim 4, wherein: the casing includes fan-shaped casing and rectangle casing, fan-shaped casing with the inside intercommunication of rectangle casing, rubbish suction opening sets up on fan-shaped casing, the horizontal axis formula cleans the round brush and assembles in the rectangle casing, and the rubbish opening sets up on the bottom surface of rectangle casing.

6. The suction-sweeping combined sweeping apparatus according to claim 5, wherein: the garbage outlet is fixedly provided with a brush.

7. The combined suction and sweeping type sweeping device of claim 6, wherein the garbage suction opening is fixedly provided with a working protective cover.
