CN211394135U - Dynamic water ultraviolet water purifier - Google Patents

Abstract

The utility model discloses a dynamic water ultraviolet water purifier, comprising a water flow cavity, a deep ultraviolet germicidal lamp and a multi-stage filter element. The upper part of the water flow cavity is provided with a water inlet, and the bottom of the water flow cavity is provided with a water inlet. The water outlet, the deep ultraviolet germicidal lamp and the multi-stage filter element are all arranged in the water flow cavity, the deep ultraviolet germicidal lamp is located on the side of the water inlet, and the multi-stage filter element is located on the side of the water outlet , the outer periphery of the multi-stage filter element is separated from the inner wall of the water flow cavity, and the tap water flowing in from the water inlet is sequentially processed by the deep ultraviolet germicidal lamp and the multi-stage filter element to form purified water, Clean water flows out from the water outlet. The utility model has the advantages of simple structure, easy cost control, convenient installation, dynamic water purification under sterile environment, and prolonging the service life of the filter element. Cleanliness level for direct drinking.

Description

A dynamic water UV water purifier

technical field

The utility model relates to the technical field of water purification, in particular to a dynamic water ultraviolet water purifier.

Background technique

At present, the quality of drinking water involves human health is a global concern. According to the World Health Organization (WHO) survey, 80% of the diseases and 50% of child deaths in the world are related to poor drinking water quality, and more than 50 diseases are caused by drinking water quality. Tap water is an important source of water for people for a long time. After the surface water or groundwater is extracted, it enters the municipal water network and flows into thousands of households after flocculation reaction treatment, sedimentation treatment, filtration treatment and disinfection treatment. Due to environmental pollution, there are obvious differences in the water quality of water sources in different places. Generally speaking, it is difficult to achieve a 100% pass rate. There are cases where the water quality exceeds the standard. In addition to the water source factor, secondary pollution is unavoidable due to the long pipe network distance between the water plant and the user terminal. The water pipe network in many places is seriously aging. Long-term use of water pipes will cause corrosion, resulting in rust, moss, and bacterial growth. If the aging is serious, leakage will occur, allowing external pollutants to enter the tap water. The tap water that goes into a home's mains has changed a lot from the quality that just came out of the waterworks. The water quality of this secondary water supply will make the filter heads of the faucets used at home easily accumulate scale, which will further pollute the tap water. CCTV reported the survey results of my country's National Development and Reform Commission. The unqualified rate of tap water that just came out of the waterworks was 17%, and the unqualified rate of the taps reached more than 20%. The data is very scary.

In the treatment of drinking water, people traditionally use high-temperature boiling for sterilization. On the one hand, high-temperature disinfection can only eliminate harmful bacteria colonies that are not resistant to high temperature, such as Escherichia coli, but cannot achieve the effect of broad-spectrum sterilization to prevent microbial contamination of water quality. Ensure the safety of drinking water. On the other hand, many people will buy water purifiers at home to filter microorganisms and impurities and purify tap water. The core component of the current water purifier is a filter element containing a variety of filter materials. The multi-stage filter element does have a better water purification function. It has a good removal effect on particulate impurities, harmful elements and microorganisms within a certain period of time. There are mainly three types of water purifiers with microbial filtration function on the market: ultrafiltration, nanofiltration and reverse osmosis. The microfiltration membrane cannot deeply filter microorganisms, and the filtration effect will be significantly weakened with the prolongation of use time. In addition, other areas of the water purifier except the filter element components will also generate cross-contamination caused by microbial growth after a long period of use. The filtration effect of reverse osmosis is better than that of ultrafiltration and nanofiltration, but the filtration rate of reverse osmosis water purifier is slow, the flow rate of purified water is small (about 1LPM), and a large amount of waste water is generated at the same time. It is necessary to configure the waste water storage tank and the booster pump water purifier with a large volume.

Utility model content

The technical problem to be solved by the utility model is: to provide a dynamic water ultraviolet water purifier, which has the advantages of simple structure, easy control of cost, convenient installation, can realize dynamic water (ie tap water) purification under sterile environment, and prolong the service life of filter element And the treated water can reach a clean level of sterility, no foreign matter, no peculiar smell, and direct drinking.

In order to solve the above technical problems, the utility model provides a dynamic water ultraviolet water purifier, which includes a water flow cavity, a deep ultraviolet germicidal lamp and a multi-stage filter element, the upper part of the water flow cavity is provided with a water inlet, and the The bottom of the water flow cavity is provided with a water outlet, the deep ultraviolet germicidal lamp and the multi-stage filter element are both arranged in the water flow cavity, the deep ultraviolet germicidal lamp is located on one side of the water inlet, and the multi-stage filter element Located on the side of the water outlet, the outer periphery of the multi-stage filter element is separated from the inner wall of the water flow cavity, and the tap water flowing in from the water inlet passes through the deep ultraviolet germicidal lamp and the multi-stage filter in sequence. After the filter element is processed, purified water is formed, and the purified water flows out from the water outlet.

As a preferred solution of the present invention, a water flow switch is provided at the water inlet or the water outlet, and the water flow switch is electrically connected to the control circuit board of the deep ultraviolet germicidal lamp.

As a preferred solution of the present invention, the multi-stage filter element comprises a filtration functional layer of two or more materials selected from ceramics, calcium sulfite, polypropylene cotton, activated carbon, molecular sieve, ultrafiltration membrane and nanofiltration membrane.

As a preferred solution of the present invention, the multi-stage filter element includes a filter element shell, and the filter element shell is provided with a filter cavity and a water purification cavity, and the filter cavity is located above the water purification cavity and communicated with each other, so The filtration functional layer is arranged in the filtration cavity, a plurality of water inlet holes communicating with the water flow cavity are uniformly distributed on the cavity wall of the filtration cavity, and the water purification cavity is communicated with the water outlet.

As a preferred solution of the present invention, the filter element shell is a transparent shell, and the inner wall of the water flow cavity is covered with a reflective layer.

As a preferred solution of the present invention, the material of the filter element shell is ceramic.

As a preferred solution of the present invention, the deep ultraviolet germicidal lamp is installed on the top of the water flow cavity, and a glass cover plate is arranged in front of the deep ultraviolet germicidal lamp, and the material of the glass cover plate is quartz glass.

As a preferred solution of the present invention, a condenser cup is provided between the deep ultraviolet germicidal lamp and the glass cover plate.

As a preferred solution of the present invention, a flow sensor is provided at the water inlet or the water outlet, and the flow sensor is electrically connected to the control circuit board of the deep ultraviolet germicidal lamp.

As a preferred solution of the present invention, the deep ultraviolet germicidal lamp includes a plurality of circles of LED deep ultraviolet lamp bead groups arranged in a circular array, and the LED deep ultraviolet lamp bead groups in each circle are connected in parallel, and the LED deep ultraviolet lamp bead groups in each circle are connected in parallel. The deep ultraviolet lamp bead groups are independently controlled by the control circuit board of the deep ultraviolet germicidal lamp, and the light wavelength range of the LED deep ultraviolet lamp bead group is 260nm-285nm.

Implementing a dynamic water ultraviolet water purifier provided by the utility model, compared with the prior art, its beneficial effects are:

The embodiment of the utility model includes two functions of sterilization and filtration, and can directly treat the tap water. During operation, the tap water flowing from the water inlet is processed by the deep ultraviolet germicidal lamp and the multi-stage filter element in turn to form clean water, and the clean water flows from the water outlet. It realizes the water purification treatment process of first ultraviolet sterilization and then filtering. On the one hand, this design reduces the burden of the filter element while obtaining a good sterilization effect, inhibits the growth of microorganisms at all levels of the filter element, and improves the life of the filter element. On the other hand, since the irradiation area of the multi-stage filter element and the deep ultraviolet germicidal lamp are both in a water flow cavity, the ultraviolet light source can inhibit the growth of microorganisms in the water flow cavity while purifying and sterilizing the water, and purify the interior of the water purifier. The space environment ensures the cleanliness of the cavity when the water purifier is not used for a long time; in addition, compared with the common reverse osmosis water purifier in the market, the embodiment of the present utility model does not need a water storage bin and a booster pump, and the whole device is small in size , does not occupy installation space, and is convenient for installation on the faucet. To sum up, the utility model has the advantages of simple structure, easily controllable cost, convenient installation, can realize dynamic water (that is, tap water) purification under sterile environment, and prolong the service life of the filter element, and the treated water can reach sterile, No foreign matter, no peculiar smell, clean level for direct drinking.

Description of drawings

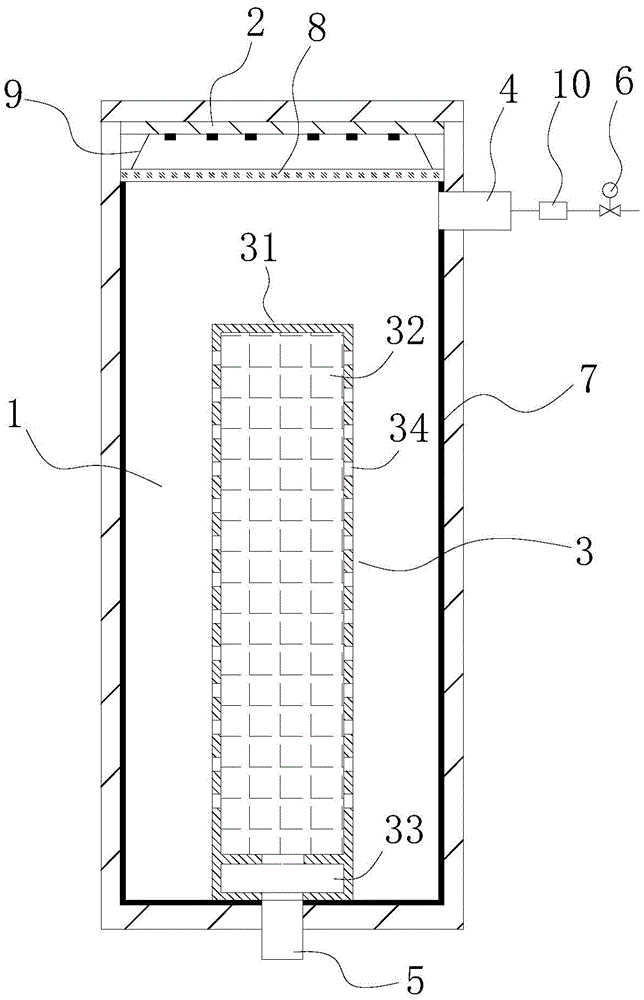

Fig. 1 is the structural representation of a kind of dynamic water ultraviolet water purifier provided by the utility model;

In the figure, 1. water flow cavity; 2. deep ultraviolet germicidal lamp; 3. multi-stage filter element; 31, filter element shell; 32, filter cavity; 33, water purification cavity; 34, water inlet; 4, water inlet 5. Water outlet; 6. Water flow switch; 7. Reflective layer; 8. Glass cover; 9. Concentrating cup; 10. Flow sensor.

Detailed ways

The specific embodiments of the present utility model will be described in further detail below with reference to the accompanying drawings and embodiments. The following examples are used to illustrate the present invention, but are not intended to limit the scope of the present invention.

In the description of the present invention, it should be understood that the terms "center", "longitudinal", "horizontal", "top", "bottom", "front", "rear" and "left" are used in the present invention , "right", "vertical", "horizontal", "top", "bottom", "inside", "outside" and other indicated orientations or positional relationships are based on the orientations or positional relationships shown in the accompanying drawings, only for the purpose of It is for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, be constructed and operate in a specific orientation, and therefore should not be construed as a limitation of the present invention. Furthermore, the terms "first", "second", and "third" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the present invention, it should be understood that, unless otherwise expressly specified and limited, the terms "installed", "connected" and "connected" in the present invention should be understood in a broad sense, for example, it may be a fixed connection It can also be a detachable connection or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, or the internal communication between the two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

As shown in FIG. 1, a preferred embodiment of the present utility model, a dynamic water UV water purifier, includes a water flow cavity 1, a deep ultraviolet germicidal lamp 2 and a multi-stage filter element 3. The upper part of the water flow cavity 1 A water inlet 4 is provided, a water outlet 5 is arranged at the bottom of the water flow cavity 1, the deep ultraviolet germicidal lamp 2 and the multi-stage filter element 3 are all arranged in the water flow cavity 1, and the deep ultraviolet germicidal lamp 2 is located on the side of the water inlet 4, the multi-stage filter element 3 is located on the side of the water outlet 5, the outer periphery of the multi-level filter element 3 is separated from the inner wall of the water flow cavity 1, The tap water flowing into the water inlet 4 is processed by the deep ultraviolet germicidal lamp 2 and the multi-stage filter element 3 in sequence to form purified water, and the purified water flows out from the water outlet 5 .

Thus, a dynamic water ultraviolet water purifier provided by the embodiment of the present utility model is implemented, which includes two functions of sterilization and filtration, and can directly treat tap water. During operation, the tap water flowing in from the water inlet 4 sequentially undergoes deep ultraviolet sterilization. Lamp 2 and multi-stage filter element 3 are treated to form purified water, and the purified water flows out from water outlet 5, realizing the water purification treatment process of first ultraviolet sterilization and then filtration, and this design, on the one hand, achieves good sterilization effect at the same time. The burden of the filter element is reduced, the growth of microorganisms at all levels of the filter element is inhibited, and the life of the filter element is improved. The ultraviolet light source inhibits the growth of microorganisms in the water flow cavity 1 while purifying and sterilizing the water, purifies the internal space environment of the water purifier, and ensures the cleanliness of the cavity when the water purifier is not used for a long time; in addition, the utility model Compared with the common reverse osmosis water purifier in the market, the embodiment does not need a water storage tank and a booster pump, the whole device is small in size, does not occupy installation space, and is convenient for installation on a faucet. To sum up, the utility model has the advantages of simple structure, easily controllable cost, convenient installation, can realize dynamic water (that is, tap water) purification under sterile environment, and prolong the service life of the filter element, and the treated water can be sterile, No foreign matter, no peculiar smell, clean level for direct drinking.

Exemplarily, a water flow switch 6 is provided at the water inlet 4 or the water outlet 5 , and the water flow switch 6 is electrically connected to the control circuit board of the deep ultraviolet germicidal lamp 2 . Therefore, the opening and closing of the deep ultraviolet germicidal lamp 2 is controlled by the water flow switch 6, which can realize the lighting of the deep ultraviolet germicidal lamp 2 in the running water state and the closing of the deep ultraviolet germicidal lamp 2 in the no running water state, so as to reduce the energy consumption of the deep ultraviolet germicidal lamp 2 , prolong the life of the light source.

Exemplarily, in order to ensure that the treated water can reach a clean level of sterility, no foreign matter, no peculiar smell, and direct drinking, the multi-stage filter element 3 includes ceramics, calcium sulfite, polypropylene cotton, activated carbon, molecular sieve, ultra Filtration functional layer of two or more materials in filtration membrane and nanofiltration membrane.

Exemplarily, the multi-stage filter element 3 includes a filter element housing 31, and the filter element housing 31 is provided with a filter cavity 32 and a water purification cavity 33, and the filter cavity 32 is located above the water purification cavity 33 and The filter function layer is arranged in the filter cavity 32, and the cavity wall of the filter cavity 32 is evenly distributed with a plurality of water inlet holes 34 communicating with the water flow cavity 1. The water purification cavity 33 communicates with the water outlet 5 . Therefore, the water flow can enter the filter element through the water inlet holes 34 on the cavity wall of the filter cavity 32, and since the water inlet holes 34 are evenly distributed around the filter element housing 31, multi-directional water inflow can be realized, the filtration efficiency of the filter element can be improved, and a large flow rate can be realized. The purpose of the water purification, and the purified water flow can reach more than 2LPM, which is higher than the ordinary reverse osmosis water purifier on the market.

Exemplarily, the filter element casing 31 is a transparent casing, and the inner wall of the water flow cavity 1 is covered with a reflective layer 7 . Such a design can reflect or scatter ultraviolet rays, increase the light intensity inside the water flow cavity 1, reduce the absorption of ultraviolet rays by the water flow cavity 1, and at the same time allow the ultraviolet rays to pass through the filter element housing 31 and irradiate into the filter cavity 32 and the water purification cavity 33. , the water flow chamber 1 and the filter element are sterilized without dead ends, which further improves the sterilization efficiency. At the same time, the filtered water is also subjected to secondary ultraviolet sterilization to ensure sterile water.

Exemplarily, in order to ensure the light transmission performance of the filter element shell 31, the material of the filter element shell 31 is preferably ceramic (transparent ceramic). Of course, in other optional embodiments, the material of the filter element shell 31 Quartz glass may also be used.

Exemplarily, the deep ultraviolet germicidal lamp 2 is installed on the top of the water flow cavity 1, and a glass cover 8 is provided in front of the deep ultraviolet germicidal lamp 2, and the edge of the glass cover 8 is connected to the water flow. A sealing rubber ring is arranged between the inner cavities of the cavity body 1 . The sealing rubber ring can completely isolate the deep ultraviolet germicidal lamp 2 from water, so as to ensure the safe operation of the deep ultraviolet germicidal lamp 2 and the water in the water flow cavity 1 to be clean and hygienic. Preferably, the sealing rubber ring adopts anti-ultraviolet aging material to prolong its service life. Further, in order to ensure the light transmission performance of the glass cover plate 8, the material of the glass cover plate 8 is preferably quartz glass.

Exemplarily, a condenser cup 9 is provided between the deep ultraviolet germicidal lamp 2 and the glass cover plate 8 . The ultraviolet light beam emitted by the deep ultraviolet germicidal lamp 2 is gathered by the reflector, so that the ultraviolet light beam reaches the bottom and corners of the water flow cavity 1 to a greater extent, strengthens the ultraviolet irradiation of the original low sterilization efficiency area, and improves the overall sterilization efficiency of the water cup.

Exemplarily, the water inlet 4 or the water outlet 5 is provided with a flow sensor 10 , and the flow sensor 10 is electrically connected to the control circuit board of the deep ultraviolet germicidal lamp 2 . Thus, by setting the flow sensor 10 to detect the flow in the water flow cavity 1, the control circuit board of the deep ultraviolet germicidal lamp 2 can determine the required irradiation intensity based on the flow detected by the flow temperature sensor, and control the deep ultraviolet light according to the irradiation intensity. The lamp beads on the germicidal lamp 2 are fully or partially turned on and off, so that the deep ultraviolet germicidal lamp 2 can achieve high-intensity irradiation when the flow rate is high, and low-intensity irradiation when the flow rate is low, so as to protect the deep ultraviolet germicidal lamp 2 The role of service life.

Exemplarily, the deep ultraviolet germicidal lamp 2 includes a plurality of circles of LED deep ultraviolet lamp bead groups arranged in a circular array, the LED deep ultraviolet lamp bead groups in each circle are connected in parallel, and the LED deep ultraviolet lamps in each circle are connected in parallel. The bead groups are independently controlled by the control circuit board of the deep ultraviolet germicidal lamp 2, and the light wavelength range of the LED deep ultraviolet lamp bead group is 260nm-285nm. In this embodiment, the LED deep ultraviolet lamp bead set is provided with three circles. When the flow rate in the water flow cavity 1 is within a relatively high range, the control circuit board of the deep ultraviolet germicidal lamp 2 can control the 2 circles of LED deep ultraviolet lamp beads to light up or all light up to achieve high-intensity irradiation; when the water flow cavity When the flow rate in 1 is in a lower range, the control circuit board of the deep ultraviolet germicidal lamp 2 can control one circle of lamp beads to light up to achieve low-intensity irradiation.

The above are only the preferred embodiments of the present invention. It should be pointed out that for those skilled in the art, without departing from the technical principles of the present invention, several improvements and replacements can be made. These improvements And replacement should also be regarded as the protection scope of the present invention.

Claims (10)

1. A dynamic water ultraviolet water purifier is characterized in that, comprising a water flow cavity, a deep ultraviolet germicidal lamp and a multi-stage filter element, the upper part of the water flow cavity is provided with a water inlet, and the bottom of the water flow cavity is provided with a water inlet. There is a water outlet, the deep ultraviolet germicidal lamp and the multi-stage filter element are both arranged in the water flow cavity, the deep ultraviolet germicidal lamp is located on one side of the water inlet, and the multi-stage filter element is located on the first side of the water outlet. The outer circumference of the multi-stage filter element is separated from the inner wall of the water flow cavity, and the tap water flowing in from the water inlet is sequentially processed by the deep ultraviolet germicidal lamp and the multi-stage filter element to form purified water , clean water flows out from the water outlet. 2 . The dynamic water UV water purifier according to claim 1 , wherein a water flow switch is provided at the water inlet or the water outlet, and the water flow switch is controlled by the deep ultraviolet germicidal lamp. 3 . The circuit board is electrically connected. 3. A kind of dynamic water ultraviolet water purifier as claimed in claim 1, is characterized in that, described multistage filter element comprises ceramic, calcium sulfite, polypropylene cotton, activated carbon, molecular sieve, ultrafiltration membrane, nanofiltration membrane A filter function layer of two or more materials. 4 . The dynamic water UV water purifier according to claim 3 , wherein the multi-stage filter element comprises a filter element shell, and the filter element shell is provided with a filter cavity and a water purification cavity. 5 . The filter cavity is located above the water purification cavity and communicated with each other, the filter function layer is arranged in the filter cavity, and the cavity wall of the filter cavity is evenly distributed with a plurality of water inlet holes that communicate with the water flow cavity , the water purification chamber is communicated with the water outlet. 5 . The dynamic water UV water purifier according to claim 4 , wherein the filter element shell is a transparent shell, and the inner wall of the water flow cavity is covered with a reflective layer. 6 . 6 . The dynamic water UV water purifier according to claim 5 , wherein the filter element housing is made of ceramics. 7 . 7. The dynamic water ultraviolet water purifier according to claim 1, wherein the deep ultraviolet germicidal lamp is installed on the top of the water flow cavity, and a glass cover is provided in front of the deep ultraviolet germicidal lamp The material of the glass cover plate is quartz glass. 8 . The dynamic water ultraviolet water purifier according to claim 7 , wherein a concentrator cup is arranged between the deep ultraviolet germicidal lamp and the glass cover plate. 9 . 9. The dynamic water ultraviolet water purifier according to any one of claims 1 to 8, wherein a flow sensor is provided at the water inlet or the water outlet, and the flow sensor is connected to the deep The control circuit board of the ultraviolet germicidal lamp is electrically connected. 10 . The dynamic water ultraviolet water purifier according to claim 9 , wherein the deep ultraviolet germicidal lamp comprises a plurality of circles of LED deep ultraviolet lamp beads arranged in a circular array, and each circle of the LED deep ultraviolet The lamp bead groups are connected in parallel, each circle of the LED deep ultraviolet lamp bead group is independently controlled by the control circuit board of the deep ultraviolet germicidal lamp, and the light wavelength range of the LED deep ultraviolet lamp bead group is 260nm ~ 285nm .
