Abstract

The utility model relates to a two-way rail car, which belongs to the field of mobile conveying machinery. The technical scheme adopted by the utility model is: the bottom of the carriage is provided with a front moving wheel pair and a rear moving wheel pair, the two wheels of each pair of moving wheels are respectively arranged on both sides of the lower part of the carriage, and the axles of the two wheels of the moving wheel pair are respectively arranged on the axles Steering connecting shafts, the ends of the two steering connecting shafts are hinged with both ends of the steering connecting rods, the middle position of the steering connecting rods is hinged with one end of the swinging rotating rod, the middle of the swinging rotating rod is provided with a fixed shaft, and the fixed shaft is fixed to the carriage The other end of the swing rotating rod is provided with a vertically arranged guide rod, the lower end of the guide rod is provided with a guide wheel, and the guide wheel is placed in the track. The travel along the track is controlled by the guide rods and guide wheels at the front and rear of the carriage to realize automatic control of unmanned driving. The two-way rail car also has the function of driving operation, which can leave the track and drive to any passable place in the factory to realize the delivery of goods.

Description

Two-way rail car

technical field

The invention relates to a two-way rail car, belonging to the field of mobile conveying machinery.

Background technique

At present, there are various ways of short-distance transportation in workshops and warehouses, such as rickshaws, electric vehicles, and engine-powered vehicles. The transportation control is simple, and it can be driven on ordinary ground and used in the required position to realize the transportation of goods and materials. However, limited to the narrow space of the factory, various transportation equipment has high requirements on the operator, and requires skilled control technology to avoid the occurrence of potential safety hazards.

In addition, in the noisy environment of the factory, the operator's energy is easily dispersed, and the long-term operation is also easy to fatigue, laying a hidden danger for safe production. In addition, this will also lead to an increase in labor costs, which directly restricts the production of some factories and is not conducive to the expansion of production scale. The existing small-scale transportation equipment that can reduce human manipulation is far from meeting the needs of my country's manufacturing industry to develop in the direction of automation and intelligence.

SUMMARY OF THE INVENTION

The invention provides a two-way rail car, which solves the problems that the existing transportation equipment is highly dependent on the operator, has high technical requirements for control, has hidden safety hazards in the control, and is not moved and used according to the prescribed position.

To achieve the above object, the technical scheme adopted in the present invention is:

The two-way rail car includes a carriage. The bottom of the carriage is provided with a front moving wheel pair and a rear moving wheel pair. The two wheels of each pair of moving wheels are respectively arranged on both sides of the lower part of the carriage. The front moving wheel pair and the rear moving wheel pair have two wheels. Steering connecting shafts are respectively arranged on the axles, the ends of the two steering connecting shafts are hinged with the two ends of the steering connecting rod, the middle position of the steering connecting rod is hinged with one end of the swing rotating rod, and the middle part of the swing rotating rod is provided with a fixed shaft, which is fixed The shaft is fixed at the bottom of the carriage, the other end of the swinging rotating rod is provided with a vertically arranged guide rod, the lower end of the guide rod is provided with a guide wheel, the guide wheel is placed in the track, the track guides the guide wheel to move, and the front moving wheel is connected to the The guide rod is at the front of the carriage, and the guide rod connected with the rear moving wheel set is at the rear of the carriage.

Preferably, a battery is provided at the bottom of the carriage, and the moving wheel pair is an electric wheel with a built-in motor.

Preferably, the rear of the carriage is provided with a steering handle, the middle of the steering handle is a steering shaft, the steering shaft is hinged on the rear side of the carriage, the lower end of the steering shaft is provided with a swing rod, and the front end of the swing rod is hinged to the swing steering rod.

Preferably, there is a folding seat on the rear side of the carriage, the folding seat can be laid flat or folded upward, the two sides of the folding seat near the bottom of the carriage are provided with footrests protruding from the rear side of the carriage, and the footrest on one side is provided with a brake, The brake controls the braking of the moving wheelset.

Preferably, the front and rear sides of the carriage are respectively provided with anti-collision rods, and a buffer spring is provided between the inner side of the square collision rod and the outer wall of the carriage, the buffer spring is sleeved on the buffer rod, the length of the buffer rod is shorter than that of the buffer spring, and the buffer rod fixed on the carriage.

Preferably, cameras are provided on the front and rear sides of the carriage, and the cameras are used to monitor and scan the front and rear of the carriage.

Preferably, the axle of the guide wheel is arranged vertically, and the track is a track groove under the ground or a guide rail with a groove inside the track above the ground.

Preferably, the guide rod is hinged with the swing steering rod, the direction of the hinge axis is horizontal, a fixed latch with an inner groove is provided in the middle of the front or rear edge of the lower side of the carriage, and the guide rod goes around the end of the swing steering rod toward the carriage. When the bottom is rotated to the fixed locking position, it can be embedded in the inner groove and fixed, the guide rod and the guide wheel are retracted from the track, and the carriage can be moved on the ordinary ground.

Preferably, a mobile lock is also provided on the lower side of the rear swing steering rod of the carriage, and the mobile lock is also provided with an inner groove. The lowest position is lower than the fixed lock, and when the guide rod at the rear of the carriage is rotated to be embedded in the inner groove of the mobile lock and the fixed lock at the same time, the steering of the rear mobile wheelset will be locked and cannot be turned.

The guide rods and guide wheels at the front and rear of the carriage are used to control the travel along the track. The rail car carries the goods along the inner and outer tracks of the workshop to realize unmanned automatic walking, reciprocating travel in the workshop and factory area, and there is no need to manually control the direction during the period. . The two-way rail car also has the function of driving operation, which can leave the track and drive to any passable place in the factory to realize the delivery of goods.

Description of drawings

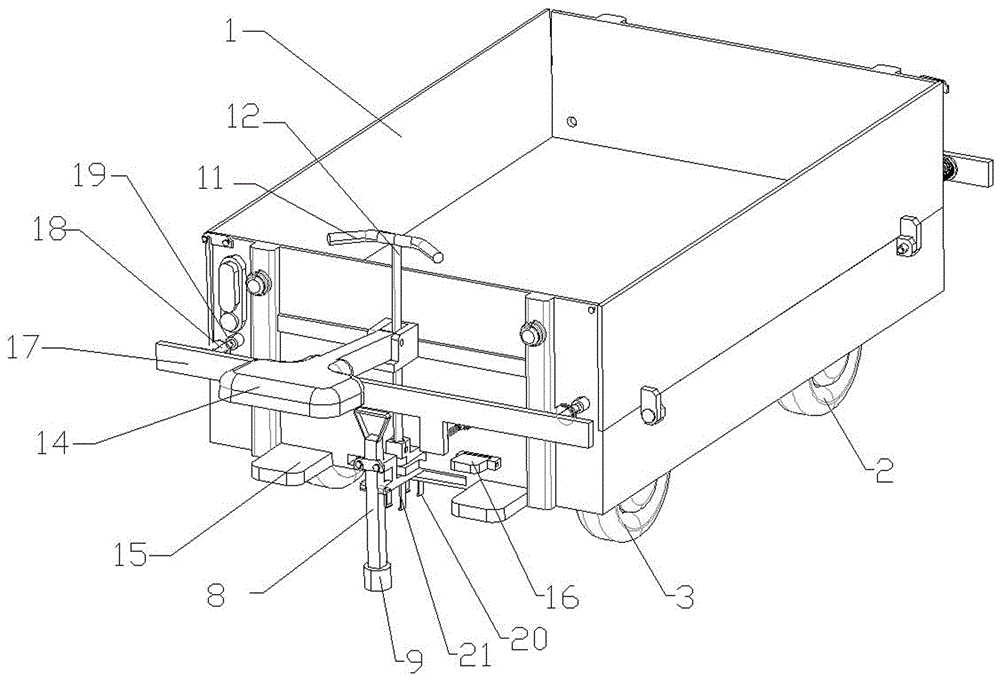

Fig. 1 is the perspective view one of the present invention,

Fig. 2 is the perspective view two of the present invention,

Figure 3 is a side view of the present invention,

Figure 4 is a cross-sectional view of the present invention in an intermediate position.

Reference numerals: 1, carriage, 2, front moving wheel set, 3, rear moving wheel set, 4, steering connecting shaft, 5, steering connecting rod, 6, swing steering rod, 7, fixed shaft, 8, guide rod , 9, guide wheel, 10, battery, 11, steering handle, 12, steering shaft, 13 swing lever, 14, folding seat, 15, foot pedal, 16, brake, 17, anti-collision bar, 18, buffer spring, 19, buffer rod, 20, fixed lock, 21, mobile lock.

Detailed ways

The concrete structure of the present invention is further described below:

The structure of the two-way rail car is shown in Figure 1. It includes a carriage 1. The bottom of the carriage 1 is provided with a front moving wheel pair 2 and a rear moving wheel pair 3. Each pair of moving wheels includes two wheels, and the two wheels are respectively arranged in the carriage 1. The lower sides form the wheelset. The axles of the front moving wheel pair 2 and the rear moving wheel pair 3 are respectively connected with one end of the steering connecting shaft 4, and the other ends of the two steering connecting shafts 4 are hinged with the two ends of the steering connecting rod 5. The middle position is hinged to one end of the swing steering rod. The middle part of the swing steering rod is provided with a fixed shaft 7. The fixed shaft 7 is fixed at the bottom of the carriage 1. The other end of the swing rotation rod is provided with a vertically arranged guide rod 8. The guide rod 8 The lower end of the guide wheel 9 is provided with a guide wheel 9, the guide wheel 9 is arranged in the track, and the track restricts the guide wheel 9 to move along the track direction. The axle of the guide wheel 9 is arranged vertically, and the track is a track groove under the ground or a guide rail with grooves on the ground.

The swing steering rod connected to the front moving wheel pair 2 faces the front of the vehicle compartment, and the guide rod 8 on the front side of the front moving wheel pair 2 is located in front of the vehicle compartment 1 . The swing steering rod to which the rear moving wheel pair 3 is attached faces the rear of the cabin. The guide rod 8 behind the rear moving wheel pair 3 is located behind the carriage 1 . The front and rear guide wheel pairs ensure that the moving wheels and the carriage are always moving along the track.

The bottom of the carriage 1 is provided with a battery 10, and the wheels of the front moving wheel set and the rear moving wheel set are electric wheels with built-in motors. The rear of the carriage 1 is provided with a steering handle 11, the middle of the steering handle 11 is a steering shaft 12, the steering shaft 12 is hinged on the rear side of the carriage 1, the lower end of the steering shaft 12 is provided with a swing rod 13, and the front end of the swing rod 13 is hinged to the into the steering slot on the swing steering lever.

A folding seat 14 is provided on the rear side of the carriage 1, and the folding seat 14 can be laid flat or folded upward. Footrests 15 protruding from the rear side of the carriage 1 are provided on both sides of the foldable seat 14 and near the bottom of the carriage 1 , and a brake 16 is provided at one footrest, and the brake 16 controls the braking of the moving wheelset.

The front and rear sides of the carriage 1 are respectively provided with anti-collision rods 17, and a buffer spring 18 is arranged between the inner side of the square hit rod and the outer wall of the carriage 1. The buffer spring 18 is sleeved on the buffer rod 19, and the length of the buffer rod 19 is shorter than that of the buffer spring. 18 length, the buffer rod 19 is fixed on the carriage 1.

Cameras are provided on the front and rear sides of the carriage 1 , and the cameras are used to monitor and scan the front and rear of the carriage 1 . An anti-collision travel switch is arranged between the anti-collision bar and the compartment wall at the front and rear of the carriage. When the buffer spring is compressed to a certain extent, the anti-collision bar touches the travel switch, and the internal motor of the wheel, which forms a circuit interconnection with the travel switch, stops rotating to realize Anti-collision function.

The guide rod 8 is hinged to the swing steering rod 6, and the direction of the hinge shaft is horizontal. A fixed latch 20 with an inner groove is provided in the middle of the front or rear edge of the lower side of the carriage 1, and the guide rod 8 surrounds the end of the swing steering rod. When it is rotated to the bottom of the carriage 1 to the position of the fixed latch 20, it can be embedded in the inner groove and fixed, the guide rod 8 and the guide wheel 9 are retracted from the track, and the carriage 1 can be moved on the ordinary ground.

The lower side of the swing steering rod at the rear of the carriage 1 is also provided with a mobile lock 21, and the mobile lock 21 is also provided with an inner groove. The lowest position of the groove is lower than the fixed lock 20, and when the guide rod 8 at the rear of the carriage 1 is rotated to be embedded in the inner groove of the mobile lock 21 and the fixed lock 20 at the same time, the steering of the rear moving wheel pair 3 will be locked and prevented. Cannot turn again.

How this device works:

Take the carriage of the device as the forward direction without the handle, the front guide wheel is placed in the track with the guide groove at the same time, the rear guide rod is folded and embedded in the moving lock and the fixed lock, and the rear moving wheel is connected to the carriage. The length direction is the same. The motor in the wheel starts to drive the carriage to move. When the track is in the bending position, the front guide wheel deflects in the track along the track bending direction, the guide rod drives the swing steering rod to swing around the fixed axis, the swing steering rod drives the steering connecting rod and the steering connecting shaft to swing, and the steering connecting shaft drives the wheel. The wheel frame rotates, and the rotation direction is consistent with the bending direction of the track. When the carriage travels in the opposite direction, the guide rods at the front and rear of the carriage are arranged in the opposite direction to the above, and the handlebar will rotate correspondingly with the direction of the track. In addition, at this time, the connection position between the steering shaft and the swing rod can also be separated, and the handlebar function is invalid.

When the rail car arrives at the warehouse or other destination, the anti-collision bar collides with the limit device at the destination position, triggering the emergency stop travel switch to realize the driving stop.

After unloading, it runs in reverse direction. At this time, the guide wheel in the front guide rail is lifted and stuck in the parallel fixed lock, and the front moving wheel pair will no longer rotate relative to the carriage. The guide wheels connected to the rear moving wheel pair are put into the guide rails, and in this case, the guide rods are rotatably interconnected with the corresponding swing steering rods, steering connecting rods and steering connecting shafts.

The carriage moves under the drive of the moving wheel pair, the guide wheels in the rear direction travel along the track track, and the track travel mode along the curved position is the same as the above, until the stop position is reached, and the switch is touched to stop the operation.

Manned operation, and the functions on ordinary ground are realized:

First, turn the guide rod in the direction of the front moving wheel set to be embedded in the fixed lock, and the guide rod in the direction of the rear moving wheel set is embedded in the mobile lock. It is linked with the swing steering rod, steering connecting rod and steering connecting shaft. Turning the handlebar can drive the rotation of the rear moving wheelset.

Open the seat 14 and turn the handlebar to control the walking direction, so as to realize the use of the driver on ordinary ground.

Claims (9)

1. A two-way rail car, comprising a carriage (1), the bottom of the carriage (1) is provided with a front moving wheel pair (2) and a rear moving wheel pair (3), and the two wheels of each pair of moving wheels are respectively arranged in the carriage ( 1) The two sides of the lower part are characterized in that the axles of the two wheels of the front moving wheel pair (2) and the rear moving wheel pair (3) are respectively provided with a steering connecting shaft (4), and the two steering connecting shafts (4) The end of the steering connecting rod (5) is hinged with the two ends of the steering connecting rod (5). The middle position of the steering connecting rod (5) is hinged with one end of the swing steering rod. The middle part of the swing steering rod is provided with a fixed shaft (7). The fixed shaft (7 ) is fixed on the bottom of the carriage (1), the other end of the swing steering rod is provided with a vertically arranged guide rod (8), the lower end of the guide rod (8) is provided with a guide wheel (9), and the guide wheel (9) is arranged on the On the track, the track restricts the guide wheel (9) from moving in the direction of the track, the guide rod (8) connected to the front moving wheel pair (2) is located in front of the carriage (1), and the guide rod (8) connected to the rear moving wheel pair (3) Behind the carriage (1). 2 . The two-way rail car according to claim 1 , wherein a battery ( 10 ) is provided at the bottom of the carriage ( 1 ), and the moving wheel set is an electric wheel with a built-in motor. 3 . 3. The two-way rail car according to claim 2, characterized in that a steering handle (11) is provided at the rear of the carriage (1), and the middle of the steering handle (11) is a steering shaft (12), and the steering shaft (12) It is hinged on the rear side of the carriage (1), the lower end of the steering shaft (12) is provided with a swing rod (13), and the front end of the swing rod (13) is hinged to the swing steering rod (6). 4. The two-way rail car according to claim 1, wherein the rear side of the carriage (1) is provided with a folding seat (14), the folding seat (14) can be laid flat or folded upward, and the folding seat (14) Foot pedals (15) protruding from the rear side of the carriage (1) are provided on both sides and near the bottom of the carriage (1), and a brake (16) is provided on one side of the foot pedal, and the brake (16) controls the brake of the moving wheelset . 5. The two-way rail car according to claim 1, characterized in that, anti-collision bars (17) are respectively provided on the front and rear sides of the carriage (1), and between the inner side of the anti-collision bars and the outer wall of the carriage (1) are provided. There is a buffer spring (18), the buffer spring (18) is sleeved on the buffer rod (19), the length of the buffer rod (19) is shorter than the length of the buffer spring (18), and the buffer rod (19) is fixed on the carriage (1). 6 . The two-way rail car according to claim 1 , wherein cameras are provided on the front and rear sides of the carriage ( 1 ), and the cameras are used to monitor and scan the front and rear of the carriage ( 1 ). 7 . 7. The two-way rail car according to claim 1, characterized in that the axle of the guide wheel (9) is arranged vertically, and the track is a track groove under the ground or a concave inside the track above the ground slot guides. 8. The two-way rail car according to claim 3, wherein the guide rod (8) is hinged to the swing steering rod, the direction of the hinge axis is horizontal, and the middle position of the front or rear edge of the lower side of the carriage (1) is set. A fixed latch (20) with an inner groove, when the guide rod (8) rotates around the end of the swing steering rod toward the bottom of the carriage (1) to the position of the fixed latch (20), it can be embedded in the inner groove and fixed, and the guide rod ( 8) and the guide wheel (9) are retracted from the track, and the carriage (1) can be moved on the common ground. 9 . The two-way rail car according to claim 8 , wherein the lower side of the rear swing steering rod of the carriage ( 1 ) is further provided with a mobile latch ( 21 ), and the mobile latch ( 21 ) is also provided in the inner Groove, the mobile latch (21) is on the outer side of the fixed latch (20) behind the carriage (1), the lowest position of the inner groove of the mobile latch (21) is lower than the fixed latch (20), the carriage (1) When the rear guide rod (8) is rotated to be embedded in the inner grooves of the mobile lock (21) and the fixed lock (20) at the same time, the steering of the rear mobile wheel pair (3) will be locked and cannot be turned again.
