CN211385086U - A portable medical test device - Google Patents

Abstract

The utility model discloses a portable medical inspection device, comprising a box body, a first vertical partition plate is fixedly connected to the bottom of the inner cavity of the box body, a sterilization chamber is arranged on one side of the first vertical partition plate, and the sterilization chamber A first tray is movably connected to the top, a second tray is arranged above the first tray, and a connection cavity is arranged on the other side of the first vertical partition, a battery is arranged inside the connection cavity, and the connection cavity is A second vertical partition is fixedly connected to the top, a horizontal partition is fixedly connected to one side of the second vertical partition, and a third tray is arranged above the second vertical partition. The second tray and the third tray Both ends of the bottom are provided with limit blocks, and the limit blocks are fixedly connected with the inner wall of the box or one side of the first vertical partition. Disinfect, keep hygienic, and easy to use.

Description

A portable medical test device

technical field

The utility model relates to the technical field of medical treatment, in particular to a portable inspection device for medical inspection.

Background technique

Medical testing is a discipline that uses modern physical and chemical methods and means for medical diagnosis. It mainly studies how to provide the basis for clinical diagnosis and treatment through laboratory technology and medical equipment. Through systematic study, we will know how to identify a person's blood type, determine Whether a person is anemic, whether the liver function is normal, etc., this discipline requires the use of various optoelectronic instruments and chemical reagents to complete experimental analysis, so it emphasizes science and requires a better biological and chemical foundation. The place for medical testing activities is greatly limited , Conventional medical examination instruments are not easy to carry, inconvenient to use, and increase the difficulty of work for medical personnel. For this reason, we have designed a portable medical examination device to solve the above problems.

Utility model content

The purpose of the present utility model is to provide a portable medical inspection device, which has a simple structure, is easy to carry, and can sterilize the inspection tools, maintain hygiene, and be convenient to use, so as to solve the problems raised in the above background technology.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a portable medical inspection device, comprising a box body, a first vertical partition is fixedly connected to the bottom of the inner cavity of the box, and a side of the first vertical partition is provided. There is a sterilization cavity, a first tray is movably connected to the top of the sterilization cavity, a second tray is arranged above the first tray, and a connection cavity is arranged on the other side of the first vertical partition, and a connection cavity is arranged inside the connection cavity. There is a battery, a second vertical partition is fixedly connected to the top of the connection cavity, a horizontal partition is fixedly connected to one side of the second vertical partition, and a third tray is arranged above the second vertical partition, so Both ends of the bottom of the second tray and the third tray are provided with limit blocks, and the limit blocks are fixedly connected to the inner wall of the box or one side of the first vertical partition, and the top side of the box is rotatably connected with a hinge. The first box cover and the second box cover.

Further, an ultraviolet disinfection lamp is fixedly connected to the bottom of the second box cover, and the ultraviolet disinfection lamp is connected with a battery through a wire, and one end of the battery is fixedly connected with a charging interface, and one end of the charging interface passes through one side of the box.

Further, the first box cover and the second box cover are fixedly connected with a fixing buckle on one side, and the first box cover and the second box cover are both fixedly connected to the box body through the fixing buckle.

Further, alcohol is provided inside the disinfection chamber, and a sealing gasket is fixedly connected to the top of the disinfection chamber.

Further, a strap is arranged above the box body, and both ends of the strap are fixedly connected to the box body.

Further, a plurality of limiting holes are evenly distributed on the horizontal partition.

Compared with the prior art, the beneficial effects of the present utility model are:

1. By setting up a disinfection chamber and placing alcohol in it, the detection device can be disinfected in time to keep it hygienic.

2. By setting the ultraviolet disinfection lamp, the utensils stored in the box can be disinfected, and by setting the battery, the electricity can be stored for the use of the ultraviolet disinfection lamp, and it can be carried out for a long time.

3. By setting the sealing gasket, the alcohol inside the disinfection chamber can be prevented from spilling during the moving process. By setting the strap, it is convenient to carry the device when going out. By setting the limit hole, it is convenient to insert various instruments into the limit hole.

Description of drawings

The accompanying drawings are used to provide a further understanding of the present invention, and constitute a part of the specification. Together with the specific embodiments of the present invention, the accompanying drawings are used to explain the present invention, and do not constitute a limitation to the present invention.

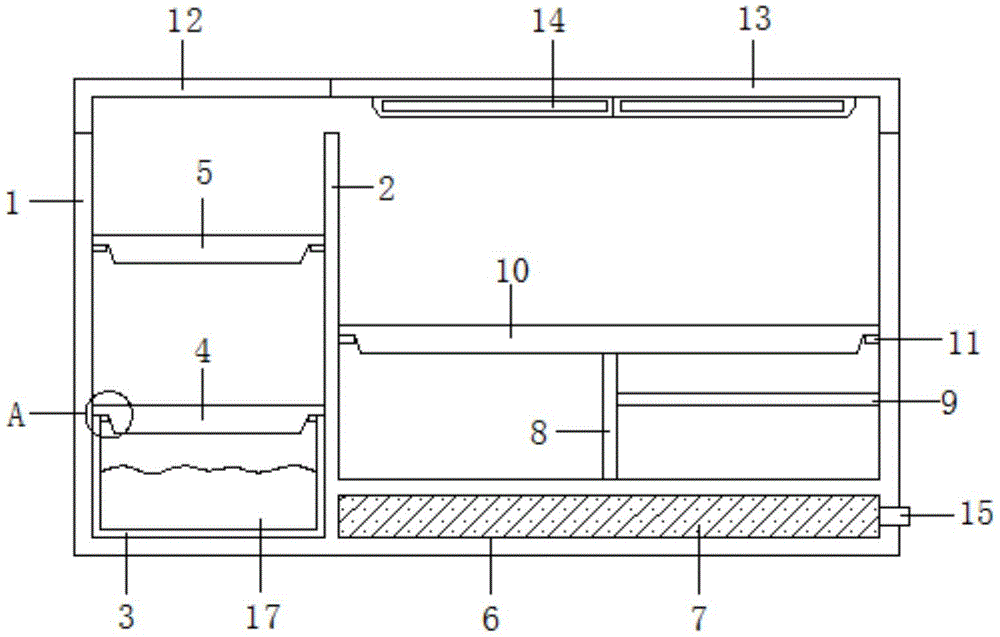

1 is a schematic diagram of the internal structure of the box of the present invention;

Fig. 2 is the external structure schematic diagram of the present utility model;

Fig. 3 is the horizontal clapboard structure schematic diagram of the present utility model;

Fig. 4 is the enlarged view of A of the present utility model;

Labels in the figure: 1, box body; 2, first vertical partition; 3, sterilization chamber; 4, first tray; 5, second tray; 6, connecting cavity; 7, battery; 8, second vertical partition ;9, horizontal partition; 10, third tray; 11, limit block; 12, first box cover; 13, second box cover; 14, ultraviolet disinfection lamp; 15, charging interface; 16, fixed buckle; 17. Alcohol; 18. Gasket; 19. Strap; 20. Limit hole.

Detailed ways

The present utility model will be further described below in conjunction with the specific embodiments, wherein, the accompanying drawings are only used for exemplary description, and are only schematic diagrams rather than physical drawings, which should not be construed as limitations on the present patent, in order to better illustrate the present utility model. In the specific embodiment of the new type, some components in the accompanying drawings may be omitted, enlarged or reduced, which do not represent the size of the actual product. For those skilled in the art, it is understandable that some well-known structures and their descriptions in the accompanying drawings may be omitted. , based on the specific implementations of the present invention, all other specific implementations obtained by those of ordinary skill in the art without making creative efforts shall fall within the protection scope of the present invention.

Example 1:

As shown in FIG. 1-FIG. 4, a portable medical inspection device includes a box body 1, and a first vertical partition 2 is fixedly connected to the bottom of the inner cavity of the box body 1, and one side of the first vertical partition plate 2 is fixed. A sterilization chamber 3 is provided, and by placing alcohol 17 in it, the detection device can be sterilized in time to maintain its hygiene. The top of the sterilization chamber 3 is movably connected with a first tray 4, and a first tray 4 is arranged above the first tray 4. Two trays 5, and the other side of the first vertical partition 2 is provided with a connecting cavity 6, and the connecting cavity 6 is provided with a battery 7 inside, which can store electricity for the use of the ultraviolet disinfection lamp 14, and can be carried out for a long time. A second vertical partition 8 is fixedly connected to the top of the connection cavity 6 , a horizontal partition 9 is fixedly connected to one side of the second vertical partition 8 , and a third tray 10 is arranged above the second vertical partition 8 , the bottom ends of the second tray 5 and the third tray 10 are provided with limit blocks 11, and the limit blocks 11 are fixedly connected to the inner wall of the box body 1 or one side of the first vertical partition 2. The box body 1. A first box cover 12 and a second box cover 13 are rotatably connected to one side of the top through a hinge.

More specifically, one side of the first box cover 12 and the second box cover 13 is fixedly connected with a fixing buckle 16 , and the first box cover 12 and the second box cover 13 are connected to each other through the fixing buckle 16 . The box body 1 is fixedly connected, the interior of the disinfection chamber 3 is provided with alcohol 17, and the top of the disinfection chamber 3 is fixedly connected with a sealing gasket 18 to prevent the alcohol 17 inside the disinfection chamber 3 from spilling during the moving process, and the sealing gasket 18 It is set as a "return" type structure, and the gasket 18 is movably connected to the bottom of the second tray 5, and a strap 19 is provided above the box body 1 to facilitate carrying the device when going out, and both ends of the strap 19 are connected to The box body 1 is fixedly connected, and a plurality of limit holes 20 are evenly distributed on the horizontal partition plate 9 , so that various instruments can be inserted into the limit holes 20 easily.

Embodiment 2:

As shown in FIG. 2 , the bottom of the second box cover 13 is fixedly connected with an ultraviolet disinfection lamp 14, which can sterilize the utensils stored in the box 1. The ultraviolet disinfection lamp 14 is connected to the battery 7 through a wire. One end of the battery 7 is fixedly connected with a charging interface 15 to facilitate charging the battery 7 , and one end of the charging interface 15 passes through one side of the box body 1 .

Working principle: This kind of medical inspection portable inspection device can sterilize the testing instrument in time and keep it hygienic by setting the disinfection chamber 3 and placing alcohol 17 in it. 1. The utensils inside are sterilized. By setting the battery 7, it can store electricity for the ultraviolet disinfection lamp 14 to use, and it can be carried out for a long time. The straps 19 are provided to facilitate carrying the device when going out, and the limiting holes 20 are provided to facilitate inserting various instruments into the limiting holes 20 .

Although specific embodiments of the present invention have been shown and described, it will be understood by those of ordinary skill in the art that various modifications may be made to these specific embodiments without departing from the principles and spirit of the present invention. Variations, modifications, substitutions and alterations, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a portable verifying attachment of medical science inspection, includes box (1), its characterized in that: the bottom of the inner cavity of the box body (1) is fixedly connected with a first vertical clapboard (2), one side of the first vertical clapboard (2) is provided with a disinfection cavity (3), the top end of the disinfection cavity (3) is movably connected with a first tray (4), a second tray (5) is arranged above the first tray (4), the other side of the first vertical clapboard (2) is provided with a connecting cavity (6), a storage battery (7) is arranged in the connecting cavity (6), the top of the connecting cavity (6) is fixedly connected with a second vertical clapboard (8), one side of the second vertical clapboard (8) is fixedly connected with a horizontal clapboard (9), a third tray (10) is arranged above the second vertical clapboard (8), two ends of the bottom of the second tray (5) and the third tray (10) are respectively provided with a limiting block (11), and the limiting blocks (11) are fixedly connected with the inner wall of the box body (1) or one side of the first vertical clapboard (2), one side of the top of the box body (1) is rotatably connected with a first box cover (12) and a second box cover (13) through hinges.

2. A medical examination portable testing device, according to claim 1, characterized in that: second case lid (13) bottom fixedly connected with ultraviolet ray disinfection lamp (14), ultraviolet ray disinfection lamp (14) link to each other with battery (7) through the wire, battery (7) one end fixedly connected with interface (15) that charge, box (1) one side is passed to interface (15) one end that charges.

3. A medical examination portable testing device, according to claim 1, characterized in that: the box cover is characterized in that one sides of the first box cover (12) and the second box cover (13) are fixedly connected with fixing buckles (16), and the first box cover (12) and the second box cover (13) are fixedly connected with the box body (1) through the fixing buckles (16).

4. A medical examination portable testing device, according to claim 1, characterized in that: disinfection chamber (3) inside is equipped with alcohol (17), disinfection chamber (3) top fixedly connected with sealed pad (18), sealed pad (18) are established to "returning" style of calligraphy structure, just sealed pad (18) link to each other with second tray (5) bottom activity.

5. A medical examination portable testing device, according to claim 1, characterized in that: braces (19) are arranged above the box body (1), and two ends of each brace (19) are fixedly connected with the box body (1).

6. A medical examination portable testing device, according to claim 1, characterized in that: a plurality of limiting holes (20) are uniformly distributed on the horizontal partition plate (9).
