Abstract

The utility model relates to the technical field of medical rehabilitation equipment, and discloses a post-operative head and neck rehabilitation device for tumor surgery, comprising a headrest and a protective plate. A first motor is fixedly installed, a gear ring is movably installed at the inner center of the headrest, a gear is movably installed on the inner side of the gear ring, a metal fixing seat is fixedly installed at the center of the gear ring, and the gear ring is movably installed. The right end is fixedly connected with a sliding ball rod, and the right end of the sliding ball rod is movably connected with a pallet chute. When the head and neck rehabilitation device for oncology surgery is used, the massage club moves left and right, so as to realize the back and forth massage movement of the patient's neck, accelerate blood circulation, and at the same time relieve the patient's fatigue and help to rest, so as to achieve a full The purpose of the post-operative head and neck rehabilitation device for oncology surgery is to automate the direction and accelerate the blood circulation of the head and neck at the same time.

Description

Postoperative head and neck rehabilitation device for tumor surgery

technical field

The utility model relates to the technical field of medical rehabilitation equipment, in particular to a postoperative head and neck rehabilitation device for tumor surgery.

Background technique

Rehabilitation training is required at one end of the head or neck surgery in oncology surgery. Usually, patients can slowly turn their heads while lying in bed, but they cannot exercise their heads up and down, which causes a lot of inconvenience to patients’ recovery. Although there are many kinds of rehabilitation training equipment at present, there are few equipment for head and neck rehabilitation after tumor surgery, and there are many deficiencies. Most of them need to rely on artificial external force to operate the equipment to help patients exercise the head and neck. This will increase the workload of medical staff, and at the same time, it will not ensure sufficient exercise and good rest time for the patient. At the same time, because the patient lies in the hospital bed for a long time, the blood circulation is relatively slow, which is not conducive to the recovery of the disease. . Therefore, a post-operative head and neck rehabilitation device for oncology surgery is proposed, which has omnidirectional automation and accelerates the blood circulation of the head and neck at the same time.

Utility model content

In order to realize the purpose of the above-mentioned head and neck rehabilitation device for post-operative oncology surgery that has omnidirectional automation and accelerates blood circulation of the head and neck at the same time, the present utility model provides the following technical solutions: the post-operative head and neck rehabilitation device for tumor surgery includes a headrest and A protective plate, the front end of the headrest is movably connected to the protective plate through a spring rod, a first motor is fixedly installed on the back of the headrest, a gear ring is movably installed at the inner center of the headrest, and the gear ring is A gear is movably installed on the inner side, a metal fixing seat is fixedly installed at the center of the gear ring, a sliding ball rod is fixedly connected to the right end of the gear, and a pallet chute is movably connected to the right end of the sliding ball rod. A linkage rod and a sliding rod are fixedly connected to the fixed seat and the gear respectively, a threaded sleeve rod is fixedly installed on the top of the metal fixed seat, and the lower right end of the linkage rod is fixedly connected to the threaded sleeve rod. A fixed block is fixedly installed on the back, the front end of the fixed block is rotatably connected with a slider, the lower end of the protective plate is movably installed with a massage board, the upper surface of the massage board is fixedly connected with a back board, and the interior of the back board is opened There is a backboard chute, a slide plate is movably installed inside the backboard chute, a massage club is inserted into the surface of the backboard, a second motor is fixedly installed on the left side of the inside of the massage board, and the first The right end of the second motor is rotatably connected with a connecting gear, and the right end of the connecting gear is rotatably connected with a metal rotating rod. The left and right sides of the metal rotating rod are fixedly sleeved with fixed sleeve rods, and between the two fixed sleeve rods A roller is sleeved, the left and right ends of the roller are fixedly installed with a reel, a wire rope is wound on the reel, the upper end of the wire rope is fixedly connected with the slide plate, and the inner wall of the lower end of the massage board is fixedly installed There are fixed sliders.

The beneficial effects of the utility model are as follows: when the head and neck rehabilitation device for post-tumor surgery is in use, the patient's head is put into the headrest, the upper end surface of the headrest is provided with a concave arc groove, and the wall of the groove is fixed with a pavement. A layer of sponge pad is attached to ensure that the patient's head is more comfortable when lying on the headrest, to avoid wound collision, the neck is in contact with the back plate at the lower end of the protective plate, and then the first motor and the second motor are turned on, and the first motor rotates Drive the threaded sleeve rod, linkage rod, and gear to rotate, and then the gear will make a circular motion on the inside of the gear ring, and then the gear will drive the sliding ball rod to slide inside the pallet chute, when the person's head lies on the headrest, then The pallet chute will drive the upper half of the headrest and the head of the person to rotate in a circular manner, and the connecting gear, the metal rotating rod and the roller will be driven to rotate by the rotation of the second motor, and then under the action of the fixed sliding block, the roller will rotate. Move back and forth on the metal rotating rod, and then the steel wire rope will drive the skateboard to move back and forth in the backboard chute, and then when the skateboard moves left and right, it will move left and right with the massage club, so as to realize the back and forth massage movement of the patient's neck and accelerate blood circulation At the same time, it can also relieve the fatigue of the patient and help to rest, so as to realize the purpose of a postoperative head and neck rehabilitation device for oncology surgery that has omnidirectional automation and accelerates the blood circulation of the head and neck at the same time.

As an optimization, a concave arc groove is formed on the upper end surface of the headrest, and a layer of sponge pad is fixed on the groove wall, so as to ensure that the patient's head is more comfortable when lying on the headrest and avoid wound collision.

As an optimization, the inner side of the gear ring meshes with the outer side of the gear, and the first motor rotates to drive the threaded sleeve rod, the linkage rod, and the gear to rotate, and then the gear will make a circular motion on the inner side of the gear ring, and then the gear will drive the sliding ball bar Sliding inside the pallet chute, when the person's head is lying on the headrest, then the pallet chute will drive the upper half of the headrest and the person's head to make a circular rotation.

As an optimization, the linkage rod and the upper left end of the sliding rod intersect on the gear, and the inner side of the sliding rod is provided with a chute. The rotation of the linkage rod drives the rotation of the gear and the sliding rod. The block slides back and forth inside the slide bar.

As an optimization, the fixed block and the sliding rod are movably connected by the sliding block. When the gear rotates around the gear ring, the sliding block will slide in the sliding groove of the sliding rod under the action of the fixed block, and the sliding rod enhances the rotation of the gear. time stability.

As an optimization, the lower end of the massage club is fixedly connected with the slide plate, and the surface of the back plate is provided with a chute corresponding to the connecting rod body at the lower end of the massage club. When the slide plate moves left and right, the massage club will move left and right .

As an optimization, an S-shaped chute is provided on the top of the roller, and the upper end of the fixed sliding block is movably connected with the S-shaped chute, and the connecting gear, the metal rotating rod and the roller are driven to rotate by the rotation of the second motor, and then the second motor rotates. Under the action of the fixed sliding block, the roller moves back and forth on the metal rotating rod, and then the steel wire rope will drive the slide plate to move back and forth in the back plate chute, and then when the slide plate moves left and right, it will move left and right with the massage club, so as to realize the neck of the patient. The body moves back and forth in a massage style, which accelerates blood circulation and also relieves the patient's fatigue and helps to rest.

Description of drawings

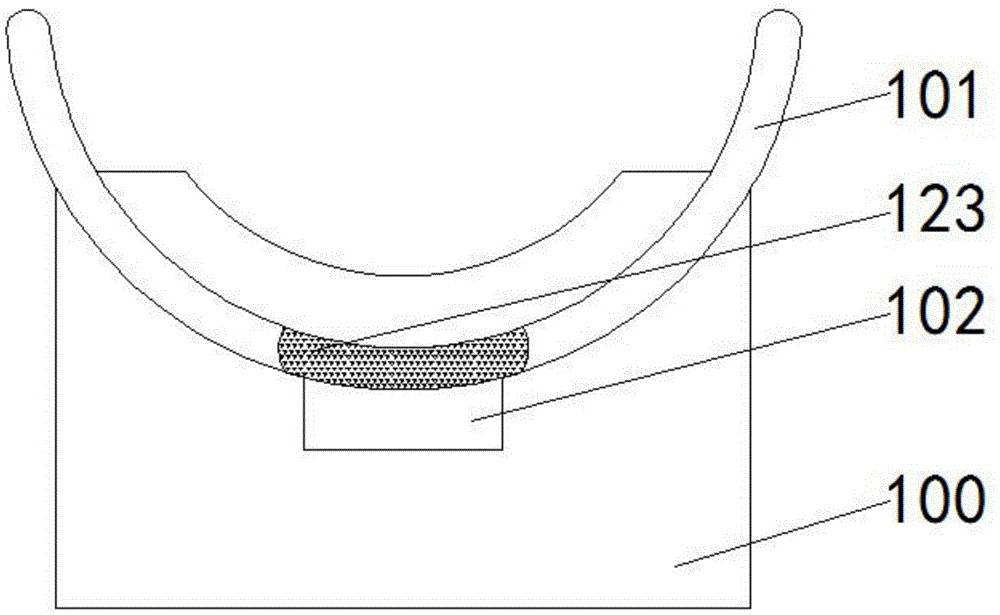

1 is a schematic front view of the structure of the present utility model;

Fig. 2 is the schematic diagram of the back of the structure of the utility model;

3 is a schematic side view of the structure of the utility model;

FIG. 4 is a schematic view of the interior of the headrest with the structure of the present invention;

Fig. 5 is a schematic diagram of the structural massage board of the present invention;

FIG. 6 is a partial schematic view of the interior of the headrest with the structure of the present invention.

In the picture: 100-headrest, 101-protection plate, 102-massage plate, 103-spring rod, 104-first motor, 105-gear ring, 106-slide rod, 107-fixed block, 108-slider, 109 -Threaded Sleeve Rod, 110-Metal Fixed Seat, 111-Linkage Rod, 112-Gear, 113-Metal Rod, 114-Roller, 115-Fixed Sleeve Rod, 116-Roller, 117-Fixed Slide Block, 118- Wire rope, 119-connecting gear, 120-second motor, 121-slide board, 122-backboard, 123-massage club, 124-backboard chute, 125-support board chute, 126-slide club.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIGS. 1-6 , the post-operative head and neck rehabilitation device for tumor surgery includes a headrest 100 and a protective plate 101 . The front end of the headrest 100 is movably connected to the protective plate 101 through a spring rod 103 , and a concave is formed on the upper end surface of the headrest 100 . A curved groove, and a layer of sponge pad is fixed on the groove wall, so as to ensure that the patient's head is more comfortable when lying on the headrest 100 and avoid wound collision. The back of the headrest 100 is fixedly installed with the first motor 104, and A gear ring 105 is movably mounted on the inner center of the pillow 100, a gear 112 is movably mounted on the inner side of the gear ring 105, and the inner side of the gear ring 105 meshes with the outer side of the gear 112, and the first motor 104 rotates to drive the threaded sleeve rod 109 and the linkage rod 111. The gear 112 rotates, and then the gear 112 will make a circular motion on the inside of the gear ring 105, and then the gear 112 will drive the sliding ball bar 126 to slide inside the pallet chute 125. When the person's head lies on the headrest 100, Then the support plate chute 125 will drive the upper half of the headrest 100 and the head of the person to rotate in a circular manner, the metal fixing seat 110 is fixedly installed at the center of the gear ring 105, and the sliding ball rod 126 is fixedly connected to the right end of the gear 112. , the right end of the sliding ball bar 126 is movably connected with a pallet chute 125, a linkage rod 111 and a sliding rod 106 are fixedly connected to the metal fixing seat 110 and the gear 112, respectively, and the linkage rod 111 and the upper left end of the sliding rod 106 intersect at the gear 112. and the inner side of the sliding rod 106 is provided with a chute. The rotation of the linkage rod 111 drives the gear 112 and the sliding rod 106 to rotate. The chute opened on the sliding rod 106 is convenient for the sliding block 108 to slide back and forth inside the sliding rod 106. A threaded sleeve rod 109 is fixedly installed on the top of the metal fixing seat 110, and the lower right end of the linkage rod 111 is fixedly connected with the threaded sleeve rod 109. The back of the lower right end of the sliding rod 106 is fixedly installed with a fixed block 107, the fixed block 107 and the sliding rod 106 is movably connected by the slider 108. When the gear 112 rotates around the gear ring 105, the slider 108 will slide in the chute of the sliding rod 106 under the action of the fixed block 107. At the same time, the sliding rod 106 enhances the rotation of the gear 112. The front end of the fixed block 107 is rotatably connected to the slider 108, and the lower end of the protective plate 101 is movably installed with the massage plate 102, the upper surface of the massage plate 102 is fixedly connected to the back plate 122, and the interior of the back plate 122 is provided with a back plate chute. 124, a sliding plate 121 is movably installed inside the backboard chute 124, a massage club 123 is inserted on the surface of the backboard 122, the lower end of the massage club 123 is fixedly connected with the slide plate 121, and a surface with The lower end of the massage club 123 is connected to the corresponding chute of the rod body. When the slide plate 121 moves left and right, the massage club 123 will move left and right. The inner left side of the massage board 102 is fixedly installed with a second motor 120. The right end is rotatably connected with a connecting gear 119, and the right end of the connecting gear 119 rotates A metal rotating rod 113 is connected, the left and right sides of the metal rotating rod 113 are fixedly sleeved with a fixed sleeve rod 115, a roller 114 is sleeved between the two fixed sleeve rods 115, and the left and right ends of the roller 114 are fixedly installed There is a reel 116, a wire rope 118 is wound on the reel 116, the upper end of the wire rope 118 is fixedly connected with the slide plate 121, a fixed sliding block 117 is fixedly installed on the inner wall of the lower end of the massage board 102, and an S-shaped chute is opened on the upper surface of the roller 114 , and the upper end of the fixed sliding block 117 is movably connected with the S-shaped chute, and the second motor 120 rotates to drive the connecting gear 119, the metal rotating rod 113 and the roller 114 to rotate, and then under the action of the fixed sliding block 117, the roller 114 moves back and forth on the metal rotating rod 113, and then the steel wire 118 will drive the slide plate 121 to move back and forth in the backboard chute 124, and when the slide plate 121 moves left and right, it will move left and right with the massage club 123, so as to realize the back and forth of the patient's neck. Massage-style movement, accelerates blood circulation and relieves the patient's fatigue and helps to rest.

When in use, the head and neck rehabilitation device for oncology surgery is used, the patient's head is placed in the headrest 100, the upper end surface of the headrest 100 is provided with a concave arc groove, and a layer of sponge pad is fixed on the groove wall. , so as to ensure that the patient's head is more comfortable when lying on the headrest 100, avoid wound collision, the neck is in contact with the back plate 122 at the lower end of the protective plate 101, and then the first motor 104 and the second motor 120 are turned on, through the first motor 104 The rotation drives the threaded sleeve rod 109, the linkage rod 111 and the gear 112 to rotate, and then the gear 112 will make a circular motion inside the gear ring 105, and then the gear 112 will drive the sliding ball rod 126 to slide inside the pallet chute 125. The head lies on the headrest 100, and then the supporting plate chute 125 will drive the upper half of the headrest 100 and the head of the person to rotate in a circular manner, and the second motor 120 will rotate to drive the connecting gear 119, the metal rotating rod 113 and the The roller 114 rotates, and then under the action of the fixed sliding block 117, the roller 114 moves back and forth on the metal rotating rod 113, and then the wire rope 118 drives the slide plate 121 to move back and forth in the back plate chute 124, and when the slide plate 121 moves left and right , it will move left and right with the massage club 123, so as to realize the back and forth massage movement of the patient's neck, accelerate the blood circulation, and at the same time relieve the patient's fatigue and help to rest.

The above are only the preferred specific embodiments of the present invention, but the protection scope of the present invention is not limited thereto. Equivalent replacement or modification of the technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (7)

1. The post-operative head and neck rehabilitation device for tumor surgery, comprising a headrest (100) and a protective plate (101), characterized in that: the front end of the headrest (100) moves through a spring rod (103) and the protective plate (101) connect; A first motor (104) is fixedly installed on the back of the headrest (100), a gear ring (105) is movably installed at the inner center of the headrest (100), and the inner side of the gear ring (105) is movably installed There is a gear (112), a metal fixing seat (110) is fixedly installed at the center of the gear ring (105), and a sliding ball rod (126) is fixedly connected to the right end of the gear (112). The right end of 126) is movably connected with a pallet chute (125), and a linkage rod (111) and a sliding rod (106) are respectively fixedly connected to the metal fixing seat (110) and the gear (112). A threaded sleeve rod (109) is fixedly installed on the top of (110), and the lower right end of the linkage rod (111) is fixedly connected with the threaded sleeve rod (109), and the back of the lower right end of the sliding rod (106) is fixedly installed with a fixed A block (107), the front end of the fixed block (107) is rotatably connected with a slider (108); A massage board (102) is movably mounted on the lower end of the protective plate (101), a backboard (122) is fixedly connected to the upper surface of the massage board (102), and a backboard slide is provided inside the backboard (122). A groove (124), a slide plate (121) is movably installed inside the backboard chute (124), a massage club (123) is inserted into the surface of the backboard (122), and the massage board (102) A second motor (120) is fixedly installed on the left side of the inside of the second motor (120), a connecting gear (119) is rotatably connected to the right end of the second motor (120), and a metal rotating rod (113) is rotatably connected to the right end of the connecting gear (119). ), the left and right sides of the metal rotating rod (113) are fixedly sleeved with fixed sleeve rods (115), and a roller (114) is sleeved between the two fixed sleeve rods (115). A reel (116) is fixedly installed on the left and right ends of the reel (114), a wire rope (118) is wound on the reel (116), and the upper end of the wire rope (118) is fixedly connected with the slide plate (121), so A fixed sliding block (117) is fixedly installed on the inner wall of the lower end of the massage plate (102). 2. The post-operative head and neck rehabilitation device for tumor surgery according to claim 1, characterized in that: a concave arc groove is formed on the upper end surface of the headrest (100), and a layer of sponge is fixed on the groove wall. pad. 3. The post-operative head and neck rehabilitation device for tumor surgery according to claim 1, wherein the inner side of the gear ring (105) meshes with the outer side of the gear (112). 4. The post-operative head and neck rehabilitation device for tumor surgery according to claim 1, wherein the linkage rod (111) and the upper left end of the sliding rod (106) intersect on the gear (112), and the sliding rod (112) The inner side of 106) is provided with a chute. The post-operative head and neck rehabilitation device according to claim 1, wherein the fixed block (107) and the sliding rod (106) are movably connected through a slider (108). 6. The post-operative head and neck rehabilitation device according to claim 1, characterized in that: the lower end of the massage club (123) is fixedly connected with the slide plate (121), and the surface of the back plate (122) is provided with a There is a chute corresponding to the connecting rod body at the lower end of the massage club (123). 7. The post-operative head and neck rehabilitation device according to claim 1, characterized in that: an S-shaped chute is provided on the upper surface of the roller (114), and the upper end of the fixed sliding block (117) is connected to the S-shaped chute. Shaped chute active connection.
