Abstract

The utility model discloses a dust-reducing mechanism of a belt conveyor, which comprises a main body of the belt conveyor, a bottom end of the main body of the belt conveyor is fixedly installed with support columns, and the number of the support columns is six, and the support column in the front right One side of the belt conveyor is fixedly installed with a control panel, and the other side is fixedly installed with a water pump. The top of the water pump is connected with a water outlet pipe. The inside of the main body of the belt conveyor is evenly installed with a conveying shaft through bearings. The conveying shaft. The upper sleeve Connected to the conveyor belt. The utility model is provided with a waste water recycling and utilization structure. When the transported goods are transported to the end, the goods will slide down the filter screen, and the water that has been dedusted before in the goods will flow into the filter screen through the filter gap of the filter screen, and then pass through the filter screen. The water pump is reused to reduce the utilization and pollution of water resources, because the dustfall on the upper part will make the dust stick to the conveyor belt, and the residue collection rod will filter the dust and residue on the surface of the conveyor belt into the residue collection box to keep the environment clean and tidy.

Description

A dust suppression mechanism for a belt conveyor

technical field

The utility model relates to the technical field of dust reduction structures, in particular to a dust reduction mechanism of a belt conveyor.

Background technique

At present, for thermal power generation, cement production and other enterprises, the control of dust pollution generated in the process of fuel transportation has always been a difficult problem. Belt conveyors are commonly used material conveying equipment in thermal power plants. Materials, such as burning coal, generate a lot of dust during the transfer process, especially high dust materials, such as Xinjiang Guanghui Coal, Xinjiang Guanghui Coal is one of the aforementioned dust materials. It belongs to lignite and has a large dust content. It is coal produced by China Guanghui Energy Co., Ltd. in Xinjiang, China. There are many reasons for dust generation in the transfer station of the conveying system. For example, the raw materials are dry (the surface moisture is low) and it is easy to dust, the transfer point equipment (blanking pipe, material guide trough, air lock, etc.) is not tightly sealed, and the belt conveyor Abnormal operation (deviation, up and down fluctuations, etc.), unreliable dust removal equipment, etc. However, the main reason is that the drop of the drop tube produces induced wind during the transfer process of the material. The upper and lower belts of each transfer station have different levels of drop. When the material passes through, the high-speed falling material compresses the air in the drop tube. , to generate air flow, resulting in dust flying at the outlet of the guide chute and the inlet of the blanking pipe. At present, the dust removal methods widely used in material conveying system transfer stations of thermal power plants, cement plants and other enterprises mainly include dry dust removal and wet dust removal. Dry dust removal is widely used in bag dust removal and electrostatic dust removal. Wet dust removal is mainly based on spray dust removal and chemical dust removal. Among them, chemical dust removal can also be said to be an extension of spray dust removal technology. The dust suppression agent is added to the spray equipment to improve the dust suppression effect. The efficiency is not high, the traditional spray dust removal efficiency is not high, the utilization of water resources is not sufficient to waste water resources, and the residual waste residue transported affects the cleanliness of the working environment.

Utility model content

The purpose of this utility model is to provide a dust suppression mechanism for a belt conveyor, so as to solve the problems that the traditional spray dust removal efficiency proposed in the above-mentioned background technology is not high, the utilization of water resources is not sufficient to waste water resources, and the transported residual waste residues Issues affecting the cleanliness of the work environment.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a dust suppression mechanism for a belt conveyor, comprising a main body of the belt conveyor, and a support column is fixedly installed at the bottom end of the main body of the belt conveyor, and the number of the support column is six. A control panel is fixedly installed on one side of the support column in the front right, and a water pump is fixedly installed on the other side. The top of the water pump is connected with a water outlet pipe, and a conveying shaft is evenly installed inside the main body of the belt conveyor through bearings. , The conveying shaft is sleeved with a conveyor belt.

Preferably, a dust suppression layer is fixedly installed on the top of the main body of the belt conveyor, and a dust suppression nozzle is evenly installed at the bottom end of the water outlet pipe inside the dust suppression layer from left to right.

Preferably, a filter screen fixing block is fixedly installed on the right end of the main body of the belt conveyor, a filter screen is slidably installed on the filter screen fixing block, and a sewage collection box is fixedly installed on the right side of the support column on the right side.

Preferably, a residue collection box is fixedly installed on the support column on the left side, and a residue collection rod is fixedly installed on the inner surface of the main body of the belt conveyor, and the number of the residue collection rods is two, and there are two residue collection rods. A fixing plate is fixedly installed on one side close to each other.

Preferably, the bottom end of the water pump is connected with a water inlet pipe, and the end of the water inlet pipe away from the water pump extends into the sewage collection tank.

Preferably, a water inlet filter head is connected to one end of the water inlet pipe away from the water pump.

Compared with the prior art, the beneficial effects of the present utility model are:

1. The water inlet filter head is connected to the water inlet pipe mouth. One end of the water inlet filter head is provided with a filter screen to filter out the small particles in the sewage so as to prevent the dust reduction nozzle from being blocked when entering the dust reduction nozzle, which will affect the dust reduction effect of the equipment.

2. By setting a dust-reduction layer to wrap the goods in the belt conveyor, the dust generated by the goods is separated from the outside world, so that the dust can complete the dust-reduction in the dust-reduction layer, increase the efficiency of water spraying and dust-reduction, and reduce the dust pollution to the air. Protect the health of workers.

3. By setting up the waste water recycling structure, when the transported goods are transported to the end, the goods will slide down the filter screen, and the water that has been dedusted in the goods will flow into the filter screen through the filter gap of the filter screen, and then be pumped by the water pump. Reuse, reduce the utilization and pollution of water resources, because the dust on the upper part will make the dust stick to the conveyor belt, which may drip on the ground and affect the cleanliness of the working environment. In the residue collection box, keep the environment clean and tidy.

Description of drawings

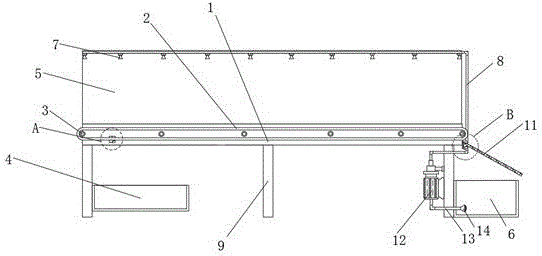

Fig. 1 is the front sectional schematic diagram of the structure of the utility model;

Fig. 2 is the side view schematic diagram of the structure of the utility model;

Fig. 3 is the partial enlarged schematic diagram of A in Fig. 1 of the utility model;

FIG. 4 is a partial enlarged schematic diagram of part B in FIG. 1 of the present invention.

In the figure: 1. Main body of belt conveyor; 2. Conveyor belt; 3. Conveying shaft; 4. Residue collection box; 5. Dust suppression layer; 6. Sewage collection box; Support column; 10, filter screen fixing block; 11, filter screen; 12, water pump; 13, water inlet pipe; 14, water inlet filter head; 15, fixed plate; 16, residue collection rod; 17, control panel.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Figures 1-4, an embodiment provided by the present utility model:

A dust suppression mechanism for a belt conveyor includes a main body 1 of a belt conveyor, a supporting column 9 is fixedly installed at the bottom end of the main body 1 of the belt conveyor, and the number of the supporting columns 9 is six, and one side of the front right supporting column 9 is fixed A control panel 17 is installed, a water pump 12 is fixedly installed on the other side, and a water outlet pipe 8 is connected to the top of the water pump 12. The inside of the main body 1 of the belt conveyor is evenly installed with a conveying shaft 3 through a bearing. The conveying shaft 3 is sleeved with a conveying shaft. Machine Belt 2.

The top end of the belt conveyor main body 1 is fixedly installed with a dust suppression layer 5, and the bottom end of the water outlet pipe 8 inside the dust suppression layer 5 is evenly installed with a dust suppression nozzle 7 from left to right. The dust is discharged in the dust-reducing nozzle 7 to reduce the dust material through the water mist to increase the dust-reducing efficiency.

A filter screen fixing block 10 is fixedly installed on the right end of the main body 1 of the belt conveyor, and a filter screen 11 is slidably installed on the filter screen fixing block 10. When the transported goods are delivered to the end, the goods will slide down the filter screen 11, and the water that has been dedusted in the goods will flow into the sewage collection tank 6 through the filter gap of the filter screen 11. Some goods store too much water. affect the quality of the goods.

A residue collection box 4 is fixedly installed on the left support column 9, and a residue collection rod 16 is fixedly installed on the inner surface of the main body 1 of the belt conveyor, and the number of the residue collection rods 16 is two, and the two residue collection rods 16 are close to each other. The fixing plate 15 is fixedly installed on one side of the conveyor belt. By setting the dust drop on the upper part of the residue collecting rod 16, the dust will stick to the conveyor belt, which may drop on the ground and affect the cleanliness of the working environment. The residue collecting rod 16 will remove the dust on the surface of the conveyor belt and The residue is filtered out into the residue collection box 4 to keep the environment clean and tidy.

The bottom end of the water pump 12 is connected with a water inlet pipe 13. The model of the water pump can be PH-176EAH, which transmits the mechanical energy of the prime mover to the liquid to increase the liquid energy, thus achieving the purpose of conveying the liquid.

, and the end of the water inlet pipe 13 away from the water pump 12 extends into the sewage collection tank 6, and the waste water used for dust reduction is collected and reused by setting the sewage collection tank 6 to reduce the waste of water resources.

The end of the water inlet pipe 13 away from the water pump 12 is connected with the dust suppression nozzle 7. By setting the water inlet filter head 14, many small particles in the sewage will block the dust suppression nozzle 7 if it is directly transported to the dust suppression nozzle 7, and the sewage will pass through the dust suppression nozzle 7. particles are filtered out.

Working principle: When the device is in use, the device will be turned on through the control panel 17, and the water pump 12 will suck the waste water in the sewage collection tank 6 into the outlet pipe 8 through the filtration of the inlet filter head 14. One end of the inlet filter head 14 A filter screen 11 is provided to filter out the small particles in the sewage so as not to block the dust-reducing nozzle 7 when entering the dust-reducing nozzle 7 and affect the dust-reducing effect of the equipment. The water in the water outlet pipe 8 enters the dust-reducing nozzle 7. To prevent dust, a dust-reducing layer 5 is set on the main body of the belt conveyor 1 to prevent dust from leaking. The dust-reducing nozzle 7 is used to reduce dust through water mist. When the transported goods are delivered to the end, the goods will slide down the filter screen 11. , the previously dedusted water in the cargo will flow into the sewage collection tank 6 through the filter gap of the filter screen 11 and then be reused by the water pump 12 to reduce the utilization and pollution of water resources, because the upper dustfall will cause the dust to stick to the conveyor belt. , may drip on the ground and affect the cleanliness of the working environment. The residue collecting rod 16 will filter the dust and residues on the surface of the conveyor belt into the residue collecting box 4 to keep the environment clean.

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, and that the present invention may be implemented in other specific forms without departing from the spirit or essential characteristics of the present invention. Therefore, the embodiments are to be considered in all respects as exemplary and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, and it is therefore intended that the All changes within the meaning and range of the required equivalents are embraced within the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

Claims (6)

1. A dust suppression mechanism for a belt conveyor, comprising a belt conveyor main body (1), characterized in that a support column (9) is fixedly installed at the bottom end of the belt conveyor main body (1), and the support column (9) The number of ) is six, the control panel (17) is fixedly installed on one side of the support column (9) in the front right, and the water pump (12) is fixedly installed on the other side, and the top of the water pump (12) is connected with an outlet The water pipe (8), the inside of the belt conveyor main body (1) is uniformly installed with a conveying shaft (3) through bearings, and the conveying shaft (3) is sleeved with a conveyor belt (2). 2 . The dust suppression mechanism of a belt conveyor according to claim 1 , wherein a dust suppression layer ( 5 ) is fixedly installed on the top of the belt conveyor main body ( 1 ), and the inner side of the dust suppression layer ( 5 ) is installed. 3 . The bottom end of the water outlet pipe (8) is evenly installed with dust suppression nozzles (7) from left to right. 3. The dust suppression mechanism of a belt conveyor according to claim 1, characterized in that: a filter screen fixing block (10) is fixedly installed on the right end of the belt conveyor main body (1), and the filter screen fixing block (10) A filter screen (11) is slidably installed, and a sewage collection tank (6) is fixedly installed on the right side of the support column (9) on the right side. 4 . The dust suppression mechanism of a belt conveyor according to claim 1 , wherein a residue collection box ( 4 ) is fixedly installed on the support column ( 9 ) on the left side, and the main body of the belt conveyor ( 1 ). ) is fixedly installed with residue collection rods (16), and the number of residue collection rods (16) is two, and a fixing plate (15) is fixedly installed on the sides of the two residue collection rods (16) that are close to each other. ). 5 . The dust suppression mechanism of a belt conveyor according to claim 1 , wherein a water inlet pipe ( 13 ) is connected to the bottom end of the water pump ( 12 ), and the water inlet pipe ( 13 ) is far away from the water pump ( 12 ). 6 . one end extends into the sewage collection tank (6). 6 . The dust suppression mechanism of a belt conveyor according to claim 5 , wherein a water inlet filter head ( 14 ) is connected to one end of the water inlet pipe ( 13 ) away from the water pump ( 12 ). 7 .
